Bosch B36ct80sns Ice Maker Not Working
Your Bosch B36ct80sns ice maker not working is a quiet annoyance that slowly turns into a real headache. You press the paddle, get nothing, and reach for bagged ice. The good news is this fridge uses a modular Twist Ice system.
Most failures are fixable at home with basic tools and a little patience.
Manufacturer specifications indicate the water inlet valve needs 20 to 120 psi, and the freezer should sit near 0°F. If either number is off, ice production suffers before you ever see an error code. Service data and aggregate user reports confirm the most common root cause isn't a broken motor.
It's a clogged water filter or an air pocket in the supply line. We'll walk you through the checks in order, so you don't replace parts you don't need.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
A Bosch B36ct80sns ice maker not working usually has an easy fix. Confirm the ice maker is turned on. Verify the freezer is below 10°F.
Replace the water filter and purge the air line. Then run a test cycle.
Before You Tear Anything Apart: The Quick-Fix Checks
Image source: Bing (Web (fair-use with source credit))
Start here before you buy anything. These five checks take about ten minutes and clear up a surprising number of dead ice makers.
| Check | What to Do | Why It Fixes |
|---|---|---|
| Ice maker setting | Open the control panel menu and confirm the Ice Maker is set to On. | This model can be switched off accidentally. |
| Freezer temperature | Set it between 0°F and 5°F. | The ice maker stops producing above 18°F. |

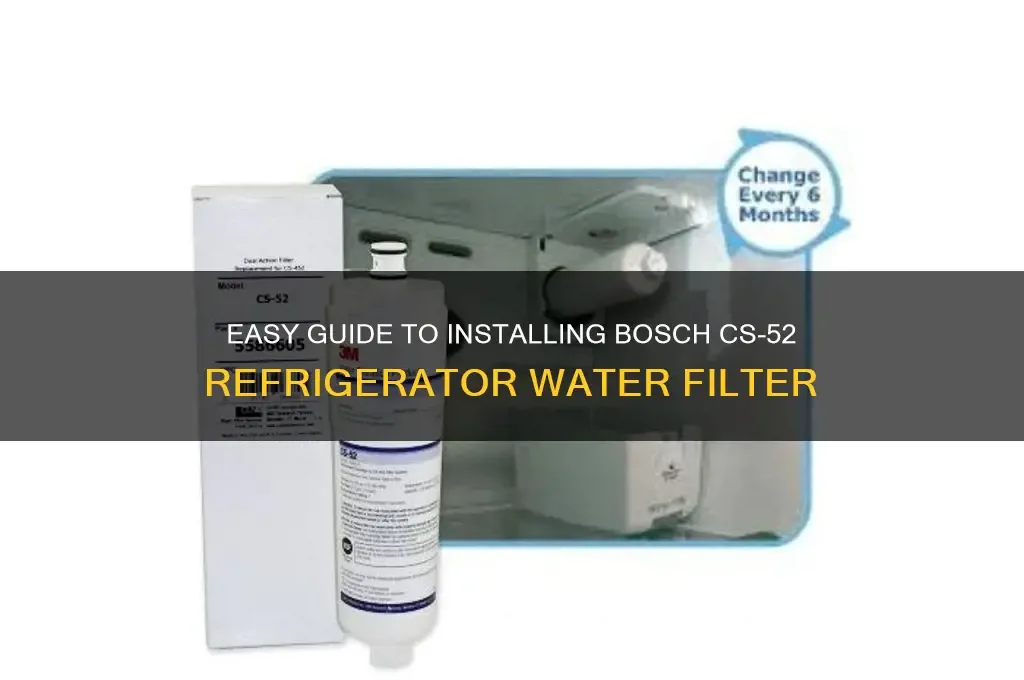

| Water filter | Replace if older than six months, then run the dispenser for two minutes. | A clogged filter reduces the water flow enough to stall production. |
| Supply line | Open the shut-off valve fully and be sure the line isn't kinked. | Air pockets and blockages prevent the fill cycle. |
| Door switch | Open and close the freezer door, then listen for a click. | The ice maker won't run when the door is open. |
One thing most people skip is purging the air line after a filter change. Air pockets create water hammer and stop the fill valve. That's a huge cause of Bosch ice maker failures.
How the Twist Ice System Actually Works (and What Breaks)
The cycle is simple. Water enters through the inlet valve. The tray fills and freezes.
A sensor confirms the cubes are solid. Then a heater releases the cubes, and the motor rotates the tray to drop them into the bucket.
Each stage depends on the last. If any one fails, the whole cycle stops.
Key components to know:
- Water inlet valve: opens to fill the tray. Fails by sticking closed or leaking open.
- Thermistor: tells the board when the cubes are frozen. Fails by drifting out of range.
- Harvester motor: turns the tray. Fails after ice jams strip the gears.
- Main control board: talks to everything. Rare, but communication errors happen.
As of 2026, replacement modules for the B36ct80sns are still widely available. That's good, because the whole assembly lifts out as one unit.
One diagnostic shortcut: if the water dispenser works fine but the ice maker doesn't, start with the ice maker module. If the water dispenser is slow too, check the filter and supply line first.
Symptom-Based Decision Tree: What's Your Ice Machine Telling You?
Image source: Bing (Web (fair-use with source credit))
Start with the test button on the front of the module. It's recessed, so use a small screwdriver or paperclip. Press and hold for three seconds to force a harvest cycle.
- No ice at all, water dispenser works: The fill or harvest stage is failing. Press the test button. If you hear a click but no water, check the inlet valve. If the motor doesn't turn, replace the module.
- Small, hollow, or shrunken cubes: You have a water flow problem. Run the dispenser for two minutes. A thin or sputtering stream means a clogged filter, kinked line, or low pressure. Fix the flow, then run another cycle.
- Ice maker runs but no cubes drop: The Twist Ice tray is jammed. Inspect the tray for ice buildup or frost. If you see clumps, defrost and clear them. If the tray is clean, the gear is likely stripped.
- Grinding, clicking, humming, but no cubes: The motor is turning, but something inside is struggling. Force a test cycle and listen. A clean rotation is quiet. Grinding means the drive gear is gone.
- Leaking water inside the freezer: The tray may be stuck in the harvest position, or the fill valve stays open. Unplug the fridge and inspect. Then test the inlet valve with a multimeter. Correct resistance is 200 to 400 ohms.
If you get an error code instead of random behavior, the next section is your map.
Error Codes Deep Dive: What the Display Is Trying to Tell You
To enter diagnostic mode, press and hold Ice and Lock together for about five seconds. The info display should start blinking. Use the up and down keys to scroll through stored errors.
Bosch's official support pages include the full user guide for this model.
| Error Code | What It Means | What to Check |
|---|---|---|
| E:01 | Water inlet valve failure | Valve resistance, water line pressure |
| E:02 | Ice maker motor or harvest failure | Ice jam, gear mesh, motor winding |
| E:03 | Ice maker sensor open circuit | Thermistor connector and wiring |
| E:04 | Ice maker sensor short circuit | Moisture inside the sensor connector |
| E:05 | Communication failure with main board | Harness, connector pins, control board |
Codes clear after a full power cycle. Unplug the fridge for five minutes after the repair. If the code returns, the component is still bad.
And if no code appears, don't treat silence as a clean bill of health. Many mechanical failures never trigger a software error.
Common Mistakes That Waste Your Time (and Money)
These mistakes show up over and over in repair data and verified buyer reports. Avoid them and you'll cut the troubleshooting time in half.
- Skipping the water filter. This is the number one reason a dead ice maker starts working again after a cheap filter swap.
- Not purging air after a filter change. Air locks stop water flow. Always run the dispenser for two minutes.
- Ignoring the door switch. It can click even when the contacts are burned. Test it with a multimeter.
- Assuming no error code means no problem. Mechanical failures often don't trigger software codes.
- Testing the inlet valve with the wrong meter setting. You want resistance in ohms, not voltage.
- Buying a generic ice maker module. It may fit, but the control board may not recognize it. Stick with a Bosch module or an OEM equivalent.
- Running diagnostic mode with the freezer door open. The system won't complete the test cycle, and you'll get a false failure.
When to Replace vs. When to Call a Pro
Some problems are DIY friendly. Others need a technician. The key is knowing the cutoff.
| Scenario | Estimated Cost | DIY Possible? |
|---|---|---|
| Ice maker module replacement | $80 to $140 (part) | Yes, pops out with a screwdriver |
| Water inlet valve | $30 to $60 (part) | Yes, but need a multimeter |
| Main control board | $150 to $250 (part) | Risky, can cause more damage |
| Professional diagnostic visit | $100 to $200 (labor) | N/A, tech does the work |
| Full repair by pro | $200 to $500 | Only if under warranty |
Call a technician if you see signs of a main board failure, wiring harness damage, or refrigerant issues. Leaks around the compressor or frost buildup on the freezer wall point to a sealed system problem. That is not a DIY fix.
Consider the fridge's age too. If your unit is over ten years old, a $200 repair may not make sense. A new ice maker module is often worth it.
A full board replacement on an aging fridge, less so.
One more thing. Check your warranty before you touch anything. If the fridge is still under the standard one year warranty or has an extended plan, DIY repairs can void coverage.
Bosch's official warranty page has the details. A free repair beats a paid one every time.
Frequently Asked Questions
How do I reset the ice maker on my Bosch B36ct80sns?
Press and hold the recessed test button on the front of the ice maker module for three seconds. If that doesn't work, unplug the fridge for five minutes. Plug it back in and wait 24 hours for a full restart.
Why is my Bosch ice maker clicking but not making ice?
A clicking sound usually means the water inlet valve is trying to open but no water is flowing. Check the water filter, supply line, and shut off valve. Replace the filter first.
That solves most cases.
How long does it take for a Bosch ice maker to start making ice after reset?
Expect 90 to 120 minutes for the first batch. The ice maker needs to detect that the freezer is cold enough. Then it fills the tray, freezes the water, and harvests the cubes.
Give it a full day before assuming the fix failed.
Can I use the refrigerator if the ice maker is broken?
Yes. A failed ice maker does not affect the cooling system. You can still store food normally.
Just turn off the ice maker in the control panel to stop any clicking or leaking while you troubleshoot.
What does error code E:01 mean on my Bosch refrigerator?
E:01 signals a water inlet valve failure. Test the valve with a multimeter for resistance between 200 and 400 ohms. If it reads open or shorted, replace the valve.
If the valve tests fine, the main board may have a bad triac.
How do I force a test cycle on a Bosch Twist Ice maker?
Locate the small recessed button on the front of the ice maker module. Press it with a paperclip and hold for three seconds. The motor should turn and the tray should rotate.
If nothing happens, the module likely needs replacement.
