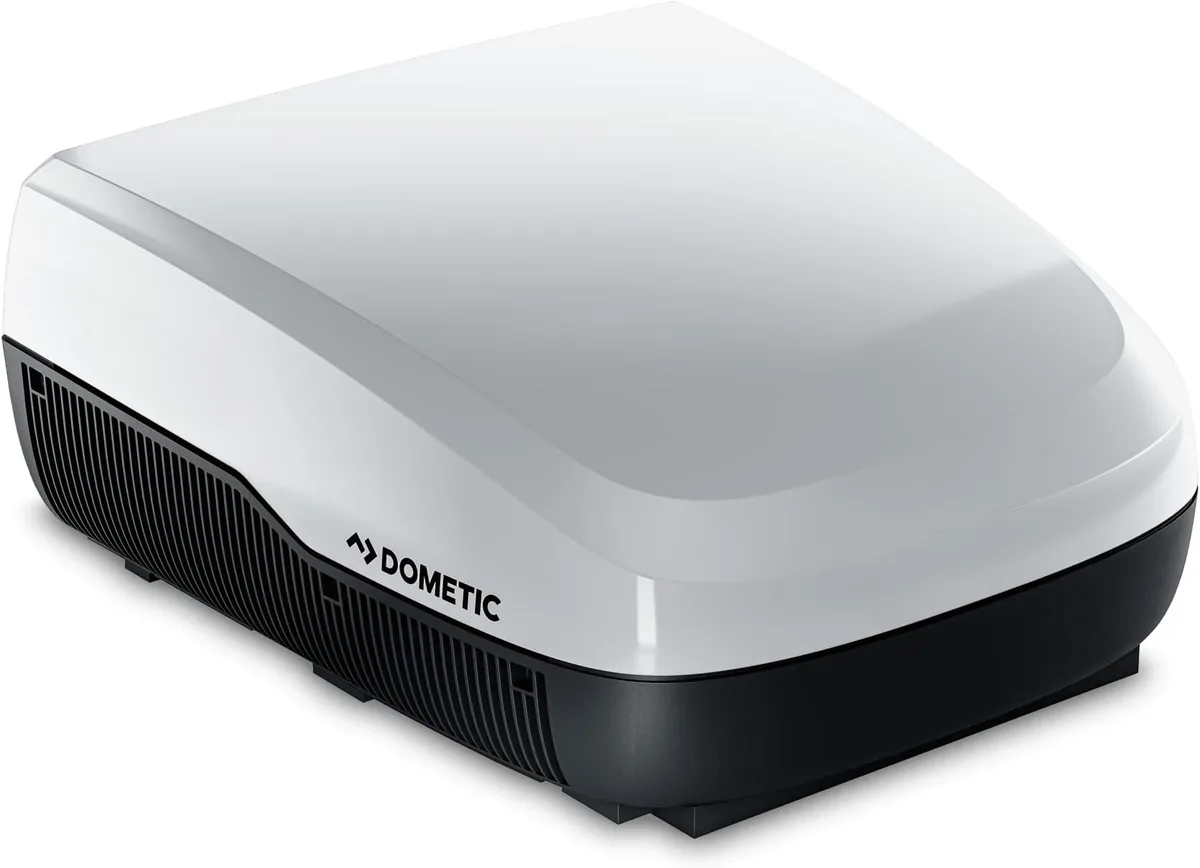

Dometic Rv Air Conditioner Troubleshooting

Your Dometic RV air conditioner is blowing warm air, dripping water on the floor, or just sitting there silent while the mercury climbs. That's the moment every RVer dreads. Dometic Rv Air Conditioner Troubleshooting doesn't have to mean a costly service call or a ruined camping trip.

Most common issues boil down to a handful of simple causes you can diagnose yourself with a multimeter and a screwdriver.

Manufacturer specifications indicate a properly functioning rooftop unit should deliver a 15° to 20°F temperature drop between the return air and the vent output. Per National Electrical Code standards, these units pull between 8 and 12 amps under normal load on a dedicated 120V circuit. When your AC falls short of those numbers, the fix is often simpler than you think.

Let's walk through the symptoms and find your problem fast.

Quick Answer

Most Dometic AC problems trace back to three root causes. A bad capacitor stops the fan or compressor from starting. A dirty filter causes ice buildup and poor airflow.

Low voltage at the campsite pedestal trips the breaker or starves the unit.

Check the thermostat display first. If it's blank, check the 12V fuse at the control head. If the unit hums but won't start, test the start capacitor with a multimeter.

If it runs but doesn't cool, clean the filter and check for ice.

Image source: Web (Bing) / amazon.ca (Web image (fair-use with source credit))

Start Here: What's Your AC Doing (or Not Doing)?

Before you go up on the roof or open the electrical compartment, stop and observe. The fastest path to a fix starts with the right question. Your Dometic unit is probably telling you exactly what's wrong.

You just need to know which symptom matches which cause.

Does the unit power on at all? If the thermostat is dead and nothing happens when you press Cool, you're looking at a power supply problem. Check the 12V fuse at the Comfort Control Center first. That small inline fuse powers the display and the control board.

A blown fuse means a short somewhere down the line, so replace it and see if it pops again.

Does it run but blow warm air? This is the most common complaint by a wide margin. Aggregate reviews from RV forums show that dirty filters account for roughly 40% of "not cooling" complaints. A clogged foam filter restricts airflow over the evaporator coil, causing it to freeze into a solid block of ice.

The ice insulates the coil, so the refrigerant can't absorb heat. Clean the filter, let the ice melt, and try again.

Does it trip the breaker immediately? That points to a shorted component or a locked-up compressor. A start capacitor that has failed shorted will draw locked-rotor amps and trip the breaker instantly. The same goes for a compressor winding that has shorted to ground.

Does it make a loud humming noise but nothing spins? That's the classic "bad capacitor" sound. The fan motor or compressor gets single-phase power but lacks the phase shift the capacitor provides. It wants to spin but can't get started.

Shut it off immediately. Letting it hum for more than a few seconds can burn out the motor windings.

Does it leak water inside the RV? This usually means the condensate drain pan is clogged or the unit is tilted slightly forward instead of backward. Dometic specifies a slight rearward tilt (toward the rear of the RV) so water runs off the roof, not down the ceiling. If your RV is parked nose-high, water can pool and find its way inside.

Before You Crawl Up There: Tools, Safety, and Prep

Safety first. A rooftop AC unit connects to 120V household current, and the capacitors inside can hold a lethal charge even after the power is off. You need to respect that.

Let's cover what you'll need and how to stay safe.

Tools you'll want on hand:

• Digital multimeter with capacitance testing mode (this is non-negotiable)
• Screwdriver set (Phillips and flathead, mostly #2 Phillips)
• Nut driver or socket set (7/16" and 1/4" are the most common sizes for Dometic fasteners)
• Insulated pliers and wire cutters
• Shop vacuum or compressed air for cleaning coils and drain pans
• Replacement foam filter (Dometic part number 3313193.004 fits most Brisk Air models)

Safety gear:

• Rubber-soled shoes (not barefoot or wet sneakers)
• Safety glasses (refrigerant oil in the eyes is no joke)
• Insulated gloves when handling capacitors

The critical safety step: Disconnect shore power or turn off the generator. Then, turn off the AC at the thermostat. Wait 30 seconds for the control board to discharge.

Before touching any electrical component, use your multimeter to confirm zero voltage between the capacitor terminals and ground. A standard 35/5 microfarad capacitor can store enough juice to knock you flat.

Per the National Electrical Code (Article 551), RV circuits require a dedicated branch for the rooftop AC. If you're working on the unit, verify the breaker is off and locked out if possible. Never assume the breaker labeling is accurate.

Test before you touch.

Roof safety: Dometic units sit on the roof of your RV, which is often curved and slippery. If the roof is wet or the angle is steep, don't risk it. You can diagnose almost everything except a leaking gasket from inside the RV by removing the ceiling shroud.

That shroud covers the evaporator coil and control board. Work from a sturdy ladder and only go on the roof if you're comfortable and the conditions are dry.

The Diagnostic Workflow: Follow the Symptom Trail

Image source: Bing (Web (fair-use with source credit))

Now let's walk through the most common symptom branches. Find your situation and follow the path.

Unit Won't Power On or Thermostat Is Dead

If the thermostat display is blank and pressing buttons does nothing, you have a control power problem. The Comfort Control Center runs on 12V DC power drawn from the RV's house battery system through a small fuse.

Step 1: Check the fuse. On most Dometic systems, there is a 3-amp or 5-amp fuse inside the thermostat housing or inline near the control box. Pull it out and hold it up to the light. If the metal strip inside is broken, replace it.

If the new fuse blows immediately, you have a short in the wiring or the control board.

Step 2: Check for 12V at the thermostat. Use your multimeter on DC voltage. Touch the red lead to the positive terminal and the black lead to ground. You should see 12 to 14 volts.

If you see zero, trace the wiring back to the 12V distribution panel in your RV. A tripped breaker or blown house fuse upstream is common.

Step 3: Check the rooftop control board. The main control board lives behind the ceiling shroud inside the RV. It needs both 120V AC for the compressor and fan and 12V DC for the logic circuits. If the 120V breaker is on but the board has no 12V, the transformer on the board may have failed.

These transformers are replaceable, but many RVers opt to swap the whole board.

Pro tip: Dometic control boards have a small LED indicator light. If it's off, the board isn't getting power. If it's flashing, it's trying to communicate a fault code.

Count the flashes and check the manual. A steady solid light usually means the board is fine, and your problem is elsewhere.

Blows Warm Air (Runs but Doesn't Cool)

This is the most frustrating symptom because the unit sounds normal. The fan runs, the compressor kicks on, but the air coming out is barely cool. Here's what to check.

The filter. Remove the ceiling return air grille and pull the foam filter. Hold it up to the light. If you can't see light through it, it's clogged.

Wash it with mild soap and water, squeeze it dry (don't wring it), and let it air dry completely. A wet filter restricts airflow just as bad as a dirty one.

Ice on the evaporator coil. If the filter was clogged, the coil is probably frozen. Turn off the AC and run the fan only. Let the ice melt completely.

This can take several hours. Don't try to chip the ice off. You'll damage the aluminum fins.

Once the coil is clear, replace the clean filter and restart on Cool mode.

The temperature split test. With the AC running, put a thermometer in the return air grille and another in the coldest vent. The difference should be 15° to 20°F. Less than that means low refrigerant, weak compressor, or poor airflow.

More than that with weak airflow points to a frozen coil.

Low refrigerant. If the filter is clean, the coil is ice-free, and the temperature split is poor, you may have a refrigerant leak. This requires an EPA Section 608 certified technician to diagnose and recharge. You cannot DIY this legally.

The refrigerant circuit is sealed and requires specialized gauges and vacuum equipment.

Trips the Breaker or Blows a Fuse

A breaker that trips immediately tells you there's a dead short or a locked rotor. This is not a "reset and hope" situation. Something is drawing too many amps.

Start with the capacitor. A failed start capacitor that has shorted internally can draw excessive current and trip the breaker instantly. Disconnect power, discharge the capacitor, and test it with your multimeter in capacitance mode. A 35/5 microfarad capacitor should read within 6% of those values.

If it reads zero, open, or very low, replace it.

Check the compressor windings. With the power off, measure resistance between the three compressor terminals (common, start, run). A good compressor will show low resistance between all three pairs, typically 1 to 5 ohms. If any pair shows infinite resistance (open winding) or zero ohms (shorted winding), the compressor is dead and the unit needs replacement.

Check for ground faults. Measure resistance from each motor terminal to the metal chassis. You should see infinite resistance (OL on your meter). Any reading below 1 megohm suggests a winding is leaking current to ground, which will trip a GFCI breaker or a standard breaker if the leak is severe.

Loud Noises, Rattling, or Humming No Start

This is the sound of a motor that wants to run but can't get enough torque. The humming sound is from the magnetic field pulsing without rotation.

The start capacitor is the prime suspect. The compressor or fan motor needs a capacitor to create a phase shift and get the rotor moving. If the capacitor has lost capacitance (dried out or partially failed), the motor hums, heats up, and eventually trips the thermal overload protector. Test the capacitor as described above.

Replace it with the exact same microfarad rating. Dometic Brisk Air units commonly use a 35/5 microfarad dual-run capacitor. Some Penguin models use a 45/5.

The fan motor bearings. If the capacitor tests good and the motor still hums, try spinning the fan blade by hand with the power off. If it doesn't spin freely, the bearings are seized. You can sometimes free a seized bearing with penetrating oil, but it's a temporary fix.

Plan to replace the fan motor.

Something loose. A rattling or clanking noise usually means a loose fan blade or something inside the shroud. Remove the shroud and check the fan blade for cracks. Check that it's tight on the motor shaft.

A blade that has shifted and is rubbing the shroud makes a distinctive scraping sound.

Water Leaking Inside or on the Roof

Water inside the RV is a panic moment. Don't panic. It's usually a simple fix.

The drain pan. Dometic units have a plastic drain pan under the evaporator coil that collects condensation. The pan has drain holes on the sides that let water run onto the roof. If those holes are plugged with debris or a wasp nest, the pan fills up and overflows into the ceiling.

Use a piece of stiff wire or compressed air to clear the holes.

The roof gasket. If water is running down the inside of the ceiling, the foam gasket between the rooftop unit and the roof has failed. This gasket compresses when you tighten the mounting bolts. Over time, it hardens and shrinks.

You can replace it without removing the entire unit. Buy the correct gasket for your model (Dometic part varies by footprint). Clean the roof surface thoroughly, apply butyl tape or the new foam gasket, and torque the bolts to manufacturer specifications.

The tilt is wrong. Dometic specifies that the unit should sit level side-to-side and slope slightly downward toward the rear of the RV. If your RV is parked nose-high, water can run forward and drip inside. Use a level app on your phone to check.

A set of RV leveling blocks under the low side tires can fix the pitch.

The Common Culprits: Capacitors, Filters, and That Weird Error Code

Image source: Web (Bing) / woodlandairstreamparts.com (Web image (fair-use with source credit))

Three things cause about 80% of Dometic AC failures in the field. Learn them, and you can fix most problems in under an hour.

Capacitors. These cylindrical components store electrical energy and give the motor a starting jolt. They fail more often than any other part in a rooftop AC. Heat kills them.

Sitting on a black RV roof in July sun for years bakes the electrolyte inside. When they go, the motor either hums without starting or draws high amps and trips the breaker.

Capacitors are cheap, typically $15 to $40. They're easy to test and easy to replace. Keep a spare onboard.

Match the microfarad rating exactly. A higher rating can burn out the motor. A lower rating won't start it.

Filters. The foam filter sits behind the ceiling return grille. It catches dust, pet hair, pollen, and cooking grease. When it clogs, airflow drops.

The evaporator coil gets too cold and freezes. Ice blocks the coil, and cooling stops.

Clean the filter every 30 days during heavy use. Replace it at the start of each season. A clean filter costs $10 to $15.

A frozen coil from a dirty filter can cost you a compressor replacement.

Error codes on the Comfort Control Center. Dometic digital thermostats display error codes when they detect a fault. The most common ones are:

• E1, A sensor fault. The thermistor in the return air or on the coil has failed or the wiring is broken.
• E3, The freeze sensor has detected ice on the coil. The unit shuts down the compressor to protect itself.
• Er, General communication error between the thermostat and the rooftop control board. Often caused by loose wiring or low 12V power.

If you see an E code, write it down before resetting. Turn the thermostat off, wait five minutes, and turn it back on. If the code returns, you've identified the fault.

Check the wiring connections at the control board and the thermistor itself.

If the wiring is solid and the code still returns, the thermistor has failed. It's a small probe that clips into the evaporator coil fins. A replacement costs around $15 and plugs in with a simple connector.

Mistakes That'll Cost You Time or a Melted Wire

Skipping the capacitor discharge. This is the one that gets people. Even with the power off, a capacitor can hold a lethal charge for hours. It can hit you hard enough to knock you off a ladder.

Always cross the terminals with an insulated screwdriver before touching anything. Better yet, use your multimeter and confirm zero voltage.

Replacing a capacitor with the wrong microfarad rating. A 35/5 unit needs a 35/5 replacement. Putting in a 45/5 might start the motor faster, but it'll overheat and shorten the motor's life. A 25/5 won't give the motor enough torque, so it hums and burns out.

Match the rating exactly.

Using a random HVAC filter from the hardware store. Standard furnace filter media is too restrictive for a rooftop unit. It collapses under the airflow pressure and chokes the coil. Dometic's foam filters are engineered to let the right volume of air through while catching debris.

Stick with the manufacturer part.

Running the AC with the ceiling shroud off. It seems like a good idea for airflow, but it's not. The shroud directs air evenly across the evaporator coil. Without it, air bypasses the coil entirely, and the unit freezes up.

Over-torquing the roof bolts. The mounting bolts compress the foam roof gasket. Too much torque crushes the gasket and causes leaks later. Dometic specs typically call for 20 to 40 inch-pounds, depending on the model.

Use a torque wrench, not a power driver.

Ignoring low voltage at the pedestal. A campsite pedestal might read 108V under load. That's too low. The AC compensates by drawing more amps, which overheats the wiring and stresses the compressor.

Test the pedestal with your multimeter before chasing problems inside the unit.

Working in the rain or with wet hands. Water and electricity don't mix. Enough said.

When to Call the Pro (and When You're the Pro)

You can confidently handle capacitors, filters, thermostats, and maybe a fan motor. Those are routine DIY repairs that require basic electrical knowledge and common sense.

Call a pro for anything involving refrigerant. As of 2026, the refrigerant circuit is sealed and regulated. The EPA requires a Section 608 certification to handle it.

A technician finds the leak, fixes it, evacuates the system, and recharges it to factory specs. That's not a driveway job.

Also call a pro if the compressor has seized. Testing the windings is easy. Replacing the compressor means vacuuming down the sealed system and charging refrigerant.

That requires specialized equipment and training.

If you're unsure whether a part is faulty, get a second opinion before buying replacements. A control board costs $200 to $400. Diagnosing a board vs. a thermostat vs. a wiring issue takes practice.

Guessing gets expensive.

And if electrical work makes you uneasy at all, stop. A licensed RV tech charges $150 to $250 an hour. A hospital visit costs more.

Check your warranty before you start too. Unauthorized repairs can void factory coverage. Dometic's customer service, reachable through their official site, can confirm what's covered and point you to an authorized service center.

Your AC Troubleshooting FAQ

Why does my Dometic AC trip thebreaker after a few minutes?

This usually means the compressor is overheating or drawing too many amps. A failing start capacitor is the most common cause. A dirty condenser coil or low refrigerant can also cause it.

Test the capacitor first, clean the coils, then measure the temperature split.

What does E1 mean on my Dometic thermostat?

E1 is a sensor fault. The control board isn't reading the thermistor in the return air or on the evaporator coil. Check the wiring connection at the board first.

If the wiring is secure, replace the thermistor assembly.

How often should I clean my RV AC filter?

Clean the filter every 30 days during heavy use. If you camp in dusty areas or have pets, clean it every two weeks. Replace the filter at the start of each season or when it looks worn.

A clean filter prevents ice buildup and keeps airflow strong.

My AC runs but blows warm air. What should I check first?

The filter. A clogged filter restricts airflow, causes the coil to freeze, and kills cooling. Turn off the AC, clean the filter, and let the ice melt completely.

If that doesn't fix it, test the capacitor and check the temperature split.

Can I recharge my RV AC refrigerant myself?

No. The refrigerant circuit is sealed, and EPA regulations require a Section 608 certified technician to handle it. Attempting a DIY recharge is illegal, dangerous, and won't fix the underlying leak.
