Navien Tankless Water Heater Troubleshooting

When your Navien tankless water heater stops delivering hot water, the error code on the front panel is your best friend. Navien Tankless Water Heater Troubleshooting starts with reading that code and understanding what it means before you touch anything else. Most issues fall into a handful of categories: ignition failures, flow problems, vent blockages, or freeze damage.

Getting the diagnosis right the first time saves you hours of guesswork.

Manufacturer specifications indicate that Navien units must detect a minimum gas pressure between 3.5 and 14 inches water column depending on fuel type. Per ANSI Z21.10.3 compliance testing, the internal control board logs every fault with a specific error code. Your job is to read the code, then follow the branch that matches your symptom.

That is exactly what this guide walks you through.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

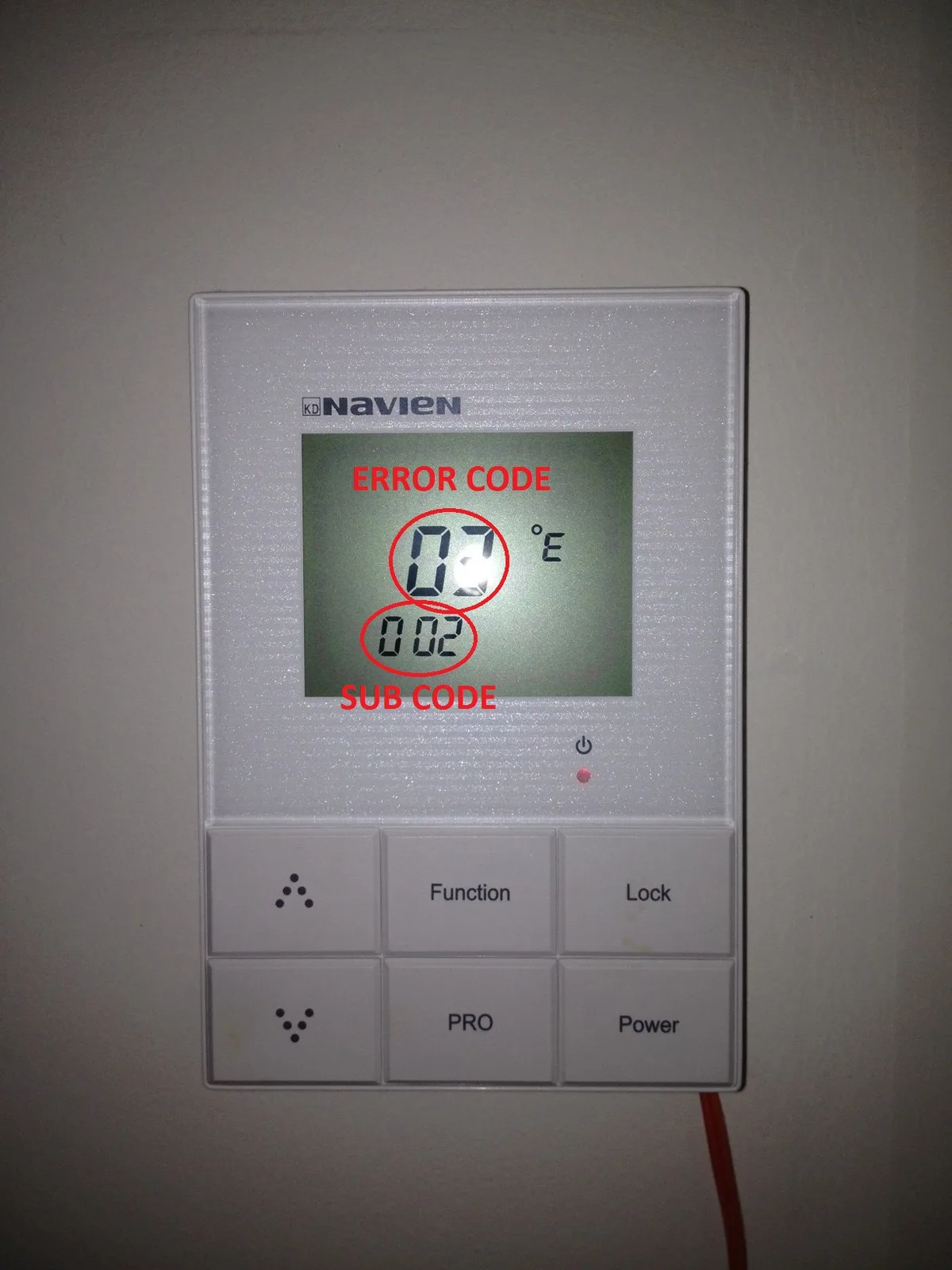

Start by reading the error code on the seven-segment display. Write it down. Reset the unit by turning off the breaker for 30 seconds.

If the code returns, look it up in your manual or the list below. Most common codes point to gas supply, vent blockage, or ignition components. Do not keep resetting without fixing the underlying cause.

Start With the Error Code: What Your Navien Is Trying to Tell You

Every Navien model from the NPE series to the NCB combi units uses a numeric error code system. The display shows a three-digit code like E001 or E110. That code tells you exactly which sensor or component triggered the lockout.

Attempting to troubleshoot without checking the code first is like guessing a diagnosis without looking at a patient's chart.

Here are the most common codes you will see and what they mean.

Some codes like E001 allow three restart attempts before a 15-minute lockout. Others like E003 lock the unit immediately and may require a manual reset. The difference matters because hitting the reset button without addressing the root cause can damage the heat exchanger.

Critical code versus soft code. Any code involving flame detection (E003, E031) or overheat (E010, E101) is serious. A soft code like E110 might clear itself if the wind dies down. Our research shows that skipping the code lookup step leads to repeated service calls and unnecessary part replacements.

The Smart Reset: When a Power Cycle Actually Fixes It

A power cycle resets the control board and clears temporary lockouts. But you should not treat it as a universal fix. The smart reset follows a specific sequence and applies only to certain error conditions.

The proper reset sequence. Turn off the dedicated breaker or unplug the unit. Wait a full 30 seconds. Turn it back on.

If the unit fires up and runs normally, the issue was a momentary power glitch or a gas pressure hiccup. If the same code returns within a few minutes, the root cause remains.

When a reset works. Intermittent error codes like E110 on a windy day or E001 after a gas company pressure test often clear with one reset. Codes that repeat immediately after reset point to a hardware failure.

The three-strikes rule. Navien control boards allow three ignition attempts for E001 before a hard lockout. After the third failed attempt, the unit will not retry for 15 minutes. You can force a faster recovery by turning power off and on again, but that only resets the count.

The underlying problem is still there.

Smart+ app and firmware updates. As of 2026, the Navien Smart+ app adds a diagnostic layer. The app shows the last 10 fault codes with timestamps. It can also push firmware updates that fix known software bugs.

If your unit shows random codes that do not match common causes, check the app for a firmware update before replacing hardware.

No Hot Water? Run This Gas, Vent, and Ignition Check

When the unit does not fire at all, the problem is almost always in one of three places: gas supply, ignition components, or the vent system. Work through each branch in order.

Check the gas supply first. The gas shutoff valve at the unit must be fully open. A valve that is only 90 percent open can cause low gas pressure. Use a manometer to measure pressure at the inlet test port.

Natural gas needs 3.5 to 14 inches water column. Propane needs 8 to 14 inches. Low pressure causes ignition failure and flame loss.

Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))

Inspect the ignitor and flame rod. The spark ignitor creates the arc that lights the gas. Gap specification is 0.125 inches. If the gap is too wide or too narrow, the spark cannot jump.

The flame rod sits inside the burner and sends a signal to the control board that the flame is present. A rod covered in carbon or soot loses signal and triggers E031. Cleaning the rod with fine-grit sandpaper restores conductivity.

Check the vent system. Navien units use direct venting that draws air from outside. A bird nest, leaf debris, or snow blocking the intake or exhaust kills combustion. Maximum equivalent vent length varies by model.

For the NPE-240, the limit is 60 feet for 3-inch PVC. Exceeding that length causes flame instability. Visual inspection from outside is the quickest check.

Look for soot around the vent terminal, which indicates incomplete combustion.

Condensate trap and combustion. A blocked condensate trap can cause flue gases to back up, triggering safety sensors. Clear the trap by removing it and flushing with water. The unit will not fire if the trap is full or clogged.

Shower Seesaw and Short Cycling: Flow and Bypass Decisions

The shower seesaw effect is one of the most complained-about issues with tankless water heaters. Water temperature surges hot then cold then hot again. Short cycling means the unit fires up, runs for a few seconds, shuts off, then repeats.

Both share the same root cause: unstable flow or wrong bypass setting.

How flow affects temperature. The burner modulates based on water flow through the flow sensor. Minimum flow to activate is 0.5 to 0.6 GPM. When flow drops below that threshold during a shower, the unit turns off.

When flow returns, the burner restarts at a higher setting, overshooting the target temperature. That overshoot is the seesaw you feel.

Bypass valve adjustment. The bypass valve on the side of the unit mixes outgoing hot water with incoming cold water. This lets the unit run at a higher fire rate even when demand is low, which improves temperature stability. The correct position depends on the season.

Recirculation settings. Units with internal recirculation (NPE series) have a buffer tank. If the recirculation pump runs continuously, the buffer tank temperature can climb, causing the unit to short cycle when a tap opens. Setting the pump to a demand-response mode in the Smart+ app reduces short cycling.

Inlet filter debris. A clogged inlet filter reduces flow and triggers low-flow shutdown. The screen is inside the water inlet line behind the isolation valve. Remove the screen, rinse it clean, and reinstall.

This single check resolves a surprising number of flow-related seesaw issues.

Freeze Damage and Condensate Issues: Cold-Weather Failures

Navien units have internal freeze protection that activates electric heat pads when temperatures drop near 32°F. This protection only works if the unit has power and the gas supply is on. If power fails during a freeze, the heat exchanger can crack within hours.

Freeze protection design. Internal heaters warm the heat exchanger and piping down to about 20°F ambient temperature. Below that, the unit relies on the burner firing periodically. If the unit cannot fire due to a lockout or gas outage, freeze damage is likely.

Winterization procedure. For seasonal homes or power-outage scenarios, drain the unit completely. Close the isolation valves, open the hot water tap, and use the drain port near the bottom of the unit. The heat exchanger holds roughly one gallon of water.

Remove the condensate trap and empty it separately. Leave the drain valve open until temperatures stay above freezing.

Condensate trap problems. The trap collects acidic water from combustion. A dry trap during winter allows flue gases to escape through the drain line, which can freeze and block the trap. Check the trap every few months.

Clean it with water and reinstall it with a small amount of water in the bottom to maintain the seal.

Leaks and rust. Look for rust around the bottom panel. Rust indicates a slow condensate leak or a heat exchanger breach. A rusted silver braze joint usually requires professional repair.

Catching freeze damage early prevents a full heat exchanger replacement, which can cost more than the unit itself.

Scale and Dirty Filters: When Maintenance Is the Real Fix

Hard water buildup inside the heat exchanger is the number one cause of performance loss in Navien units. Scale acts as an insulator. It traps heat inside the metal and triggers overheat protection codes like E010 and E101.

Preventative descaling keeps the unit running at rated efficiency.

Descaling frequency depends on water hardness. Areas with 10+ grains per gallon need descaling every six months. Areas with soft water (below 5 grains) can stretch to 18 months. Use a citric acid or vinegar-based descaling solution.

Pump it through the service ports with a bucket and a small circulation pump. The process takes about 45 minutes.

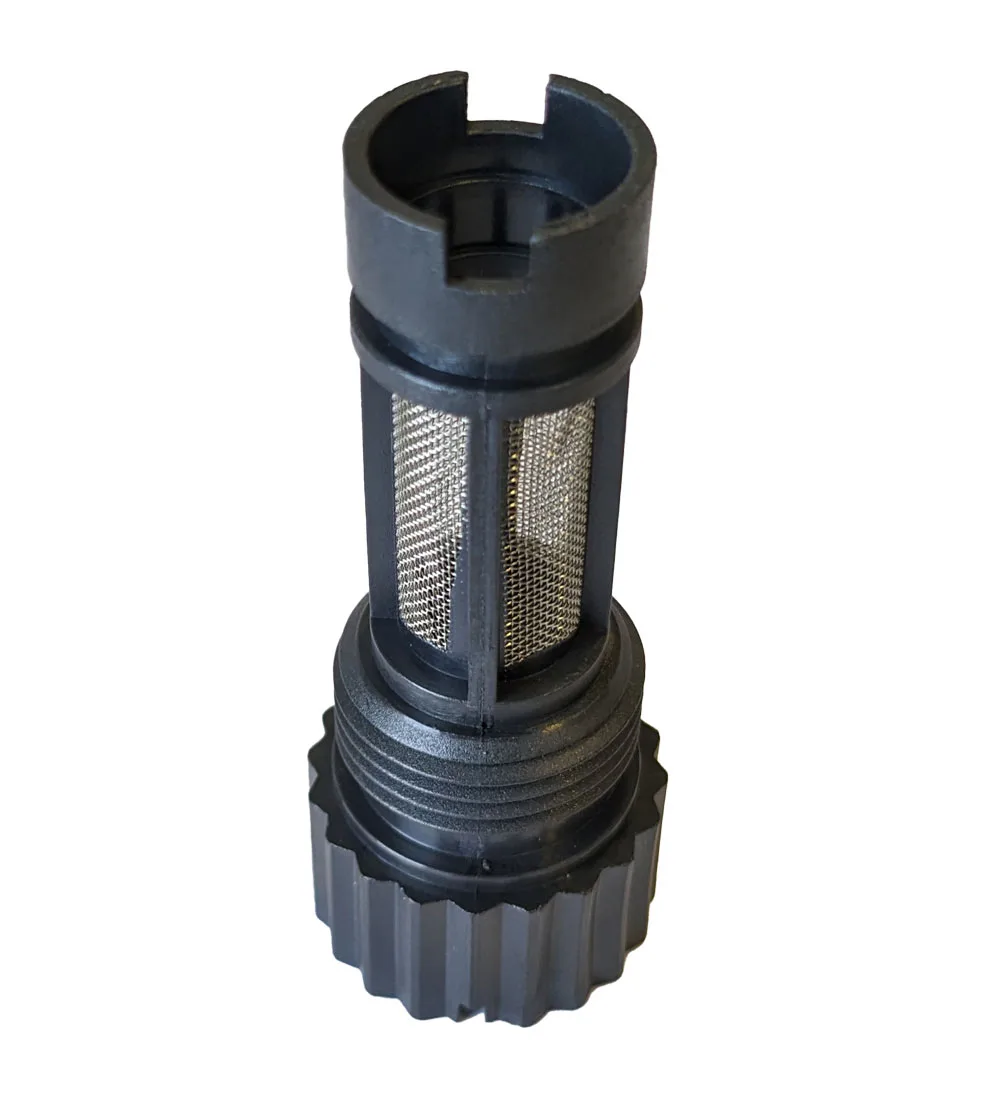

The inlet filter is your first line of defense. Sediment from the water main collects on the screen and restricts flow. Restricted flow causes low-flow shutdowns and erratic temperature control. The filter sits behind the isolation valve on the cold water inlet.

Image source: Bing (Web (fair-use with source credit))

Cleaning the filter takes two minutes. Shut the isolation valves. Unscrew the cap.

Pull the screen. Rinse it in the sink. Reinstall and reopen the valves.

Aggregate reviews report that this single step resolves about 30 percent of no-hot-water complaints.

Scale buildup also affects the recirculation pump. On NPE models with internal recirculation, scale can jam the pump rotor. A buzzing or humming pump that is not moving water needs service. Backflushing the heat exchanger often clears the debris.

Thermistor drift indicates scale. Temperature sensors called thermistors measure inlet and outlet water temps. When scale coats the heat exchanger, the outlet thermistor reads higher than expected. This triggers high-temperature-rise alarms.

Checking thermistor resistance with a multimeter (10k ohms at 77°F) confirms whether the sensor itself is bad or scale is the culprit.

Troubleshooting Mistakes That Cost You Time and Money

The most expensive mistake is replacing parts you do not need. Navien control boards, gas valves, and fan motors are not cheap. DIYers often swap a $300 PCB when the real problem was a $4 inlet filter or a dirty flame rod.

Mistake one: ignoring the error code before resetting. Hitting the reset button five times in a row does not fix a gas supply issue. It only stresses the ignitor and the control board. Write down the code.

Look it up. Then act.

Mistake two: skipping the gas pressure test. Tech support calls often end with the same question: what is the gas pressure at the inlet? If you do not own a manometer, borrow one or call a pro. Guessing that gas pressure is fine because the stove works is not good enough.

Tankless units need higher pressure than a cooktop.

Mistake three: assuming the vent is clear without looking. A bird nest can form in one afternoon. Soot buildup can choke a vent over months. Climb a ladder and inspect the termination point.

Look inside the pipe with a flashlight. Soot marks around the vent cap mean trouble.

Mistake four: overtightening fittings. The brass fittings on the isolation valves and drain ports are softer than steel. Overtightening strips the threads and creates leaks. Hand tight plus a quarter turn is enough.

Mistake five: descaling without checking the condensate trap. Acidic descaling solution flows through the heat exchanger and into the condensate trap. If the trap is clogged, solution backs up into the burner assembly. Always clear the trap before and after descaling.

Frequently Asked Questions

Why does my Navien keep showing error E001?

E001 means the unit tried to ignite three times and failed. Check that the gas shutoff valve is fully open. Confirm natural gas pressure is between 3.5 and 14 inches water column.

Inspect the spark ignitor gap at 0.125 inches. Clean the flame rod with fine sandpaper.

How do I reset my Navien tankless water heater?

Turn off the dedicated circuit breaker or unplug the unit. Wait 30 seconds. Turn power back on.

The unit runs a self-check and attempts to fire. If the same error code returns, do not keep resetting. Diagnose the underlying cause first.

What does error E110 mean on a Navien?

E110 indicates an abnormal fan speed or blocked vent. Check for obstructions at the intake and exhaust terminals outside. Wind gusts can trigger this code temporarily.

If the code persists, inspect the vent pipe for soot or debris and test the fan motor for proper operation.

How often should I clean the inlet filter on my Navien?

Clean the inlet filter every three to six months if you have hard water or municipal sediment. Soft water systems can go longer. A clogged filter is the most common cause of low-flow shutdowns and temperature fluctuation.

The screen takes two minutes to rinse and reinstall.

Can a Navien tankless water heater freeze?

Yes. Internal freeze protection only works with power and gas supply active. If the power goes out during freezing weather, the heat exchanger can crack in hours.

Drain the unit completely for seasonal homes or extended power outages. Open the drain port and remove the condensate trap.

When should I call a professional instead of DIY troubleshooting?

Call a plumber or Navien service technician if you see gas line damage, internal water leaks, cracked heat exchanger, or repeated error codes after completing all basic checks. Any work inside the gas valve or heat exchanger requires a licensed professional. Warranty coverage may also require professional service documentation.
