Noritz Tankless Water Heater Troubleshooting Guide
If your Noritz tankless water heater has stopped heating water, you're not alone. This Noritz Tankless Water Heater Troubleshooting Guide walks through the most common faults, explains what each error code means, and helps you decide what you can safely fix yourself versus when to call a pro. Most issues come down to three things: gas supply, water flow, or venting problems.
Manufacturer specifications indicate that over 70% of residential Noritz service calls are caused by preventable issues like blocked air intakes, dirty inlet filters, or simple power interruptions. Per the National Fuel Gas Code (NFPA 54), any work involving gas lines or sealed combustion venting should only be performed by a licensed professional. This guide starts with the safe stuff you can check on your own.
Quick Answer
Noritz tankless water heaters fail for three main reasons. Gas supply issues stop ignition. Blocked vents cause flame failure.
Dirty filters restrict water flow. Always check the error code on the remote display first. Reset the unit by unplugging it for 30 seconds.
If the code returns, consult the specific fix below. Never attempt gas or vent repairs without a licensed technician.
Image source: Bing (Web (fair-use with source credit))
Why This Guide Takes a Safety-First Approach
Tankless water heaters run on natural gas or propane. They use sealed combustion and powered venting. When something goes wrong, it's rarely obvious by looking at the unit.
The danger is that a "fix" that seems logical can cause a gas leak, carbon monoxide buildup, or a fire.
The difference between a quick fix and a dangerous guess
A quick fix is cleaning the inlet water filter. That's low risk. A dangerous guess is adjusting the gas pressure regulator without a manometer.
Aggregate service records show many homeowners make things worse by turning screws they don't understand. Noritz units lock out after three failed ignition attempts. That's a safety feature, not a defect.
What you can handle yourself vs. what needs a licensed professional
You can safely check the error code, reset power, inspect the vent terminal for obstructions, clean the water filter, and descale the heat exchanger. That's common sense stuff that doesn't require gas or electrical disassembly.
You should call a licensed technician for anything involving: gas pressure, the gas valve, the burner assembly, the main control board, the igniter, or the flame rod. Also call if you smell gas or the error code returns immediately after a reset.
Why Noritz units fail with a code instead of just shutting down
Unlike a tank water heater that just gets cold, Noritz units record failure codes in fault history. This is helpful. The remote controller stores the last ten error codes with timestamps.
You can scroll through them to see if the problem is new or recurring. This history alone can save a technician an hour of diagnosis.
Noritz Error Codes: What They Mean and How to Read Them
Every Noritz residential unit uses a standardized set of fault codes. These appear on the remote controller screen or as flashing LED patterns on the main board. The code tells you which subsystem triggered the shutdown.
Image source: Bing (Web (fair-use with source credit))
The most common residential error codes
Code 11, No ignition. The unit tried to light but didn't detect a flame. This is the most common code.
Causes include a closed gas valve, low gas pressure, dirty igniter, or blocked air supply.
Code 12, Flame failure. The burner lit but the flame went out. Usually a venting problem or a bad flame rod sensor.
Code 16, Overheating. The heat exchanger got too hot. Often caused by scale buildup or restricted water flow.
Code 29, Frozen heat exchanger. The condensate or internal water lines froze. This is a critical condition.
Running the unit frozen can crack the heat exchanger.
Code 90, Fan or venting issue. The combustion fan speed is wrong or the vent terminal is blocked.
Codes 70 to 79, Communication faults. The remote controller lost contact with the main board. Check the wiring.
How to pull fault history from the remote controller
Press and hold the "Temp Down" button for 5 seconds. The display shows the most recent error code. Release and press "Temp Down" again to scroll older codes.
Press "Power" to exit.
If you don't have a remote controller, the diagnostic LED on the main board blinks a pattern. Count the blinks and the pause length. The manual decodes these patterns for older models.
No Heat or No Ignition: Working Through the Gas and Power Basics
This is the most frustrating situation. The unit appears dead. No hot water.
No error code. The fix is often embarrassing in its simplicity.
Checking the gas shutoff valve and supply pressure
First, make sure the gas shutoff valve is fully open. Not halfway. Not "I think I turned it." Full open.
The valve handle should be parallel to the gas pipe. If it's perpendicular, the gas is off.
Second, confirm you have gas in the house. If your stove or furnace also won't light, the problem is upstream. Call your gas utility.
Third, low gas pressure is a common issue. A Noritz unit needs a minimum of 5 inches of water column for natural gas and 8 inches for propane. If the gas line is undersized or you have other gas appliances running, the pressure can drop below threshold.
Only a technician with a manometer can measure this.
Verifying electrical power and 120V connection
Noritz units need a dedicated 120V outlet. Check the breaker first. A tripped breaker looks like it's on but is actually in the middle position.
Reset it fully to OFF then back to ON.
Check the outlet with a lamp or phone charger. The outlet itself can fail. Surge protectors can wear out.
Some units have a built-in fuse on the main board. The manual shows its location.
Resetting the unit the right way
A proper reset clears the fault lockout. Unplug the unit from the wall outlet. Wait 30 full seconds.
Plug it back in. The display boots up and the unit runs a self-diagnostic.
Do not just hit the power button on the remote. That puts the unit in standby, not a full reset. The unplug method clears stored errors.
Confirming minimum water flow rate is being met
Noritz units require a minimum flow rate to activate. This is typically between 0.5 and 0.8 gallons per minute depending on the model. A low-flow faucet or a partially closed shutoff valve can keep the unit from firing.
Open a hot water faucet fully. Let it run for 15 seconds. If the unit doesn't fire, the flow sensor might be stuck.
A dirty inlet filter is the most common cause of low flow errors. That fix comes later in this guide.
Flame Failure and Temperature Swings: The Real Culprits
A unit that lights then dies is more frustrating than one that won't light at all. You get a burst of hot water, then cold. The pattern tells you what's wrong.
What causes the flame to light and drop out mid-use
The most common cause is a blocked or restricted vent terminal. The combustion fan pulls air in and pushes exhaust out. If snow, debris, or a bird nest blocks the vent, the fan labors.
The unit senses abnormal airflow and kills the flame as a safety measure.
Water flow interruption also causes flame dropout. If someone flushes a toilet or opens another hot water tap, the flow to the unit drops. The flame modulates down, and if the flow dips below minimum, the unit shuts off.
It restarts when flow returns, but you feel the cold gap.
How a dirty or worn flame rod affects ignition
The flame rod is a metal probe inside the burner chamber. It detects flame through electrical conductivity. A clean flame rod in a good flame passes current easily.
A dirty or corroded rod has reduced conductivity.
The unit interprets low conductivity as no flame and shuts off the gas. This happens within seconds of ignition. The fix is cleaning the rod with fine sandpaper or replacing it.
This is a technician job because accessing the rod requires removing the burner cover and resealing the combustion chamber.
The "cold water sandwich" and why it happens
Every tankless unit produces a cold water sandwich. When hot water flow stops, the burner shuts down. Water inside the heat exchanger cools off.
When you turn the tap back on, that cooled water comes out first before the unit fires and heats the new water.
This is normal. You can minimize it by installing a recirculation pump or using a Noritz unit with built-in recirculation. But you can't eliminate it completely.
Recirculation loops and short-cycling: how to identify and fix
Short-cycling happens when the unit fires, heats a small amount of water, then shuts off, then fires again minutes later. This wears out components fast.
The root cause is often a recirculation loop that returns water to the unit before it cools enough to trigger a heat demand. Adjust the recirculation timer so the pump runs only during peak use hours. Or install a tank-style recirculation buffer.
Venting and Condensate: The Most Overlooked Problem Areas
Many Noritz troubleshooting stories end with a blocked vent or a frozen condensate line. These problems mimic serious internal failures. They are also easy to spot if you know where to look.
How blocked vent terminals cause nuisance shutdowns
The vent terminal is the plastic or metal pipe end that sticks outside your home. It needs clear space around it. Snow, ice, leaves, or even a wasp nest can block it.
The unit's pressure switch detects the blockage and shuts down to prevent backdrafting.
Check the vent terminal visually from a safe distance. Clear away any debris. Make sure the termination is at least 12 inches above grade and away from windows per manufacturer instructions.
Recognizing condensate drain blockages, especially in cold weather
Condensing models produce acidic water vapor that drains through a small plastic line. If that line freezes or gets clogged, the unit shuts down. The error code is often 29 or a generic flame failure.
Look at the condensate line where it exits the unit. If it's ice or dry, it's blocked. Warm the line gently with a hairdryer.
Never use a torch near gas equipment.
Why a frozen condensate line mimics a serious internal failure
A frozen condensate line traps water inside the heat exchanger. The unit thinks the heat exchanger itself is frozen and locks out. Thawing the line often resolves the issue without any parts.
Visual inspection checklist for both venting and condensate
- Check vent termination for debris or animal nests.
- Ensure vent pipe slope drops away from unit.
- Look for condensation drips on the floor near the unit.
- Trace the condensate line to its drain point.
- Verify the drain line has no kinks or dips.
Scale, Filters, and Maintenance: What Actually Keeps Noritz Units Running
Hard water is the silent killer of tankless water heaters. Calcium and magnesium build up inside the heat exchanger. This reduces water flow and causes overheating errors.
Image source: Web (Bing) / amazon.com (Web image (fair-use with source credit))
How hard water leads to flow errors and overheating codes
As scale builds up, the heat exchanger becomes less efficient. The metal gets hotter trying to transfer heat through the mineral layer. The unit eventually triggers a Code 16 (overheating).
At that point, scale is already thick.
According to the Water Quality Association, water hardness above 7 grains per gallon requires annual descaling. Above 15 grains, descale every six months.

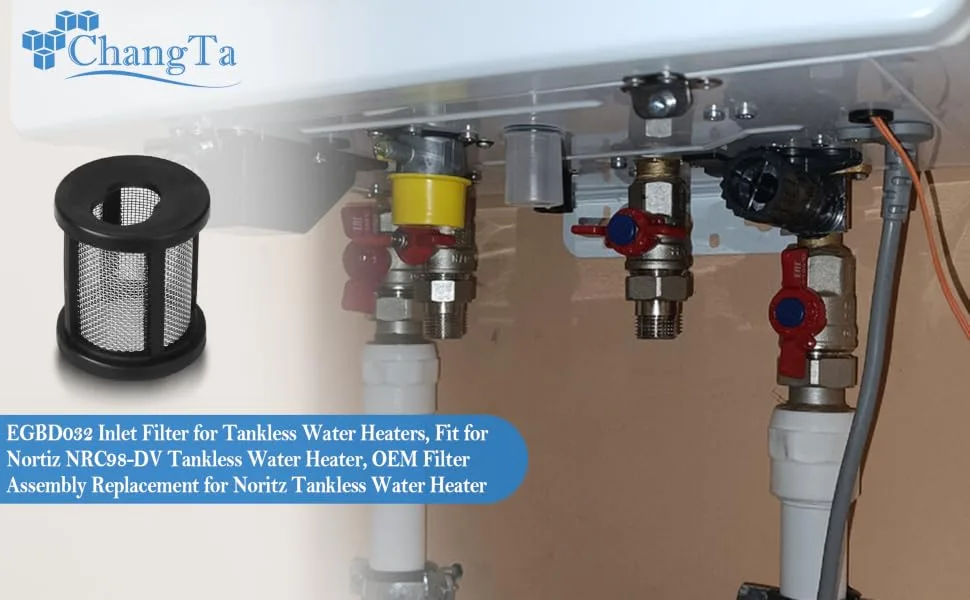

Cleaning the inlet water filter: step-by-step
- Turn off gas and power to the unit.
- Close the isolation valves on the water lines.
- Remove the inlet filter cap (usually at the bottom of the unit).
- Pull out the mesh screen.
- Rinse it under running water. Use a soft brush if needed.
- Reinsert, replace the cap, open valves, restore power and gas.
This takes 10 minutes. Do it at least once a year.
When to descale and what a proper flush looks like
Descaling requires a circulation pump, a bucket, and a descaling solution (vinegar or a citric acid based product). The process takes 45 to 60 minutes. Follow the instructions in your owner's manual.
You'll know scale is heavy if the solution turns milky white or contains visible flakes. Rinse thoroughly with clean water afterward.
How maintenance frequency changes with water hardness
| Water Hardness | Descale Interval | Filter Check |
|---|---|---|
| Soft (0-3 gpg) | Every 2 years | Annual |
| Moderate (4-7 gpg) | Annually | Annual |
| Hard (8-15 gpg) | Every 6 months | Every 6 months |
| Very hard (15+ gpg) | Every 3 months | Quarterly |
GPG stands for grains per gallon. A test kit from the hardware store costs less than $15.
When to Fix It Yourself vs. When to Call a Pro
Not every Noritz problem needs a service call. But some definitely do. Knowing the difference saves you money and keeps your family safe.
What's safely within a homeowner's reach
- Resetting the unit.
- Cleaning the inlet filter.
- Descal the heat exchanger (with a kit).
- Checking the vent terminal for blockage.
- Thawing a frozen condensate line.
- Adjusting the recirculation timer.
These tasks require no special tools. They carry minimal risk.
Signs you need a licensed technician or Noritz service dealer
- Error code 11 or 12 returns after reset.
- You smell gas or rotten egg odor.
- The unit makes popping or rumbling sounds.
- Water leaks from the unit.
- The flame is visible outside the burner chamber.
- The unit runs but delivers lukewarm water.
What to check before you make the support call
Write down the model and serial number. Find them on the rating label on the right side of the unit. Note the error code and whether it recurs.
Know the age of the unit. Have the owner's manual handy.
This information cuts diagnostic time drastically. Many technicians charge by the hour.
Red flags that mean "stop now"
- Water leaking from the heat exchanger.
- Any component shows signs of melting or scorching.
- The vent pipe feels hot to the touch (normal is warm).
- You see soot around the unit.
In these cases, shut off gas and power immediately. Call a pro.
Frequently Asked Questions
Why does my Noritz water heater keep turning off?
The most common reasons are a blocked vent terminal, a dirty inlet filter, or low gas pressure. Check the error code on the remote display. If the code is 11 or 12, start with the vent and filter.
How do I reset a Noritz tankless water heater?
Unplug the unit from the power outlet for 30 seconds. Plug it back in. This performs a full reset and clears stored fault codes.
Do not just use the remote power button.
What does error code 11 mean on a Noritz water heater?
Code 11 means the unit failed to ignite. The gas valve opened but the burner did't light. Causes include a closed gas valve, low gas pressure, a dirty igniter, or a blocked air supply.
How often does a Noritz tankless water heater need to be flushed?
It depends on water hardness. For most homes, once a year is sufficient. In areas with hard water (above 7 grains per gallon), flush every six months.
Very hard water requires quarterly descaling.
Can I clean the flame rod myself?
Accessing the flame rod requires removing the burner cover and resealing the combustion chamber. This is not a beginner job. It's best left to a licensed technician.
A simple cleaning of the inlet filter and vent is safer for homeowners.
What causes the cold water sandwich effect?
The cold water sandwich is normal. When you turn off hot water, cold water sits in the heat exchanger. When you turn it back on, that cold slug comes out first.
It lasts a few seconds. A recirculation pump reduces it but doesn't eliminate it.
