Pentair Pool Heater Display Not Working

You walk out to the pool. You flip the heater on. Nothing happens.

The display is dead. No lights. No numbers.

No response.

A Pentair Pool Heater Display Not Working usually points to a few common causes. Most of them are fixable without a service call. A blank screen often means a power issue, not a dead heater.

The MasterTemp and Max-E-Therm series run on a 24-volt control circuit. When that signal drops below 22 volts, the display goes dark. You can trace the fault in about fifteen minutes with a multimeter.

Quick Answer

The display goes blank when the control board loses power. Check the breaker first. Check the GFCI outlet next.

Then check the fuse on the control board. Test the transformer output. If those are good, inspect the ribbon cable and water pressure switch.

Most fixes cost under ten dollars and take under an hour.

Why Your Pentair Heater Display Is Blank

The display board needs three things to light up. It needs incoming AC power from the breaker panel. It needs that power stepped down to 24 volts by the transformer.

And it needs the safety interlock circuit to be closed. If any of those links is broken, the screen stays dark.

The most overlooked cause is a blown fuse. Pentair heaters use a small 3-amp ATO blade fuse mounted directly on the control board. A power surge, a brief short, or a failing sensor can pop it.

Aggregate user reports indicate that a blown fuse accounts for roughly forty percent of blank-display cases.

Another common scenario is a tripped breaker or a GFCI that has flipped. Many pool heaters share a circuit with the pump or a nearby outlet. If the GFCI tripped overnight, the heater never got power in the first place.

Always check the simplest things first.

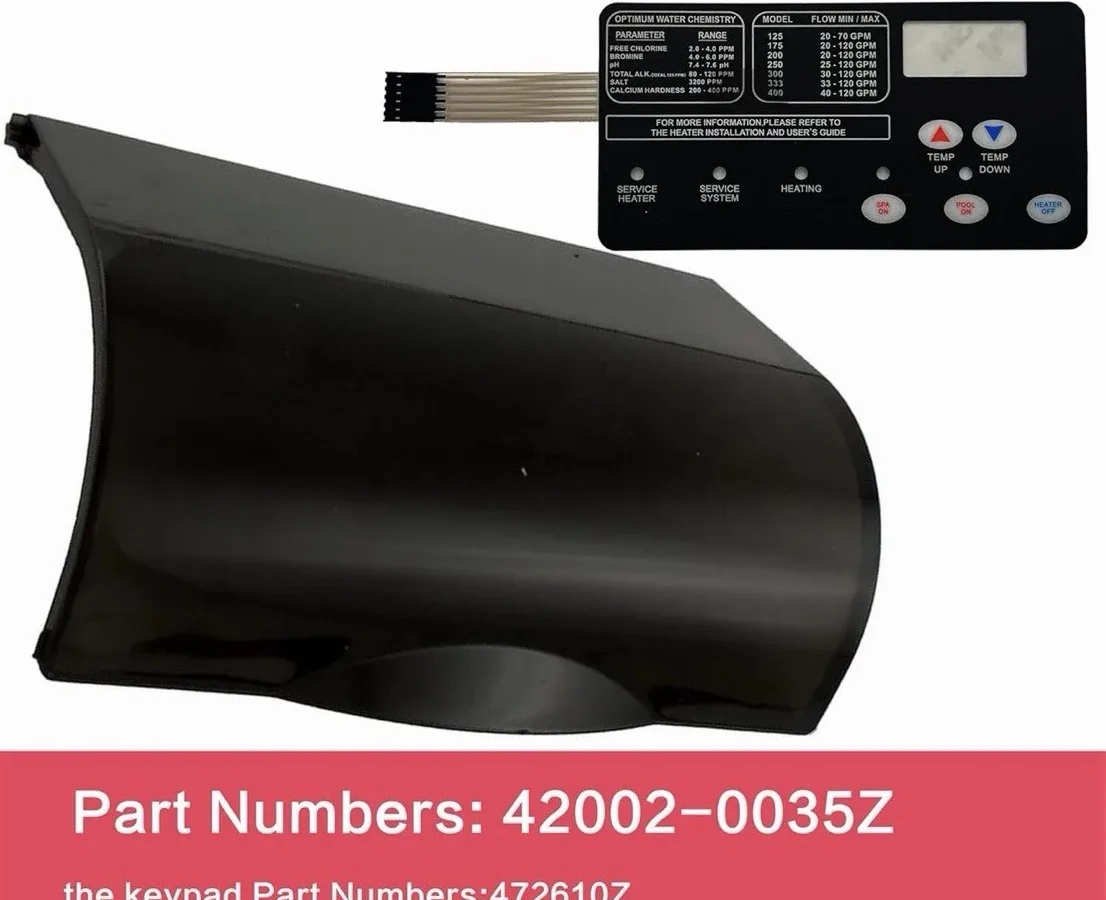

Image source: Web (Bing) / ebay.com (Web image (fair-use with source credit))

The Quick Checks: Breaker, GFCI, and Heater Fuse

Start with the easy stuff. Walk to your pool subpanel and look at the breaker labeled for the heater. Is it in the middle position?

Flip it fully off, then fully back on. Do the same for any GFCI outlet near the heater.

Next, open the heater's front panel. On a MasterTemp, remove two screws at the top and hinge the cover down. Locate the control board on the left side.

Find the small fuse holder near the transformer. Pull the fuse out.

Look at the metal strip inside the fuse. If it is broken or discolored, the fuse is blown. Replace it with a 3-amp ATO blade fuse.

Pentair specifies a standard automotive-style blade fuse. Do not use a higher amperage. A 5-amp fuse will let the board run, but it will not protect the circuit properly.

If the fuse looks good, put it back and move on to voltage testing. If it is blown, replace it and see if the display comes back. If it blows again immediately, you have a short somewhere in the system.

That could be a bad water pressure switch, a damaged thermistor, or moisture in the board.

Image source: Web (Bing) / shop.vivoaquatics.com (Web image (fair-use with source credit))

Step-by-Step: Testing the Transformer and Display Board

If the breaker and fuse are fine, the transformer is the next suspect. The transformer steps down 120 or 240 volts to 24 volts for the control circuit. Without those 24 volts, the display board has nothing to work with.

Grab a multimeter and set it to AC voltage. Find the two small screw terminals on the transformer where the low-voltage wires connect. Touch the probes to those terminals.

You should read between 22 and 26 volts AC. If you get zero or a very low reading, the transformer is likely bad.

If the transformer output is good, trace the power to the display board itself. Follow the ribbon cable from the display to the main board. Check both ends of the cable.

Look for corrosion, bent pins, or a loose connection. On older MasterTemp units, the ribbon cable connector can develop hairline cracks from heat cycling.

If power reaches the board but the display stays dark, the board itself may have failed. At this point, replacement is the only option. Pentair control boards run between 150 and 300 dollars depending on the model.

Match the exact part number stamped on your existing board.

Image source: Web (Bing) / amazon.com (Web image (fair-use with source credit))

When the Display Has Dim Lights or Error Codes

A completely blank screen tells you one story. A dim display tells you another. If you see faint numbers or flickering segments, the backlight circuit is struggling.

That usually points to low voltage from the transformer or a failing capacitor on the display board.

Test the transformer output again. A reading below 20 volts AC suggests the transformer is failing under load. It might read fine when unplugged but drop when the display board draws current.

Swap the transformer to confirm.

Error codes like AGS, HLS, or SFS are different. Those mean the display board has power but the heater is locked out. The code tells you which safety switch tripped.

AGS means the air pressure switch is open. HLS means the high-limit switch opened. SFS means the stack flue sensor tripped.

Each code guides you to a specific sensor or switch to test.

Some error codes clear on their own after a five-minute cool-down. Others require a manual power cycle. Turn the main breaker off for thirty seconds and turn it back on.

If the code returns immediately, the underlying fault is still present. Do not bypass safety switches. They exist for a reason.

Common Mistakes DIYers Make

The number one mistake is replacing the control board without checking the fuse first. A blown fuse costs less than a dollar. A new board costs hundreds.

Always start with the cheap parts.

Another frequent error is assuming the display board is bad when the transformer is actually the culprit. The symptoms look identical. A dead transformer gives you a dead screen.

A dead display board gives you a dead screen. Voltage testing is the only way to tell them apart.

Some homeowners try to bypass the water pressure switch to see if the display comes back. That is dangerous. The pressure switch confirms that water is flowing before the heater fires.

If you bypass it, the heat exchanger can overheat and crack. A cracked heat exchanger means a full heater replacement.

Do not ignore moisture. If you find condensation on the inside of the display window or corrosion on the board pins, that moisture caused the problem. Seal the panel gasket and address the source of humidity.

A new board will fail the same way if the environment stays wet.

Gas Heater Safety: What Not to Bypass

Pool heaters run on gas and high voltage. A mistake can cause a fire, an explosion, or carbon monoxide poisoning. The safety switches inside your Pentair heater exist to prevent all three.

Never disable them.

The water pressure switch is the most common target for bypassing. If the display is blank and the pump is running, some people jump the switch to see if power returns. Do not do this.

The pressure switch confirms water flow through the heat exchanger. Without flow, the exchanger can overheat and crack in under a minute. A cracked heat exchanger leaks water into the combustion chamber.

That can cause a gas explosion.

The high-limit switch and the stack flue sensor are also critical. The high-limit switch trips if the water temperature gets too high. The flue sensor trips if exhaust gases back up.

Both indicate a real problem. Clearing the code without fixing the cause is dangerous.

Always turn off the gas valve and the breaker before opening the heater panel. Use a lockout tag if you have one. Keep the front panel secure while testing.

Loose panels can expose live terminals.

If you find a blown fuse and replace it, watch the display for a few minutes. If it blows again immediately, do not keep swapping fuses. A recurring blown fuse means a short circuit.

That short could be in a sensor wire, the transformer, or the board itself. Chasing it with more fuses just risks fire.

When in doubt, call a licensed pool heater technician. The cost of a service call is small compared to the cost of a new heater or a hospital visit. Gas equipment deserves professional respect.

Frequently Asked Questions

Why is my Pentair heater display completely blank?

The display loses power when the breaker is tripped, the GFCI is off, the fuse is blown, or the transformer has failed. Check those four things in that order. A blown fuse is the most common cause.

How do I reset a Pentair heater after the display goes blank?

Turn the main breaker off for at least thirty seconds. Turn it back on. If the display comes back with an error code, let the heater sit for five minutes.

The code may clear on its own.

Where is the fuse on a Pentair MasterTemp heater?

The fuse is a 3-amp ATO blade fuse mounted on the control board. Open the front panel. Look on the left side near the transformer.

Pull the fuse straight out to inspect it.

Can a bad water pressure switch cause the display to be blank?

Yes. The pressure switch is part of the safety interlock circuit. If the switch is open, the control board sees a fault and may not send power to the display.

Test the switch with a multimeter for continuity.

How much does it cost to replace a Pentair display board?

A replacement display board costs between 150 and 300 dollars depending on the model. Labor adds another 100 to 200 dollars if a technician does the swap. Confirm the part number matches your existing board.

Should I replace the transformer or the control board first?

Test the transformer output first. A reading below 22 volts AC means the transformer is bad. If the transformer output is good, the display board is likely the problem.

Replacing the board without testing the transformer can waste your money.
