Pvc Ball Valve Hard To Turn
If you’ve ever grabbed the handle of a PVC ball valve hard to turn, only to meet stiff resistance or zero movement at all, you know the frustration. That quarter-turn shutoff valve is supposed to be quick and effortless, but when it locks up, it can turn a simple shutoff job into a plumbing headache.
Manufacturer specifications for standard residential PVC ball valves call for smooth 90-degree rotation under normal water pressure, typically 40 to 80 psi. Aggregate feedback from plumbers and DIY installers suggests that most stiffness issues come from three predictable causes: mineral scale, seized stems, or overtightened packing nuts. Understanding which one you’re dealing with makes the difference between a five-minute fix and a full valve replacement.
The Real Problem: Why Your PVC Valve Got Stiff
PVC ball valves are simple machines. Inside the plastic body, a ball with a hole through its center rotates on two seats. Turn the handle 90 degrees, and the hole lines up with the pipe for flow.
Or turns sideways to block it. That’s the theory anyway.
In real-world use, several things can gum up the works.
Mineral and scale buildup is the most common culprit. Hard water leaves calcium deposits on the ball, seats, and stem. Over months or years, that crust gets thick enough to create friction.
This is especially common in regions with water hardness above 7 grains per gallon.
Inactivity is another big one. A valve that sits in the same position for months lets sediment settle around the ball. When you finally try to turn it, that grit acts like sandpaper.
The valve binds.

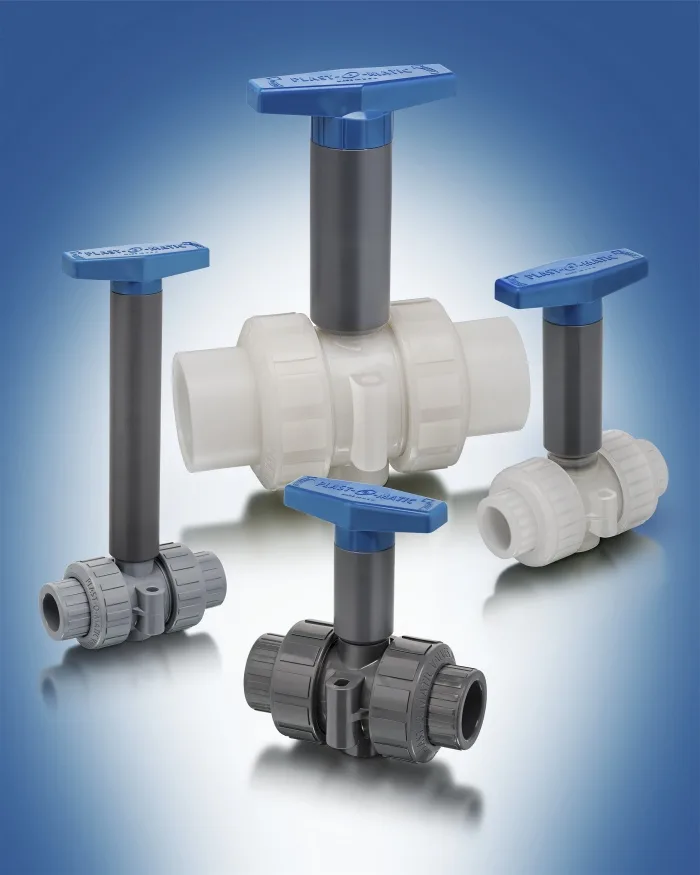

Overtightened packing nuts cause problems too. The packing nut or stem retainer sits at the top of the valve body, compressing the stem seal. If someone cranked it down too tight during installation, or if temperature changes caused the plastic to expand, the stem gets pinched.
That makes every turn a battle.
Less common but worth mentioning: a bent or stripped handle, a broken stem spline, or a valve body that’s cracked from freezing or forcing. If the handle spins freely but nothing happens inside, you’ve got a stripped internal connection. If the valve body has visible cracks, replace it immediately.
Per ASTM D1784 material standards, PVC becomes brittle at low temperatures and can shatter under pressure if damaged.
Image source: Web (Bing) / 4seasonshop.ca (Web image (fair-use with source credit))
Quick Answer / Key Insight Before You Do Anything
Most PVC ball valves that are hard to turn can be freed without replacement. Start by lubricating the stem with silicone plumber’s grease. If that doesn’t work, loosen the packing nut a quarter turn.
Still stuck? Disassemble and clean the ball and seats.
Do not force the handle. Forcing can snap the stem, crack the valve body, or strip the internal splines. That turns a minor repair into a full pipe-cutting job.
If the valve is under pressure and won’t budge at all, shut off the main water supply before attempting any fix. Replacing a valve is always cheaper than repairing water damage from a burst fitting.
The Diagnosis: A Simple Decision Tree
Before you grab tools, figure out which branch of the problem you’re on. The fix changes completely depending on what your valve is actually doing.
Branch 1: The Handle Moves But the Rotational Resistance Is Above Normal
This is the best-case scenario. The valve still functions, but it requires more muscle than it should. You might feel grinding, sticking, or a rough spot in the rotation.
The handle moves through its full arc, just not smoothly.
Likely cause: Mineral scale on the ball or seats, or dried-out stem seals. The fix is cleaning and lubrication. No disassembly required in most cases.
Branch 2: The Handle Is Stuck in Place and Won’t Budge At All
The handle feels locked solid. It won’t move forward or backward. This often happens when a valve has sat untouched for a year or more.
Likely cause: The stem is seized inside the packing nut, or the ball is wedged against the seats by hard water deposits. In some cases, the handle spline has deformed and the handle is actually loose on a seized stem.
Branch 3: The Handle Moves But the Valve Won’t Fully Open or Close
You can turn the handle, but it stops short of the full 90-degree range. The valve either leaves a gap when you try to shut it off, or it won’t open to full flow.
Likely cause: Debris lodged between the ball and the seat. A small pebble, a chunk of Teflon tape, or a piece of pipe shaving can block the ball from rotating completely. This requires disassembly to flush out the obstruction.
What You’ll Need to Free a Stuck PVC Valve
Most of these items are already in a basic tool kit. If you don’t have silicone plumber’s grease, pick some up. It’s cheap and useful for all sorts of plumbing maintenance.
| Tool / Material | Purpose |
|---|---|
| Silicone plumber’s grease | Lubricates stem seals and valve seats |
| Adjustable wrench or pliers | To loosen the packing nut |
| Flathead screwdriver | To pry off handle or remove retaining screw |
| Small wire brush or toothbrush | To scrub mineral deposits from the ball |
| Teflon tape | To reseal threads if you disassemble the valve |
| Bucket and towel | To catch residual water when you open the valve |
| Safety glasses | Plastic can shatter if you force a cracked valve |
Step-by-Step Fix for Each Diagnostic Branch
Each branch needs a slightly different approach. Follow the branch that matches your valve’s behavior.
If the Handle Moves: Clean, Lubricate, and Exercise the Valve
Start with the simplest fix.
- Shut off the upstream water supply if possible. If you can’t isolate the valve, work with it under pressure. Just be ready for a little water spray.
- Remove the handle retaining screw and lift off the handle. This exposes the top of the stem.
- Apply a generous dab of silicone plumber’s grease directly onto the stem where it enters the packing nut. Work the grease in by turning the stem with a pair of pliers. Grip the stem flats, not the threads.
- Cycle the valve open and closed 10 to 15 times. This distributes the grease and helps break up any light scale inside.
- Reinstall the handle and test the action. If resistance is gone, you’re done. If it’s still stiff, move to the next step.
- Loosen the packing nut by a quarter turn using an adjustable wrench. This releases compression on the stem seal. If the valve frees up immediately, the packing nut was too tight. Do not loosen it more than half a turn. It can start leaking around the stem.
If the valve still feels rough after this, you probably have scale on the ball itself. That requires disassembly, which is covered in Branch 3.
If the Handle Won’t Move: Loosen the Packing Nut and Break the Seal
This is where many people give up. Don’t. Not yet.
- Shut off the main water supply and open a faucet downstream to relieve pressure. A valve under full pressure takes more force to turn and can be dangerous to force.
- Remove the handle. This gives you access to the stem and lets you apply force directly to the stem flats with a wrench.
- Apply penetrating oil like WD-40 to the stem where it meets the packing nut. Let it soak for 10 to 15 minutes. Do not use petroleum-based grease on PVC. It can cause plastic to swell over time. Penetrating oil is fine for short-term break-free use.
- Loosen the packing nut a quarter to half turn. This relieves pressure on the stem seal. Some valves free up immediately when you do this.
- Use a wrench on the stem flats to gently rock the stem back and forth. Apply steady, even pressure. Do not jerk or slam the wrench. If it moves even a few degrees, keep working it. Back and forth, a little more each time.
- Once the stem breaks free, apply silicone grease and cycle the valve several times.
Image source: Bing (Web (fair-use with source credit))
If the stem still won’t move after loosening the packing nut and applying penetrating oil, the ball is likely seized against the seats by mineral deposits. At this point, you need to disassemble the valve body to access the ball directly. Or replace the valve altogether.
If the Valve Won’t Fully Cycle: Disassemble and Remove Obstructions
This is the most hands-on fix, but it’s still manageable.
- Shut off the water supply and relieve pressure.
- Remove the handle and loosen the packing nut as described above.
- Unscrew the retaining ring that holds the valve body together. On a true union PVC ball valve, this is the large threaded collar on the downstream side. On a standard glue-in valve, you may need to cut the pipe to remove the valve entirely. Check your valve type before proceeding.
- Pull out the ball and the two seats. Note the orientation of the ball. The hole should align with flow when open. Take a photo if it helps.
- Clean the ball and seats with a small wire brush or toothbrush. Remove all scale, grit, and debris. Rinse with clean water.
- Inspect the ball for pitting or scoring. If the surface is rough, replace the valve. The ball is the heart of the valve, and a damaged ball won’t seal properly.
- Apply a thin layer of silicone grease to the ball and the seats.
- Reassemble in reverse order. Tighten the retaining ring snugly but do not overtighten. Reinstall the handle and test.
Image source: Bing (Web (fair-use with source credit))
If the obstruction was a piece of debris, the valve should now operate smoothly. If the problem persists, the seats may be warped from age or chemical exposure. That’s a sign it’s time for a replacement.
When to Give Up and Replace the Whole Valve
Not every stuck valve can be saved. Here’s when to stop trying and cut your losses.
Visible cracks in the valve body. Any crack in the PVC means the valve is structurally compromised. Under pressure, it can fail catastrophically. Replace it immediately.
A ball that’s pitted or scored. Once the chrome-plated surface of the ball is damaged, it won’t seal against the seats anymore. You’ll get a slow leak even when the valve is fully closed.
Stripped stem splines. If the handle spins freely on the stem without turning the ball, the internal connection is broken. This cannot be repaired. Replace the valve.
Corroded metal stem insert. Some PVC ball valves have a metal stem embedded in the plastic. If that corrodes and seizes, it’s nearly impossible to remove without destroying the valve.
Multiple failed attempts. If you’ve loosened the packing nut, applied penetrating oil, and tried disassembly but the valve still won’t budge, the internal parts are likely fused together by mineral deposits. Replacement is faster and more reliable.
PVC ball valves are inexpensive. A standard residential-size valve costs between $5 and $15. Your time is worth more than the cost of a new valve.
If the fix takes longer than 30 minutes, consider just swapping it out.
Mistakes That Make a Stiff Valve Worse
Some well-intentioned fixes can turn a minor problem into a major one. Avoid these common errors.
Using a pipe wrench or cheater bar on the handle. This applies way too much torque. The handle will snap, the stem will twist off, or the valve body will crack. Use only hand pressure.
If it won’t turn by hand, you need lubrication or disassembly, not more leverage.
Applying petroleum-based lubricants. Vaseline, motor oil, or multipurpose grease can cause PVC to swell and soften over time. The valve may free up temporarily, then seize worse than before. Use only silicone-based plumber’s grease.
Overtightening the packing nut. Many people crank the packing nut down thinking it will stop a leak. It usually makes the valve stiff and can damage the stem seal. Tighten it just enough to stop drips.
No more.
Forcing the valve under full pressure. Trying to turn a stuck valve while the system is pressurized adds hydraulic resistance. The water pressure pushes the ball against the seats, making it much harder to turn. Always depressurize first.
Cutting the wrong pipe. If you decide to replace the valve, make sure you cut on the correct side of the union or fitting. On a true union valve, you can unscrew the valve body without cutting pipe. On a glued valve, you need to cut the pipe and install a new coupling.
Cut once, measure twice.
Frequently Asked Questions
Can I use WD-40 on a stiff PVC ball valve?
Yes, for short-term break-free use only. Apply WD-40 to the stem where it meets the packing nut and let it soak for 10 to 15 minutes. Once the valve breaks free, clean the area and apply silicone plumber’s grease.
Do not rely on WD-40 as a long-term lubricant for PVC.
Will heat help free a stuck PVC ball valve?
No. Never apply heat to PVC. The plastic softens at around 140°F and can deform or fail.
Heat also weakens the solvent-welded joints. Use penetrating oil and mechanical methods only.
How often should I exercise my PVC ball valves?
Once every three to six months. Open and close each valve through its full range of motion. This prevents mineral deposits from settling and keeps the stem seals flexible.
It takes 30 seconds and can save you hours of frustration later.
Can I disassemble a glued PVC ball valve?
Most glued PVC ball valves are not designed for disassembly. The body is solvent-welded together. If you need to access the internal parts, you usually have to cut the valve out and replace it.
True union valves have threaded collars that allow disassembly.
Why does my PVC ball valve leak at the stem after I loosened the packing nut?
The packing nut compresses an O-ring or seal around the stem. When you loosen it, you reduce that compression. Tighten the nut back up just enough to stop the leak.
Do not overtighten. If the leak persists, the stem seal is worn and the valve needs replacement.
Final Verdict: The Best Fix for a Hard-to-Turn PVC Valve
Most stiff PVC ball valves can be fixed in under 10 minutes with silicone grease and a quarter turn on the packing nut. That’s the first thing to try. It works more often than you’d think.
If that doesn’t solve it, disassembly and cleaning will handle most remaining cases. Debris and mineral deposits are the root cause in the vast majority of situations.
When the valve is cracked, pitted, or stripped, don’t waste time. Replace it. The cost is low, and the peace of mind is worth it.
Follow the diagnostic branches in this guide. Match your symptoms to the right fix. And remember: never force it.
A valve that won’t turn is telling you something. Listen to it, fix it the right way, and you’ll have smooth quarter-turn operation for years to come.
