Whirlpool Gold Refrigerator Ice Maker Troubleshooting

Your Whirlpool Gold refrigerator ice maker has stopped producing ice, and you’re not sure why. That’s exactly where Whirlpool Gold refrigerator ice maker troubleshooting starts. The good news is most causes are simple to fix yourself.

In our research, the most common cause is a water filter that has simply expired. Per manufacturer spec, the freezer compartment needs to stay at a steady 0°F (-18°C) for the ice maker to produce cubes on schedule. Running through a few simple checks in the right order usually fixes the problem in under an hour.

Image source: Bing (Web (fair-use with source credit))

Quick Answer: Identify Your Exact Ice Maker Symptom First

Start with the water filter. Then verify the freezer stays at 0°F. Check water pressure and the inlet valve next.

Replace a failed filter, valve, or ice maker assembly only after those tests.

Different symptoms point to different root causes. Jumping to a random fix wastes time and can actually make things worse. Use the table below to find your situation and skip straight to the right step.

Step 1: Check and Replace the Water Filter

Image source: Bing (Web (fair-use with source credit))

The water filter is the single most overlooked part of any ice maker diagnosis. Whirlpool recommends changing it every six months. After that point, the filter can clog enough to restrict water flow to the ice tray.

You don’t need special tools to check the filter. Open the grille at the bottom of the refrigerator door. The filter is a round cylinder with a push-button release on the top.

If it’s been more than six months or you don’t remember the last change, replace it now.

A bypass plug is included with most Whirlpool Gold refrigerators. This is a small plastic dummy that slides into the filter housing. If you don’t have a new filter handy, use the bypass plug temporarily.

That removes the filter from the water path entirely and lets you test whether the filter was the problem.

Follow this filter test:

• Remove the old filter or bypass plug.

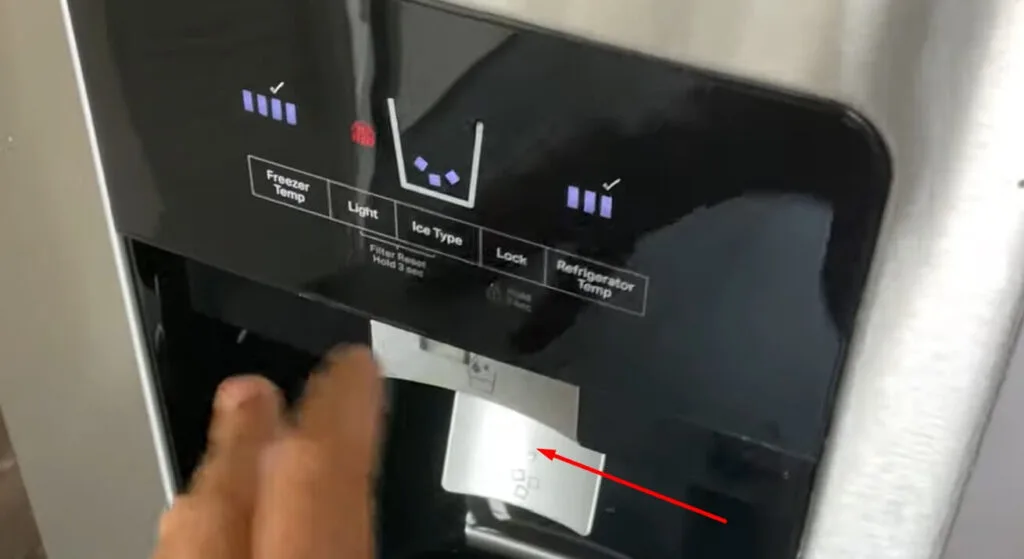

• Press and hold the filter reset button on the dispenser panel for three seconds.
• Wait 24 hours for the ice maker to complete a full cycle.

If you see ice after 24 hours, the old filter was the culprit. If not, move on to Step 2. You can order the correct replacement using your refrigerator’s model number.

That number is inside the fresh food compartment, usually on the left wall near the top.

Step 2: Is the Freezer Actually Cold Enough?

Your ice maker will not produce ice if the freezer temperature rises above 10°F (-12°C). The ideal target is 0°F (-18°C). Even a small temperature shift can slow or stop ice production entirely.

Most people trust the built-in display. That display shows the target temperature you set, not the actual temperature inside. The actual temperature can drift for reasons you wouldn’t notice.

Here is the correct test procedure:

1. Place a standalone freezer thermometer inside the freezer near the ice maker.
2. Close the door and wait 8 to 12 hours.
3. Check the reading without leaving the door open too long.

If your thermometer reads too warm, lower the freezer setting by two degrees and wait 24 hours. Check that the door closes fully. A stuck bin or a frozen bag of vegetables can keep the door slightly ajar.

Also look at the door seal. Run your hand along the gasket while the door is closed. If you feel cool air leaking, the seal is failing.

That alone can make the freezer run warmer than the display says.

Once the temperature is stable at 0°F, wait another 24 hours and check for ice. If nothing appears, the problem isn’t temperature. Move on to Step 3.

Step 3: Test the Water Supply and Inlet Valve

Image source: Bing (Web (fair-use with source credit))

If the filter and temperature are fine, the next question is whether water is actually reaching the ice tray. This involves the water supply line and the inlet valve.

Start with the supply line. Most Whirlpool Gold refrigerators connect to a 1/4-inch copper or braided plastic line behind the refrigerator. Look for kinks, sharp bends, or ice inside the line.

Even a small pinch can reduce flow enough that the ice maker starves.

Water pressure is a hidden problem. Whirlpool specs call for 20 to 80 psi of pressure. If your household pressure is below that range, the valve may not open fully.

A simple test is to disconnect the line at the back of the refrigerator and place it in a bucket. Open the shutoff valve for 10 seconds. You should get about one cup of water.

If you get less, the problem is in your home plumbing.

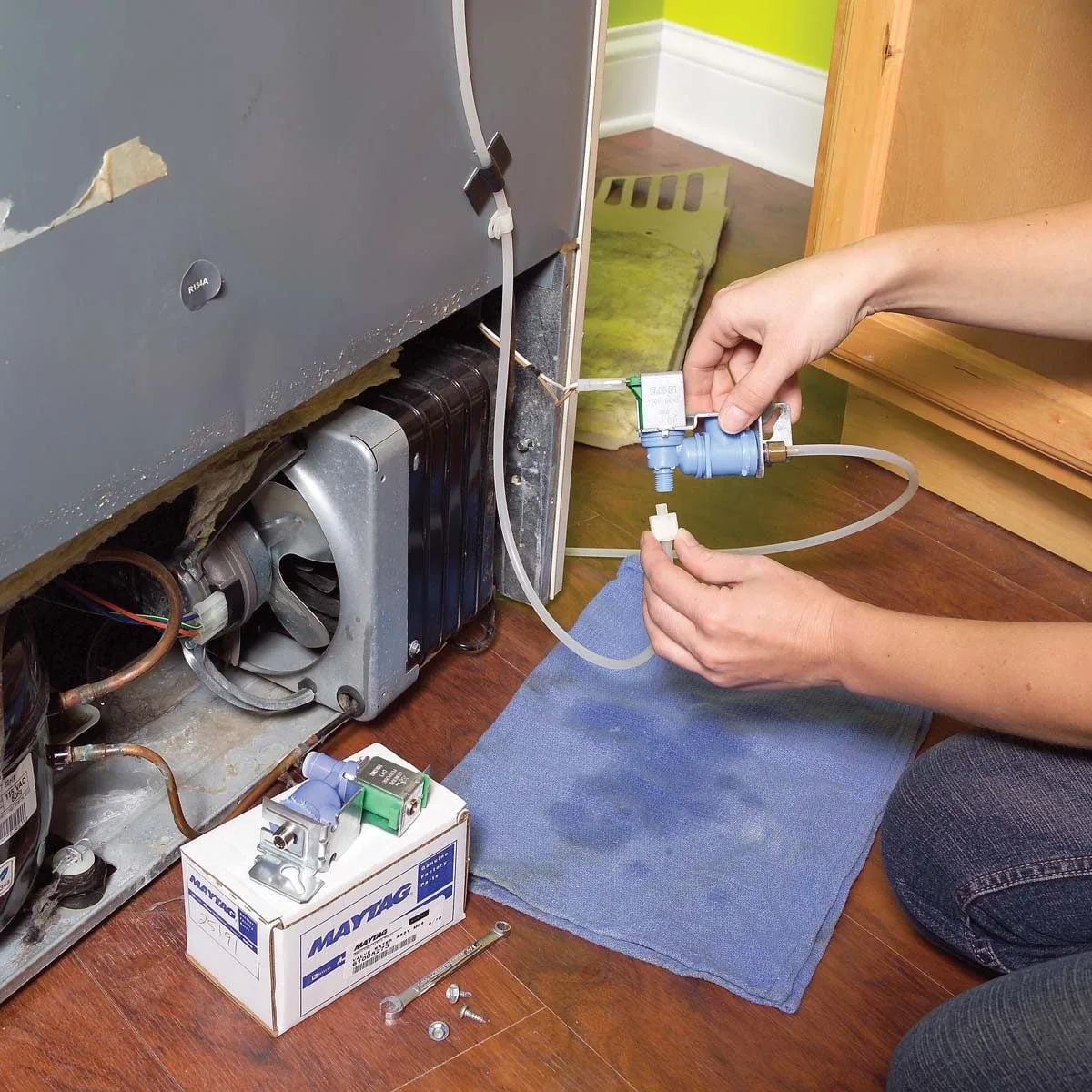

Next, check the water inlet valve. This is the solenoid-controlled valve at the bottom back of the refrigerator. It receives a signal from the control board and opens for a few seconds to fill the ice tray.

The valve can fail in two ways: it can stop opening, or it can stick open and cause leaks.

To test the valve safely:

• Unplug the refrigerator.
• Remove the lower back panel.
• Locate the valve. It has two wires and two water connections.
• Use a multimeter set to resistance, measured in ohms.
• Touch the probes to the two terminals on the valve.

If the valve tests bad, replacement is the only fix. If the valve tests good but no water reaches the tray, the control board may not be sending the signal. That is rare but possible.

Move to Step 4.

For model-specific diagrams, check Whirlpool’s official support site. It shows where the valve sits on your exact model and includes part numbers.

Step 4: Reset and Test the Ice Maker Assembly

The ice maker assembly itself is the last thing to check. It includes the temperature thermostat, the ejector motor, and the shutoff arm. Problems here usually cause no ice or ice that never ejects.

Start with a full reset. Many Whirlpool Gold ice makers have a reset procedure that clears electronic glitches.

• Unplug the refrigerator for 10 minutes.
• Plug it back in.
• Wait 24 hours.

If that doesn’t fix it, look for the reset button on the ice maker itself. On most models, it’s a small button or a wire loop on the side of the assembly. Press the button once.

You should hear a click as the ice tray begins to fill. If you hear nothing, the module may be dead.

Next, test the thermostat. The ice maker thermostat is a bi-metal switch that closes when the ice mold gets cold enough. If it fails, the ice maker never starts the heating and ejection cycle.

Use a multimeter again. Access the thermostat terminals on the side of the ice maker. At room temperature, the switch should be open, which reads as infinite resistance.

Place the thermostat in the freezer for 5 minutes. It should close and show near-zero resistance. If it doesn’t, replace the thermostat.

Now check the ejector motor. This is the small motor that turns the plastic fingers to push ice cubes out of the mold. If the motor hums but doesn’t turn, it may be jammed by a stuck ice cube.

Use a hair dryer on low heat to gently thaw the mold. Never use a sharp tool to pry cubes out.

Finally, check the shutoff arm. The arm rises when the ice bin is full. If the arm is stuck in the up position, the ice maker thinks it’s full and won’t cycle.

Push the arm down manually. If it stays down but the bin is actually full, remove some ice.

If all these tests pass, the ice maker assembly likely needs replacement. As of 2026, a new assembly runs about $60 to $120 and can be installed with a screwdriver in 20 minutes.

Common Mistakes That Waste Hours

Troubleshooting goes sideways when you skip the order or assume the worst. Here are the mistakes we see most often.

• Replacing the ice maker before checking the filter. That’s the most expensive shortcut you can take.
• Trusting the display instead of a real thermometer. The display shows a setpoint, not the actual temperature.
• Prying stuck ice out of the mold with a knife. You’ll damage the plastic or the ejector fingers.
• Resetting the ice maker repeatedly without waiting 24 hours. The cycle rebuilds slowly.
• Forgetting that the shutoff arm is mechanical. A blocked arm stops everything.
• Using the wrong replacement filter. Always confirm with the model number.
• Testing the valve without unplugging the refrigerator. That’s a shock risk.

Avoid these and you’ll save yourself both time and money.

Long-Term Maintenance to Keep Ice Flowing

A little routine care prevents most ice maker failures. Make these part of your quarterly appliance check.

Change the water filter every six months. Mark it on your calendar or kitchen app. If your home has hard water, consider changing it every four months instead.

Keep the freezer at 0°F. Check the actual temperature with a standalone thermometer twice a year.

Clean the ice bin every few months. Empty it, wash the bin with mild soap and warm water, and dry it completely before putting it back.

Flush the water system after replacing the filter. Run two or three glasses of water through the dispenser to clear air bubbles and loose carbon dust.

Inspect the shutoff arm monthly. Make sure it moves up and down freely. Wipe away any frost that forms around it.

Don’t overfill the freezer. Blocked airflow can raise temperatures and slow ice production.

Frequently Asked Questions

Why is my Whirlpool Gold ice maker not making ice but the water dispenser still works?

The water dispenser draws from the same supply line, so it can still work with a partially clogged filter. The ice maker needs a slower, longer fill. If the filter restricts flow enough, the ice tray never fills completely and no cubes form.

How long does it take for a Whirlpool ice maker to make ice after a reset?

Expect 24 hours for a full cycle. The first cubes may appear in 6 to 8 hours, but they often come out small or incomplete. Wait the full day before judging the result.

How do I reset my Whirlpool Gold refrigerator ice maker?

Unplug the refrigerator for 10 minutes, then plug it back in. You can also locate the ice maker’s reset button and press it once. Wait 24 hours for the ice maker to restart its normal cycle.

Why are my ice cubes small and hollow?

Small or hollow cubes usually mean the ice tray isn’t filling completely. Check the water filter first. Then test water pressure from the supply line.

If pressure is fine, inspect the inlet valve for a weak solenoid or a partial restriction.

Is it worth replacing the ice maker assembly on an older Whirlpool Gold refrigerator?

Yes, if the rest of the refrigerator still runs well. A replacement assembly costs $60 to $120 and takes about 20 minutes to install. That’s far cheaper than a service call or a new refrigerator.

Just confirm the part matches your model number before ordering.
