Acer Aspire 5 Keyboard Not Working Except Power Button

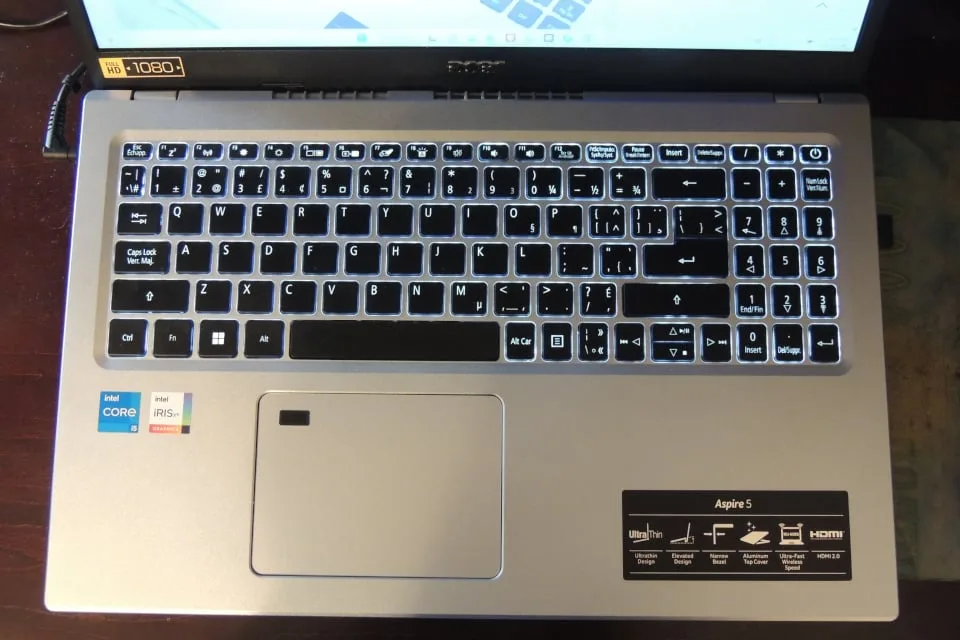

An Acer Aspire 5 keyboard not working except power button is one of the most common laptop repairs. The machine lights up, the fan spins, and the power LED glows, but every key stays completely dead. The power button working is actually a helpful clue, because it runs on a separate circuit.
As of 2026, virtually every Aspire 5 generation uses the same internal keyboard hookup: a 24-pin ribbon cable that clicks into a ZIF connector. ZIF means zero-insertion-force. It is the small latch socket near the center of the board.
Manufacturer documentation indicates a loose ribbon cable causes most non-spill keyboard failures. Reseating it costs nothing and fixes the problem more often than you would expect.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
An Aspire 5 keyboard that stops working while the power button still works usually means a loose ribbon cable. Test the keyboard in BIOS first. Keys working there means the hardware is fine.
Keys dead there means reseat the ribbon cable. Replace the keyboard if it still fails.
Why Does the Keyboard Fail While the Power Button Works?
The power button is not part of the keyboard module. On the Acer Aspire 5, it connects through its own power button cable or a small daughterboard. The laptop can turn on even when the keyboard is completely dead.
The keyboard itself communicates with the motherboard through a separate ribbon cable.
Image source: Bing (Web (fair-use with source credit))
When the ribbon cable shifts, the connector loses contact with the keyboard controller. The controller receives no input, so every key appears dead. The power button keeps working because it does not use that controller path.
Most non-spill failures trace back to one of these causes:
- Loose or partially seated ribbon cable
- Corroded pins after liquid exposure
- Static discharge that locks the keyboard controller
- Recent Windows update that replaced the keyboard driver
- Failed keyboard membrane from normal wear
Manufacturer specs show the Aspire 5 uses a 24-pin ZIF connector for the keyboard. The cable can work loose from vibration, transport, or repeated opening during upgrades. If the power button works, the motherboard likely has power.
The problem is almost always between the keyboard and the motherboard interface.
Step 1: Test in BIOS: Hardware or Software Problem?
Turn the Aspire 5 off. Press the power button to turn it on. Tap F2 repeatedly.
Acer laptops load the UEFI/BIOS setup utility from this key. If the keyboard works here, the cursor moves between menus when you press arrow keys.
The BIOS test bypasses Windows completely. That makes it the fastest way to split software problems from hardware failures. No drivers are loaded in this environment.
The keyboard must talk directly to the motherboard.
| Test result | Likely cause | Next step |
|---|---|---|
| Works in BIOS | Driver or Windows software | Go to Step 2 |
| Dead in BIOS | Ribbon cable, keyboard, or connector | Try hard reset, then Step 3 |
If the keyboard works in BIOS, the hardware path is likely fine. Boot back into Windows and move to Step 2. If the keyboard stays dead in BIOS, the hardware path is broken.
Still try the hard reset in Step 2, since a static lockup can freeze the controller at the firmware level.
Step 2: Try the Free Fixes First: Hard Reset and Driver Rollback
Before you open the case, rule out software and static lockups. These two fixes cost nothing and take about five minutes.
Start with a hard reset. Unplug the AC adapter. Press and hold the power button for 30 seconds, then release.
This drains residual charge from the motherboard and resets the keyboard controller. On many Aspire 5 models, that alone wakes the keyboard up.
Next, plug the laptop in and boot to Windows. Connect a USB keyboard to see if the system responds to typing. If the USB keyboard works, the internal keyboard is either disconnected at the driver level or physically unseated.
Open Device Manager by right-clicking the Start button. Expand Keyboards and look at the entry for the internal keyboard. A yellow warning icon means the driver failed.
Right-click it, choose Update driver, then Search automatically. If that does not help, right-click again, choose Properties, and use Roll Back Driver on the Driver tab.
Acer's support site hosts the original keyboard driver for each Aspire 5 SKU. Searching by the model number at acer.com is usually faster than letting Windows guess. As of 2026, most driver-related keyboard failures come from automatic updates.
Step 3: Open It Up: Reseating the Aspire 5 Keyboard Ribbon Cable
If the hard reset did not help, the ribbon cable is the next suspect. This is the most common fix. It takes about 20 minutes.
You need a Phillips 0 screwdriver, a plastic spudger, and an anti-static wrist strap if you have one.
Image source: Bing (Web (fair-use with source credit))
How to reseat the cable
- Shut the laptop down and unplug it.
- Flip it over and remove the 11 bottom screws. Sort them by length. Some are shorter than others.
- Pry the bottom cover up with the spudger, working around the seams.
- Disconnect the battery cable before touching anything else. This prevents short circuits while you handle the connector.
- Find the keyboard ribbon cable. It runs from the keyboard area to a small socket near the middle of the motherboard.
- Pull the flip latch on the ZIF connector upward. Gently slide the cable out.
- Inspect both the cable end and the socket pins. Look for dirt, corrosion, or a folded corner.
- Slide the cable back in firmly. Push the latch down to lock it.
An improperly seated cable often has one or two pins folded under. A bright desk lamp helps you see whether the cable sits flat against the contact row. Reconnect the battery, close the cover loosely, and test the keyboard before reassembling fully.
If it works, screw the case down in reverse order.
Step 4: If It Is Still Dead: Replace the Keyboard or Seek a Pro
If the ribbon cable looks fine and the reseat did not bring the keys back, the keyboard module itself is likely worn out or damaged. Replacement is the next step.
A new Acer Aspire 5 keyboard costs roughly 20 to 40 dollars on the secondary parts market. Before ordering, confirm the exact model suffix on the sticker under the laptop. The layout matters too.
A US QWERTY board will not physically match a UK or AZERTY board. The backlight connector only exists on backlit models.
Replacement follows the same disassembly path as the reseat. Pop the keyboard bezel off from the top edge. Lift the old keyboard.
Unplug the ribbon. Drop in the new one. Some Aspire 5 revisions use a few small screws on the bottom that hold the keyboard in place.
Check the service guide for your exact model at Acer's support site.
If you open the board and see corrosion, rusted connector pins, or a torn ribbon cable, stop. That kind of damage usually means liquid got inside. The motherboard connector may need micro-soldering, which is a technician's job.
A working keyboard after a replacement is the expected outcome. If it still fails afterward, the motherboard connector is damaged. At that point, consider a USB keyboard or a professional repair quote before buying more parts.
Mistakes to Avoid When Fixing an Acer Aspire 5 Keyboard
Even a simple repair can go sideways if you overlook small details.
Forcing the ZIF latch the wrong way. The latch flips up, not out. If you pry it sideways, it snaps. Check the direction before you touch the ribbon cable.
A broken latch means a motherboard replacement or a micro-solder job.
Mixing up screw lengths. The Aspire 5 uses at least two different screw lengths on the bottom cover. Using a long screw in a short hole punches through the motherboard. Lay the screws out in order as you remove them and label the holes.
Touching the ribbon cable with the battery connected. Static or accidental contact can short the keyboard controller. Disconnect the battery cable first. Even a small spark can kill the controller circuitry.
Assuming the motherboard is dead before reseating the cable. The keyboard failing while the power button works strongly suggests a loose connection. A motherboard swap is expensive and time-consuming. Try the free reseat first.
Skipping the BIOS test. Jumping straight to opening the case wastes time if the problem is a driver glitch. A three-second BIOS check tells you which path to take.
Leaving the keyboard bezel screw hidden. Some Aspire 5 revisions have a screw under a rubber foot or label. If the bezel will not lift, check for hidden screws before prying harder.
Frequently Asked Questions
Can I use an external USB keyboard while I fix the internal one?
Yes. Plug any USB keyboard into the laptop. It works immediately without drivers.
You can keep using the machine while waiting for a replacement part or troubleshooting.
Does removing the back cover void the warranty?
In the US, it does not. The Magnuson Moss Warranty Act protects your right to open the device for basic service. But if you break the cable latch or tear a ribbon, that damage is on you.
What if the keyboard works in BIOS but not in Windows?
That means the hardware is good. The problem is a driver conflict or a Windows setting. Try rolling back the keyboard driver, running the hardware troubleshooter, or using System Restore to a point before the failure.
Why did my keyboard stop working after a Windows update?
Windows updates sometimes replace the keyboard driver with a generic version that does not match the Aspire 5 hardware. Go to Device Manager, find the keyboard under Keyboards, and roll back the driver. Restart after the rollback.
Is there a way to test the keyboard without opening the laptop?
Yes. The BIOS test is the best way. If the keys work there, the hardware path is intact.
You can also connect a USB keyboard to confirm the system accepts input. That still does not rule out a loose internal cable.
Final Decision Guide: Follow This Path
This simple decision tree covers every common outcome. Match your symptoms to the branch.
| Symptom | Action | Expected result |
|---|---|---|
| Keyboard works in BIOS | Driver rollback or hard reset | Fixed in 10 minutes |
| Dead in BIOS, hard reset fails | Reseat ribbon cable | Fixed in 20 minutes |
| Ribbon cable is secure and clean | Replace keyboard module | Fixed after 30 minutes |
| New keyboard still dead | Motherboard connector damaged | Professional repair or USB keyboard |
Branch 1: Works in BIOS. Stop opening the case. The hardware is fine. Run the hard reset from Step 2, then check Device Manager for a driver rollback.
Branch 2: Dead in BIOS after hard reset. Open the machine. Reseat the ribbon cable as shown in Step 3. Test again before closing the case.
Branch 3: Ribbon cable reseat did not help. Order a replacement keyboard. Confirm the model number and layout. Install it following the same disassembly steps.
Branch 4: Replacement keyboard still fails. The motherboard connector has likely failed from corrosion or physical damage. A repair shop can either replace the connector or advise on a USB keyboard workaround.
Stick to this order and you avoid unnecessary parts purchases. The power button working is your best clue. Use it to steer your repair toward the real cause.
