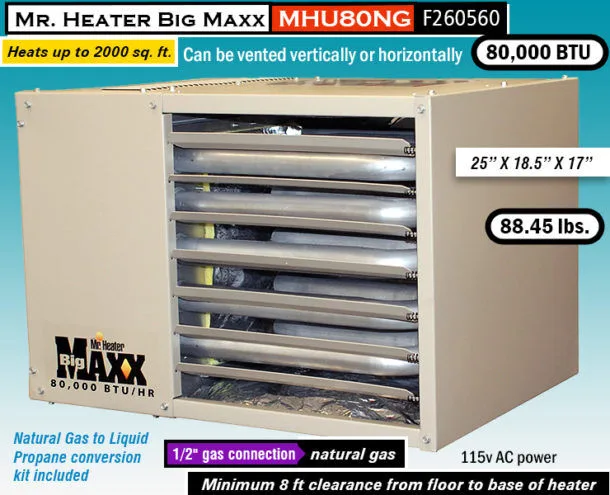

Mr Heater Big Maxx 4 Flashes

Your Mr Heater Big Maxx flashes four times, then the burner shuts down. You hit the reset, and it repeats the same cycle. That blinking red LED is the heater's way of telling you something specific is wrong.

The good news is that this error is one of the most common and most fixable issues on these units.

Manufacturer diagnostic charts confirm that four flashes indicate a flame failure lockout. The control board tried to light the burner three times, failed each time, and gave up for safety. As of 2026, this remains the most frequently reported error on the Big Maxx series.

Let's walk through what's happening inside the heater and how to get it running again.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Mr Heater Big Maxx 4 flashes error means the control board has entered lockout mode after three failed ignition attempts. The most common cause is a dirty or damaged flame sensor. Cleaning the flame sensor resolves roughly 70 percent of these cases.

If cleaning does not work, check the gas valve and igniter next.

How the Big Maxx Ignition System Works

To fix the error, you need to understand what the heater is trying to do before it locks out. The Big Maxx uses a direct spark ignition system with three main components. Those are the igniter, the flame sensor, and the gas valve.

The control board runs the show and monitors every step.

Here is the full ignition sequence:

• Purge period. The blower fan runs for about 15 to 30 seconds to clear residual gas from the combustion chamber.
• Pre-ignition check. The control board verifies that the high-limit switch and rollout switch are closed. If either safety switch is open, the heater shuts down immediately.
• Spark and gas release. The igniter begins sparking and the gas valve opens at the same time. The spark ignites the gas at the burner.
• Flame verification. The flame sensor detects the burner flame and sends a microamp signal back to the control board. If the board receives a strong enough signal, it keeps the gas valve open.
• Lockout condition. If the board does not detect a good flame within the trial period, usually 7 to 10 seconds, it closes the gas valve and tries again. After three failed attempts, the board enters lockout mode and flashes four times.

Image source: Bing (Web (fair-use with source credit))

The four-flash error specifically means the board saw a flame signal that was too weak, intermittent, or absent during at least one of those ignition tries. It does not always mean the sensor is broken. Sometimes the sensor is coated with carbon or dust, which insulates it from the flame.

The lockout is a safety feature required by ANSI Z83.8 standards for gas unit heaters. It prevents unburned gas from accumulating inside the heater or venting system. Without it, a failed ignition could lead to a dangerous gas buildup or a delayed explosion.

Understanding this sequence matters because it tells you exactly where to start looking. You do not need to guess. The heater already told you the problem is in the flame detection circuit.

Step-by-Step Troubleshooting Guide

Before you touch anything, turn off the gas supply and disconnect the heater from its power source. This is not optional. Gas and electricity together make a bad combination.

The control board also holds a charge for several seconds after you unplug it.

Step 1: Power cycle the heater

Turn the thermostat to off, then disconnect power for 30 seconds. Restore power and set the thermostat to call for heat. Watch the LED during the startup sequence.

Count the flashes carefully. If you still get four flashes, move to step two.

Step 2: Inspect and clean the flame sensor

The flame sensor is a small metal rod located near the burner. It sits directly in the path of the flame. On the Big Maxx, it is usually mounted next to the igniter on a bracket.

Remove the sensor. Use fine-grit sandpaper, 220 grit or finer, or a green Scotch-Brite pad to gently polish the rod. Do not use a file or heavy sandpaper.

The goal is to remove carbon buildup, not to gouge the metal.

Reinstall the sensor, restore power, and test the heater. If the error clears, you are done. If the error returns, the sensor may be damaged or the issue is elsewhere.

Image source: Bing (Web (fair-use with source credit))

Step 3: Check the flame sensor with a multimeter

A visual clean is not always enough. The sensor needs to send a specific microamp signal back to the board. Attach your multimeter in series between the sensor wire and the sensor terminal.

Set the meter to DC microamps.

When the heater fires, the reading should climb above 1.0 microamps. Many working Big Maxx sensors read between 1.5 and 4.0 microamps once the flame stabilizes. A reading below 0.5 microamps usually means a bad sensor, a wiring problem, or a weak flame.

If the sensor is clean but the reading is low, replace the sensor. These parts are inexpensive and readily available from Mr. Heater parts distributors.

Step 4: Check the igniter

A weak or misaligned igniter can cause poor ignition, which leads to a weak flame signal. Inspect the igniter for cracks, chips, or carbon buildup. The spark gap should match the manufacturer specification, typically about 1/8 inch.

Replace the igniter if it shows any visible damage.

Step 5: Check the gas valve

If the sensor and igniter check out, the problem may be on the gas side. A gas valve that opens late or only partially delivers a weak flame and a weak sensor signal.

You can test the gas valve coil resistance with a multimeter set to ohms. Compare your reading to the value in the owner's manual for your specific model. A coil that reads open or significantly out of range needs replacement.

Do not attempt to adjust the gas valve pressure yourself. That requires a manometer and knowledge of supply pressure and manifold pressure settings for your fuel type.

Step 6: Check the control board

If everything else tests good, the control board may be the culprit. The board can lose its ability to read the flame signal even though all the components work fine. Board failures are less common than sensor issues, but they do happen.

Replace the board with an exact Mr. Heater OEM part. Generic or universal boards do not work correctly with the Big Maxx ignition system.

Expert Tips and Mistakes to Avoid

Even experienced DIYers make the same mistakes when chasing a four-flash error. Here are the ones we see most often.

Skipping the gas pressure check on propane units. Propane systems are sensitive to cold weather. If the tank is low or the regulator is frozen, gas pressure drops. The burner flame becomes weak and the sensor cannot read it properly.

Check the tank level and regulator before replacing expensive parts.

Cleaning the sensor with the wrong tool. Steel wool, coarse sandpaper, or a wire brush can ruin the sensor rod. The rod has a specific surface finish designed to read flame current. Scratching it changes that surface and can make the problem worse.

Assuming a new control board fixes everything. Aggregate feedback from HVAC forums and parts suppliers shows that boards are returned as defective far more often than they actually fail. The real problem was usually a dirty sensor or a wiring issue. Test everything before you swap the board.

Misreading the flash count. The LED may flash four times, pause, and repeat. Some owners mistake a different number of flashes because they are not watching from the beginning. Watch the LED from the moment power is restored and count each flash until the pause.

Forgetting to check the thermostat wiring. Loose or corroded low-voltage wires at the thermostat or at the heater terminal strip can cause intermittent power to the gas valve. The board may attempt ignition, the valve may not open fully, and the heater locks out. A simple wire tug test can reveal loose connections.

When to Call a Pro

Some repairs are safe for a homeowner to do. Cleaning the flame sensor and checking wiring fall into that category. Other repairs carry real risks.

Call a licensed HVAC technician or gas fitter if any of these apply:

• You need to test or adjust gas pressure. That includes checking inlet pressure, manifold pressure, or regulator output.
• The gas valve needs replacement. Gas valves require proper sizing, pressure matching, and a gas leak test after installation.
• The venting system shows signs of blockage or damage. Carbon monoxide can enter the space if the vent is restricted.
• The heater is installed in a commercial or rental property. Many jurisdictions require a licensed contractor for gas work in non-owner-occupied buildings.
• You are unsure about any step. Do not guess with gas equipment.

Per the NFPA 54 National Fuel Gas Code, any work on the gas train of a vented heater should be performed by a qualified person. That code exists for a reason. A small gas leak in an enclosed garage can turn deadly quickly.

The cost of a service call usually ranges from 150 to 300 dollars for diagnosis plus parts. Compare that to the risk of a gas leak or carbon monoxide exposure. When in doubt, pay the professional.

Maintenance That Prevents This Error

Most Big Maxx lockouts do not happen randomly. They build up over months of dust, carbon, and slight wear. A simple seasonal routine catches those problems before they trigger a shutdown.

Clean the flame sensor once a year. Do this before winter, not after a failure. Remove it and polish the rod with fine sandpaper.

This keeps the microamp signal strong.

Inspect the vent pipe seasonally. Look for bird nests, soot, or damage. A blocked vent causes poor combustion and weak flames.

It also risks carbon monoxide buildup.

Keep the cabinet and burner area free of dust and debris. Use a shop vac with a brush attachment. Do not blow compressed air into the burners.

That can push debris deeper.

Check the igniter during the same service. Cracks on ceramic insulators appear before failure. Replace it if you see any.

Consider adding a carbon monoxide detector near the heater. This is not required by code for a vented unit, but it is cheap insurance. It will not prevent errors, but it will warn you if something is seriously wrong.

Frequently Asked Questions

How do I reset a Mr Heater Big Maxx after lockout?

Turn the thermostat to off. Disconnect power from the heater for 30 seconds. Restore power and set the thermostat to heat.

The control board will run a new ignition sequence. If you still get four flashes, the underlying fault remains.

Can I run the heater with a bad flame sensor?

No. The control board requires a valid flame signal to keep the gas valve open. Without it, the heater will lock out repeatedly.

Bypassing the sensor is dangerous and unsupported by manufacturer safety specifications. Replace or clean the sensor.

Will a dirty air filter cause a 4-flash error?

The Big Maxx is a vented unit heater, so it does not use a return-air filter. However, a heavily dust-clogged burner can produce a weak flame. That weak flame can cause a low microamp reading and a lockout.

Keep the burner clean.

How much does a new control board cost?

As of 2026, a replacement control board for the Big Maxx typically costs 90 to 180 dollars depending on your model. Flame sensors run about 20 to 40 dollars. Igniters are usually 30 to 60 dollars.

Prices vary by supplier.

Why does my heater flash 4 times but still try to ignite?

The control board allows up to three ignition attempts. Each attempt may produce a brief spark and flame that quickly goes out. The heater then retries, fails, and locks out.

The four-flash code appears after the final attempt.

Final Take: Fix It Right the First Time

Start with the cheap fix. Clean the flame sensor. That solves most four-flash lockouts.

Then check the igniter and wiring. Only then consider the gas valve or control board.

Do not throw parts at the problem. Test each component before replacing it. A multimeter, a screwdriver, and 30 minutes will save you hundreds of dollars in parts.

And if gas pressure testing makes you uncomfortable, call a licensed technician. The cost of a service call beats the risk of a gas leak. Your garage heater should be reliable, safe, and warm.
