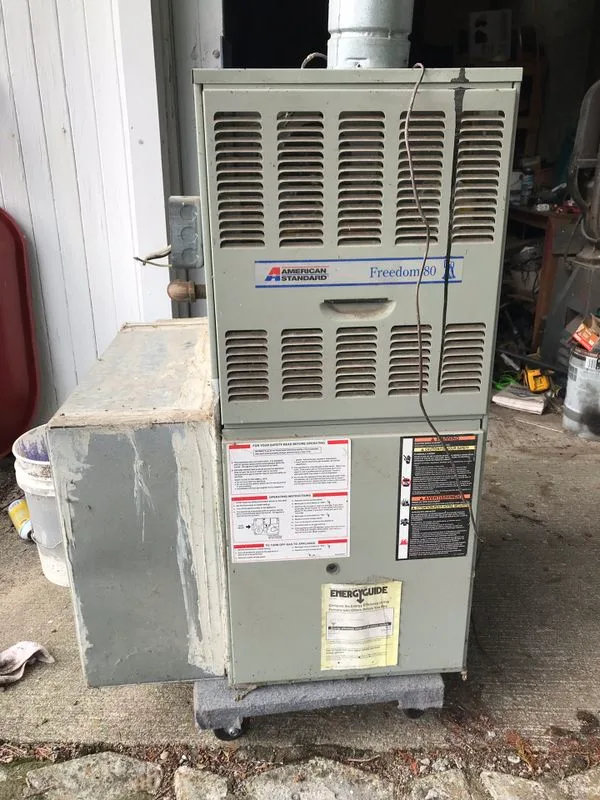

American Standard Freedom 80 Troubleshooting

American Standard Freedom 80 Troubleshooting usually starts with a furnace that won't heat, a blinking LED, or a confusing short cycle. Before you touch anything, you need to know what those blinks mean and what's safe to handle on your own. This furnace is a non-condensing, 80% AFUE unit with straightforward electronics, but it still runs on gas and 120V electricity.

Per the National Fuel Gas Code (NFPA 54), any work involving gas lines or combustion venting belongs in the hands of a qualified professional. As of 2026, most Freedom 80 units still in service are between 12 and 20 years old, so age-related wear is a common culprit. Let's walk through the diagnostic process step by step, starting with safety.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

American Standard Freedom 80 Troubleshooting starts with reading the LED diagnostic light. Count the blinks and match them to the code chart on the door panel. Check the air filter and clean the flame sensor before calling a technician.

Never bypass safety switches or work on gas lines yourself.

Before You Touch Anything: Freedom 80 Safety Basics

The Freedom 80 runs on natural gas or propane, and it produces carbon monoxide as a byproduct of combustion. If you smell gas, stop immediately, leave the house, and call your gas utility. Don't reset anything, don't flip switches, and don't use your phone near the furnace.

Gas leaks can ignite from a single spark.

Gas, carbon monoxide, and 120V electrical hazards

Carbon monoxide is a colorless, odorless gas. A cracked heat exchanger can push CO into your living space. Every home needs a CO alarm certified to UL 2034.

The Freedom 80 uses an electronic ignition system, which means live voltages at the control board and igniter. Always kill power at the disconnect switch before removing panels.

When you open the furnace door, you'll see the blower compartment and the burner compartment above it. The control board flashes error codes through a small sight glass. That LED is your best starting point, but never ignore safety limits.

If a switch has tripped, guess why. The furnace might be protecting you from a blocked flue or an overheated system.

How to shut off gas and power properly

The shut-off valve on the gas line is typically a red or yellow lever near the unit. The "on" position has the handle parallel to the pipe, "off" is perpendicular. A quarter turn stops the fuel flow.

For power, look for a wall switch on or near the furnace. It looks like a standard light switch. Flip it off and unplug the unit if it has a cord.

If the furnace is hardwired, turn off the breaker at the main panel. Give the system a couple of minutes after power is off before touching anything.

Start Here: Read the LED Diagnostic Light Code

The Freedom 80's control board communicates errors through a flashing LED visible through the small round window on the upper door. You don't need to open anything to see it. Count the blinks and write them down.

Compare them to the code chart printed on the wiring diagram inside the door.

Locating the sight glass and control board indicator

Look for the clear round lens about midway up the upper door panel. The LED sits right behind it on the board. The board flashes in two modes: retry and lockout.

Retry means the furnace is making another attempt. Lockout means it's done trying until you power it down.

Image source: Bing (Web (fair-use with source credit))

What the 1-blink, 2-blink, 3-blink, and 4-blink codes actually mean

The most common codes on this series are:

• 1 blink: No ignition. The furnace tried to light the burner and failed. The igniter or flame sensor is often at fault.
• 2 blinks: Pressure switch error. This usually points to the draft inducer, vent blockage, or the hose connecting the switch.
• 3 blinks: Limit switch open. Airflow is restricted or the furnace is overheating. Check the filter first.
• 4 blinks: Flame sensed when there shouldn't be. You might have a stuck gas valve or a wiring issue.

The exact count can vary by board revision, so check the stick-on diagram in your door panel. It lists every code for your specific model.

Understanding lockout vs retry mode

After a failed ignition, the furnace waits and tries again. If it fails several times, it goes into hard lockout and won't retry until you cycle power. That doesn't fix the problem.

It just resets the board. Real troubleshooting starts with understanding why it locked out.

What You Can Safely Fix Yourself

Some issues are maintenance problems, not equipment failures. You can handle a few of them without specialized tools. The key is knowing your limits and reading the symptoms honestly.

The thermostat check that solves half of all no-heat calls

Check the thermostat before blaming the furnace. Set it to heat mode, raise the temperature a few degrees, and listen for a click. The click tells you the thermostat is sending a signal.

If there's no click, check for a dead battery or the wrong terminal wiring. Some digital thermostats have a built-in delay, so wait a minute after the click.

Air filter and airflow restrictions

A dirty filter causes more Freedom 80 problems than most people expect. It restricts airflow, which overheats the heat exchanger and trips the limit switch. That's your 3-blink code right there.

Pull out the filter and hold it to the light. If you can't see through it, replace it. Check it every 30 to 60 days.

Cleaning the flame sensor without calling a pro

The flame sensor is a thin metal rod that sits in the burner flame. When dirty, it stops detecting the flame, and the furnace shuts off after a few seconds. If your furnace fires up, runs for a minute, then cuts out, this is the first suspect.

Let the furnace cool completely. Remove the burner access panel and locate the sensor. It's held in by one screw.

Pull it out, gently rub the metal rod with a fine emery cloth or a dollar bill, and reinstall. Don't use sandpaper and don't bend the rod. This fix handles a huge share of intermittent heating complaints.

Image source: Bing (Web (fair-use with source credit))

When a simple power reset is legitimate

If the furnace is in lockout, turning power off for 30 seconds and back on can clear the lockout. That's fine if you've also found a clear cause, like changing a dirty filter. But resetting without knowing why it tripped is a temporary fix.

If it locks out again, you're masking a real problem.

When to Stop and Call a Licensed HVAC Technician

Everything involving gas pressure, gas valves, heat exchangers, or venting is a hard stop for the DIY homeowner. If you're not certain about what you're looking at, don't risk it.

Gas valve, heat exchanger, and anything involving gas pressure

The gas valve is a precision component. A technician can measure manifold pressure to ensure the burner gets the exact gas flow it needs. Buttoning up the wrong repair creates a gas leak or fire hazard.

Cracks in the heat exchanger are even more serious. That's how carbon monoxide enters your living space.

Repeated roll-out switch trips

The roll-out switch kills the burners if flames are rolling out of the combustion chamber. One trip might be a draft issue. Repeated trips mean there's a serious flue or burner problem.

This is not a maintenance item. Call an HVAC company the same day.

Pressure switch, draft inducer, and venting issues

The pressure switch confirms that the draft inducer is pulling exhaust gases through the vent. If the vent is blocked, the switch won't close and the furnace won't fire. You can check for an obvious bird's nest in the vent pipe.

Testing the switch with a manometer takes training.

The checklist to hand your tech

When you call a pro, give them a clear picture. Include the LED blink count, whether the filter was dirty, whether the flame sensor was cleaned, and how long the furnace ran before shutting off. That saves the technician time and saves you money.

Common Freedom 80 Problems and Their Real Causes

Some issues show up again and again with this model. Here's what to expect and what those symptoms point at.

Furnace short-cycles on the limit switch

Short cycling means the furnace fires, runs for a few minutes, then shuts off before satisfying the thermostat. The most common cause is a dirty air filter or a closed supply register. When airflow drops, heat builds up, and the limit switch trips.

Check the filter, check the registers, and test the blower speed.

Blower runs but no heat

If the blower runs constantly and the burner never ignites, look at the thermostat wiring first. If the thermostat is fine, the control board might be stuck. That's a technician-level repair, because it could also be a bad relay on the board.

Furnace fires then shuts off after a few seconds

This is the classic dirty flame sensor symptom. The sensor tells the control board that the flame is lit. When covered in carbon buildup, it loses sensitivity.

Clean it the way we described earlier. If that doesn't help, the igniter might be weak.

Intermittent heat that follows no pattern

This is often a loose wire connection on the control board or a bad thermostat wire. It can also be age-related wear on the gas valve. Intermittent faults are frustrating because they rarely happen when a technician is watching.

Take photos or videos of the LED code when it happens. That evidence is gold.

Yearly Maintenance That Prevents Most Breakdowns

The Freedom 80 is a simple machine, and most of its failures trace back to neglect. A consistent routine catches small problems before they become no-heat emergencies. You need about 15 minutes twice a year.

The 15-minute checklist you can handle

Start with the air filter. Replace it if you can't see light through it. Check it monthly during heavy heating season.

Clear debris from around the furnace and make sure nothing blocks the vent pipe. Inspect the burners for rust, soot, or an uneven flame pattern.

Listen to the draft inducer as the furnace fires. Worn bearings make a squealing or grinding noise. If you hear that, budget for a repair.

Finally, wipe down the flame sensor with a fine emery cloth, even if the furnace has been running fine. This single step prevents more lockouts than any other DIY task.

What to pay a pro to inspect once a year

A licensed tech should check the heat exchanger for cracks, measure gas manifold pressure, test the pressure switch, and verify the temperature rise against the nameplate rating. Most HVAC companies offer a seasonal tune-up for a flat fee. It's worth every dollar.

When repairs stop making sense for an 80% furnace

If your Freedom 80 is over 18 years old and needs a major component like the heat exchanger, the math changes. A replacement heat exchanger can cost half the price of a new furnace. Compare the repair quote against a new 80% furnace and factor in efficiency gains.

At that age, replacement is usually the smarter call.

Frequently Asked Questions

Is it safe to reset my furnace after a lockout?

Yes, but only once and only after checking the obvious causes. Turn the power off for 30 seconds and restore it. If the furnace locks out again, stop resetting it.

Repeated lockouts mean a real fault exists.

Why does the blower keep running after the heat is off?

That's normal. The control board keeps the blower running for one to two minutes to pull residual heat out of the heat exchanger. If the blower runs indefinitely without a heat call, you may have a stuck limit switch or a wiring fault.

How do I know if my heat exchanger is cracked?

You can't always see a crack with the naked eye. A technician can perform a combustion analysis and measure carbon monoxide levels in the flue gas. High CO readings point to a suspect heat exchanger.

Never test this yourself.

Should I repair my 20-year-old Freedom 80 or replace it?

Look at the repair cost first. If it exceeds 30 percent of the price of a new furnace, replacement is usually smarter. A new 80% furnace gives you the same venting compatibility, a new warranty, and better reliability.
