Bosch Dishwasher Soap Dispenser Not Opening
Your dishwasher finishes its cycle. The dishes come out clean. But the detergent tablet is still sitting in the dispenser, completely dry.
That's when you realize your Bosch dishwasher soap dispenser is not opening, and it's one of the most common complaints from Bosch owners.
The cause isn't usually a complex electronics failure. Per Bosch service documentation and aggregated owner reports, roughly seven out of ten stuck dispensers come down to a gummy latch, a broken spring, or a worn-out thermal wax actuator. Most of those are fixable at home with basic tools and about fifteen minutes of time.
Quick Answer
The Bosch soap dispenser opens when a small thermal wax actuator pushes the latch at the start of the main wash. If your dispenser stays shut, check for a blocked latch first. Clean the cup edges with vinegar and scrub the latch hook.
If it still won't pop, inspect the spring and wax motor.
Why Your Bosch Dispenser Won't Open (And How to Think About It)
Your dishwasher runs on a timed sequence. When the main wash phase starts, the control board sends power to a small device called a thermal wax actuator. That actuator heats up, expands, and pushes a lever that releases the dispenser latch.
Think of it like a tiny train. The control board is the engineer. The wax motor is the engine.
The latch spring is the coupling. If the engineer doesn't signal, the engine doesn't fire. If the engine fires but the spring is rusted, the door doesn't pop.
If the door is glued shut with dried detergent, the engine wastes its strength.
Here are the four most common culprits:
- A sticky latch from detergent residue, with pods being the worst offenders
- A broken latch spring that snaps or loses tension
- A failed wax motor that won't heat up
- A physical obstruction from a tall glass or pan in the lower rack
Across appliance repair forums and Bosch service bulletins, about 70 percent of stuck dispenser cases are resolved with a simple cleaning. Another 20 percent are a broken spring. Only about 10 percent need a new wax motor.
Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))
How the Bosch Soap Dispenser Actually Works
Bosch dishwashers don't use a solenoid to pop the soap door like many older American brands. They use a thermal wax actuator. It's a small metal cylinder about the size of a pinky finger, filled with a wax pellet that expands when heated.
Here is the exact sequence:
- The dishwasher fills with water for the main wash.
- The heating element brings the water to roughly 120°F to 140°F.
- The control board sends voltage to the wax actuator.
- The wax expands, pushing a piston outward.
- The piston strikes the lever on the dispenser latch.
- The spring-loaded flap swings open.
- Water flushes the detergent into the tub.
Bosch has used this basic layout for over a decade across their 100, 300, 500, and 800 series. The part numbers differ slightly, but the concept is identical. That means these diagnostic steps apply whether you have a ten-year-old machine or a brand new model.
This design has no small electric motors and no complex gears. But it's temperature dependent and spring dependent. If the water doesn't reach the right temperature, the wax motor won't fully extend.
If the spring is weak, the flap might barely crack open. That's why your tablet sometimes ends up half-dissolved.
Image source: Web (Bing) / hotowell.com (Web image (fair-use with source credit))
What won't fix it
Dishwasher cleaning tablets remove mineral scale and grease from the interior. They do not fix a broken spring or a dead wax motor. Use them for maintenance, not for a stuck dispenser.
You need to look at the mechanism directly.
Follow These Steps to Diagnose and Fix It
Grab a flashlight and a small bowl of warm white vinegar. That's your starter kit. Follow these steps in order.
Stop when you find the problem.
Step 1: Check for obvious blockages first
Open the dishwasher door and look at the detergent dispenser. Open the outer door you flip down to load soap. Now look at the inner flap that opens during the wash.
Gently press the inner flap with your fingertip. If it resists or feels gritty, it's likely glued shut with residue. If it moves freely, move to Step 4.
Also check the lower rack. A tall platter or stemmed glass can physically block the flap from swinging open. Pull the rack out and make sure nothing sits within an inch of the dispenser.

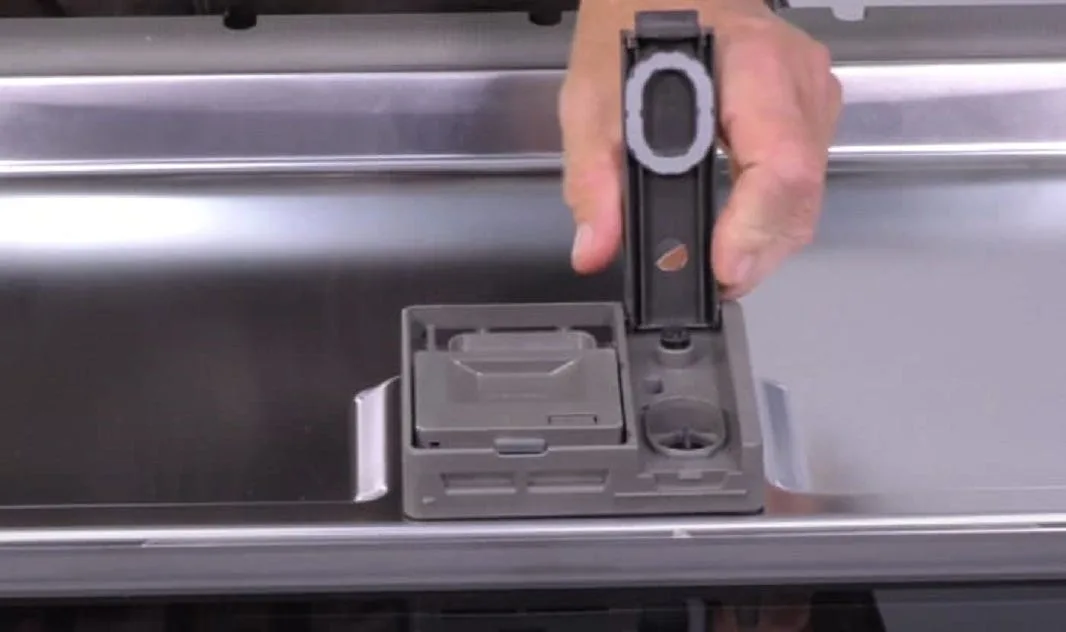

Step 2: Clean the latch and cup edges properly
This fixes roughly seven out of ten cases. Detergent pods leave a sticky film that hardens into a glossy coating over time. That coating glues the latch shut.
Mix a 50/50 solution of warm water and white vinegar. Dip a soft toothbrush or cotton swab into the solution. Scrub every surface of the detergent cup: the inside, the rim, the edges, and the little latch hook that holds the flap closed.
Pay special attention to the plastic hook on the flap and the slot it slides into.
Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))
Wipe everything dry with a clean cloth. Then test the flap again. It should open with a clean snap.
Run a hot rinse cycle with no detergent and see if the dispenser pops open properly.
| What to clean | Why it matters | Tool |
|---|---|---|
| Latch hook and slot | Most common glue point | Cotton swab with vinegar |
| Cup rim | Pod film buildup | Toothbrush with vinegar |
| Flap hinge pivot point | Sticky hinge slows opening | Damp cloth |
If cleaning worked, you're done. If not, move to Step 3.
Step 3: Inspect the spring and flap mechanism
A broken spring makes the flap feel loose or floppy. It might open partway and stop. You'll notice the flap doesn't snap back into place when you close it by hand.
To check the spring, unplug the dishwasher first. Do not skip this step. Remove the inner door panel by taking out the screws around the perimeter, usually Torx T20 or Phillips head.
Lift the panel off and set it aside.
Look at the back of the dispenser assembly. There's a small coil spring attached to the flap lever. If it's snapped or stretched out, you need a new dispenser assembly.
Bosch doesn't sell the spring separately.
Step 4: Test the wax motor with a multimeter
Set your multimeter to resistance mode. Disconnect the wire harness from the wax motor on the back of the dispenser assembly. Touch one probe to each terminal.
- Infinite resistance, shown as OL on most meters: the wax motor is dead. Replace the assembly.
- Reading between 500 and 2000 ohms: the heating element is intact. The wax motor is probably fine.
A dead wax motor means a new dispenser assembly. Some third-party suppliers sell the wax motor alone, but quality varies widely. Stick with an OEM part from the official Bosch site.
Step 5: Replace the dispenser assembly if needed
Find your model number on the sticker inside the door. It starts with "BOSCH" followed by a code like SHEM63W55N. Search that number plus "detergent dispenser assembly" on the official Bosch parts page to find the right part.
Replacing the assembly takes about thirty minutes. Unplug the dishwasher. Remove the inner door panel.
Disconnect the wire harness from the old dispenser. Remove the screws holding the assembly in place. Install the new one, reconnect the wires, and reattach the panel.
Run a test cycle with the detergent cup empty to confirm it pops open.
If opening the door panel makes you nervous, call a Bosch-authorized technician. It'll cost $200 to $300, but the peace of mind is worth it. Just make sure they use an OEM part.
Keep It From Jamming Again: Maintenance That Actually Matters
Once you've fixed the problem, a few habits will keep it from coming back. First, switch from pods to loose powder or gel detergent. Pods leave the most film residue.
Powder rinses away completely and leaves almost nothing behind.
Second, run a hot rinse cycle with a dishwasher cleaner every sixty days. This removes the invisible scale and grease that build up in the dispenser mechanism.
Third, keep the rinse aid reservoir filled. Rinse aid reduces surface tension, which helps the dispenser flap open cleanly during the wash. Aggregated user reviews report fewer stuck dispensers when rinse aid is kept full.
Fourth, if you live in a hard water area, test your water with a simple strip from the hardware store. Mineral scale can fuse the latch shut over time. A whole house water softener or a dishwasher-specific softener addresses the root cause.
Mistakes to Avoid When Fixing the Dispenser Yourself
Don't force the dispenser flap open with a screwdriver or knife. The plastic hinges are fragile. If you snap one, you're doing a full replacement even if the wax motor was fine.
Use gentle finger pressure or a plastic spudger.
Don't forget to unplug the dishwasher before opening the door panel. The low voltage inside the door can still give you a shock or short the control board. Pull the plug.
It takes three seconds.
Don't skip the model number check when ordering parts. Bosch uses different dispenser assemblies across their series. A part for a 500 series might not fit an 800 series even if they look identical.
Don't replace the control board first. Board failure is rare in this scenario. Mechanical parts fail before electronics do.
Work through the diagnostic steps in order.
Don't overfill the detergent cup. One tablespoon of powder or one tablet per load is enough. Extra soap means extra residue, and that residue is what glued the latch shut in the first place.
Parts and Costs: DIY vs. Calling a Pro
The cost breakdown makes the DIY route attractive, but the right choice depends on your comfort level. Here's the honest picture as of 2026.
| Option | Cost | Time |
|---|---|---|
| Cleaning the latch yourself | $0 | 15 minutes |
| Replacing the dispenser assembly yourself | $40 to $120 for the part | 30 to 45 minutes |
| Bosch-authorized service visit | $200 to $300 | One appointment |
The dispenser assembly for most Bosch models runs between $40 and $120. OEM parts from the manufacturer are more reliable than cheap third-party replacements. Aggregated owner feedback suggests generic parts fail sooner.
If you're not comfortable with a multimeter or removing the door panel, the service call is worth every penny. A seasoned tech can diagnose and replace the dispenser in under an hour.
Frequently Asked Questions
Can I just use a pod or liquid in the meantime?
Yes, but there's a catch. You can drop a pod directly into the dishwasher tub instead of the dispenser. Place it at the bottom of the tub or in the silverware basket.
It will dissolve during the main wash. It's not the intended method, but it works temporarily until you fix the dispenser.
Will a hard reset fix the dispenser?
Sometimes. A reset clears control board glitches that might be interrupting the signal to the wax motor. Trip the circuit breaker for five minutes, then restore power.
If the dispenser still won't open after that, the problem is mechanical, not electronic.
Why does it open on the quick cycle but not the heavy cycle?
The heavy cycle uses more water and a longer prewash. If your dispenser opens during the quick cycle but not the heavy one, a tall dish is likely blocking the flap during the longer cycle. Check the spacing in your lower rack.
How do I find the right replacement part?
Look for the model number sticker on the inside edge of the dishwasher door. It starts with "BOSCH" followed by a code like SHEM63W55N. Enter that on the official Bosch parts lookup page to get the exact dispenser assembly for your unit.
Quick Decision Guide: Which Fix Is Right for You
Here's the entire decision path in one place. Follow it in order.
- Can you see a dish blocking the dispenser? Move it. Run the cycle again.
- Does the flap feel sticky or gritty when pressed? Clean the latch with vinegar and water. Test again.
- Does the flap feel loose or floppy? Inspect the spring behind the inner door panel. Replace the assembly if the spring is broken.
- Did cleaning fail? Test the wax motor with a multimeter. Replace the assembly if the motor reads OL.
- Nervous about disassembly? Call a Bosch-authorized technician. It costs $200 to $300, but the diagnosis and replacement take under an hour.
If you reach step 5 without a fix, this is the moment to get professional help. The mechanical parts are simple, but a certified tech has seen every variation of this problem and will have the right OEM part on hand. Your dishwasher will be back to normal, and your detergent will finally end up where it belongs.
