Compustar Not Working After Dead Battery
Compustar not working after dead battery? You're not alone. The system usually isn't broken.
It's just confused. The brain module loses memory, the remotes drop pairing, or the system wakes up stuck in valet mode. It's one of the most common owner complaints we see.
In our research, the typical fix takes 10 to 30 minutes and needs no special tools beyond a multimeter. Compustar modules from Firstech follow a standard recovery sequence, but exact steps depend on your model and installation. As of 2026, most systems still use the same basic process.
Let's walk through it in a safe, logical order.
Why a Dead Battery Confuses Your Compustar System
Your Compustar brain module is designed to fail safe when voltage drops. If the battery dips below roughly 9 volts during cranking, the module can lose remote pairing and flip into valet mode. That's a security feature, not a design flaw.
It assumes a potential theft and locks down the starter output.
The antenna module acts the same way. It powers back up with no memory of which remotes are authorized. So when you press the fob, the system ignores it.
The immobilizer bypass module can also lose sync with the factory chip. That's why you sometimes get a crank but no start.
Here's what's likely going wrong:
- Remote pairing memory is gone. The fob sends commands, but the module doesn't recognize them.
- Valet mode is still active. This disables remote start and some alarm functions.
- Inline fuses in the Compustar harness blew during the voltage surge.
- A safety input like the hood pin or brake pedal is reading as active.
Per manufacturer specifications, many 2-way LCD remotes can show the exact blocking input. Hold the lock button for a few seconds and the remote may display an error code. That code tells you where to look first.
Another common trigger is the jump-start process. A voltage spike from jumper cables can trip the system's protection. Since the system sees unstable power, it locks the starter output until you reset it.
That's why some people only see the problem after a jump start, not after a slow battery drain.
Before You Start: Safety Checks and What You’ll Need
Before you touch the Compustar, check the battery itself. A weak battery produces the exact same symptoms as a dead module. Clean the terminals if you see corrosion, and tighten the clamps.
Make sure the hood pin switch is fully seated, because an open hood pin cancels remote start.

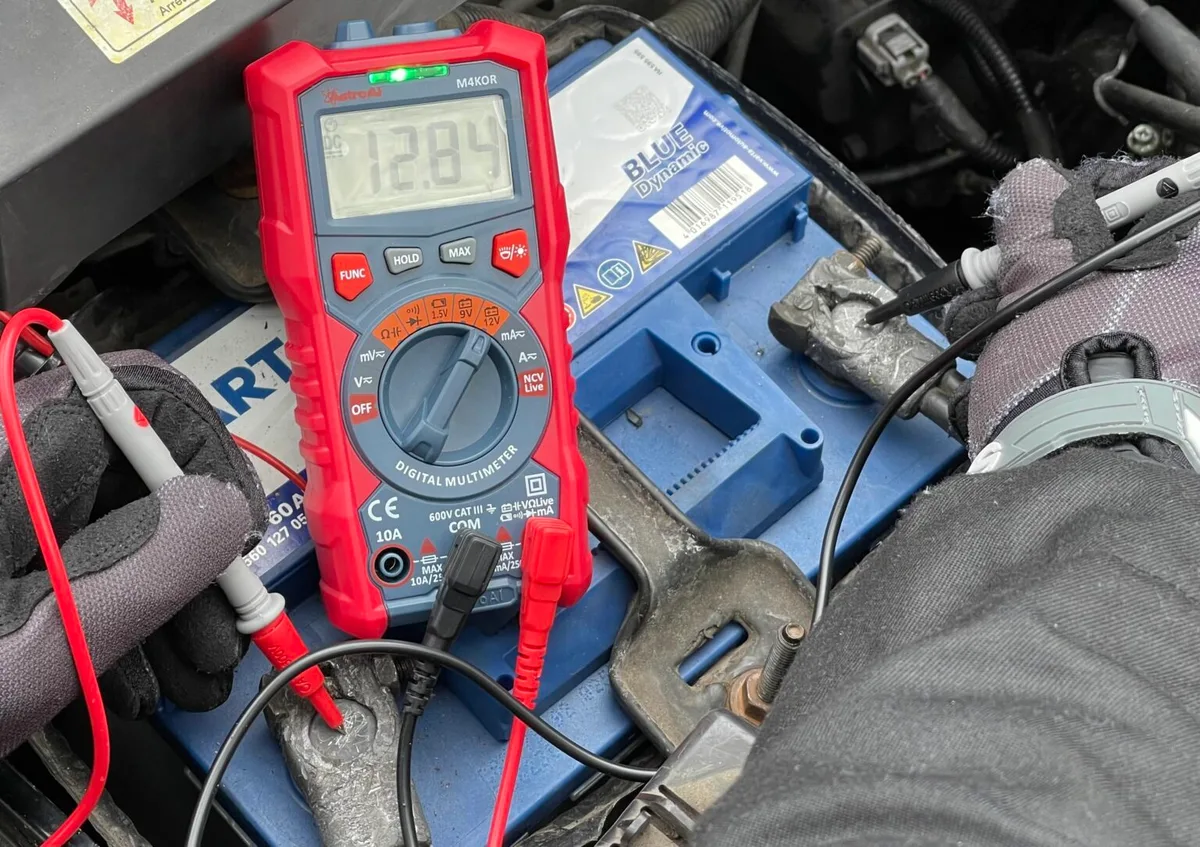

You'll want a digital multimeter. Measure the resting voltage across the battery posts. Per Battery Council International, a fully charged battery reads around 12.6V.
Anything below 12.4V means charge or replace the battery first.
If the battery reads 12.6V but drops below 10V when you turn the key, the battery itself is weak. A load test catches that. Most auto parts stores do it for free.
Skip the load test and you'll be chasing ghosts in the Compustar.
Here's what to gather before starting:
| Tool / Part | Why You Need It | | Digital multimeter | Check battery voltage and confirm power at the Compustar brain | | Battery terminal brush | Clean corrosion so the module gets full voltage | | Replacement fuses | Replace blown inline fuses with the exact same amp rating | | Compustar manual | Look up the valet and fob programming sequence for your model | | Owner's manual | Find battery, fuse, and ignition wiring details |
If the battery is deeply discharged, charge it before attempting any reset. Trying to program remotes on a battery below 12.2V is the single most common cause of a failed recovery. You'll also want the Compustar manual handy, because each model has its own valet sequence.
Step-by-Step Reset Process (Do These in Order)
This routine works for most Compustar systems from the last decade. The order matters, so don't skip ahead. If you have an older unit or a custom installation, keep your manual close.
- Connect and verify the battery. Clean terminals, tighten the clamps, and close the hood.
- Wait 30 seconds. Let the brain, antenna, and CAN bus modules boot up.
- Check the antenna LED. If it's completely dark, inspect the inline fuses before anything else.
- Turn the ignition to ON, then OFF. This wakes the vehicle's data bus.
- Exit valet mode. Use your manual's valet cycling procedure. Usually that's pressing the valet button a set number of times.
- Re-pair each remote. Enter programming mode with the valet button, then press the fob button until the LED confirms.
- Test the system. Try lock and unlock before remote start.
After the reset, give the Drone Mobile module a couple minutes to reconnect. A dead battery often knocks it offline. If the engine cranks but won't run, the immobilizer bypass lost sync.
Turn the ignition on for 10 seconds, then off. That often restores the handshake.
If the LED flashes while you're programming but won't accept a remote, move closer to the antenna. Programming range is often shorter than normal operating range. Also, close all doors.
An open door can interrupt the sequence.
A few systems also need the brake pedal released during programming. Watch for that in your manual. And if you don't see the LED confirm each fob, start the whole sequence over.
Storing half the remotes can cause confusion later.
Common Mistakes That Wreck a Compustar After a Battery Change
Most Compustar failures after a battery change happen during the recovery, not because the battery killed the module. People rush and skip steps, then blame the hardware. Here's what goes wrong most often:
| Mistake | Why It Fails | | Programming remotes on a weak battery | Voltage drops mid-pairing and the module resets | | Ignoring blown inline fuses | A dead fuse means no power reaches the antenna or ignition relay | | Leaving the hood pin open | The system sees the hood open and blocks remote start | | Reversing battery cables | Reverse polarity can destroy the brain module instantly | | Using a higher-amp fuse | It overheats the wiring and risks a fire | | Not waiting for CAN bus wake-up | The module sees stale signals and rejects the reset |
There's also the random valet button problem. Pressing it five times when the manual says four puts the system into a deeper programming mode. That mode is much harder to exit.
Use the manual.
One more easy fix: replace the remote's battery. If the car sat for weeks, the fob battery may also be low. A weak fob battery can make a healthy Compustar seem dead.
And don't assume the system needs new remotes. Aftermarket fobs are expensive, and most are fine. The pairing was simply lost.
Reprogramming costs nothing, so order a replacement only after you've confirmed the old ones won't pair.
When to Stop and Call a Certified Installer
If you've followed the reset and the system still won't respond, stop. Digging deeper without wiring diagrams can cause expensive damage. A Compustar that worked before the battery died can almost always be revived.
When it can't, the issue is usually a failed bypass module or a shorted brain.
Call a professional if you see any of these:
- The antenna has no LED after replacing the inline fuses.
- The remote start cranks, but the engine never runs.
- The alarm triggers and won't disarm even in valet mode.
- You smell smoke or melted plastic during reconnection.
- You're not comfortable working around automotive wiring.
A MECP-certified mobile electronics installer has the right diagnostic tools and access to manufacturer wiring specs. They can trace the power path, verify the data handshake, and test the module directly. A diagnostic visit typically runs $50 to $150.
That's much cheaper than replacing a Compustar brain module.
Compustar's dealer locator is a good place to find an authorized installer near you. They'll handle it quickly and safely.
Don't let a local mechanic remove the Compustar out of frustration. Removing an aftermarket security system without the right documentation can damage the vehicle's CAN bus. If you do decide to remove it, have an authorized dealer handle the extraction.
How to Avoid This Problem in the Future
Most Compustar lockouts share one root cause: a battery that was weak long before it failed. Catch that early and you skip the whole episode.
Have your battery load-tested every fall. Replace it once it's older than three years in cold climates. A $150 battery beats a tow truck bill.
Terminal corrosion matters too. It builds up silently and creates voltage drops that confuse the module. Clean the posts with a wire brush each season.
Tighten the clamps firmly. When the car sits at 12.6V with the engine off, the electrical system is in good shape.
If you leave the vehicle parked for weeks, use a battery maintainer. These small chargers keep the battery topped up without overcharging. They run $30 to $60 and plug into any standard outlet.
Winter is the worst season for this, since cold saps battery capacity fast.
Keep your Compustar manual in the glovebox. Write the valet exit sequence and remote pairing steps on a card. That way you won't be hunting for codes when the battery dies at 7 AM.
If you use Drone Mobile, keep the app updated so the telematics module reconnects cleanly after a power loss.
Test the system after any battery service. Confirm locks, alarm arming, and remote start in under two minutes. A quick check today saves a frozen drive in the morning.
Frequently Asked Questions
Do I have to reprogram my Compustar remotes after a dead battery?
Yes, in most cases. The brain module loses remote pairing when the voltage drops below its operating threshold. Reprogramming takes less than two minutes with the valet button sequence.
Check your manual for your model's exact press count.
How do I exit valet mode on a Compustar?
Turn the ignition to the ON position. Press the valet button the number of times shown in your manual, typically one to four presses. The LED changes from a steady glow to flashing or turns off.
That confirms valet mode is disabled.
Why does my remote start crank but not start after a battery change?
The immobilizer bypass module likely lost sync with the vehicle. Turn the ignition to ON for ten seconds, then OFF. Many systems re-establish the handshake automatically.
If it still won't run, an installer can perform a bypass relearn in minutes.
Can a dead battery damage the Compustar brain module?
Rarely. The system is designed to fail safe on low voltage. It loses memory or sticks in valet mode, but the hardware usually survives.
Only reverse polarity or a major voltage spike will actually destroy the module.
How much does it cost to fix a Compustar after a dead battery?
A DIY reset costs nothing. An installer diagnostic visit runs $50 to $150. Replacing a failed brain module or bypass unit runs $200 to $500 including labor.
Always get a written quote before approving a replacement.
How long does a Compustar reset take?
Usually 10 to 30 minutes. Checking the battery takes about five minutes. Exiting valet mode and re-pairing remotes take another ten.
Add a few minutes for testing the locks, alarm, and remote start.
