Cadillac Xt5 Temperature Gauge Not Working

If your Cadillac XT5 temperature gauge not working has you staring at a cold needle, you're not alone. It's one of the more common complaints from owners who've put miles on these crossovers. The good news is that the fix is often simple, and the diagnosis follows a clear path.

As of 2026, many XT5s have crossed the 80,000-mile mark. That's exactly when sensors and connector pins start to fail. Manufacturer specifications indicate the 3.6L V6 should run between 195°F and 230°F once warmed up.

If the gauge disagrees with that, you need a logical plan.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A gauge stuck cold usually points to a bad sensor, wiring, or cluster. Scan for codes P0117 or P0118. Compare live coolant temp to the needle.

If the engine really overheats, stop driving immediately. Most XT5 owners fix this with a $30 sensor.

First, Check the One Thing That Actually Matters

Before you blame the sensor, answer one question. Is the engine actually overheating, or is the gauge lying? That difference changes the entire repair path.

Skip this step and you might replace a sensor while your engine quietly cooks itself.

Start with the basics. Let the car cool completely, then check the coolant reservoir. It should sit between the MIN and MAX marks.

If it's low, top it off and look for leaks around the water pump, hoses, and radiator.

Next, use an OBD-II scanner to read live coolant temperature. The engine should settle around 195°F to 230°F after a normal drive. Compare that number with what the needle shows.

• If live temp is normal but the needle reads cold, you have an electrical or sensor problem. Drive on, and continue diagnosis.
• If live temp is dangerously high but the needle reads normal, stop driving. You have a real cooling system fault and a gauge lying to you.
• If live temp and gauge agree that it's overheating, pull over right now. Shut the engine off and let it cool before opening anything.

A quick visual check helps too. Look for steam, coolant puddles, or a sweet smell near the front of the car. Check whether the electric cooling fans kick on when the AC is running.

If they don't, that's a separate wiring failure.

Don't assume the gauge is the problem. Verify the actual engine temperature first. That one step saves you time, money, and potentially the whole engine.

Why the XT5 Temperature Gauge Goes Wrong

The gauge isn't a simple thermometer. It's a chain of components, and each link has its own failure mode.

The coolant temperature sensor, often called the ECT sensor, is a thermistor. That's a resistor that changes resistance as temperature changes. The PCM sends a 5-volt reference signal through it and measures the voltage drop.

Cold coolant means high resistance. Warm coolant means lower resistance. From that, the PCM calculates temperature and sends the data over the CAN bus to the instrument cluster.

So when the gauge misbehaves, the fault lives in one of four places.

The sensor itself. A failed sensor can report a constant voltage, which locks the needle in one spot. It can also drift, giving readings that look believable but are wrong.

The wiring or connector. Corrosion in the 2-pin connector is common in Rust Belt states. A chafed wire near the exhaust manifold can short to ground or open entirely. Both cause dramatic gauge swings or a dead needle.

The PCM or communication link. If the PCM loses the sensor signal, it substitutes a default fault value. The gauge may jump to hot or cold depending on the failure mode.

The instrument cluster. The stepper motor that physically moves the needle can fail. Solder joints inside the cluster can crack too. That's less common, but it does happen on higher-mileage cars.

Use the behavior to narrow it down. Gauge stuck cold while the engine is warm points to an open circuit. Gauge pinned hot while cold points to a short to ground or a stuck sensor.

A needle that never moves at all points to the cluster or CAN bus.

That's the core system. Now let's put it to work in a diagnostic tree.

The Quick Diagnostic Tree

Here's where we turn the theory into action. Start at the top and follow the symptom that matches your gauge.

Image source: Bing (Web (fair-use with source credit))

From here, use if/then logic.

If the engine is already confirmed at normal temperature from the first section, use live data to decide. When live temp is normal but the gauge reads cold, disconnect the ECT sensor. If the gauge jumps to hot, the wiring and cluster are fine.

You have a bad sensor.

If live temp is normal but the gauge reads hot, check for a short to ground in the sensor signal wire. Also look for coolant inside the connector. Clean it and re-test.

If the needle is completely dead, run the cluster self-test. Many GM vehicles sweep the needles during a key-on diagnostic. The XT5 owner's manual has the exact button combination.

If the needle sweeps during test, the cluster is alive.

If you don't have a scan tool, use a multimeter. At 68°F, the sensor should read about 2.5kΩ to 3.5kΩ. At 194°F, it should drop to roughly 200 to 300Ω.

Outside that range means a failed sensor.

Work the tree until you narrow it to one cause. You'll avoid replacing parts that don't need replacing.

What the Codes and Live Data Tell You

Plug in a good OBD-II scanner and read the codes before ordering anything. The XT5 uses standard GM diagnostic codes for the coolant temperature circuit.

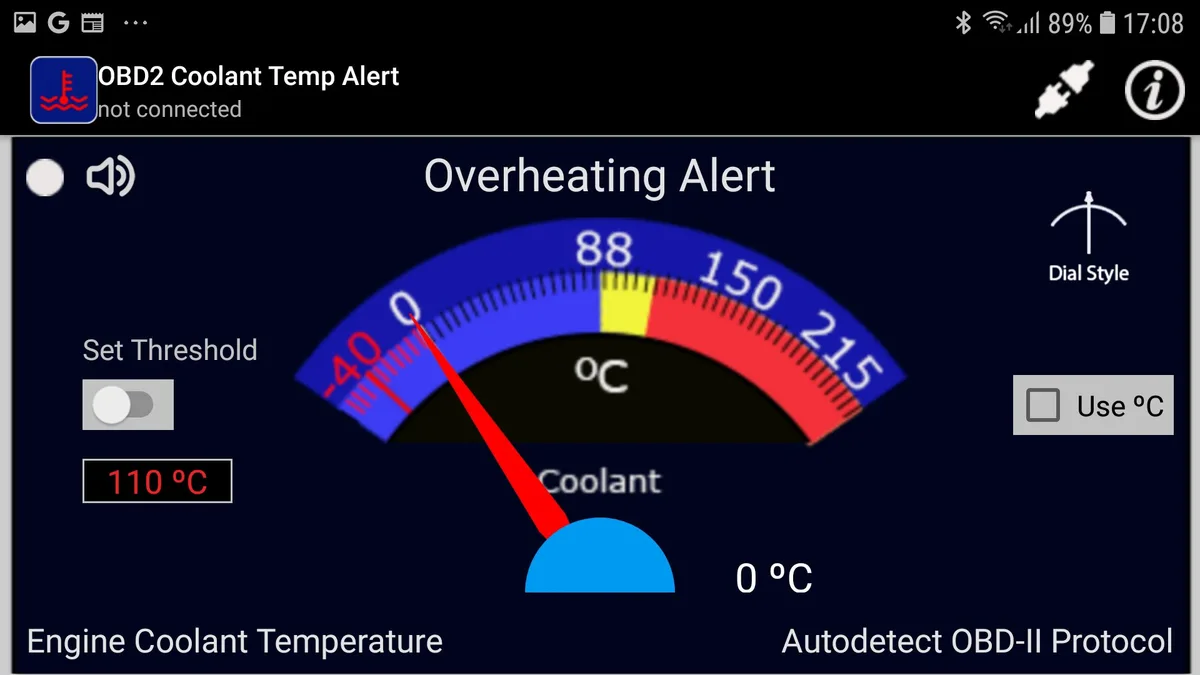

Once the engine is warm, read the live data stream. Look for the parameter labeled "ECT" or "Engine Coolant Temperature." It should read close to 195°F to 230°F after a normal drive.

Image source: Bing (Web (fair-use with source credit))

Compare that number to the needle.

If the scan tool says 210°F but the needle reads cold, the sensor signal is fine until the cluster. The fault is in the wiring between the PCM and cluster, or in the cluster itself.

If the scan tool says -40°F and the needle is pinned hot, that's a classic open circuit. The PCM fails high and the cluster reacts.

If the scan tool says 250°F and the needle reads normal, you have a genuine overheating condition. Stop driving immediately.

Also check the freeze frame data if the check engine light came on. That tells you what the engine was doing when the fault was recorded. It can reveal whether the issue is temperature-dependent.

A wiggle test helps with intermittent problems. With the engine running and the connector accessible, wiggle the wiring harness while watching the gauge. If the needle jumps, you've found your broken connection.

Use the code and live data together. They'll tell you whether to buy a sensor or start tracing wires.

Common Fixes, Parts, and Costs

Once you've narrowed the fault, the fix is usually straightforward.

Clean the connector. Corrosion is the most common cause. Disconnect the ECT sensor connector, spray both sides with electrical contact cleaner, and re-seat it. If the pins are loose, gently bend them back with a small pick.

This costs about $5 and sometimes fixes everything.

Replace the ECT sensor. If the connector looks fine, replace the sensor. On the 3.6L V6, it sits near the rear of the engine, below the intake manifold. It's tight, but a deep socket and a small extension will get it out.

Use an OEM AC Delco sensor or a quality equivalent. Avoid no-name brands. Aggregate reviews report early failures, sometimes within weeks.

Repair the wiring. If the harness shows chafing, melted insulation, or broken wires, splice in a repair pigtail. Use heat-shrink butt connectors and route the wire away from hot surfaces.

Replace the thermostat. If the engine is running cold and the gauge reads cold, the thermostat might be stuck open. That keeps coolant flowing constantly, so the engine never reaches operating temp. The fix is a new thermostat plus a coolant bleed.

Repair the cluster. If the needle never moves and the cluster self-test fails, the stepper motor or board needs attention. That's less common and usually a shop job.

Here's realistic parts pricing as of 2026:

Labor costs vary by region. Replacing the sensor at a shop usually runs $150 to $250 total. The thermostat job can hit $400 to $600 because of the coolant drain and labor.

Coolant disposal matters. Used antifreeze is hazardous waste. Collect it in a sealed container and take it to a local recycling center.

The EPA has clear guidance on coolant handling and disposal. Don't pour it down a drain or leave it in the gutter.

Mistakes That Cost XT5 Owners Time and Money

Replacing the sensor before testing it. That's the biggest one. A code P0118 doesn't always mean a bad sensor. It can mean a broken wire or a corroded pin.

Test the circuit first.

Using a cheap aftermarket sensor. It might fix the gauge for a week. Then it drifts or fails entirely. Stick with an OEM AC Delco part or a reputable brand.

Ignoring a real overheat. If the engine is actually running hot, the gauge is a symptom, not the disease. Don't just clean a connector and call it done. Find the cooling system fault.

Forgetting to bleed the cooling system. After a thermostat or sensor replacement, air gets trapped in the system. That air creates hot spots and false readings. Always bleed the system after any coolant work.

Assuming the cluster is fine. If the needle is dead and the sensor tests good, don't replace more parts. Test the cluster self-sweep first.

Skipping the wiring inspection. A chafed wire can ground out intermittently. That causes a bouncing needle and confusing symptoms. Thoroughly inspect the harness before condemning the sensor.

When to Stop DIY and Call a Pro

Some jobs need professional hands. If you're not comfortable with electrical testing, stop. A multimeter and live data require some experience.

Getting it wrong leads to misdiagnosis and wasted money.

Cooling system work has real hazards. Never open the radiator cap while the engine is hot. Pressurized coolant can cause severe burns.

If you're not sure how to bleed the system, a trusted mechanic is worth the cost.

A shop will also have access to GM's factory diagnostic procedures. They can test the CAN bus and cluster with specialized tools. They'll pull wiring diagrams and TSBs that aren't publicly available.

That level of access makes their diagnosis faster and more certain.

If the engine is overheating and you're not comfortable doing a pressure test, that's a pro job. Same for a cluster repair. Sending the cluster to a specialist costs around $200.

A dealer will charge more, but you get a warranty on the repair.

Frequently Asked Questions

How many miles do XT5 coolant sensors usually last?

Most factory sensors last well past 80,000 miles. However, thermal cycling and exposure to engine heat cause gradual degradation. Once corrosion sets in on the connector, the sensor can fail at any time.

If you're over 75,000 miles and chasing gauge issues, a fresh sensor is cheap insurance.

Can I drive my XT5 with the temperature gauge stuck on cold?

Yes, if live data confirms the engine is at normal temperature, around 195°F to 230°F. The gauge issue is then purely cosmetic or electrical. Just be aware that you're flying blind.

Monitor the coolant level and watch for warning messages on the dash.

What does the P0118 code mean on a Cadillac XT5?

P0118 means the PCM sees high voltage in the coolant temperature sensor circuit. That usually indicates an open circuit, a bad sensor, or a corroded connector. The PCM will substitute a default temperature and may run the cooling fans continuously.

Both symptoms point to the sensor circuit.

Where is the coolant temperature sensor on a 3.6L XT5?

The ECT sensor sits at the rear of the engine, below the intake manifold. It's threaded into the coolant crossover pipe on the driver's side. Access is tight, but a deep socket with an extension and a swivel will reach it.

Remove the air intake duct for better access on some models.

Should I replace the thermostat at the same time as the sensor?

Not automatically. Replace the thermostat only if the engine runs cold or if live data shows slow warm-up. If the gauge was reading correctly before the sensor failure, the thermostat is fine.

Avoid replacing parts that don't show failure symptoms.
