Cat Cj1000dxt Ac Power Not Working

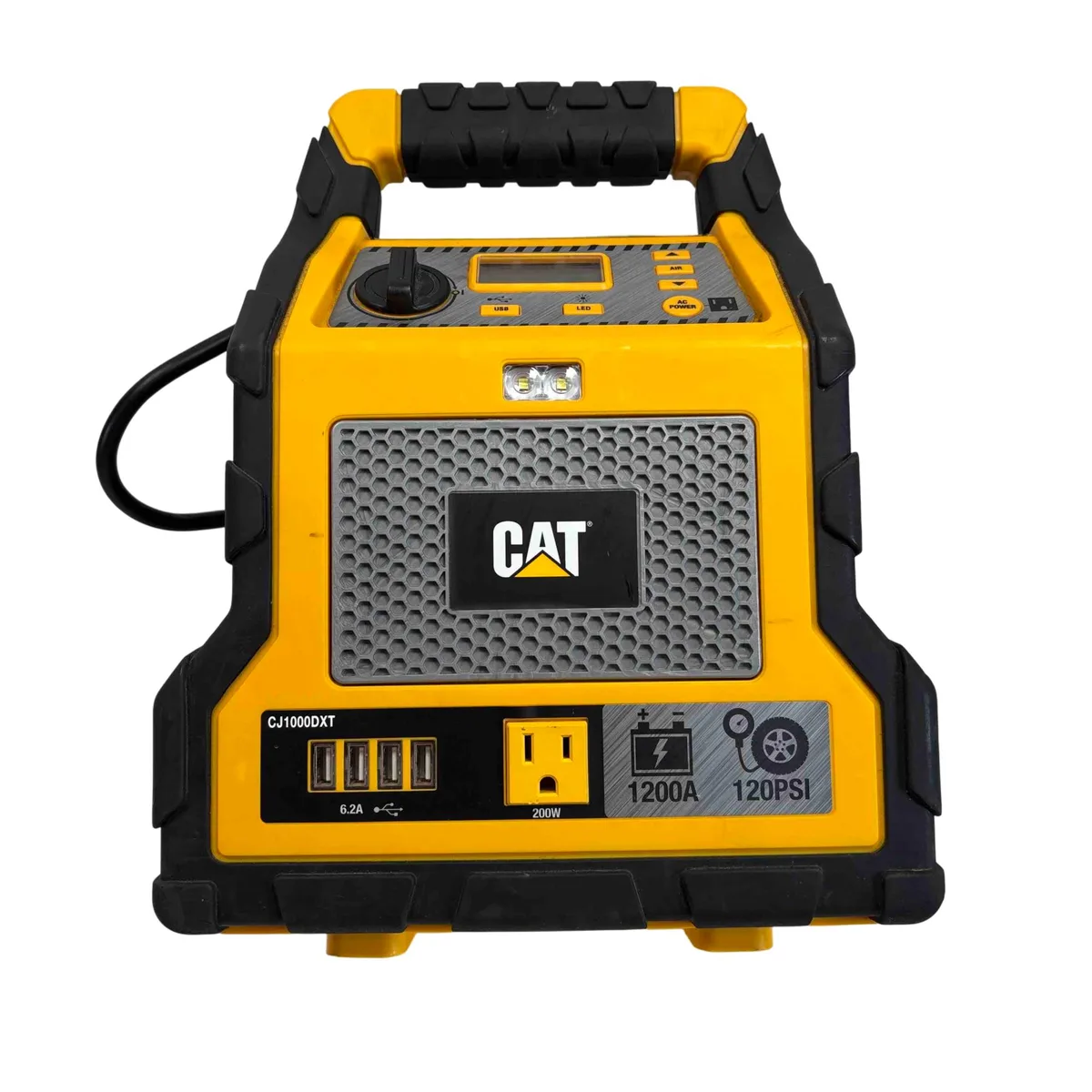

You've got your Cat CJ1000DXT generator sitting there. The engine starts and runs smooth as ever, but the outlets are dead. No power, no lights, nothing.

That exact Cat CJ1000DXT AC power not working problem is one of the most common issues with these portable generators.

Manufacturer specifications show these units should produce a steady 115-120V AC at 60Hz. When that output disappears, the fix is usually straightforward. Let's walk through what is happening under the hood and how to get your power back.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your Cat CJ1000DXT AC power failure has three common causes. The circuit breaker may have tripped. The AVR could have failed.

Or the generator lost residual magnetism.

Check the breaker first. Reset it fully. Then test the outlet with a multimeter.

No voltage means move to the AVR inspection. Flash the rotor if residual magnetism is the issue.

Problem / Pain Point: Why Your Cat CJ1000DXT Engine Runs But the Outlets Are Dead

Few things are more frustrating than a generator that starts perfectly yet refuses to deliver power. You bought it for backup. You need it now.

But every outlet is dead.

The engine runs strong because the mechanical side is fine. Fuel, spark, compression all check out. The issue lives in the electrical generation side.

This means the alternator, AVR, or wiring circuit is not doing its job.

Common causes include a tripped breaker you can reset in seconds. Or a failed AVR that needs replacement. Or something as simple as the generator losing its magnetic field after sitting in storage.

The good news is this is rarely a problem that requires a full rebuild. Most fixes are straightforward if you follow the right diagnostic path.

Quick Safety Warning: The One Thing to Do Before You Touch Anything

Generators store electrical energy even when not running. Capacitors inside the AVR and control board can hold a dangerous charge. Touching the wrong wire can shock you badly.

Turn off the engine. Disconnect the spark plug wire. Remove the battery terminal if your model has electric start.

Let the unit sit for five minutes before opening any panels.

Never work on the generator in wet conditions. Moisture on your hands or the floor creates a shock risk. Use a rubber mat or dry wooden board to stand on.

Carbon monoxide is another serious risk. Only run the generator outdoors. Never in a garage or shed even with the door open.

The Occupational Safety and Health Administration publishes detailed portable generator safety guidelines.

If the generator is under warranty, do not open the alternator housing yourself. That can void coverage. Contact your Cat dealer for authorized service.

How the CJ1000DXT Generates AC Power: What Needs to Work Under the Hood

Your Cat CJ1000DXT uses a brushless alternator design. The engine spins a rotor with permanent magnets inside a stator with copper windings. This spinning magnetic field induces AC voltage in the stator windings.

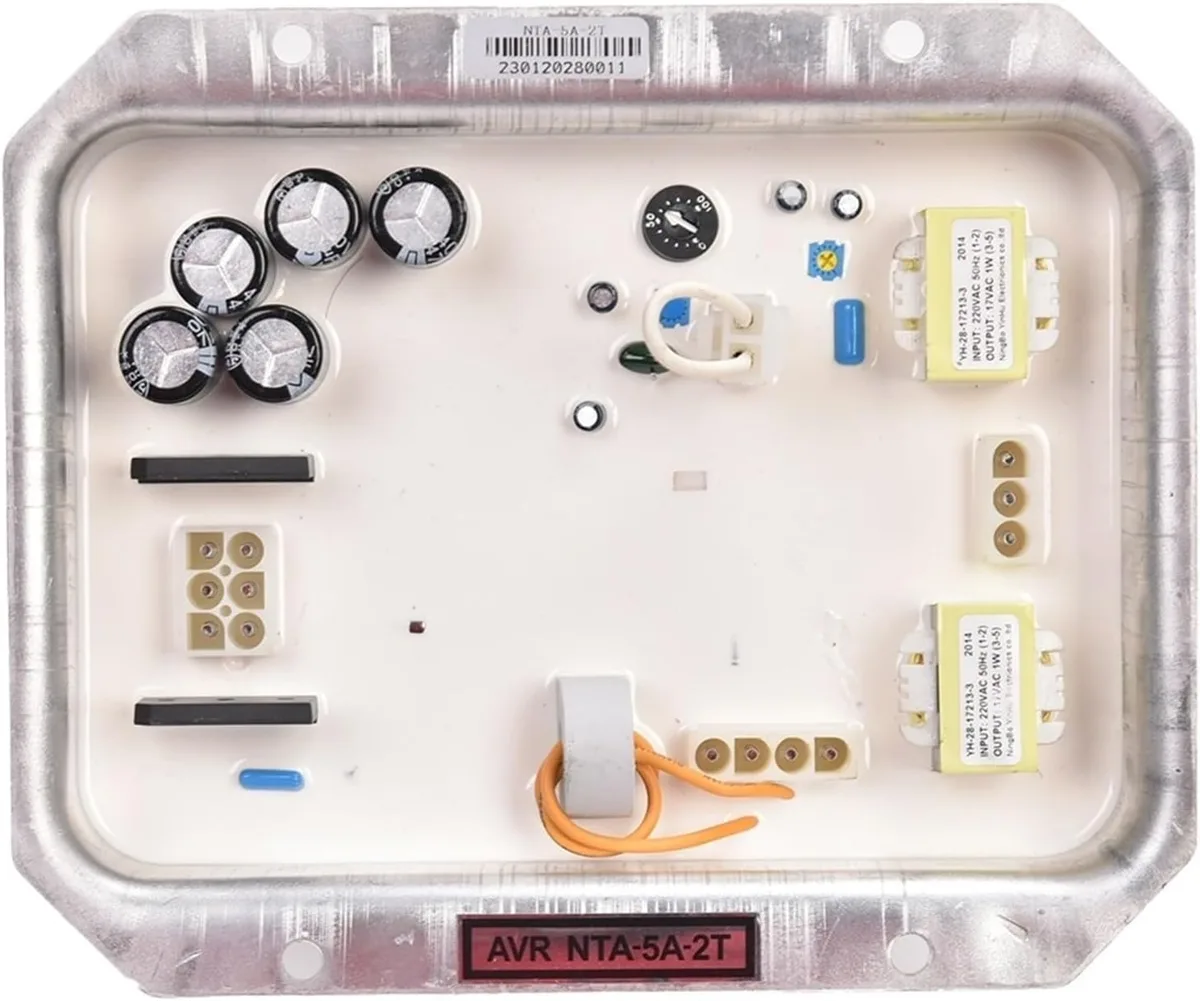

The Automatic Voltage Regulator (AVR) is the brain of this system. It monitors the output voltage. When voltage drops, the AVR sends more current to the field windings to boost it back up.

When voltage rises, it pulls back.

Image source: Bing (Web (fair-use with source credit))

This closed loop keeps your output steady at 115-120V AC. If the AVR fails, the alternator still spins but produces either zero voltage or wildly fluctuating output.

Residual magnetism is also critical. When the generator runs, the rotor maintains a small magnetic field. This field kickstarts excitation when you restart.

If the generator sits unused for months, this residual magnetism can fade. The result is no AC output even though everything else works fine.

Decision Workflow: Diagnosing Zero AC Output Step by Step

You will need a digital multimeter, a screwdriver set, and your owner manual. Set the multimeter to AC voltage for outlet tests. Switch to DC voltage for AVR input checks.

Start with the engine running at full governed speed. Do not try to diagnose at idle. The generator needs proper RPM to produce voltage.

Image source: Bing (Web (fair-use with source credit))

Branch 1: No Voltage at the Outlet (Dead Outlet)

Check the circuit breaker first. Push it fully to OFF then back to ON. Breakers can trip without looking tripped.

If the breaker is fine, test the outlet with a multimeter set to AC voltage. Insert probes into the hot and neutral slots. Zero or near zero reading means the alternator is not producing power.

Next step is checking the AVR. Unplug any loads. Let the generator run for one minute to stabilize.

Measure AC voltage directly at the AVR input terminals. Manufacturer specs indicate you should see 50-70V AC there with no load.

If you have voltage at the AVR input but zero at the output, the AVR is dead. Replace it with a genuine Cat or equivalent aftermarket unit. As of 2026, a new AVR typically costs $30 to $60.

If there is no voltage at the AVR input either, the stator windings may be open. This requires testing continuity between the windings with the generator off. Resistance should match the service manual spec, typically under 1 ohm for the main winding.

Branch 2: Low Voltage or Fluctuating Output

Low voltage (under 105V AC) with no load usually means a weak AVR or capacitor issue. The excitation capacitor stores the initial charge to build the magnetic field.

Check the capacitor with a multimeter set to capacitance. A typical value on this model is 10-40 microfarads. If the reading is significantly low or zero, replace it.

Capacitors degrade over time, especially after long storage.

Fluctuating voltage that swings between 90V and 130V often indicates a failing AVR. The regulator cannot stabilize the field current. Replace the AVR and test again.

Branch 3: Voltage Present but Stops Under Load

This points to an overload or a weak engine. The generator can produce voltage with no load but cannot maintain RPM under load.

Check your load. Are you exceeding the rated wattage? The CJ1000DXT is rated for roughly 900W continuous.

Even a small space heater can push it past its limit.

If the load is fine, the engine may be surging or dropping RPM under load. Clean the carburetor. Check the fuel filter.

Old fuel can cause lean running conditions that prevent full power delivery.

Branch 4: Intermittent Power Cutting Out

Intermittent issues are the hardest to pin down. Start by checking all connections. Loose wires at the AVR, breaker, or outlet can cause power to drop in and out.

Vibration during operation can loosen connectors over time. Remove the control panel cover. Inspect every terminal for tightness.

Wires that feel loose need to be crimped or replaced.

A failing breaker can also cause intermittent power. Breakers wear out after repeated trips or years of use. Replace it if other checks pass and the problem persists.

Mistakes to Avoid: Common Errors That Waste Time and Risk Damage

Some mistakes turn a straightforward fix into a bigger problem. These patterns show up again and again in repair forums.

Skipping the breaker check. That circuit breaker can trip without looking visibly different. Push it all the way off, then firmly back on. A half-tripped breaker feels like it is in the ON position but is not making contact.

Running the generator at the wrong speed. The CJ1000DXT needs to run at full governed RPM to produce proper voltage. Some people try to troubleshoot at idle. This gives false readings.

Let the engine warm up and reach its steady governed speed before testing.

Using the wrong multimeter settings. Set your multimeter to AC voltage, not DC. AC power is what comes out of your outlets. DC testing gives you a zero reading that sends you down the wrong diagnostic path.

Assuming the AVR is always the culprit. The AVR fails often, but not every time. Replace it without testing first, and you might find the real problem was just a loose wire or a dead capacitor. Always test voltage at the AVR input before ordering parts.

Forgetting residual magnetism. Long storage kills the magnetic field. Before replacing expensive parts, try flashing the rotor. This process sends a brief DC pulse to the field windings to restore the magnetic field.

Details are in your owner manual.

Real Scenarios: Examples That Show the Decision Tree in Action

Scenario One: The Garage Storage Case

A user pulls their CJ1000DXT out after two years in the garage. Engine starts first pull. Outlets show zero voltage.

They check the breaker and it is fine. The multimeter shows 0V at the AVR input. The stator continuity test passes.

The fix was flashing the rotor. After a short DC pulse to the field windings, the generator produced 118V AC with no load. The residual magnetism had faded during storage.

Scenario Two: The Overload Recovery

A camper plugs a small refrigerator and a laptop charger into the generator. Power cuts out after ten minutes. The engine is still running.

The outlet has no power.

The breaker had tripped from the refrigerator compressor startup surge. Resetting the breaker restored power. The user needed to stagger the loads to avoid peak draw.

Scenario Three: The AVR Failure

A homeowner runs the generator during a power outage. After three hours, the lights start flickering dimly. Within five minutes, the output drops to 60V AC.

Testing showed 65V at the AVR input but only 6V at the output. Replacing the AVR module brought the output back to 119V. The AVR had failed from heat buildup during extended use.

Maintenance note: Regular use prevents many of these issues. Run the generator under load for 20 minutes every month. This keeps residual magnetism strong and prevents capacitor degradation.

Store it in a dry location, since humidity corrodes AVR connectors and stator windings.

Frequently Asked Questions

Can I run my CJ1000DXT without an AVR?

No. The AVR regulates output voltage. Running without it can produce voltage spikes that damage connected electronics.

Replace a failed AVR before using the generator again.

How do I flash the rotor on my Cat generator?

Disconnect the spark plug for safety. Apply a 12V DC pulse from a battery to the field windings for two seconds. Refer to your owner manual for exact terminal locations.

Reconnect the plug and restart.

Why does my generator have power at the outlet but dies when I plug something in?

The engine is likely not producing full power. Check for clogged carburetor, old fuel, or a dirty air filter. Also verify the load does not exceed 900W continuous.

How long does an AVR typically last on the CJ1000DXT?

Manufacturer specifications indicate an expected lifespan of 500 to 1000 operating hours. Heat, humidity, and voltage surges can shorten that life. Keep the generator clean and stored dry for longest AVR life.

Can I use a universal AVR as a replacement?

Yes, many aftermarket AVRs work on the CJ1000DXT. Match the voltage and current ratings to your original unit. Verify the connection pin layout matches your generator model.

A mismatch can cause unstable output.

What does it cost to repair a CJ1000DXT with no AC output?

An AVR replacement costs $30 to $60 for parts. A new capacitor costs around $10 to $15. If the stator winding is damaged, expect $150 to $300 at a repair shop.

Compare that against the price of a new generator.

When should I call a professional?

Call a certified technician if you find burned windings or signs of internal arcing. Also call if you have tested everything and still have no power. Stator or rotor damage requires complete disassembly.
