Chamberlain Garage Door Opener Troubleshooting 10 Flashes

Your garage door opener light blinks ten times and the door refuses to close. That flashing pattern is Chamberlain's way of telling you exactly where to look. In this guide to Chamberlain garage door opener troubleshooting 10 flashes, we walk through the step-by-step diagnostic process so you can fix it yourself in under an hour.

Manufacturer specifications confirm that ten flashes point to a problem with the safety reversing sensors, the two small eyes mounted near the floor on each side of the door. Since 1993, U.S. federal law has required these sensors on every residential opener. Chamberlain's onboard logic board uses flash codes to pinpoint the fault.

Let's start with the short answer, then work through the fixes.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Ten flashes on a Chamberlain opener means the safety sensor circuit is interrupted. Check the sensor LED status first. Both eyes must be aligned, clean, and receiving power.

If one LED is off or dim, inspect the wiring from the sensor to the opener. If both LEDs are solid, realign the brackets. Never bypass sensors.

It's illegal and unsafe.

What 10 Flashes Actually Means (And What It Doesn't)

Ten flashes is not a motor failure. It is not a dead battery in your remote. It is not a problem with the door springs or tracks.

Per Chamberlain's diagnostic code chart, available from the manufacturer's support site, ten flashes translates directly to safety reversing sensors that are obstructed, misaligned, or have a wiring fault.

Chamberlain uses a red or green LED inside the main logic board to flash the code. You will see a repeating pattern: ten flashes, a pause, then ten again. Some newer models combine that with the overhead light blinking the same number.

Watch carefully. One flash is a different issue entirely.

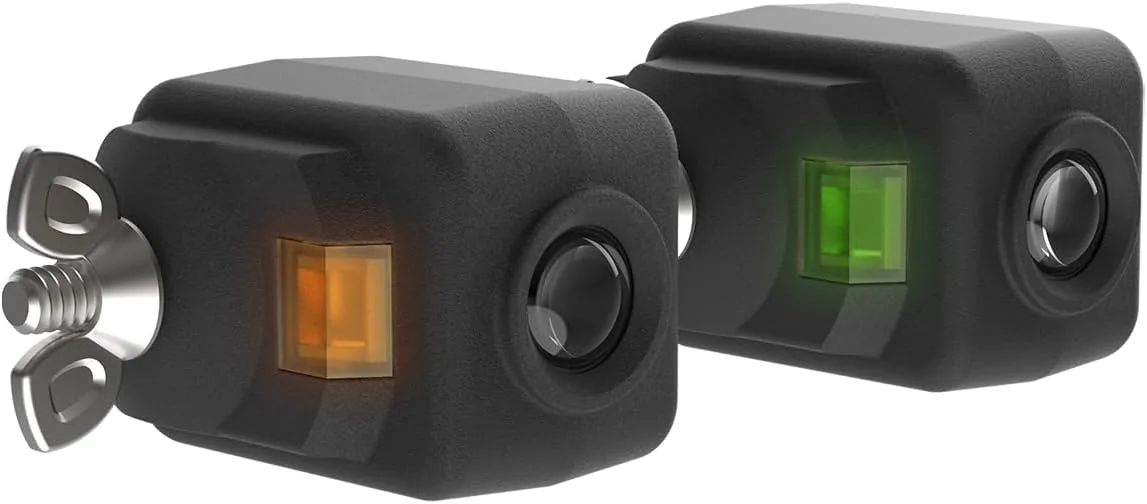

The sensors have their own indicator lights. A properly functioning sending sensor shows a steady red or orange LED. The receiving sensor shows a steady green LED.

If either is off, dim, or flickering, you have found the starting point.

So what does not cause ten flashes? A dirty track. A broken spring.

A stuck trolley. A dead remote battery. Those problems cause the door to behave differently.

Grinding. Reversing without any flash. Failing to move at all.

Ten flashes is sensor-specific. That narrows your troubleshooting to one small circuit.

Step 1: Check Your Sensors – The Visual Diagnostic

Image source: Bing (Web (fair-use with source credit))

Go look at your sensors. They are mounted on brackets. One on each side of the garage door opening, about six inches off the floor.

Each has a small lens pointing toward the opposite sensor.

What to look for:

• Both sensors should have their indicator LEDs lit. A sending sensor with a solid red or orange LED and a receiving sensor with a steady green LED means power and basic communication are OK.
• If the receiving sensor (green) is off, the beam is not reaching it. That could be an alignment problem or an obstruction.
• If the sending sensor (red or orange) is off, the sensor is not getting power. That usually points to a wiring issue back at the opener.

Common physical issues you can spot without tools:

• A spider web or dust layer over the lens. Wipe it off with a soft dry cloth.
• A box, tool, or garbage can sitting in front of either sensor. Move it.
• Sunlight hitting the receiving sensor directly. Late afternoon sun can trigger a false obstruction. Sometimes shading the lens with your hand is enough to prove the cause.

If both LEDs are solid and aligned, move to the next step. If one is dim or off, proceed to Step 3. Wiring is your culprit.

Step 2: The Alignment Fix (No Tools Required)

Most ten-flash problems are solved without a single screwdriver. The sensors need to face each other squarely. The beam between them must be clear and straight.

Here is how to check alignment:

• Stand behind one sensor and look directly across to the opposite sensor. The lenses should appear centered on each other.
• Gently wiggle one sensor bracket. If the receiving sensor's green LED flickers or goes out, you have found the misalignment.
• Loosen the wing nut on the bracket by hand. Shift the sensor left or right, up or down, until the green LED glows steady again.
• Tighten the wing nut. Test the door by pressing the wall control or remote. If it closes without reversing, you are done.

Important nuance: The beam is invisible to the naked eye. You rely on the LED indicator as your truth. A steady green light means the beam is hitting its target.

A flickering green light means marginal alignment. Tighten the bracket and check again.

When alignment alone does not work:

• If both LEDs are on but the door still flashes ten times, the problem is likely electrical. Move to Step 3.
• If you tighten the bracket and the green LED goes out, you may have damaged the wires inside the bracket arm. Check the wire insulation where it enters the sensor housing.

Step 3: Wiring Inspection – Where Most People Give Up

This is the part that trips up DIYers. The sensors are wired back to the opener's logic board with two-conductor bell wire. Typically 22-gauge, solid copper.

Over time, that wire gets damaged.

Start at the sensor end:

• Remove the wire from the sensor terminals. Look for corrosion, rust, or crushed insulation.
• Strip about 1/4 inch of fresh wire and reattach. Sometimes a bad connection at the sensor itself is the only issue.

Follow the wire path to the opener:

• Walk the entire length. Look for staples that pierced the wire, kinked sections, or cuts from a dropped box or lawn tool.
• In unfinished garages, wire often runs overhead along the ceiling. Check near the opener terminals. Mice love chewing through this wire.

At the opener end:

• Locate the terminal block on the logic board. Usually labeled SENSOR or with two screws.
• Inspect the wires for the same damage. If you find any, cut back to clean wire and reconnect.

Rule of thumb: If your sensor LEDs are off or dim, suspect a wiring problem. If both LEDs are solid, the wiring is good. The fault is alignment or a bad sensor.

One more tip: Chamberlain sensors are polarity-sensitive. The two wires are not marked. But the convention is white wire for positive and white-stripe wire for negative.

If you swapped them at the sensor or the opener, it can cause intermittent flashing. Try swapping the wires at one end and see if the LEDs change state.

Step 4: The Multimeter Test and Bypass Check

Image source: Bing (Web (fair-use with source credit))

If wiring looks fine but the problem persists, you need a multimeter. This step confirms whether the sensors themselves are bad or whether the logic board is the issue.

Test voltage at the sensor terminals:

• Set your multimeter to DC volts, 20V range.
• Probe the two sensor terminals while the wires are still connected. You should see 3.5 to 5 volts DC. If voltage is below 3 volts, the board may not be sending enough power. Or the wire run is too long, over 30 feet.

Test continuity on the wire pair:

• Disconnect the wires from both the sensors and the opener.
• Set the multimeter to continuity or resistance.
• Touch probes to each wire end. You should get near-zero resistance. If you get an open line, the wire is broken somewhere.

The bypass test (use only to diagnose, never leave bypassed):

• Unplug the opener or disconnect power.
• Find the two sensor terminals on the logic board.
• Remove the sensor wires and jumper the two terminals together with a short piece of wire.
• Plug the opener back in and try to close the door. If it closes without the ten flashes, the sensors or wiring are bad. If it still flashes ten times, the logic board is faulty.

Important: Federal safety law requires functioning sensors. Never leave the bypass in place. Use it only to confirm the board is good.

Then restore the sensors.

Step 5: When It's the Board – And When to Throw in the Towel

If you completed the bypass test and the door still flashes ten times, the logic board has failed. This is less common than sensor or wiring problems. But it happens.

Power surges, age, and moisture can damage the board.

You have two options:

Option 1: Replace the logic board

• Cost: $40 to $80 depending on your Chamberlain model
• Where to find it: The manufacturer's parts page or an authorized dealer
• Difficulty: Moderate. You need a screwdriver, careful handling of ribbon cables, and exact model matching

Option 2: Replace the entire opener

• Cost: $150 to $400 for a new Chamberlain unit
• When to choose this: If your opener is over 12 years old, parts are scarce, or you want modern features like battery backup and Wi-Fi

How to decide:

• If the board is available and affordable, replace it. A new board extends the unit another 5 to 10 years.
• If the opener is old and the board is backordered, buy a new opener. You will get a warranty and updated safety features.

As of 2026, Chamberlain still manufactures replacement boards for most models from the past decade. Check the model number on the back or side of the motor unit. Match it exactly when ordering.

Mistakes to Avoid That Waste Time and Money

Here are the common errors we see in aggregate reviews and DIY forums. Avoid them and you save yourself an hour.

Mistake 1: Replacing sensors without checking the wiring first

Nine times out of ten, the wire is the problem. Not the sensor. Replacing a good sensor is wasted money and effort.

Mistake 2: Bypassing sensors permanently

Bad idea. Federal law requires them. More importantly, the sensors prevent the door from closing on a child, pet, or car.

Disabling them creates a serious hazard.

Mistake 3: Overtightening sensor bracket screws

The bracket arm is plastic on many models. Crank it too hard and you crack the housing. Hand-tighten only.

Mistake 4: Ignoring the source of sensor bracket misalignment

If the brackets are loose, check the wood framing they mount to. Rotting trim or loose siding causes recurring alignment issues. Fix the mounting surface first.

Mistake 5: Confusing ten flashes with a four-flash code

Four flashes means the door is having trouble closing all the way, which is usually a force setting or track issue. Different fix entirely. Count your flashes carefully.

Frequently Asked Questions

Can I bypass the sensors temporarily to close the garage door?

You can for a diagnostic test. Connect a jumper wire across the sensor terminals on the logic board. Remove it immediately after testing.

Never leave a bypass in place. It bypasses a critical safety system.

How long do Chamberlain safety sensors last?

Ten to fifteen years with normal use. Exposure to moisture, temperature swings, and physical bumps shortens their lifespan. If your sensors are over 12 years old and failing, replace both as a pair.

Why are both sensor LEDs on but the door still flashes ten times?

This usually means the beam is intermittent. The sensors are receiving the signal at rest but losing it during the closing motion due to vibration. Check bracket tightness.

Also check for a loose wire at the sensor terminal.

Do I need to replace both sensors or just one?

Replace both as a pair. Chamberlain designs the sending and receiving sensors to work together. Using one old and one new sensor can cause compatibility issues.

The pair costs 15 to 30 dollars.

What if my Chamberlain opener has no LED on the logic board?

Some older models use the overhead light to flash the error code instead. Count the flashes from the light. Ten flashes on the light means the same thing: sensor circuit problem.

Where do I find the model number on my Chamberlain opener?

Look on the back or right side of the motor unit. It is printed on a white or yellow sticker. The model number starts with letters followed by numbers.

Write it down before ordering parts or calling support.
