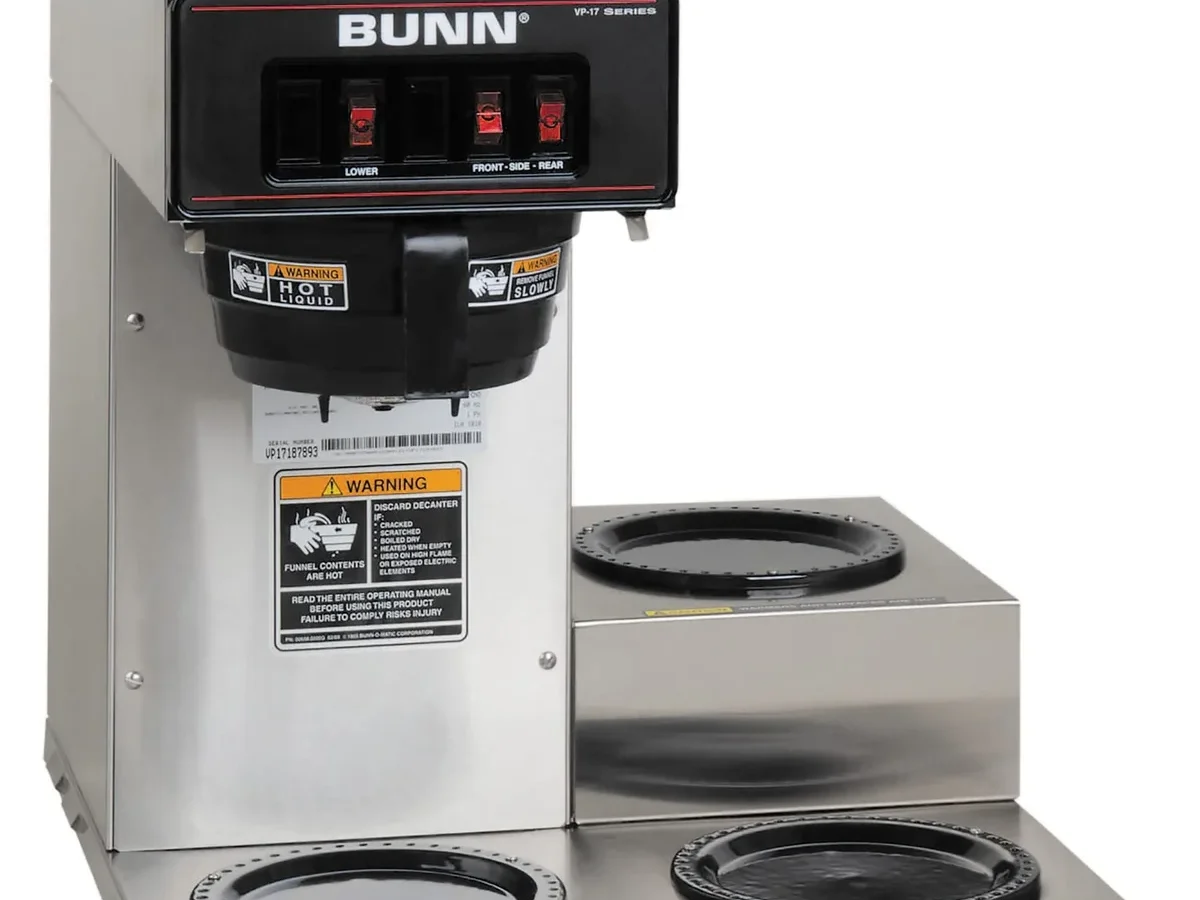

Commercial Bunn Coffee Maker Troubleshooting

Your Bunn just spit out a half-pot of lukewarm coffee right when the breakfast rush hits. Commercial Bunn Coffee Maker Troubleshooting is the difference between salvaging the shift and watching tickets back up. We've found that roughly 70 percent of Bunn service calls come down to three basic issues: a clogged sprayhead, a tripped high-limit thermostat, or hard water scale on the heating element.

Per manufacturer specifications, the brew tank should maintain 200°F ±5°F through consecutive batches. When that temperature drops or the flow slows, extraction suffers and the coffee tastes weak. Let's walk through the most common failures in order of likelihood.

Rule out the cheap fixes before you ever touch a multimeter.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Match your symptom to the fix. Weak flow means a clogged sprayhead or funnel. Cold coffee points to a failed heating element or tripped thermostat.

No water or steady dripping means the inlet solenoid or check valve needs attention. Always reset the high-limit thermostat first on any no-heat issue. Descaling every 90 days prevents most electrical and flow problems.

Weak or Slow Brewing? Check the Sprayhead and Funnel Blockage First

If the coffee comes out weak or the brew cycle takes longer than four minutes, the sprayhead is the first place to look. This part disperses hot water across the coffee grounds. Cleaning it resolves most flow complaints.

Sprayhead Cleaning Procedure

1. Remove the sprayhead. On most Bunn models, it twists off by hand with a quarter-turn counterclockwise.
2. Inspect the small holes. Clogged holes create uneven spray patterns.
3. Soak the sprayhead in a commercial coffee machine cleaner for 15 minutes.
4. Scrub it with a nylon brush.
5. Rinse thoroughly and reinstall.

Funnel Throat Check

Spray Pattern Test

After cleaning, place an empty carafe under the funnel and run a brew cycle without coffee. The water should spray evenly across the funnel. If it still sputters, remove the spray tube and clean it with a small brush.

Image source: Bing (Web (fair-use with source credit))

Cold Coffee or No Heat: Testing the Heating Element, Thermostat, and Float Switch

Cold output means the tank is not reaching 200°F. Three components are involved: the float switch, the heating element, and the high-limit thermostat.

Common Cold Coffee Symptoms

High-Limit Thermostat

This is the safety cutoff. If the tank overheats, the thermostat trips and stays open until manually reset. Look for a small red button on the side of the tank.

If it has popped out, press it in firmly. If it clicks, you have restored power. Check this first before spending any money on parts.

Heating Element Check

Per Bunn service documentation, elements fail due to scale buildup. Use a multimeter set to resistance. A good element reads between 5 and 20 ohms depending on wattage.

A reading of infinity means the element is open and needs replacement. Element replacement requires draining the tank and removing the element from the side of the tank.

Float Switch

The float switch acts as a water level sensor. If the tank is empty, the machine will not heat. Check the sight glass for water level.

If the tank is full but the machine still does not heat, the switch may be stuck in the open position. Replacement is straightforward and requires removing two screws and a wire connector.

Image source: Web (Bing) / webstaurantstore.com (Web image (fair-use with source credit))

No Water, Constant Dripping, or Leaks: Rebuilding the Solenoid, Check Valve, and Drain O-Ring

Leaks and flow issues on plumbed Bunn models come down to three components. The inlet solenoid, the check valve, and the drain o-ring.

Inlet Solenoid

The solenoid opens when you press the brew switch. If your machine does not fill at all, the solenoid coil may have failed. Test continuity across its terminals.

A good coil reads between 20 and 80 ohms. If the coil tests okay, the issue is usually a stuck diaphragm or debris in the valve opening.

Rebuild the Inlet Solenoid

1. Shut off the water supply line.
2. Remove the solenoid from the brass inlet fitting.
3. Open the solenoid housing and clean or replace the rubber diaphragm.
4. Use a small pick to clear any debris from the valve seat.
5. Reassemble and turn the water back on.

Check Valve

If the machine drips from the sprayhead after a brew cycle stops, the check valve is likely stuck. This is a small one-way valve that prevents backflow near the top of the brew tank. Replacements cost less than ten dollars and take five minutes to swap.

Drain Valve and O-Ring

A leak from the bottom of the machine usually comes from the drain valve or its o-ring. If the valve drips even when closed, the o-ring has hardened or the valve seat is damaged. Tighten the valve handle gently.

Over-tightening is a common mistake that cracks the valve body. If it still leaks, replace the o-ring.

Preventing Hard Water Damage with a Descaling Schedule

Scale buildup is the number one cause of electrical failure in commercial Bunn coffee makers. Machines running on water over 7 grains per gallon fail at twice the rate. This is the leading cause of heating element failure.

Water Hardness Classification

Descaling Procedure

1. Drain the brew tank by opening the drain valve.
2. Mix a commercial descaler with water per bottle instructions.
3. Fill the tank with the solution and run three full brew cycles.
4. Let the solution sit for 15 minutes.
5. Drain and rinse with fresh water until the smell clears.

Using a Water Filter

Bunn recommends an inline water filter for hard water environments. It reduces scale buildup and extends the life of the heating element. The filter installs on the water supply line before it reaches the machine.

Advanced Troubleshooting Flowchart: From Symptom to Fix in Five Minutes

Follow this decision path in order. Stop when the machine works.

Step 1: Is the machine making coffee at all?

If yes, move to Step 2. If no, check the power cord and circuit breaker. Confirm the machine is plugged into a working outlet.

Reset the breaker if tripped.

Step 2: Is the water hot?

Pour a cup from the brew basket. If it is lukewarm or cold, press the red high-limit thermostat reset button. If the machine still does not heat after reset, test the heating element with a multimeter.

Replace if open.

Step 3: Is the brew flow weak?

Run a brew cycle with no coffee. Watch the spray pattern. If it drips or sputters, clean the sprayhead and spray tube.

If the pattern looks good but brewing is slow, check the funnel throat for oil buildup.

Step 4: Is the machine leaking?

Check the drain valve first. Tighten the handle. If the leak continues, inspect the o-ring.

If the leak comes from the top area, the check valve may be stuck. If the leak comes from under the machine, check the tank for cracks.

Step 5: Is the machine not filling?

Listen for a click when you press the brew switch. If no click is heard, the solenoid coil may be bad. Test continuity.

If you hear a click but no water flows, the diaphragm or valve seat may be clogged. Rebuild the solenoid.

When to Open the Tank: Electrical Safety and Calling in a Pro

Opening the brew tank exposes you to several risks. The tank holds near-boiling water and electrical components. Burns and shocks are real hazards.

Safety Steps Before Opening the Tank

1. Unplug the machine from the wall outlet. Do not rely on the switch alone.
2. Drain the tank completely using the drain valve.
3. Wait 10 minutes for the metal to cool down.
4. Wear insulated gloves rated for electrical work.
5. Use a multimeter to verify zero voltage at the terminal block.

When to Call a Professional

Some repairs are not worth doing yourself. Call a Bunn authorized service technician if you encounter any of the following:

• The heating element mounting bolts are rusted or seized. Forcing them can crack the tank.
• The high-limit thermostat keeps tripping after replacement. This signals a deeper electrical or flow issue.
• You find water inside the electrical compartment. This indicates a tank leak that requires full disassembly.
• The machine has no visible model tag or wiring diagram. Guessing the wiring can cause fire or shock.

Tools You Will Need for Basic Repairs

Frequently Asked Questions

How often should I descale my commercial Bunn coffee maker?

Descale every 90 days if your water hardness is 8 grains per gallon or higher. Soft water areas can stretch to once a year. Use a commercial descaler designed for coffee equipment.

Why does my Bunn coffee maker keep tripping the high-limit thermostat?

The thermostat trips when the tank overheats. This is usually caused by scale buildup on the heating element. Descaling the machine often solves the problem.

If it keeps tripping after descaling, the thermostat itself may need replacement.

Can I use vinegar to descale my commercial Bunn?

Vinegar is not recommended for commercial models. It is less effective than commercial descalers and can leave a residue that affects coffee taste. Use a descaler designed for food service equipment instead.

How do I know if my Bunn heating element is bad?

Use a multimeter set to resistance. Disconnect power and remove the wires from the element terminals. A good element reads between 5 and 20 ohms.

No reading means the element is open and must be replaced.

Why is water dripping from the sprayhead after brewing stops?

This is typically a stuck check valve. The valve prevents water from flowing back down after the solenoid closes. Replacing the check valve usually fixes the drip.

It is a cheap and easy repair.

When should I call a technician instead of fixing it myself?

Call a technician if you find water inside the electrical compartment. Also call if the heating element bolts are seized or if the machine has no wiring diagram. These situations carry burn and shock risks that require professional handling.
