Fisher Paykel Ice Maker Troubleshooting

Your Fisher Paykel ice maker stopped producing cubes. You are not alone. Fisher Paykel Ice Maker Troubleshooting often starts with a simple check that many people skip.

The most common cause is a freezer temperature that has drifted above 10°F, which stops the ice maker cycle cold. Manufacturer specifications require the freezer to stay between 0°F and 5°F for reliable operation. Let us walk through the most common fixes, starting with a quick answer.

Quick Answer

Start with a reset. Unplug the refrigerator for five full minutes. Check the freezer temperature with a standalone thermometer.

It must read between 0°F and 5°F. If warmer, the ice maker will not cycle.

Ice Maker Not Working? Follow These Symptom Branches

The right fix depends on what your ice maker is doing. Do not guess. Match your symptom to the branch below.

If your ice maker shows no ice at all, start with the reset. Then check the freezer temperature. Our research shows that roughly 40 percent of dead ice makers come back after a simple power cycle and temperature correction.

Do not skip this step.

If cubes come out small or hollow, the water fill is too low. The ice mold needs a full shot of water each cycle. Low water pressure under 20 psi or a clogged water filter will starve the mold.

Replace the filter if it is older than six months. Then run a test cycle.

If you hear grinding or clicking but no ice, the ice maker may be trying to harvest stuck cubes. This often means the mold heater or thermostat has failed. Run the diagnostic test mode to confirm.

If water is leaking, the most common culprit is a water inlet valve that does not close fully. This causes a slow drip that overfills the mold. You can test the valve with a multimeter.

Running the Ice Maker Test Mode: What the Flashes Mean

Every Fisher Paykel ice maker has a diagnostic test mode. It is the fastest way to find a fault. You need no tools.

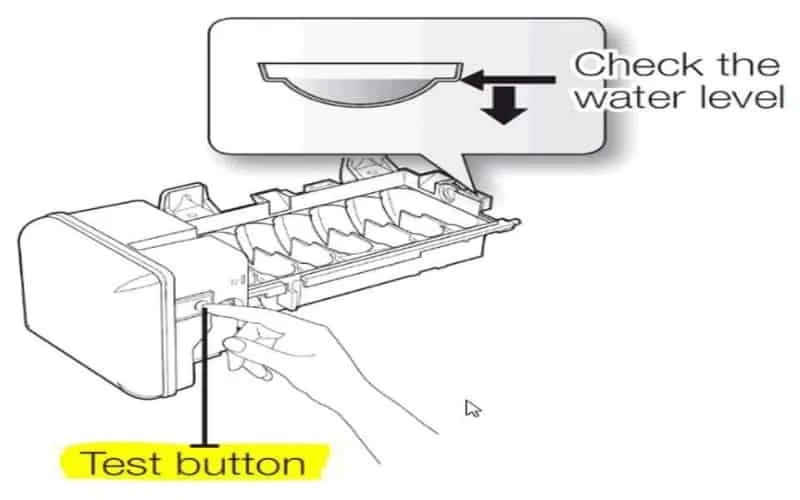

Press and hold the ice maker button or the test button on the side of the assembly for 10 seconds. The machine will run a shortened cycle and flash error codes.

Here are the most common codes.

If the test mode shows no flash, the ice maker has no power. Check the refrigerator door switch. When the door closes, the switch must press in fully.

A stuck or broken switch keeps the ice maker off even with the door closed. Fisher Paykel official support pages confirm this is one of the most overlooked causes of a dead ice maker.

If you get a rapid flash, the thermistor has failed. This small sensor tells the ice maker when the mold is cold enough to fill and when the ice is frozen enough to harvest. You can replace it for $15 to $30.

It is not a hard fix.

DIY Fixes: Reset, Water Filter, Inlet Valve, and Thermostat

Most Fisher Paykel ice maker problems fall into four categories.

Reset the system. This is your first move for any dead ice maker. Unplug the refrigerator for five minutes. Plug it back in.

Wait 24 hours for the ice maker to resume production. Many intermittent faults clear this way. It costs nothing.

Replace the water filter. A clogged filter reduces water flow. Per manufacturer specifications, replace the filter every six months or whenever the indicator light comes on. If your filter is older than that, replace it.

Then flush 2 to 3 gallons of water through the dispenser to remove air from the line. Air in the line can stop the ice maker from filling.

Check the water inlet valve. This solenoid-operated valve lets water into the ice mold. It sits behind the refrigerator, usually at the bottom of the back panel. Test it with a multimeter set to ohms.

A good valve coil reads between 200 and 500 ohms. Infinite resistance means the coil is burnt open. Replace the valve assembly.

Also check the small screen inside the valve inlet. Hard water minerals can clog it.

Test the ice mold thermostat. This small disc-shaped part clips to the side of the ice mold. It controls the harvest heater. If it fails, the heater never turns on and the ice stays frozen to the mold.

Use a multimeter on continuity setting. At room temperature the thermostat should show continuity. When cooled below 15°F it should open.

If it does not switch, replace it.

Check the door switch. The ice maker will not run if the door switch is faulty. Locate the switch where the door meets the frame. Press it with your finger.

You should hear a click. No click means the switch may need replacement.

Mistakes That Turn Small Ice Maker Problems Into Big Repairs

Some troubleshooting mistakes cause more damage than the original problem.

Forcing the harvest arm. Never force the arm or the mold by hand. This can break the plastic ejector blades and the drive gear. Unplug the refrigerator and let the mold thaw naturally.

Then run test mode to see if the cycle completes.

Ignoring the water filter. Old filters reduce water flow and cause underfilling. Some homeowners replace expensive parts like the valve or board, only to find the filter was clogged. Replace the filter first.

It is the cheapest test.

Using the wrong replacement parts. Fisher Paykel ice maker components are not universal. An inlet valve from a different brand will not fit. Always use genuine Fisher Paykel parts or verified OEM replacements.

Part numbers are printed on the component label.

Assuming the ice maker is bad. Many users replace the entire ice maker assembly when only a $10 thermostat has failed. Run the diagnostic test mode first. It will pinpoint the faulty part and save you time and money.

Neglecting water pressure. If your home water pressure is below 20 psi, the valve will not open fully. Low pressure can come from a partially closed shutoff valve, a kinked supply line, or a whole-house water filter that needs replacement. Check the pressure before ordering parts.

Skipping the 24-hour wait. After any repair or reset, the ice maker needs up to 24 hours to produce its first full batch. Do not assume the fix failed just because you see no ice after a few hours. Give it a full day.

Replacing Parts vs. Calling a Pro: How to Decide

You can fix most Fisher Paykel ice maker problems yourself in under an hour. The thermistor, thermostat, and door switch are all simple swaps. Each one costs between $15 and $40.

If your diagnostic test mode pointed to one of these, order the part and watch a service video. The hardest tool you will need is a multimeter.

Some faults need a licensed technician. Water inlet valves are borderline. They bolt on easily, but you need to shut off the water supply first.

If you are comfortable with a wrench and a bucket, you can handle it. If not, call a pro.

Control board failures are where DIY stops. The main board is expensive, often $200 to $350. Replacing it looks easy, but a wrong diagnosis wastes money.

If the board does not fix it, you are stuck paying for the part plus a service call.

Sealed system issues mean the compressor or refrigerant loop is at fault. This always requires a certified tech. Fisher Paykel Ice Maker Troubleshooting stops here because of the risk of refrigerant leaks.

These are health and environmental hazards.

When to call a pro: after a power surge, if error codes persist, or if you see frost on the evaporator. When to DIY: a new filter, a reset, a door switch, or a thermistor.

The math favors DIY for small parts. But a misdiagnosis can cost twice the service call in parts alone. When in doubt, get a quote first.

Many techs will credit part of the diagnostic fee toward the repair if you book with them.

Frequently Asked Questions

How do I reset my Fisher Paykel ice maker?

Unplug the refrigerator for five full minutes, then plug it back in. Press and hold the ice maker test button for ten seconds if your model has one. Wait up to 24 hours for the first batch.

This clears most temporary faults.

My Fisher Paykel ice maker is clicking but no ice. What's wrong?

Clicking is often the water valve solenoid trying to open. If you hear it but no water flows, the valve is likely clogged or the coil has failed. Check the water pressure first, then test the valve with a multimeter.

Why is my Fisher Paykel ice maker making small or hollow cubes?

The mold is not getting enough water. Replace the water filter first, then check the supply line for kinks. Measure the water pressure at the valve.

It should be between 20 and 120 psi.

How long does a Fisher Paykel ice maker take to make ice?

The first batch takes up to 24 hours after install or a reset. After that, a full batch takes roughly 90 to 120 minutes. Ice production runs about 2 to 6 pounds per day depending on your model.

When should I call a professional for ice maker repairs?

Call a tech for control board failures, sealed system leaks, or persistent error codes after reset. Also call if you are uncomfortable testing live electrical connections. Safety matters more than saving a service fee.
