Harman Pellet Stove Troubleshooting Guide
When your Harman pellet stove refuses to light, your brain jumps straight to the worst-case scenario: a burnt-out control board, a seized auger, a thousand-dollar repair. More often than not, the real culprit is something far simpler. This Harman Pellet Stove Troubleshooting Guide walks you through the symptom-to-cause process so you can fix it yourself, or call someone with confidence.
You'll learn exactly what to check first, and why order matters.
Manufacturer specs indicate that the ignition cycle typically takes 5 to 10 minutes from pressing start to a steady flame, with pellets dropping onto the burn pot within the first 30 seconds. That baseline applies to most P-series and Accentra models, including the P43, P61, and Absolute cases, and it holds true as of 2026. Once you know how the sequence should run, you'll see exactly where the chain breaks.
Image source: Bing (Web (fair-use with source credit))
How Your Harman Stove Should Actually Start (So You Know What’s Wrong When It Doesn’t)
When you press the start button, a specific sequence fires off. Understanding it gives you a map. If you know the normal route, you can spot the detour.
Here's what happens in a healthy stove:
- The control board powers the combustion blower, pulling air through the burn pot and out the vent.
- The auger motor feeds a small batch of pellets onto the burn pot.
- The igniter glows, raising the temperature enough to catch those pellets.
- Once the exhaust probe reads enough heat, the convection blower ramps up to blow warm air into the room.
- The feed rate then adjusts based on the thermostat or comfort control setting.
The whole process takes about five to ten minutes. If you're still waiting for heat after that, something has broken the chain. For example, if the blower runs but the auger stays still, you have a feed problem.
If the igniter glows and no pellets drop, the hopper or auger is likely clogged. If everything moves and there's no flame, the igniter may be weak or the pellets are damp.
The best approach is to observe the stove during startup. Listen for the blower, watch for the pellet drop, and check the glass for a flame. One useful trick: mark the pellet level in the hopper so you can see if the auger is actually turning.
If the level doesn't change within a minute, the feed system isn't working.
This baseline matters because it tells you which subsystem to blame. Once you know that, you can hit the right branch in the decision tree.
The Right Way to Diagnose: Symptom-to-Action Decision Branches
Match what the stove is doing to the branch below. Start with the cheapest, easiest check.
Won't ignite at all
First, confirm the hopper lid is fully closed. The safety switch kills the feed if the magnet isn't lined up. Then look for the igniter's glow through the burn pot holes.
No glow? Test the igniter with a multimeter. A good unit reads between 15 and 30 ohms.
"OL" means it's dead and needs replacing.
Ignites but shuts down after a few minutes
This is almost always the pressure switch system. The switch verifies that the exhaust blower is creating enough draft. After five minutes, the stove gives up.
Pull the vacuum hose from the switch and inspect it. A crack, a loose fit, or a plug of ash can kill the signal. You can also suck on the hose and listen for a click.
If the switch clicks, the hose or vent is the issue.
Pellets not feeding
If the auger is silent, check for a jam. Pellet dust from the bottom of the bag packs around the shaft. Press the reset button on the auger motor and see if it spins.
Still stuck? Unplug the stove and pull the motor to inspect the shaft. Also check the drop tube for a stray nail or screw that made its way into the hopper.
Weak flame or low heat output

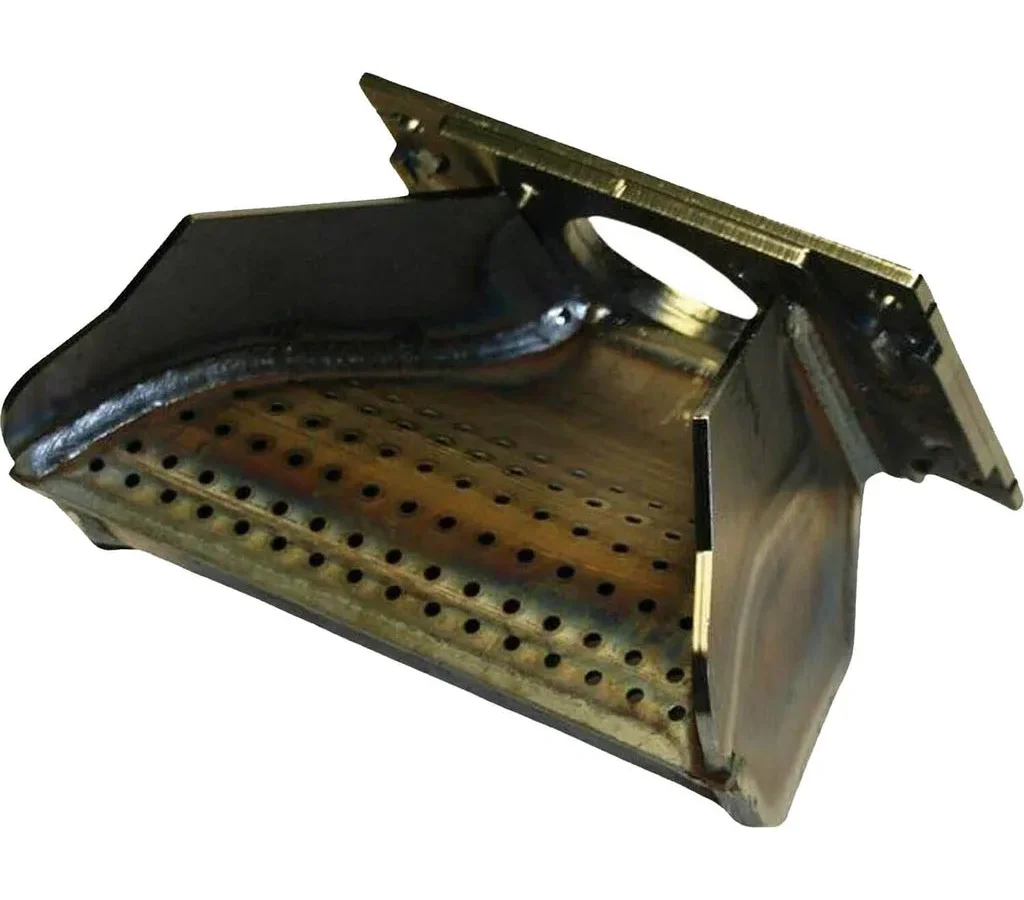

A lazy flame means poor airflow through the burn pot. Remove the burn pot and clean every hole with a small drill bit or a nail. Ash buildup clogs most of them.
Then inspect the door gasket. A flattened gasket lets in excess room air, which makes the flame yellow and weak. A bright, white flame is what you want.
Error codes or random resets
Random resets often come from a loose wire or a tripped breaker. Before blaming the control board, check all connections and the power source. For specific codes, refer to your owner's manual.
Many Harman error codes trace back to the exhaust probe or the pressure switch. A multimeter test on the probe will confirm whether it's out of range.
The Most Expensive Mistake You Can Make (And the $5 Part That Fixes It)
Image source: Bing (Web (fair-use with source credit))
Most Harman owners who call a technician don't need one. They need a 12-inch piece of silicone tubing. The stove shuts down randomly, and the control board shows a low draft signal.
The usual suspects are the igniter, the combustion motor, or the control board. Those parts add up to $500 or more.
But in many cases, the real problem is the thin vacuum hose between the firebox and the pressure switch. It cracks, pops off, or plugs with ash. That's a $5 repair at the hardware store.
Before you replace anything, pull that hose off. Blow through it, and suction-test the switch. If you hear a click, the electrical side is fine.
If the stove starts again, you've found the culprit.
Secure the hose on both ends with small cable ties. Check the firebox port too. That opening can plug in a single burn cycle.
A tiny piece of ash there will cause the same shutdown. Replace a cracked hose with high-temperature silicone line. PVC gets brittle and fails again in a few months.
That swap takes ten minutes and costs less than a pizza. It's the classic case where replacing parts without diagnosing costs you real time and real money.
When Cleaning Actually Fixes the Problem vs. When It Won’t Help
Image source: Bing (Web (fair-use with source credit))
A clean Harman is a happy Harman. But cleaning isn't magic. It fixes airflow problems, not electrical ones.
What cleaning takes care of: a clogged burn pot causes weak flames and shutdowns. If the stove runs fine after a deep clean, you've solved it. Cleaning the exhaust path, including the vent pipe, also prevents pressure switch trips.
Ash and creosote restrict draft, which looks exactly like a failed pressure switch.
What cleaning won't fix: a dead igniter, a stalled auger motor, or a genuinely failed pressure switch. If you've cleaned everything and the stove still resets or smokes, stop scrubbing and start testing components.
Here's the schedule that prevents most outages:
- Weekly: scrape the burn pot, empty the ash pan, and vacuum the heat exchanger tubes.
- Monthly: pull the burn pot and clean every air hole, then inspect the door gasket.
- Annually: have the venting brushed, the combustion blower impeller cleaned, and the control board connections checked.
Skipping the weekly scrape is the top cause of "won't light" calls. Pellets leave behind ash that hardens into a crust if left overnight. That crust blocks the fire, and the igniter can't catch the new pellets.
One thing cleaning won't do: fix a pressure switch that's actually failed. A switch clicks when it sees enough vacuum. If you don't hear that click while the blower runs, the switch, wiring, or hose needs attention.
Cleaning the vent won't help an open switch. Test it first.
When to Call a Pro (And When You Can Fix It Yourself Safely)
Some jobs are homeowner-friendly. Others should stay with a certified tech. The line is simple: if you have to dig into the electrical panel, call someone.
If you're just cleaning the burn pot, go for it.
You can safely handle cleaning, air filters, door gasket replacement, and even an igniter swap. Most Harman owners with a socket wrench and a multimeter can replace an auger motor or a combustion fan. Just unplug the stove first and discharge any capacitors.
Call a pro when you see any of these:
- Smoke billowing into the house regularly
- Error codes that keep coming back after each fix
- Burnt wire insulation or melting near the control board
- Venting that's damaged, crushed, or leaking
- Any work tied to high-altitude adjustments or exterior vent installation
Also, check your warranty. Many Harman dealers require professional installation and annual service to keep coverage valid. Doing your own parts swaps can void it if you don't document the work.
Keep receipts and the owner's manual.
A trained tech will also measure draft pressure with a manometer, something most homeowners don't own. The NFPA recommends an annual professional inspection for solid-fuel appliances. If your local code demands a license, you'll need a pro on the job from the start.
Frequently Asked Questions
Why does my Harman stove click but not start?
That clicking sound is generally the ignition sequence trying to begin. The click you hear is the igniter relay engaging. If the igniter itself isn't glowing, either the element has burned out or the control board isn't sending power.
Test the igniter with a multimeter. A reading of 15 to 30 ohms means it's still good. "OL" means it's dead.
How do I reset my Harman pellet stove after a fault?
Press and hold the power button for about 5 seconds until the stove begins its shutdown cycle. Allow it to cool completely. Then restart it normally.
If the fault returns immediately, the problem is active. Do not keep resetting without diagnosing the cause. Repeated resets won't fix a pressure switch failure or a clogged vent.
Should I leave the stove on low all winter?
Leaving it on low is fine for steady, consistent heat. Many Harman owners run them constantly during cold months. The stove is designed for continuous operation.
Just stay on top of the weekly cleaning schedule. Ash builds up faster than you think, and a neglected burn pot will eventually choke the flame even on the low setting.
Can I use any brand of wood pellets?
Yes, but quality matters. Use premium pellets with ash content below 1%. High-ash pellets create more clinkers and soot.
That leads to more cleaning and more shutdowns. The Pellet Fuels Institute maintains a testing and certification program for pellet quality. If you see the PFI logo, you're getting a consistent, low-ash product.
When should I clean the stove versus call a technician?
Clean it first if the flame is weak or the stove shuts down randomly. A clean burn pot fixes most flame issues. Call a technician if cleaning doesn't help.
Also call if you see burnt wires, smell smoke inside the house, or get the same error code twice after a full reset. Those point to a part failure, not a dirt problem.
This article is for informational purposes only. Always consult your Harman owner's manual and local codes before performing any repair or maintenance work on your stove.
