How To Deal With Pentair Heater Error Code R14

Your Pentair pool heater just locked out with error code R14, and the water's getting cold fast. Here's how to deal with Pentair heater error code R14 without calling a technician for something you might fix yourself in twenty minutes. The code means either a high limit switch has tripped or the ignition system failed three times in a row, and it's more common than you'd think.

Manufacturer specifications indicate the R14 code is a safety lockout, not a death sentence for your heater. Most causes are simple: low water flow, a dirty sensor, or a tripped reset button. As of 2026, the fix often takes less time than the service call would.

Let's walk through it safely, step by step.

Quick Answer

Turn off power at the breaker. Wait 30 seconds. Turn it back on and try again.

If the heater still shows R14, check water flow. Clean the filter and pump basket. Confirm the pump is running properly.

If flow is fine, inspect the high limit switch. Press its reset button. A clean click means it was tripped.

If R14 returns, test the flame sensor and gas supply. Call a licensed gas technician if you're unsure at any point.

Why Error Code R14 Means Business

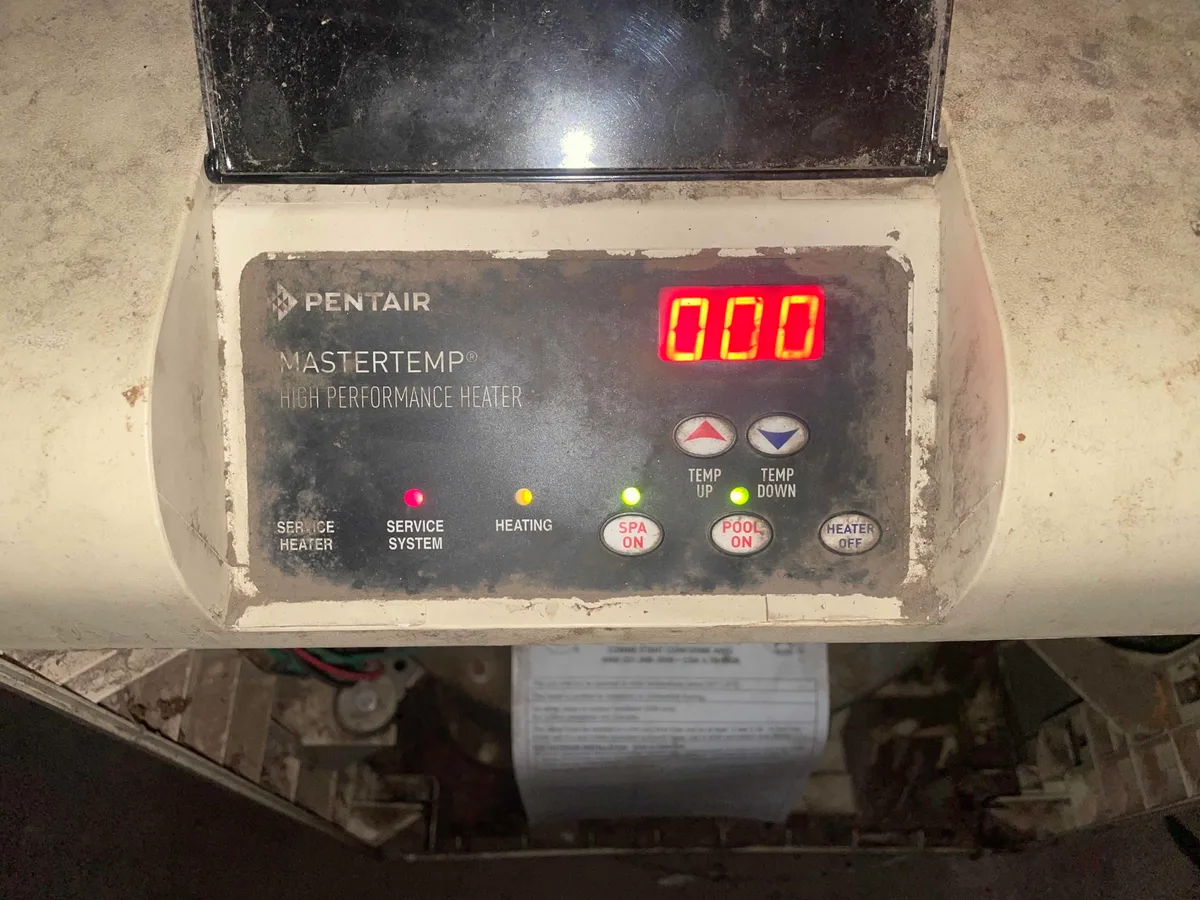

The R14 code on a Pentair MasterTemp or UltraTemp heater is a safety lockout. Your heater detected a problem and shut itself down to prevent damage, gas buildup, or a potential fire. It's not being dramatic.

It's doing its job.

There are two main situations that trigger R14. Knowing which one you're dealing with cuts diagnostic time in half.

Situation one: High limit switch open. A high limit switch is a temperature-sensitive safety device inside the heater. When water flowing through the heat exchanger gets too hot, the switch trips and kills the burner. It's like a circuit breaker but for heat.

Some versions have a small red reset button on top.

Situation two: Ignition lockout. The heater tried to light the burner three times and failed. The control board logged the failures and locked the system. This points to a problem with the flame sensor, gas valve, spark igniter, or gas supply.

Neither situation is catastrophic, but both need correct diagnosis. Guessing and part-swapping leads to wasted money and repeated callbacks.

Per the National Fuel Gas Code, post purging and high temperature limits are designed to fail safe. That's exactly what R14 is: a safe failure.

Your Safety Checklist Before Touching Anything

Working on a gas appliance carries real risk. Gas leaks, electrical shock, and carbon monoxide exposure are all possible. Before you open the heater jacket, run through this checklist.

Image source: Bing (Web (fair-use with source credit))

First and most important: if you smell gas, don't touch anything electrical. Don't flip switches. Don't reset anything.

Leave the area and call your gas company or fire department from a neighbor's phone. That's not an overreaction. That's the correct response.

Second: disconnect power at the breaker. The control board runs on standard household voltage. Water plus electricity is how people get hurt.

A lockout tag at the panel prevents someone from flipping the breaker back on while you're inside the heater.

Third: ensure the pool pump is moving water. Many R14 events start with a dirty filter or a pump basket full of leaves. Low flow means the heater overheats internally, which trips the high limit switch.

That's the cheapest and most common fix, so always check flow first.

If you're unfamiliar with gas components or uncomfortable with a multimeter, stop right here. Call a licensed technician. There's no shame in that.

The cost of a service call is nothing compared to the cost of a mistake.

Step-by-Step: Diagnosing the Most Common R14 Causes

Start with the simple stuff and work your way to the complex. This order prevents wasted effort and keeps you safe.

Step 1: Power cycle the heater. Turn off the breaker. Wait a full 30 seconds. Turn it back on.

Try to fire the heater. Some R14 codes were caused by a one-time glitch or a brief power dip. A clean restart clears the lockout and gives you a fresh start.

Step 2: Verify water flow. Check the pump basket. Check the filter pressure gauge. Backwash if needed.

Make sure all valves between the pump and heater are open. If water flow is weak, the high limit switch will trip again within minutes.

Step 3: Check the venting. Look at the exhaust stack and combustion air intake. Remove obstructions like leaves, spider webs, or bird nests. Blocked venting causes flame rollout, which trips the rollout switch.

That's a serious condition that requires professional attention.

Step 4: Test the high limit switch. Locate it near the heat exchanger outlet. Remove the two wires and check continuity with a multimeter. A closed circuit means it's fine.

An open circuit means it's tripped or failed. Press the reset button if it has one. A clean click tells you it reset.

If it doesn't click, the switch is likely dead and needs replacement.

Image source: Bing (Web (fair-use with source credit))

Step 5: Clean the flame sensor. This little rod sits in the burner flame and confirms ignition to the control board. Carbon buildup on its surface blocks the signal, causing the heater to think ignition failed. Remove it, gently clean with fine sandpaper or steel wool, and reinstall.

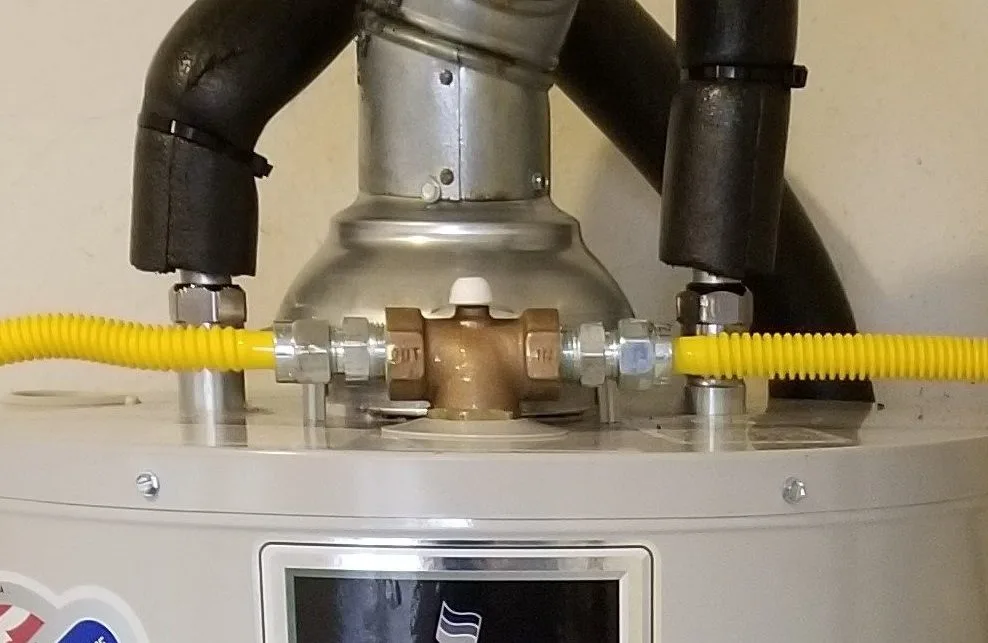

Step 6: Verify gas supply. Confirm the gas valve is open. Check the LP tank gauge if you run propane. In cold weather, regulators can freeze and reduce pressure.

If you suspect low gas pressure, you need a manometer and professional training.

Step 7: Inspect wiring. Look for loose connectors, corroded terminals, or damaged insulation on the control board and sensors. Vibration and heat loosen connections over time. A simple push-back on a spade connector sometimes solves everything.

When to DIY vs. When to Hire a Gas Technician

The line isn't always obvious, so here's a straightforward breakdown.

Safe to DIY:

• Cleaning or backwashing the pool filter
• Cleaning a dirty flame sensor
• Resetting the high limit switch
• Power cycling the heater
• Clearing visible obstructions from venting
• Tightening a loose wire connector

Hire a professional for:

• Gas pressure testing or adjustment
• Gas valve repair or replacement
• Any work on the gas supply line
• Heat exchanger replacement
• Repeated R14 with no obvious cause
• Rollout switch trips or carbon monoxide concerns

If the same R14 code returns after you've done the simple fixes, the problem is deeper. Professional diagnostic equipment reads gas pressure, flame signal strength, and control board activity. Guessing at that level costs money in parts and time.

Manufacturer warranty considerations matter too. Unauthorized repairs can void coverage on newer heaters. Check your warranty terms before doing anything beyond basic maintenance.

The cost of a licensed technician is often covered if the heater is within its warranty period.

The safe rule is simple: if you're confident and the task is non-invasive, go ahead. If you're uncertain about anything involving gas or high voltage, stop and call someone who does this daily.

Critical Mistakes That Can Damage Your Heater or Your Health

Some R14 fixes sound logical but cause real damage. Here are the ones to avoid.

Resetting without fixing the cause. The high limit switch exists for a reason. If you reset it and the heater fires up, then trips again, something is wrong. Repeated resetting without diagnosis can warp the heat exchanger or crack the combustion chamber.

That's a thousand dollar repair.

Bypassing safety switches. This is the most dangerous mistake. Some people wire around the high limit switch or pressure switch to get the heater running. That removes the protection against overheating.

The result can be a fire, a melted heat exchanger, or carbon monoxide entering the pool area. Never do this.

Ignoring water chemistry. The Pentair manual specifies water chemistry limits. High calcium or low pH causes scale buildup inside the heat exchanger. Scale acts as insulation, trapping heat and tripping the high limit switch.

Test your water regularly. Balanced chemistry prevents R14 better than any tool.

Using the wrong gas pressure. Propane and natural gas require different pressures. If you recently converted the heater or swapped tanks, check the conversion kit. Wrong pressure causes incomplete combustion, sooting, and repeated ignition lockout.

A manometer reading by a technician confirms correct pressure.

Neglecting seasonal maintenance. Pool heaters sit idle for months in cold climates. Leaves, insects, and moisture accumulate inside. A spring startup without inspection leads to R14 on the first fire.

Open the heater, clean the burner compartment, and check for corrosion before the first run of the season.

Replacing parts without testing. Symptom swapping is expensive. If you replace the control board, then the thermistor, then the gas valve, you've spent hundreds of dollars on parts only to find the real issue was a dirty flame sensor. Test each component in logical order.

A multimeter and a few minutes prevent wasted money.

Frequently Asked Questions

What does error code R14 mean on a Pentair heater?

R14 means the heater has locked out due to an open high limit switch or three failed ignition attempts. It's a safety shutdown designed to prevent damage or fire. The specific cause depends on whether the heater overheated or failed to light.

Can I reset the R14 code myself?

Yes, in most cases. Turn off power at the breaker, wait 30 seconds, and turn it back on. If the code clears and the heater fires, the issue was temporary.

If R14 returns, you need to diagnose the underlying cause before resetting again.

How do I clean the flame sensor on a Pentair MasterTemp?

Remove the single screw holding the sensor bracket. Pull the sensor free. Gently rub the metal rod with fine sandpaper or steel wool until carbon deposits are gone.

Reinstall and tighten the screw. This solves many R14 ignition lockout conditions.

What causes the high limit switch to trip repeatedly?

The most common cause is low water flow from a dirty filter or pump basket. Other causes include a stuck bypass valve, an undersized pump, or scale buildup inside the heat exchanger. Check flow first, then look for internal obstructions.

When should I call a professional for R14?

Call a technician if you smell gas, if the rollout switch keeps tripping, if R14 returns after all basic fixes, or if you're uncomfortable working with gas and electrical components. Professional diagnostic tools find issues that visual inspection misses.

Will R14 damage my heater if I keep resetting it?

Yes, repeatedly resetting without fixing the cause can warp the heat exchanger, crack the combustion chamber, or damage the control board. The high limit switch is protecting expensive components. Let it do its job and find the root cause.

A Practical Plan for Beating R14

You don't need to fear R14. You need a system for dealing with it when it appears.

Maintain water flow. Clean the filter cartridges or backwash the sand filter monthly during pool season. Empty the pump basket weekly. Low flow is the single most common cause of high limit trips.

Prevent it and you prevent most R14 events.

Inspect the heater before each season. Open the jacket. Check for spider webs, nests, and corrosion. Clean the burner compartment.

Replace the high limit switch if it looks corroded or cracked. This takes thirty minutes and saves days of troubleshooting.

Test the flame sensor annually. Remove it, clean it, and check the microamp signal if you have a meter. A clean sensor above 1.5 microamps ensures reliable ignition. Replace it if the signal drops below 0.5 microamps.

Keep gas equipment in good shape. If you run propane, keep the tank full in winter. Cold weather concentrates moisture in the tank, which can freeze regulators. Install a high pressure regulator if your area sees freezing temperatures.

Know when to call. The plan only works if you respect your limits. If R14 keeps coming back and you've checked flow, cleaned the sensor, and reset the switch, it's time for a professional. The money you spend on diagnosis saves you from buying parts you don't need.

Error code R14 is a notification, not a catastrophe. Treat it with respect, follow the steps, and you'll have your pool heater running again quickly. The knowledge you gain from this process also helps you prevent the next lockout before it happens.

Your heater is designed to protect itself. Now you know how to protect it too.
