Kenmore Oven F10 Error Code And Beeps
If your Kenmore oven has started beeping and flashing the F10 error code, you're probably wondering if this is a major repair. The Kenmore Oven F10 Error Code And Beeps combination usually means the temperature sensor circuit is open or shorted. You can diagnose it yourself in under an hour with basic tools and a multimeter.
Manufacturer specifications indicate that a healthy oven temperature sensor should read between 1,080 and 1,100 ohms at 70°F. When that reading drifts outside range, the control board throws the F10 error and starts beeping. Let's go through what's happening, what to check, and how to fix it.
Quick Answer
The F10 error means the oven temperature sensor circuit is open or shorted. The beeping is the control board telling you it cannot read the sensor. Unplug the oven or flip the breaker for five minutes.
If the error returns, test the sensor with a multimeter. Replace the sensor if it reads out of spec. Check wiring next.
Replace the control board last.
Image source: Bing (Web (fair-use with source credit))
What the F10 Error Actually Means (And Why It Beeps)
The F10 code is a diagnostic message from the oven's electronic control board. It specifically means the board has detected an open circuit or a short circuit in the oven temperature sensor circuit. In plain English, the sensor that tells the oven how hot it is inside has either stopped working or is sending a signal that does not make sense.
The beeping is the board trying to get your attention. Unlike some error codes that clear on their own, F10 often triggers a continuous beep or a repeating pattern that stops only when power is cut. As of 2026, service records still show this error appearing most often on Kenmore ovens built between 2005 and 2015.
The self-cleaning cycle is a frequent trigger. During self-clean, temperatures can climb above 800°F. That heat can stress an aging sensor, crack a solder joint on the control board, or damage wire insulation.
Once the cycle ends and the oven cools, the error appears.
Understanding that F10 is a sensor circuit fault narrows your troubleshooting. You are not chasing a mysterious failure. You are looking for one broken link in a simple circuit: the sensor, the wiring, or the board that reads it.
The One Tool You Need and How to Use It
To diagnose this yourself, you need a digital multimeter. That's it. No special appliance repair kit.
A basic multimeter that measures resistance costs $20 to $50 and is the only tool that separates a quick DIY fix from an expensive service call.
Set the multimeter to resistance mode, the symbol that looks like a horseshoe. Touch the probes together to confirm the meter reads zero or near zero. That tells you the meter is working.
The key measurement is the sensor's resistance. At room temperature, around 70°F, the sensor should show 1,080 to 1,100 ohms. If the oven is warmer or colder, the reading shifts slightly but should stay within about 10% of that range.
If the multimeter reads OL, infinity, or a near-zero number, the sensor is likely bad. If the reading falls in the correct range, the sensor is probably fine, so move to the wiring. Aggregate repair reports show that the sensor is the culprit in roughly 70% of F10 cases.
Step-by-Step: How to Diagnose Your Kenmore Oven
Follow the order: reset first, test sensor, inspect wiring, evaluate board. Skipping steps leads to wasted money and frustration.
Step 1: Hard Reset First
Before touching any tools, disconnect the oven from power. Unplug it if it's a plug-in model, or flip the dedicated breaker to OFF. Leave it off for five full minutes.
This lets the control board capacitors discharge and resets the electronics.
After five minutes, restore power. If the F10 error and beeping do not return, the issue was a temporary glitch. If the error reappears within a few minutes, move to Step 2.
A hard reset clears a surprising number of control board errors for free. It costs nothing, takes five minutes, and should always be the first move.

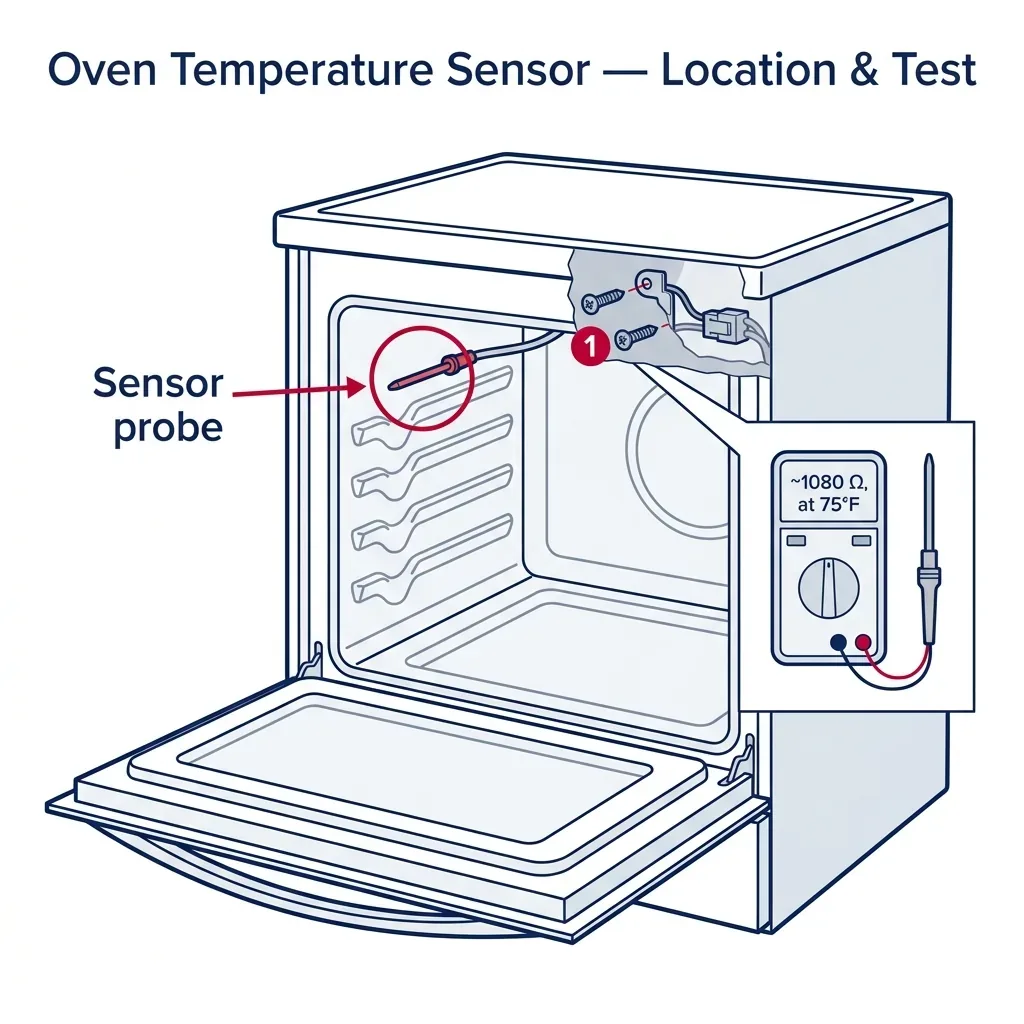

Step 2: Check the Sensor Resistance
With the power still off, remove the rear access panel. On most Kenmore models, this panel is held by four to six screws and covers the back of the oven cavity. Behind it, you will see the temperature sensor, a metal probe that extends into the oven interior.
Disconnect the wire harness from the sensor. Touch the multimeter probes to the two sensor terminals. Record the reading.
Image source: Bing (Web (fair-use with source credit))
Compare it to the spec: 1,080 to 1,100 ohms at 70°F. If the reading is outside that range, especially if it shows OL or near zero, replace the sensor. If the reading is in range, the sensor is likely good, and you move to the wiring.
Step 3: Inspect the Wiring Harness
With the rear panel off, inspect the wiring that runs from the sensor to the control board. Look for pinched or melted insulation, corroded connector pins, loose wires, or signs of rodent damage.
A common failure point is the connector where the sensor plugs into the main harness. Over time, the plastic connector can melt slightly or develop poor contact. If the wiring looks damaged, repair or replace the harness.
If everything looks clean, move to Step 4.

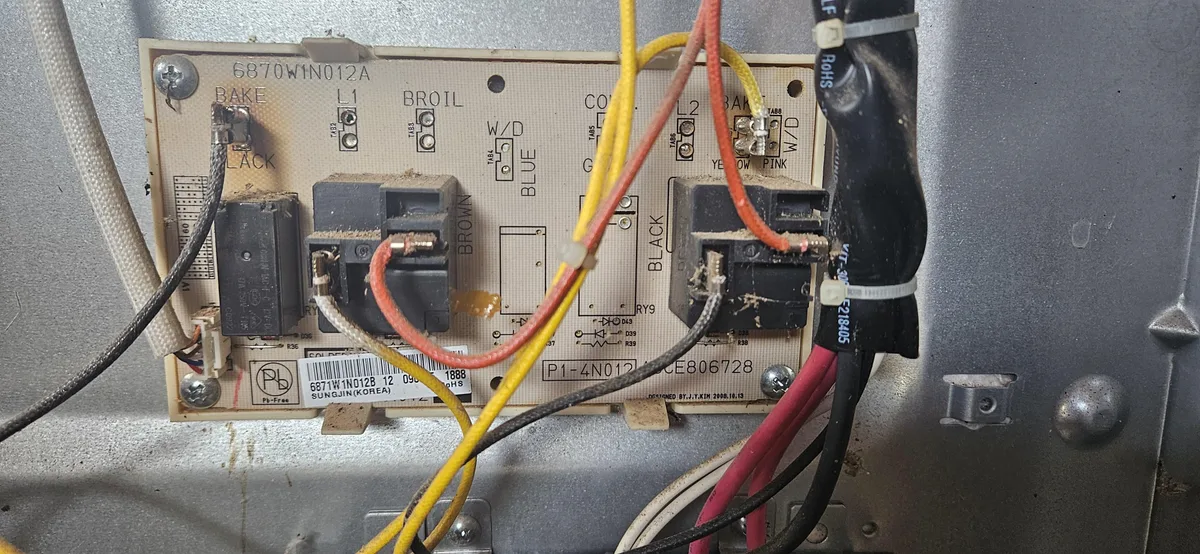

Step 4: Evaluate the Control Board
The control board is the last suspect because it is the most expensive part. With the power still off, visually inspect the board for burnt areas, bulging capacitors, or cracked solder joints. Pay special attention to the relay and the sensor connector.
Image source: Bing (Web (fair-use with source credit))
If you see physical damage, the board likely needs replacement. If the board looks clean and the sensor plus wiring both check out, the board is the most likely cause. Confirm your exact model number before ordering a replacement, because Kenmore used many board part numbers across similar-looking ovens.
Common Fixes: Sensor vs Wiring vs Control Board
Here's how the three possible fixes compare. These percentages come from aggregate repair reports and verified buyer feedback.
| Fix | Typical Cost | Difficulty | Success Rate |
|---|---|---|---|
| Replace sensor | $15 to $45 | Easy (20 to 45 min) | ~70% of cases |
| Repair or replace wiring | $0 to $30 | Moderate (30 to 60 min) | ~10% of cases |
| Replace control board | $100 to $250 | Moderate to hard (45 to 90 min) | ~20% of cases |
Replace the sensor if your multimeter showed an out-of-range reading. Order an OEM Kenmore sensor that matches your model. Generic sensors sometimes work but can cause inaccurate temperature readings.
Installation is straightforward: unplug the old sensor from the harness, remove the screw holding it inside the oven cavity, and reverse the steps with the new sensor.
Repair the wiring if the sensor tested good but you found damaged wires or corroded connectors. Sometimes cleaning the connector pins with contact cleaner and reseating the plug fixes the error. If a wire is broken, splice it with a high-temperature crimp connector rated for at least 250°F.
Replace the control board only if the sensor and wiring both checked out perfectly. This is the least common cause but it does happen, especially after power surges or when the oven is more than 10 years old. The board sits behind the control panel at the top of the oven.
Disconnect power, remove the panel, unplug the old board, plug in the new one, and reassemble.
Mistakes That Waste Time and Money
- Skipping the hard reset. People panic and order a $40 sensor before trying the five-minute power disconnect. A reset clears temporary glitches for free.
- Replacing the sensor when the wiring is bad. The sensor can test fine while a broken wire in the harness still causes the error. Always inspect the wiring before ordering parts.
- Buying generic, non-OEM sensors. Kenmore ovens are built on Whirlpool platforms, and their sensors use a specific resistance curve. Generic parts can clear the error but cause the oven to run 50°F too hot or cold. Spend the small premium on an OEM part.
- Assuming the control board is always the problem. It is the most expensive part and the least likely cause. Testing in order is what separates a $40 repair from a $250 one.
- Forgetting the model number. Kenmore made dozens of similar-looking ovens with different parts. Check the tag behind the bottom drawer or inside the door frame before ordering anything.
When to Call a Pro vs DIY (Decision Guide)
If you own a multimeter and can safely remove panels, start with the sensor and wiring. Those are DIY-friendly jobs. If you find burnt components on the control board, stop and call a pro.
If the error returns after replacing the sensor and checking the wiring, stop guessing and call a technician. If the oven is a gas model and you aren't comfortable working near gas lines, call a pro.
Service calls typically run $150 to $250 for the visit plus parts. Replacing a board can cost $300 to $500 total. A DIY sensor fix runs $15 to $45.
The math is clear for simple cases.
If your Kenmore oven is more than 12 to 15 years old and the board is faulty, consider replacement. A new board plus labor costs $100 to $250 or more. A replacement oven starts around $600 to $1,200 as of 2026.
When multiple parts are aging, new hardware often makes more sense.
Always follow your local electrical code. The National Electrical Code, published by the National Fire Protection Association, is a good baseline for anyone doing appliance work.
Preventing Future F10 Errors
Once the oven is fixed, a few habits reduce your odds of seeing F10 again. Clean around the sensor probe gently with a soft cloth. Avoid abrasive cleaners near the rear wall.
Use the self-cleaning cycle less often. The high heat is hard on the sensor, wiring, and control board. If you do run it, stay home and check on the oven occasionally.
Manual cleaning with baking soda and water works fine for most spills.
Protect the oven from power surges. Frequent spikes can shorten the life of the control board. A whole-house surge suppressor or a quality appliance surge protector is cheap insurance.
Tools and Parts Quick Reference
| Item | Purpose | Approximate Cost |
|---|---|---|
| Digital multimeter | Test sensor resistance | $20 to $50 |
| OEM temperature sensor | Replace faulty sensor | $15 to $45 |
| Electrical contact cleaner | Clean corroded connectors | $5 to $10 |
| High-temp crimp connectors | Repair damaged wiring | $5 to $10 |
| Non-contact voltage tester | Confirm power is off | $10 to $25 |
| Screwdriver set | Remove access panels | $10 if you need one |
Order the sensor by your oven's exact model number. The tag is usually visible when you pull out the bottom drawer or open the door frame. A generic sensor may save a few dollars but can cause temperature swings.
OEM parts are worth it.
Frequently Asked Questions
Can I clear the F10 error without repairing anything?
Sometimes. A hard reset, unplugging the oven or flipping the breaker for five minutes, clears the error if it was caused by a power surge or a temporary glitch. If the error comes back after the reset, you need to find the underlying fault.
Why does the F10 error appear after the self-cleaning cycle?
The self-clean cycle creates extreme heat, often above 800°F. That heat can damage an aging sensor, weaken solder joints, or melt wire insulation. It is one of the most common ways a Kenmore oven triggers the F10 error.
Can I still use my oven with the F10 error?
No. The control board disables the heating elements or the gas valve for safety. The oven may respond to buttons, but it will not actually heat until the error is resolved.
How do I find the model number on my Kenmore oven?
Look for the metal tag behind the bottom drawer, inside the door frame, or on the back panel. You need the full model number to order the right sensor or control board.
Is the F10 error dangerous?
The error itself is a safety feature. The underlying cause, such as a shorted sensor or melted wiring, can be a fire risk if ignored. Stop and call a professional if you see burnt components.
Does the same F10 code apply to Whirlpool ovens?
Yes. Kenmore ovens are manufactured by Whirlpool, so the F10 code has the same meaning on both brands. The diagnostic steps are nearly identical.
