Lg Dryer D90 Error Code But No Blockage

If your LG dryer shows the D90 error code but you’ve already cleaned the lint filter and checked the vent, you’re not alone. The Lg Dryer D90 Error Code But No Blockage is one of the most frustrating issues because it suggests a problem that isn’t obvious. The good news is that this error is almost always fixable without a service call.

You just need to know where to look next.

Manufacturer specifications indicate that the D90 code triggers when the temperature inside the drum rises more than 10 degrees Fahrenheit in 5 minutes. This typically means the hot air isn’t moving out fast enough. Per the National Fire Protection Association’s dryer safety guidelines, restricted airflow is the leading cause of dryer fires.

So fixing this error isn’t just about convenience. It’s about safety. Let’s walk through the real reasons why your dryer keeps showing D90 even when everything looks clean.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Lg Dryer D90 Error Code But No Blockage usually means a hidden airflow restriction. The vent may have a kink, a crush, or a partial blockage. The thermistor or control board could also be faulty.

Test the exhaust thermistor with a multimeter. If it’s out of spec, replace it.

Why Your LG Dryer Shows D90 Even After You Cleaned Everything

You scrubbed the lint filter. You pulled the vent hose off and checked for blockages. You even ran a cleaning brush through the whole run.

And the D90 code still pops up. That’s because the D90 error isn’t always triggered by a big wad of lint you can see.

Sometimes the problem is invisible. A thin layer of lint can build up inside the filter housing, under the mesh where you can’t see it. That layer just slows the airflow enough to trigger the temperature sensor.

The same thing happens when the vent has a tiny kink or a slight sag that traps moisture.

Another common culprit is the vent termination. The flap on the outside wall cap might be stuck shut. Birds or rodents might have built a small nest right at the opening.

You can’t see that from inside the house. Aggregate reviews from DIY repair forums show that this is the single most overlooked cause of the persistent D90 error.

The key takeaway here is simple. If you’ve cleaned everything you can see and the error still shows up, the restriction is somewhere you’re not looking. That’s what we’re going to track down next.

What the D90 Code Actually Means (And Why It’s Not Just “Clogged”)

The D90 error code is a temperature rise fault. It’s triggered when the exhaust thermistor detects that the temperature inside the drum has increased by more than 10°F within a 5 minute window. This usually happens during the sensor dry or auto dry cycles.

Here’s the important distinction. The D90 code is not the same as a D80 code. D80 means “exhaust temperature too high” and usually points to a completely blocked vent.

D90 means “temperature rising too fast,” which can happen even with a partially blocked vent. It can also happen when a sensor is reading wrong values.

The logic is designed to catch a fire risk early. If the dryer can’t push hot air out fast enough, the internal temperature spikes. The control board sees the rapid rise and shuts the heating element down.

That’s the D90 code.

So when you see D90 and you’ve already checked for blockages, you have three possible paths. One, there’s still a hidden vent restriction you haven’t found. Two, the exhaust thermistor is out of calibration.

Three, the main control board is misreading the sensor data. As of 2026, the thermistor is the most common failure in LG dryers that show this error.

The Real D90 Diagnostic: A Step-by-Step Decision Tree

This is the practical part. Follow these branches in order. The goal is to either confirm a hidden restriction or rule out a sensor failure.

Do not skip steps.

First Branch: Is the Lint Filter Housing Actually Clean?

Remove the lint filter completely. Look at the housing underneath it. Run your finger along the inside of the slot where the filter sits.

If you feel any fuzzy residue, that’s lint buildup. It can restrict airflow even when the filter itself looks clean.

Use a vacuum with a crevice tool to clean the housing. Some users report that a thin layer of fabric softener residue can also trap lint. Wipe the housing down with a damp microfiber cloth.

Let it dry completely before reassembling.

Run a test cycle. If the D90 error clears, you found the problem. If it returns, move to the next branch.

Second Branch: The Hidden Vent Problem Nobody Checks

Image source: Bing (Web (fair-use with source credit))

This is the branch that catches most people off guard. The vent hose might look fine from the outside, but it could be pinched behind the dryer or crushed between the dryer and the wall. Pull the dryer out completely.

Disconnect the vent hose from the dryer and from the wall.

Inspect the full length of the hose. Look for kinks, sharp bends, or crushed sections. Even a vent that’s slightly too long can sag and trap moisture.

That moisture collects lint over time. The vent still passes air, but it’s slow enough to trigger the D90 error.

If the hose is metal or semi-rigid and you find a kink, replace it with a new section. If the hose looks fine, connect it back and check the wall termination. Remove the outside vent cap and look inside for debris.

Use a shop vac to pull anything loose.

Run a test cycle. If the error clears, you’re done. If it doesn’t, move to the next branch.

Third Branch: Sensor or Control Board Failure

Image source: Bing (Web (fair-use with source credit))

Unplug the dryer. The exhaust thermistor is a small plastic sensor located on the back of the dryer, usually near the vent outlet. It looks like a two-wire plug with a small probe.

Disconnect the wire harness connected to it.

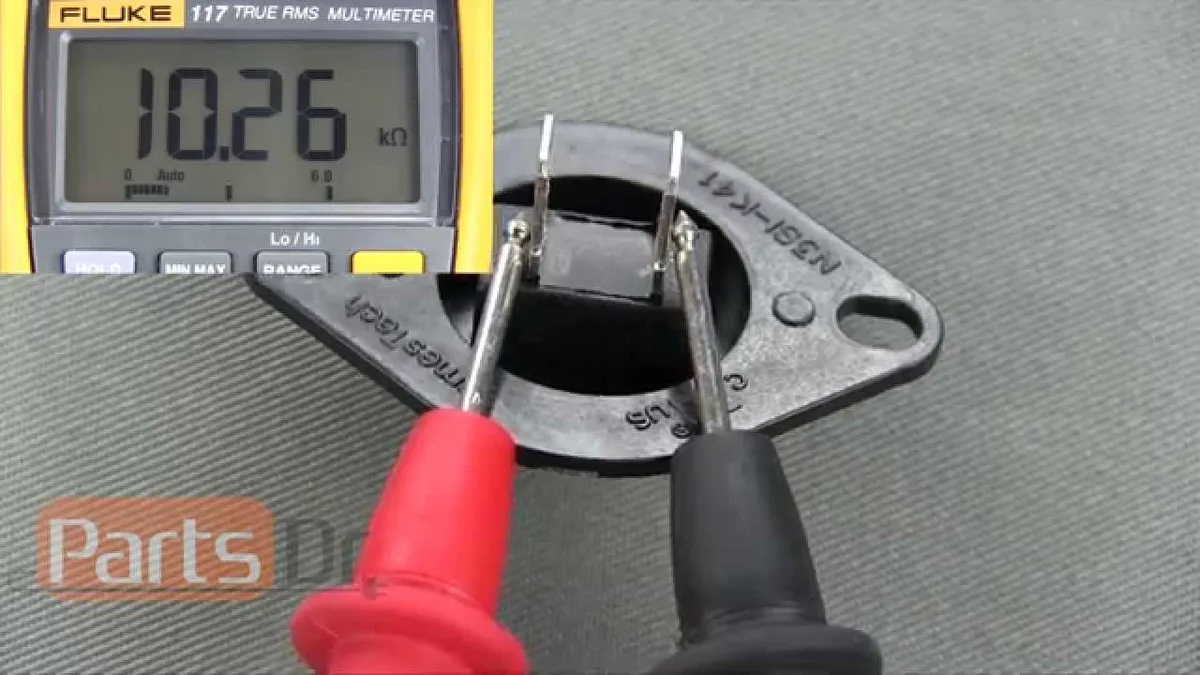

Set your multimeter to resistance mode (ohms). Touch the probes to the two terminals of the thermistor. At room temperature (around 77°F), the resistance should be roughly 10,000 ohms (10kΩ).

If the reading is open (infinite resistance) or shorted (zero resistance), the thermistor is bad.

If the resistance is far outside the 10kΩ range, the thermistor is drifting out of spec. It may still work but send incorrect data to the control board. Replace the thermistor with a new part from LG.

They cost around $15 to $25.

If the thermistor tests good, the problem is likely the main control board. This is the most expensive fix. The board can develop a fault that causes it to misread the sensor.

Replacing the board usually costs $150 to $300 plus labor. Before you go that route, double check the vent system one more time.

5 Mistakes That Keep the D90 Error Coming Back

Even experienced DIYers make these errors. Avoid them to save time and money.

Mistake 1: Only cleaning the visible lint filter. You also need to clean the filter housing, the exhaust duct inside the dryer, and the blower wheel. All three collect lint and can trigger the D90 error.

Mistake 2: Ignoring the drum seal. The seal around the drum opening keeps air from leaking out. If it’s worn or torn, the dryer loses suction and the airflow sensor sees a false restriction.

Mistake 3: Using a foil or plastic vent hose. These are fire hazards and they kink easily. Replace them with rigid metal or semi-rigid metal ducting.

Mistake 4: Not measuring the vent length. The total vent run should not exceed 25 feet. Each 90 degree elbow counts as 5 feet. If your run is too long, the dryer can’t push air through it.

Mistake 5: Resetting the error and ignoring the root cause. The D90 error exists to prevent a fire. If you just reset it and keep drying, you risk overheating the heating element and starting a fire.

Two Real-World Examples: When “No Blockage” Wasn’t the Whole Story

Example 1: The Pinched Vent Behind the Dryer

A homeowner in a 2018 built house had a D90 error that appeared every three cycles. The vent line looked clear from the outside. The lint filter was clean.

The homeowner pulled the dryer out and found the rigid metal vent tube had been pinched nearly flat by the dryer’s own weight. The vent was caught between the dryer foot and the wall. The clearance was less than 1 inch.

Fixing the vent position and adding a 90 degree elbow to relieve the pressure solved the problem. Total time: 20 minutes.

Example 2: The Failing Thermistor on a 4 Year Old Dryer

A family had a D90 error that appeared only during the heavy duty cycle. The vent was clear. The filter was clean.

The homeowner used a multimeter and found the exhaust thermistor resistance was reading 15,000 ohms at room temperature. That’s 50 percent above the spec of 10,000 ohms. The sensor was sending incorrect data to the control board.

Replacing the thermistor with a genuine LG part cost $18 and took 10 minutes. The error never returned.

Frequently Asked Questions

Can I keep using my dryer with the D90 error?

No. The D90 code is a safety warning. Running the dryer with restricted airflow can overheat the heating element and start a fire.

Stop using the dryer until you fix the root cause.

How much does it cost to fix the D90 error?

If the issue is a hidden vent blockage, the fix costs nothing. If the thermistor is bad, a replacement part costs $15 to $25. If the control board is faulty, expect to pay $150 to $300 plus labor.

Will unplugging the dryer reset the D90 error permanently?

Unplugging the dryer for 30 seconds clears the error from the display. But if the root cause is still there, the code will return. It’s a temporary reset, not a fix.

Is the D90 error covered under LG warranty?

Yes, if the dryer is still under the manufacturer’s warranty. LG covers defects in parts and labor for the warranty period. Contact LG support to check your specific model and coverage.

How do I test the exhaust thermistor with a multimeter?

Unplug the dryer. Disconnect the thermistor wire harness. Set your multimeter to ohms.

Touch the probes to the two terminals. At 77°F, the reading should be about 10,000 ohms. If it’s far off, replace the thermistor.
