Lg Inverter Error Code Ch 29

If your LG inverter air conditioner just threw error code CH 29, you are probably wondering whether this is an easy fix or an expensive repair. The code means the indoor and outdoor units lost communication with each other. Sometimes a loose wire causes it, and you can fix that in minutes.

Other times, a failed circuit board is to blame.

In our research, the most common cause for this code on LG ductless mini-splits is a damaged or loose communication wire. LG service documents classify CH 29 as a communication failure, not a compressor problem. As of 2026, most LG inverter systems share the same communication bus design, so these troubleshooting steps work across many models.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

CH 29 means the indoor and outdoor units cannot talk to each other. The cause is usually a wiring fault, a blown fuse, or a bad EEPROM chip. You can check the wiring safely yourself.

For EEPROM failures, call a technician. Do not replace parts without diagnosing the real issue first.

What CH 29 Really Means – EEPROM or Communication Fault

CH 29 is not a compressor failure. It is not a refrigerant leak. It is a communication error.

Your indoor unit sends signals through a low-voltage wire to the outdoor controller board. When that signal does not arrive, the system throws CH 29 and stops running.

The EEPROM chip on the outdoor board stores calibration data and model settings. If that data gets corrupted, the outdoor unit cannot respond correctly. The indoor unit sees nothing and flags the error.

You might notice the outdoor fan running with no cooling, because the compressor never receives the start command.

The key difference between CH 29 and other LG error codes is location. The fault lives in the control circuit, not the mechanical parts. That is good news.

You are likely looking at wiring, power, or a board issue. Not a full system replacement.

Image source: Bing (Web (fair-use with source credit))

Why Getting This Wrong Can Cost You

Many homeowners lose money on CH 29 because they guess instead of diagnose. They read "communication error" and immediately buy a new outdoor circuit board. A replacement PCB costs $200 to $600.

Install it, and the same code appears. The real problem was a chewed wire or a blown fuse the whole time.

Wrong guesses also carry safety risks. The outdoor unit runs on 208V to 230V AC. Touching the wrong terminal while checking voltage can cause a serious shock.

Even small mistakes matter. Opening refrigerant lines without EPA certification is illegal and can damage the environment.

Warranty coverage is another concern. LG covers parts for several years on most models. Unauthorized disassembly can void that coverage.

A licensed technician logs the repair and keeps your warranty intact.

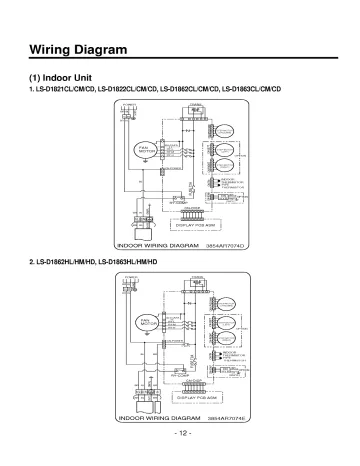

Before you do anything, look up your model's service manual on LG's official support site. The wiring diagram and error code list are essential. Guessing without them wastes time and money.

The Two Main Causes – Which One Is Your Unit Facing?

CH 29 almost always comes from one of two problems. Knowing which one you have saves time and money.

Cause 1: Communication wiring or power issue. This is the most common cause. A loose terminal screw, a corroded connector, a broken wire, or a blown fuse on the outdoor board can interrupt the signal. These problems often show up after a storm, a power surge, or years of normal vibration.

Cause 2: EEPROM or main PCB failure. The chip storing configuration data loses its programming. This can happen after a lightning strike, a brownout, or just age. When the EEPROM fails, the board needs reprogramming or replacement.

Safe Troubleshooting Steps You Can Try Today

You do not need to be an electrician to do a basic check. You do need to respect the power supply. Start with the breaker.

1. Switch off the breaker. Both indoor and outdoor units must be fully powered down.
2. Wait five minutes. This lets internal capacitors discharge safely.
3. Open the outdoor unit cover. Look for burn marks, melted plastic, or loose connectors.
4. Inspect the communication wire. This wire runs between indoor and outdoor units. Check for chewed insulation, cracked copper, or rust.
5. Tighten all terminal screws. A loose screw is a classic cause of CH 29.

If you have a multimeter, you can do one more safe test. Disconnect both ends of the communication wire and measure resistance. A reading near zero ohms is fine.

An open circuit means the wire is broken somewhere.

Image source: Web (Bing) / manuals.plus (Web image (fair-use with source credit))

Do not poke around energized parts unless you have electrical training. If nothing looks wrong after these checks, move on to professional help.

When to Stop and Call an LG Service Pro

There is a clear line between DIY work and professional territory. Draw that line at anything involving live power, refrigerant, or board-level electronics.

Call a technician if you see burn marks, melted plastic, or smell smoke. That means a short circuit or failed component. Also call if your breaker keeps tripping, because that signals a serious electrical fault.

And if the wiring check turned up nothing and the error persists, stop guessing.

A qualified LG technician will run the self-diagnostic test, verify communication voltage, and check the EEPROM data. They also confirm refrigerant charge if they suspect a systems issue. Refrigerant handling is regulated by the EPA, and only certified technicians can legally access the sealed system.

Check your warranty before paying anyone. If your unit is still covered, an authorized LG service visit protects that coverage and gives you genuine parts. That peace of mind beats a cheap guess every time.

Four Common Mistakes People Make with CH 29

The first mistake is throwing parts at the problem. A new outdoor PCB costs hundreds of dollars. Many homeowners buy one, swap it in, and see CH 29 reappear because the real fault was a broken wire.

This is the single most common wasted repair.

The second mistake is ignoring the error and just resetting. Turning the breaker off clears the code temporarily. If the wiring is damaged, the code comes right back.

That cycle hides the fault and can strain the compressor over time.

The third mistake is working on a live unit. The outdoor board carries 230 volts. Even a quick check can cause a serious shock or blow the main board.

The fourth mistake is trusting an unlicensed handyman. They often lack LG service software and proper diagnostic tools. A certified technician reads the error history and EEPROM data directly.

Frequently Asked Questions About LG Error Code CH 29

Can I reset CH 29 by turning off the breaker?

Yes, but only temporarily. Powering down for ten minutes clears the code from the display. If the wiring fault or EEPROM issue remains, the error comes back.

Use a reset only to confirm the fault is still active. It is not a permanent fix.

Does CH 29 mean I need a new outdoor unit?

No. CH 29 is a communication error, not a compressor failure. Most fixes involve wiring, a fuse, or a board repair.

Full outdoor unit replacement is rare and only needed when multiple boards fail or the chassis is damaged.

How much does a professional repair cost?

A service call runs $100 to $200. Wiring repairs cost $150 to $300 total. PCB replacement can push the bill to $500 or more with parts and labor.

Always ask for a diagnosis before approving work.

Is CH 29 covered under LG warranty?

It depends on your model and age. LG typically covers parts for up to 10 years on the compressor, but PCB coverage varies. Labor is usually covered only in the first year.

Contact LG with your serial number to confirm eligibility.

Your Quick Decision Guide – Fix or Call?

You have two clear paths. Try the safe DIY check once, then decide.

Fix it yourself if: The code started after a storm. The communication wire has visible damage. A terminal screw is loose.

You have a multimeter and know how to use it safely. Reset the system and see if the code clears.

Call a pro if: You see burn marks, melted plastic, or smell smoke. The breaker trips repeatedly. The error returns immediately after reset.

You are not comfortable working near high voltage. That is smart judgment, not a failure.

When in doubt, call first. A $150 service call beats a $600 board replacement that does nothing. Ask the technician to check the EEPROM, measure communication voltage, and read the stored error history.

Use this guide, trust your gut, and never feel pressured to guess. LG inverter systems are reliable when properly diagnosed. A smart approach saves you money and keeps your cooling running.
