Lg Refrigerator Error Code Dh F

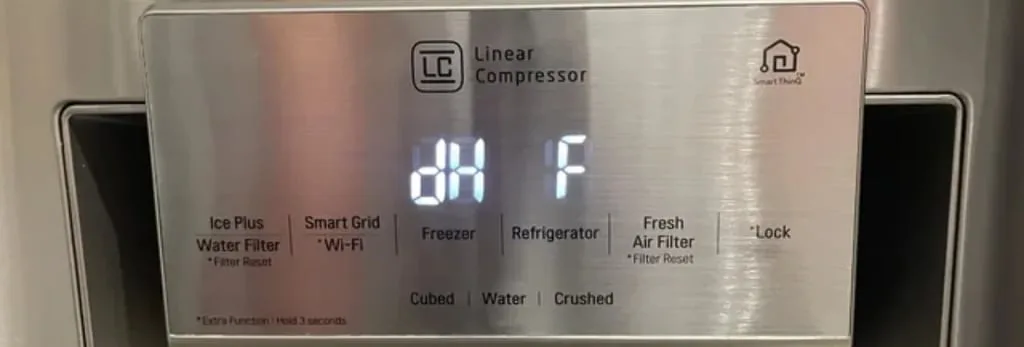

Seeing Lg Refrigerator Error Code Dh F flash on your display can feel alarming. Your freezer might be warming up, or you notice frost building on the ice maker. Don't panic.

This code points to a specific issue in the defrost system, and it's usually fixable with basic tools.

Manufacturer specifications indicate that LG refrigerators with linear compressors produced as of 2013 use a defrost cycle that runs roughly every 8 to 10 hours. When the control board detects no current flow through the heater circuit during that cycle, it logs the DH code. Understanding what triggers this error is the first step toward a reliable fix.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The DH error means the defrost heater circuit failed. Unplug the fridge. Remove the freezer back panel.

Test the defrost heater with a multimeter. If it shows no continuity, replace it. That fixes about 70% of cases.

What the DH Error Code Actually Means

The DH code stands for "Defrost Heater" fault. Your LG refrigerator has a defrost system that melts frost off the evaporator coils. This system includes three main components: the defrost heater, a defrost thermostat, and a defrost thermistor.

Here's how it works. After several hours of cooling, the control board activates the heater to melt accumulated frost. The thermostat monitors the temperature.

When the coils reach about 50°F to 55°F, the thermostat opens and ends the cycle. The thermistor reports temperature back to the board.

When the DH error appears, it means the control board tried to run a defrost cycle but detected no power draw from the heater circuit. The board expected current to flow, but nothing happened. So it stops trying and throws the code.

The most common cause is a burned-out defrost heater. After hundreds of thermal cycles, the heater element cracks or breaks. But the problem can also be a stuck-open thermostat, a failed thermistor, a loose wiring connector, or a bad control board.

Think of it like a light bulb that's burned out. The switch works fine, and the wiring is intact. But without the bulb, no light.

In your fridge, without the heater, no defrost. That's the DH error.

Before You Touch Anything – Safety Basics

Unplug the refrigerator before you access any internal components. The defrost heater runs on 120V AC in US models. Touching a live terminal can shock you badly.

Wait 5 minutes after unplugging for any residual charge to drain.

Tools you'll need for this job:

You'll also want to know your model number. It's on a sticker inside the fresh food section, usually on the left wall or top rear. Write it down.

You'll need it if you order replacement parts from LG's official parts lookup.

If your refrigerator is still under warranty, stop here and call LG support. Opening the back panel yourself can void the warranty. For everyone else, let's start diagnosing.

Decision Branch 1 – Is the Defrost Heater Working?

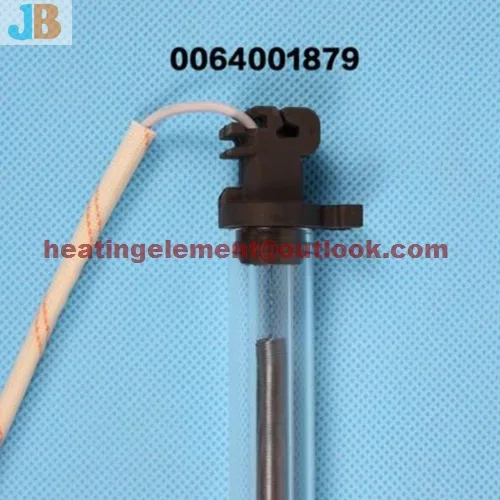

This is where most DH errors get solved. The defrost heater is a glass tube or wire element that sits under the evaporator coils in the freezer. Over time, thermal stress causes the element to crack or burn out completely.

Start by removing everything from the freezer. Take out the shelves and drawers. Locate the back panel.

It covers the rear wall of the freezer. Remove the screws holding it in place. You'll see the evaporator coils and the defrost heater assembly mounted to them.

Image source: Bing (Web (fair-use with source credit))

Look for any visible damage. A burnt or blackened spot on the glass tube means the heater is bad. But even if it looks fine, test it with a multimeter.

Disconnect the two wires going to the heater. Set your multimeter to resistance (ohms). Touch one probe to each heater terminal.

A good heater reads between 30 and 50 ohms. If you see OL (open line) or infinite resistance, the heater is broken. Replace it.

You can order a replacement heater using your model number from the LG parts website. Expect to pay between $15 and $40. Installation is straightforward.

Remove the clips holding the old heater, slide it out, and install the new one. Reattach the wires and refit the back panel.

If the heater tests good, move to the next branch.

Decision Branch 2 – Test the Defrost Thermostat and Thermistor

The defrost thermostat is a small disk-shaped switch clipped to the evaporator coil tubing. It monitors the coil temperature. When the coil gets cold enough during normal cooling, the thermostat closes and completes the circuit.

When the coil warms up during defrost, it opens.

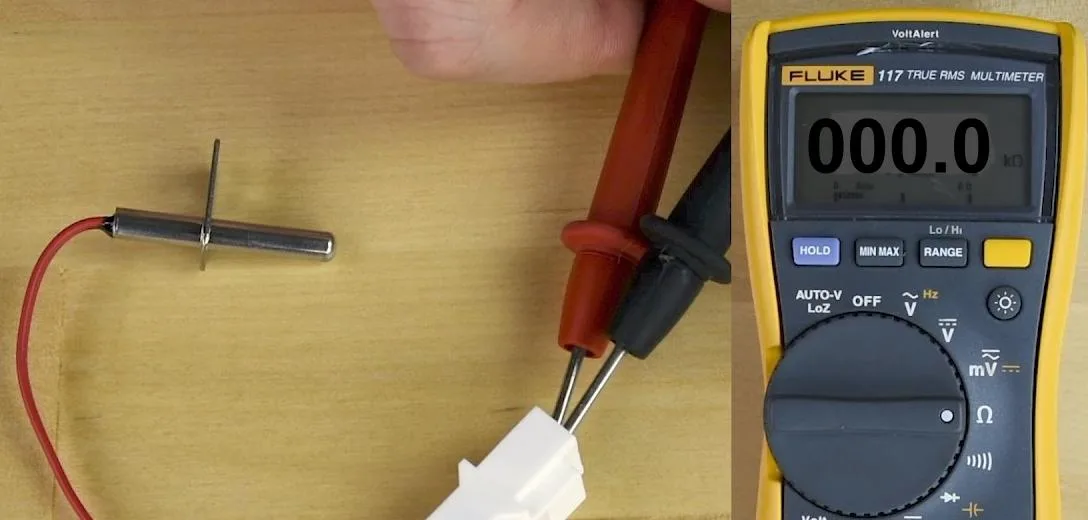

To test it, remove it from the coil. Unclip it carefully. At room temperature (around 70°F), the thermostat should be closed.

It should show continuity (near zero ohms) on your multimeter.

Image source: Bing (Web (fair-use with source credit))

If the thermostat reads open (OL) at room temperature, it's stuck open. The heater will never get power because the thermostat is blocking the circuit. Replace it.

They cost about $5 to $10.

If the thermostat tests good, move to the thermistor. The defrost thermistor is a small plastic-tipped sensor that clips to the evaporator coils. It sends temperature data to the control board.

To test the thermistor, you need to know its resistance at a known temperature. A common spec for LG refrigerators as of 2026 is about 10 kilo-ohms at 32°F (0°C). Place the thermistor in a glass of ice water.

Wait a minute for it to stabilize. Measure the resistance. If it's way off, replace it.

Thermistors cost $5 to $15. They push into a bracket on the coil and the wire plugs into a harness. Simple swap.

If all three components pass, the issue is likely elsewhere.

Decision Branch 3 – Could It Be the Control Board or a Bad Connection?

This is the trickiest branch. Control board failures happen, but they're less common than a broken heater or thermostat. Before you blame the board, rule out everything else.

Start with the wiring. The connectors inside the freezer wall can loosen over time. Vibration from the compressor and humidity can cause corrosion on the terminals.

Check each connector that leads to the heater, thermostat, and thermistor. Disconnect and reconnect each one firmly. Look for any signs of rust or burn marks.

Also check the main wiring harness where it connects to the control board. This is usually located in the machine compartment at the back or bottom of the refrigerator. Remove the access panel.

Inspect the connectors for melted plastic or discoloration. If you find any, that connector needs replacing.

To test whether the control board is sending power during defrost, you need to force a defrost cycle. Enter diagnostic mode on your LG refrigerator. The typical sequence is: press and hold the Freezer and Fridge temperature buttons simultaneously for about 5 seconds.

The display should show "dF" or a test mode. Select defrost test. The board will try to power the heater.

With your multimeter set to AC voltage, probe the two terminals where the heater wires connect to the board's relay. You should see 120V AC during the defrost test. If you see voltage but the heater didn't heat up in your earlier test, your wiring between the board and the heater is faulty.

If you see no voltage and all other components test good, the control board has failed.

Board replacement is more involved. You need to order the correct board for your model. Prices range from $80 to $200.

You'll need to disconnect multiple wire harnesses and remove the board from its mounting. Label each connector before you remove it. Take a photo for reference.

If this feels out of your comfort zone, it's reasonable to call a licensed appliance technician. Control board troubleshooting requires precise voltage checks that carry shock risk.

Mistakes to Avoid When Diagnosing LG Error Code DH

Replacing the heater without testing it first. The DH error points to the circuit, not necessarily the heater itself. A $10 thermostat can cause the same code. Test each component before buying anything.

Forgetting to clear the error code after the repair. The control board remembers the fault. After you fix the issue, unplug the fridge for 5 minutes. Plug it back in.

The code should clear. If it doesn't, the problem persists.

Using the wrong replacement part. LG uses multiple heater designs. Glass tube heaters look different from wire loop heaters. Check your model number and compare photos.

Force-fitting the wrong part can damage the mounting clips.

Ignoring frost buildup before the repair. If the evaporator coils are caked in ice, remove it manually. Use a hair dryer on low heat. Let the fridge sit with the door open for an hour.

A solid block of ice prevents the new heater from working properly.

Assuming the control board is bad without testing the wiring. Loose connectors cause intermittent faults. A simple push of a connector might fix the issue. Always check connections first.

Frequently Asked Questions

Can I still use my refrigerator with the DH error?

Yes, but not for long. The fridge will keep cooling for a while. But without defrost cycles, frost builds up on the coils.

Eventually the airflow gets blocked, and both the fridge and freezer lose temperature. Food can spoil in a few days.

How much does it cost to fix the DH error yourself?

Between $15 and $50 for parts. A defrost heater costs $15 to $40. A thermostat costs $5 to $10.

A thermistor costs $5 to $15. A multimeter costs about $20 if you don't already own one. A professional repair runs $150 to $300.

Will unplugging the fridge reset the DH error?

Unplugging clears the code from the display temporarily. If the underlying problem isn't fixed, the code returns after the next defrost cycle. A true reset means fixing the failed component.

How long does a defrost heater last on an LG refrigerator?

Most last 5 to 10 years. The lifespan depends on usage cycles and voltage stability. Frequent power surges can shorten heater life.

Installing a surge protector on the refrigerator outlet helps.

Is the DH error the same as the dE error?

No. DH means Defrost Heater circuit fault. dE means Defrost Error, which points to a failing thermistor or sensor circuit. The two errors have different causes and require different testing.

Can a bad ice maker cause the DH error?

No. A faulty ice maker won't trigger the DH code. But a failed defrost system can cause ice maker problems.

Frost buildup blocks water flow and prevents ice production. Fixing the DH error often fixes ice maker issues too.
