If you've searched for "Nordictrack Treadmill Incline Not Working 2," you're probably staring at a console error, a stuck deck, or a machine that hums and refuses to move. That error code means the incline control circuit lost communication or the motor stalled mid-travel. We've researched the repair paths across the most common NordicTrack models.

The fix usually comes down to a short list of causes. Let's walk through them in the order you should check them.

Manufacturer specifications indicate that most NordicTrack incline systems use a 12V DC linear actuator paired with a dedicated controller board. As of 2026, the typical home repair sequence is still the same: power-cycle, calibrate, then test components. The good news is you can handle most steps with basic hand tools and a multimeter.

Let's start with the checks that take under two minutes.

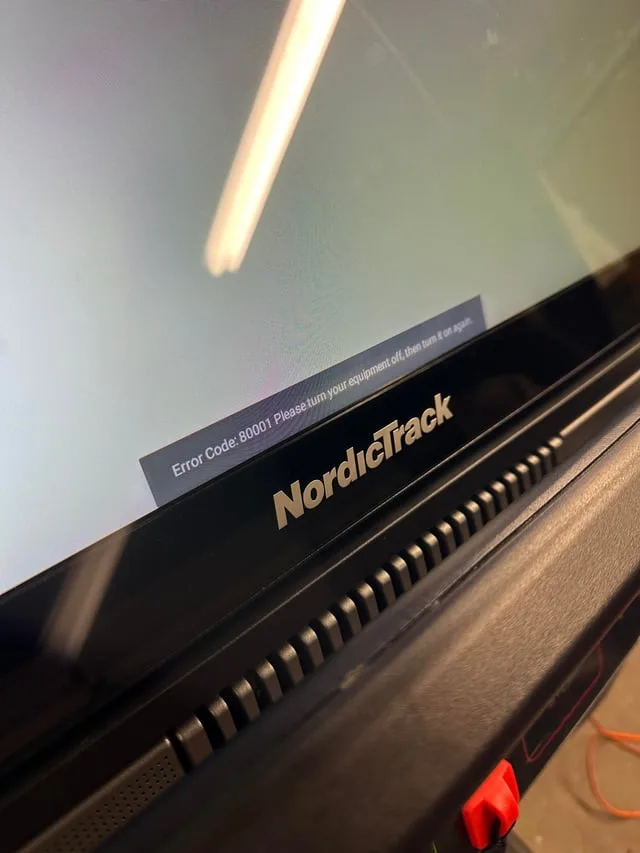

Image source: Web (Bing) / axel.as-1.co.jp (Web image (fair-use with source credit))

Quick Answer

NordicTrack Treadmill Incline Not Working 2 means the incline motor stalled or lost sensor feedback. Unplug the treadmill for 60 seconds. Reinsert the safety key.

If the error remains, enter calibration mode. Still stuck? Test the incline motor and controller board with a multimeter.

Most repairs are DIY jobs.

Before You Tear Anything Apart: Two-Minute Checks

Start simple. Most "Incline Error 2" alarms clear when the console loses power and reboots. This takes one minute and fixes many cases.

• Unplug the treadmill from the wall. Wait 60 seconds. Plug it back in.
• Insert the safety key fully. The console should wake up and reset the incline system.
• Listen for a click from the motor area. A click means the controller is sending power.

If the incline moves even half an inch, you're back in business. If the error reappears, the problem is likely hardware.

Next, check for physical obstructions. Look under the treadmill deck. Rolled towels, pet toys, or a floor mat can block the incline frame.

• Sit on the deck to unload the mechanism. Many incline actuators stall under body weight.
• Feel around the rear roller and lift arms for anything pinched.

Also inspect the power source. Plug the treadmill into a dedicated wall outlet, not a power strip. Surge protectors can starve the motor of voltage.

Loose connections cause some false incline errors.

An unbalanced treadmill can also trigger incline faults. If the machine rocks when you run, the safety sensors may misread the deck position. Level both rear feet with a wrench, usually 3/8-inch or 7/16-inch.

If those checks don't help, the next step is identifying the failure pattern.

Identify the Failure Pattern: Stuck Flat, Hums But Won't Move, or Error Code

Before you buy parts, figure out which failure pattern you're dealing with. It changes the entire repair path.

Image source: Bing (Web (fair-use with source credit))

The three most common patterns cover nearly every NordicTrack model. Here's what to look for.

If your console shows a code, don't order a motor yet. The code rarely tells you which part failed. It only tells you the system lost track of where the incline is.

If the motor hums, put your hand on the deck. A hum with zero motion usually means the internal gear is stripped. The whole actuator needs replacing.

If the deck moves a bit then stops, the limit switch may need adjusting. That's a 10-minute fix.

Now, let's get the console to talk to the incline motor.

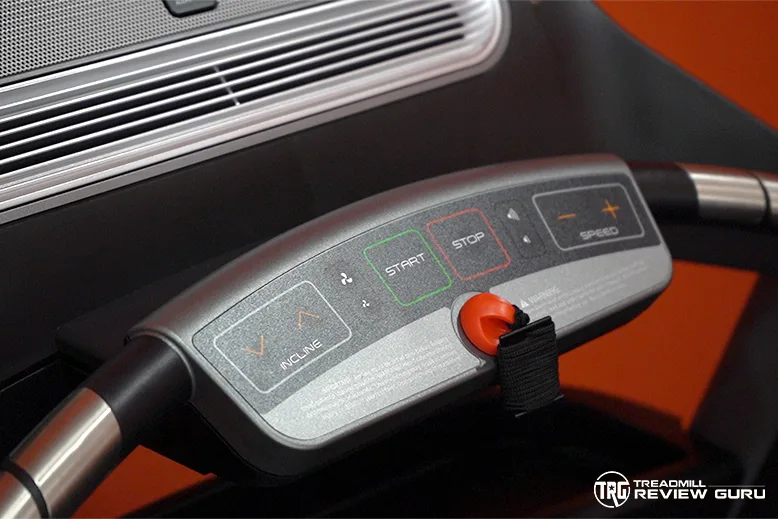

How to Enter NordicTrack Incline Calibration Mode and What It Tells You

Calibration is the built-in diagnostic that makes the incline motor sweep from bottom to top. Most NordicTrack consoles from the last decade use a similar routine. Check your manual for the exact key combo for your model.

You can find model-specific manuals at NordicTrack's official site.

Image source: Bing (Web (fair-use with source credit))

Here's the general method.

1. Unplug the treadmill and wait 30 seconds.
2. While the treadmill is unplugged, press and hold the Incline Up and Speed Fast buttons.
3. Keep holding them while you plug the treadmill back in.
4. Continue holding until the console beeps or the display changes.
5. Insert the safety key.
6. The incline should move down, then up, then back to zero automatically.

Here's what the sweep tells you. If the incline completes the sweep, the motor, wiring, and controller are all fine. The error was likely a temporary glitch.

If the incline doesn't move during calibration, the system is either dead or mechanically stuck. If it moves only partway, a limit switch or worn motor is the suspect.

Pro tip: Listen to the pitch of the motor during the sweep. A healthy actuator sounds smooth. Grinding or clicking means internal gear damage.

After calibration, check the console. If the error clears, you're done.

Testing the Incline Motor, Wiring, and Controller Board with a Multimeter

Now we're getting electrical. This is safe if you follow the order below. Always unplug the treadmill before touching connectors.

You'll need a digital multimeter. Set it to the ohms (Ω) setting first.

Test the incline motor

1. Unplug the treadmill. Remove the motor hood. That's usually 3 to 5 screws on the front.
2. Find the two wires going to the incline actuator. They're often red and black, but not always.
3. Disconnect the wiring harness from the motor.
4. Touch the multimeter probes to the two motor terminals.
5. Read the resistance.

A healthy 12V DC incline motor reads between 2 and 10 ohms. A reading of zero or infinite means the winding is shorted or open. Replace the motor.

Test the controller board fuse

The incline controller board usually has a blade fuse. It looks like a car fuse. Pull it out and check continuity with the multimeter.

• If the fuse is blown, replace it with the same amp rating, typically 10A or 15A.
• Do not use a higher-rated fuse. That can burn the board.

Test for voltage at the board

This step requires the treadmill plugged in. Stay careful.

1. Plug the treadmill back in.
2. Set the multimeter to DC volts, 20V range.
3. Probe the board's output terminals while someone presses the Incline Up button.
4. You should see roughly 12V appear briefly.

If you see voltage but the motor doesn't move, the motor is bad. If you see no voltage, the board or console is the problem. That leads to replacement.

Replacing the Incline Motor or Controller Board Without Losing Your Mind

Once you've confirmed the bad part, replacement is straightforward. The hardest part is lifting the treadmill and keeping track of screws.

Motor replacement

1. Unplug the treadmill. Remove the motor hood.
2. Support the deck with a block of wood so it doesn't drop.
3. Unbolt the incline motor from the frame. Usually two bolts, often 13mm or 1/2-inch.
4. Disconnect the wiring harness.
5. Pull the old actuator out and slide the new one into the same mounting points.
6. Bolt it back, reconnect wires, and reinstall the hood.

Then run calibration again from the earlier section. The new motor has to learn its end stops.

Controller board replacement

Controller boards are model-specific. Match the part number printed on the board. The board usually sits in a metal box behind the console or under the motor hood.

1. Unplug the treadmill.
2. Remove the cover holding the board.
3. Take a photo of the wiring connections before you touch anything.
4. Unplug each connector, noting where it goes.
5. Remove the board and install the replacement.
6. Reconnect everything exactly as the photo shows.

Double-check the fuse on the new board. Some aftermarket boards ship with a fuse installed. Others don't.

After replacement, plug the treadmill in. Insert the safety key. Calibrate.

If the console still throws an error, the issue may be the console itself. At that point, it's worth calling a technician.

Mistakes to Avoid, Parts Costs, and When to Call a Pro

Even with clear diagnostics, people make the same few errors. A blown part doesn't have to be an expensive learning experience. Here's what usually goes wrong and how much a real repair costs.

Three mistakes that waste money and time

Ordering the wrong part. Many boards and motors look identical and use different connectors. Always match the model number printed on the old part, not the treadmill model. Use your phone and photograph the part label.

Forgetting the calibration step. Brand new motors and boards won't work until the system learns its travel limits. Run the calibration routine from earlier before you declare the fix a failure.

Not checking the safety key. The console won't send power to the incline motor unless the key is fully seated. If the key is worn, it can cause intermittent "Incline Error 2" codes. Replace it if the magnet feels weak.

You can feel it when you tap the key against a metal screwdriver.

What parts actually cost (as of 2026)

OEM parts tend to last longer. Aftermarket boards sometimes use cheaper components. For the incline motor, aftermarket units are usually fine.

For the controller board, reader feedback often recommends OEM for better reliability.

When to call a pro

Three situations are worth the service call fee, which usually runs $100 to $200 plus parts.

1. The console error persists after replacing both motor and board. That points to a damaged console or wiring harness inside the upright tube. Tracing those wires is painstaking without a wiring diagram.
2. You smell burnt electronics repeatedly. A short circuit can damage the board again within seconds. A technician can bench-test the motor before connecting it.
3. You're not comfortable opening electrical enclosures. The controller board uses capacitors that can store voltage after unplugging. If the multimeter test stage made you nervous, let someone else handle it.

Otherwise, you're likely looking at a DIY fix under $100 and about an hour of work.

Frequently Asked Questions

What does "Incline Error 2" mean on a NordicTrack treadmill?

"Incline Error 2" means the incline control system lost communication with the motor or the motor stalled while trying to move. It often happens after a power surge or physical obstruction. Calibration usually clears it if the hardware is still good.

The incline motor hums but won't move. What's wrong?

A humming motor that stays still typically has a stripped internal gear or seized bearing. Put your hand on the deck. If you feel the motor working but nothing moves, replace the linear actuator.

This is the most common failure on NordicTrack treadmills over three years old.

Can I use the treadmill with the incline stuck?

You can walk or jog on a flat deck. If the incline is stuck in the raised position, remove the safety key first. Running on an angled treadmill that won't level out puts stress on your joints and the motor.

Repair it before regular use resumes.

How do I reset the incline after moving my treadmill?

Unplug the treadmill for 60 seconds. Plug it back in. Insert the safety key.

The incline should self-level. If it doesn't, enter calibration mode using the key combo described earlier. Moving the treadmill can bump the limit switches out of alignment.

Is the incline motor covered under NordicTrack warranty?

NordicTrack frames and motors usually carry a 10-year warranty on higher-end models. Labor coverage varies. If your treadmill is less than three years old, check your original documentation before spending money on parts.

Customer service can verify your model's coverage.
