Philips Tv No Picture But Sound
You turn on your Philips TV. The sound comes through clear. But the screen stays black.
That's the exact "Philips Tv No Picture But Sound" fault. It's a common problem, and most of the time you can diagnose it in under two minutes.
Manufacturer specs show that LED backlight failures cause the majority of these cases on TVs older than four years. The audio and display circuits are separate inside the TV. One can fail while the other keeps running.
We'll walk you through the test that tells you exactly which part failed and whether it's worth fixing.
Quick Answer
If your Philips TV has sound but no picture, do the flashlight test. Shine a flashlight on the screen. If you see a faint image, the backlight is dead.
If you see nothing, the panel or T-con board is faulty. This test decides your repair path in under two minutes.
The Problem: Power Light Is On, Screen Is Black, But You Hear Audio
Image source: Bing (Web (fair-use with source credit))
The TV turns on. The remote works. You can change channels and hear dialogue.
But the display never lights up. That confuses most people because everything else seems alive.
Repair professionals identify this as one of the top failure modes for LED TVs after the four-year mark. The reason is simple. The audio and display paths are separate inside the TV.
One dies while the other keeps running.
The backlight is the biggest suspect. It's a row of LEDs placed along the edges or behind the panel. When those fail, the TV still processes the picture.
There's just no light coming through to make it visible.
The good news is that this fault is fixable in most cases. The bad news is that you won't know for sure until you run one diagnostic test. It takes about thirty seconds and uses nothing more than a flashlight.

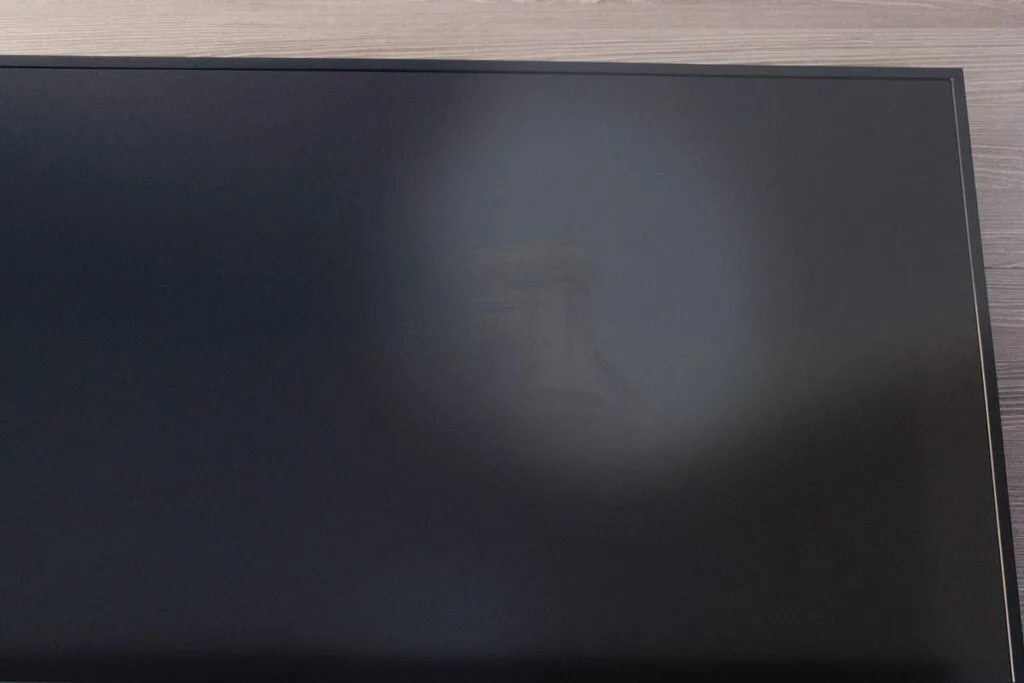

The Flashlight Test: The First Branch in Your Decision Tree
Image source: Bing (Web (fair-use with source credit))
Grab any decent flashlight. The one on your phone works fine. Turn the TV on.
Make sure a channel or menu is showing. Press the flashlight lens right against the screen.
You're looking for a faint image. If you see one, you have a backlight problem. The T-con board, main board, and panel are all working correctly.
They're sending the picture to the screen, but there's no light behind it.
If you see absolutely nothing, the problem is deeper. The panel itself might be dead. The T-con board might not be delivering the image data.
In that case, the backlight might be fine, but the TV can't produce a visible image even with light shining through.
| Test result | Likely failure point | Next step |
|---|---|---|
| Faint image visible | Backlight LED strip | Replace backlight |
| Nothing at all | T-con or panel | Check T-con, LVDS cable |
| Blue-gray glow | Power supply or T-con | Measure PSU voltages |
This single test eliminates half the guesswork. It's the same method used by professional repair shops. As of 2026, it's still the fastest first step for any LED TV brand, including Philips.
One important note. The flashlight test doesn't work on OLED panels. If you own an OLED, skip this step and go straight to the board diagnosis below.
Backlight vs. Panel vs. Board: How to Tell the Difference Before You Open Anything
If the flashlight test showed a faint image, you're in the backlight camp. That's the best outcome because backlight replacement is cheaper and safer than panel work.
If you saw nothing, you need to look further. The T-con board is the next suspect. It sits behind the panel and feeds the picture signal to the screen's row and column drivers.
A bad T-con usually shows other symptoms too. Look for horizontal lines, flickering, or a gray screen before the TV goes dark.
The main board handles input processing. It's the brain that runs the smart TV system and decodes HDMI signals. If the main board dies, you usually lose sound as well.
Since you still have audio, the main board on your Philips is probably fine.
The power supply board provides voltage to everything. It's easy to test with a multimeter. Listen for a clicking sound when the TV powers on.
That's often a relay or a failing capacitor on the PSU.
| Component | Role | Common symptom |
|---|---|---|
| Backlight | Lights the panel | Faint image under flashlight |
| T-con board | Sends image data to panel | No image, but backlight glows |
| Main board | Processes input | No sound, no picture |
| Power supply | Feeds all boards | Clicking, TV shuts off |
Per manufacturer documentation, the T-con and backlight are the two most frequently replaced parts for this exact fault on Philips LED models.
The Step-by-Step Repair Workflow (By Symptom, Not Guesswork)
Image source: Bing (Web (fair-use with source credit))
This is where the decision tree really branches. Use your symptom to pick a path.
Branch A: Faint image with flashlight (backlight failure)
- Unplug the TV. Wait 10 minutes for capacitors to discharge.
- Remove the back cover. You need a Phillips screwdriver and a plastic spudger.
- Take a photo of every connector before unplugging it.

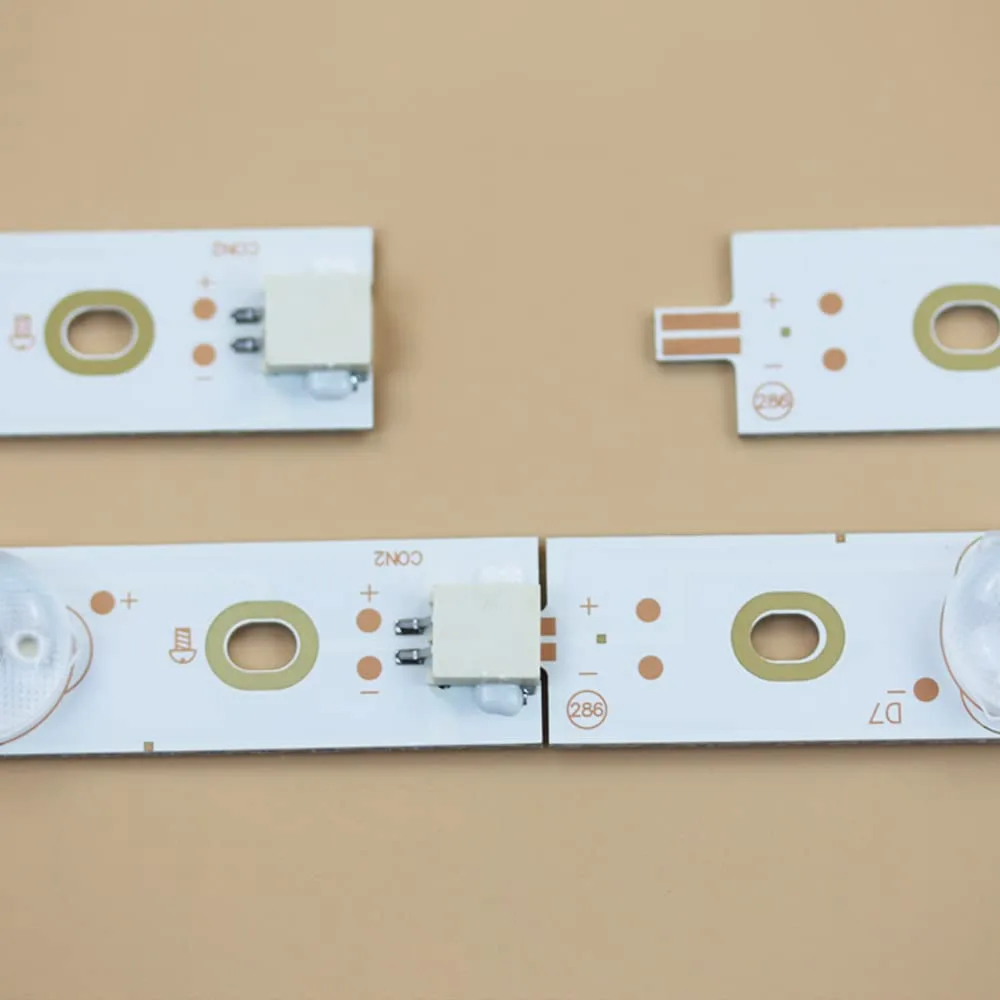

- Locate the LED strips along the edge or behind the panel.
- Test each LED with a 3V coin cell battery. Dead ones won't light up.
- Replace the faulty strip or the full set.
- Reassemble in reverse order.
This takes about 90 minutes if you're careful. Parts cost anywhere from £15 to £40 depending on screen size.
Branch B: No image at all, backlight glows (T-con or LVDS cable)
- Open the back cover.
- Locate the LVDS ribbon cable connecting the T-con to the main board.
- Re-seat both ends. A loose connection causes exactly this symptom.
- If that fails, measure the T-con input voltage. It should match the PSU spec.
- Replace the T-con board if the voltage is correct but the image is still missing.
A used T-con board runs £20 to £60. Try the cable first. It costs nothing.
Branch C: No image, no menu response (main board)
If the flashlight test shows no image and the remote does nothing, test the power supply outputs first. A bad capacitor on the PSU can starve the main board. Replace the PSU if voltages are out of spec.
Branch D: TV powers off after a few seconds
That's a classic power supply symptom. Inspect the capacitors for bulging or leaking. A £2 capacitor swap can revive the whole board.
What It Costs to Fix vs. What It's Worth
Before you order a single part, ask yourself one question. Is this TV worth fixing?
A simple rule helps here. If the repair cost is more than half the price of a comparable new TV, buy the new set. If it's less, fix the old one.
Here are typical costs as of 2026:
| Repair | Parts cost | DIY time | Repair shop cost |
|---|---|---|---|
| Replace LED strip | £15–£40 | 1.5–3 hrs | £80–£150 |
| Replace T-con board | £20–£60 | 1–2 hrs | £70–£130 |
| Replace PSU board | £30–£70 | 45 min | £90–£140 |
| Replace main board | £50–£120 | 1 hr | £120–£180 |
A 50-inch Philips 4K TV sells for around £350 to £450. If your repair estimate lands under £200, you're winning.
Also check the warranty first. If your Philips is under two years old, a free repair might cover this fault. Call Philips support before you crack the case open.
One more thing. A dead backlight doesn't mean the rest of the TV is dying. Many people fix an old Philips with a simple LED strip swap and get five more years of daily use.
That's a solid return on a £30 part.
The 7 Biggest Mistakes People Make With This Exact Fault
1. Replacing the T-con board when the backlight is dead
This is the most common miss. The flashlight test would have shown you a faint image, but people skip it and order the wrong part. You waste time and money on a board that was never broken.
2. Prying the LCD panel without the right tools
The LCD panel is fragile. One slip with a metal screwdriver and you crack it. That's a terminal error.
Use plastic spudgers and suction cups. Work slowly.
3. Testing LED strips with the wrong voltage
Some LED strips run at 3V per LED. Others run at 6V or higher. Using too much voltage can blow a good strip.
Use a dedicated LED tester or a 3V coin cell battery.
4. Bypassing a burnt LED by shorting it
This creates a fire risk. The rest of the strip draws more current and overheats. Replace the bad LED or the entire strip.
Never short one out.
5. Forgetting to check the LVDS ribbon cable
A loose or corroded cable can mimic a dead T-con board. It's a five-second fix that people overlook. Always re-seat both ends before ordering parts.
6. Buying the wrong LED strip version
Edge-lit and direct-lit strips look similar but are not interchangeable. Check your model number. Order exactly what the service manual calls for.
7. Not taking a photo before unplugging connectors
You think you'll remember which wire goes where. You won't. Take a photo with your phone.
It saves hours of frustration during reassembly.
Frequently Asked Questions
Will a factory reset fix a black screen with sound?
No. A factory reset only affects software. Your issue is hardware.
The backlight, T-con, or power supply has failed. No reset will fix those components.
Why does the Philips logo flash briefly before the screen goes dark?
The TV is starting up normally. The logo flash means the panel is receiving a signal. When it goes dark, the backlight has failed.
The T-con and main board are likely fine.
Is the flashlight test reliable on OLED panels?
No. OLED panels don't use a separate backlight. Each pixel produces its own light.
The flashlight test shows nothing useful on OLED TVs. You need to check the T-con and main board directly.
Can a dead HDMI port cause no picture but sound?
It can cause no picture on that specific input. Switch to another HDMI port or use the built-in tuner. If the TV works on another input, your HDMI port is the problem, not the backlight.
Is it safe to leave the TV in standby after a black screen?
Yes, it's safe. The TV won't overheat. But it won't fix itself either.
The faulty component needs to be replaced. Leaving it in standby just wastes electricity.
How long do Philips LED strips usually last?
Manufacturer specs rate them for 50,000 to 100,000 hours. That's about 5 to 11 years of normal use. Failure after year four is common.
Heat and poor ventilation shorten the lifespan.
