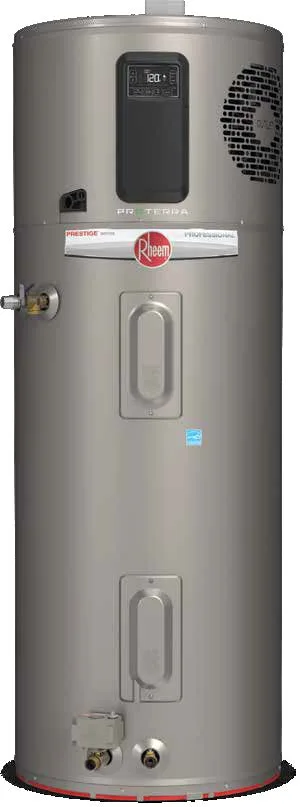

Rheem Hybrid Water Heater Troubleshooting

Image source: Web (Bing) / bphsales.ca (Web image (fair-use with source credit))

Why Your Rheem Hybrid Isn't Heating Right: Common Symptoms

Your Rheem hybrid water heater is flashing an error code, the water's barely lukewarm, and the heat pump never seems to kick in. If you are in the middle of Rheem Hybrid Water Heater Troubleshooting right now, you are probably dealing with one of a handful of common issues. The good news is that most of them are fixable at home with a logical sequence of checks.

According to manufacturer specifications, as of 2026, Rheem hybrid units like the ProTerra and Platinum series achieve a Uniform Energy Factor of up to 3.8 in heat pump mode. But that efficiency only matters if the compressor runs and the condensate drain stays clear. Let us walk through the diagnosis branches so you can restore hot water without replacing parts you do not need.

Quick Answer

Check the error code first. Then confirm Hybrid mode is selected. Clear the condensate drain and air filter.

Test the heat pump circuit before touching backup elements. Most failures trace to one of these causes.

Why Your Rheem Hybrid Isn't Heating Right: Common Symptoms

Rheem hybrid water heaters are more complex than a traditional electric tank. Two heat sources mean more parts to fail and more codes to decode. Aggregate reviews and service bulletins show the same recurring complaints across the ProTerra and Platinum series.

Symptoms tend to cluster into six groups:

• No hot water at all: often a tripped high limit switch, a failed temperature sensor, or a dead compressor.
• Only lukewarm water: the heat pump runs but recovery is slow, or the unit is stuck in resistance mode.
• Heat pump never comes on: check ambient temperature, condensate drain, and mode settings.
• Flashing error code: usually a sensor fault, refrigerant pressure problem, or control board failure.
• Loud rumbling or hissing: compressor noise, refrigerant leak, or water hammer in the lines.
• Water pooling around the base: almost always a clogged condensate drain line.

Energy Star testing shows hybrid units cut water heating energy use by roughly 60 percent compared with standard electric tanks. But that disappears if the heat pump never runs. The HP50 and HP80 models flash a four count code when refrigerant pressure runs out of range.

That can be a leak, a failed expansion valve, or simply a dirty filter making the unit overwork. An orderly sequence keeps you from throwing parts at the wrong problem.

The First Three Things to Check Before Anything Else

Before you open any test panels, spend ten minutes on the checks that fix most Rheem hybrid problems. These are the patterns service techs see over and over.

Check the display panel. Rheem's control board stores the last error and flashes it on the front panel. Count the flashes. Two flashes points to a temperature sensor issue.

Three means over temperature. Four means refrigerant pressure is low or high. Write the exact pattern down before touching anything.

Confirm the operating mode. If the unit is in Vacation mode, it will not heat at all. If it is in Electric Resistance mode, it will heat, but you are losing the efficiency benefit. The display shows the mode symbol clearly.

Set it back to Hybrid or Auto, which uses both heat sources based on demand.

Check the condensate drain and air filter. A clogged drain line is the single most common cause of moisture related errors on hybrid units. The filter sits behind the front cover. Pull it out and hold it up to light.

If you cannot see through it, wash it with mild dish soap and water, dry it completely, and reinstall. The condensate drain tube runs to the floor drain or a condensate pump. Pinch it along its length, feeling for kinks.

This trio solves roughly half of all hybrid Rheem service calls before you open a single panel. If these do not clear the fault, move to the diagnosis tree below.

Diagnose Your Issue: A Step-by-Step Decision Tree

Now map your symptom to a fix. This tree follows the logic that Rheem service techs use. Identify your branch and work through its checks in order.

Error Code Flashing: Identify the Code and Follow the Branch

Image source: Web (Bing) / smartwatersource.com (Web image (fair-use with source credit))

Count the flashes. One or two flashes mean a temperature sensor fault. Check the wiring harness and sensor resistance.

Three flashes mean the high limit switch tripped. Press the reset button on the upper thermostat. Four flashes signal a refrigerant pressure fault.

This needs a licensed tech with EPA 608 certification.

No Hot Water at All: Power, Reset, and Safety Switch Path

If there is zero hot water, check the breaker first. Then press the high limit reset above the upper thermostat. If heating still does not start, test the thermistors with a multimeter.

A dead compressor in heat pump models stays cool after ten minutes of operation.

Heat Pump Never Runs: Ambient, Condensate, and Settings Checks

Image source: Bing (Web (fair-use with source credit))

If the tank heats but the compressor never kicks in, check ambient temperature. Most Rheem models will not run the heat pump below 44 degrees F or above 120 degrees F. Then verify the mode is not set to Electric Resistance.

Finally, clear the condensate pan so the drain lockout releases.

Low Hot Water or Slow Recovery: Hybrid vs Resistance Mode Diagnosis

If water runs hot for a shower but goes cold fast, the lower backup element is likely burned out. If the tank heats slowly but steadily, the heat pump is doing all the work, which is normal. Check if the system is stuck in heat pump only mode.

Resistance elements typically add recovery at 4500 watts.

Unit Short-Cycling or Noisy: Fan, Compressor, and Water Hammer Fixes

If the unit turns on and off rapidly, suspect the pressure switch or control board. Listen for the start sequence. You should hear the fan first, then the compressor.

If water lines bang when the heater kicks on, install a water hammer arrestor. If the condenser fan rattles, check for debris around the blades.

Cold Air Blowing or Freezing Evaporator: Ambient and Drain Issues

Cold air blowing from the unit is normal. That is the heat pump pulling heat from the space. Frost forming on the evaporator coil is not.

A dirty filter, restrictive duct, or low refrigerant are the usual causes. Make sure plenty of room air reaches the unit. Then inspect the filter.

Mistakes That Waste Time or Risk Damage

An hour of wrong guessing costs more than any part. Here are the mistakes that show up again and again in service data and buyer feedback.

Resetting without reading the code. Holding the reset button clears the error light but not the root cause. The control board keeps the fault history. Pull the code before you do anything.

Replacing heating elements first. Hybrid units rarely fail on resistance elements. Compressor, sensors, and control boards fail far more often. Swap parts blindly and you will order two or three trips worth.

Ignoring the condensate line. A clogged drain line triggers a pressure lockout that looks like a refrigerant leak. Always clear the drain before opening the sealed system.

Setting the temperature too high. Above 130 degrees F the heat pump often stops working and resistance takes over. That kills the energy savings and stresses the upper element.

Forgetting the ambient temperature limit. In an unheated garage below 44 degrees F, the heat pump is disabled by design. Your tank will still heat, but with the backup element only.

Neglecting the evaporator coil. Dust and lint build up on the coil and reduce heat transfer over time. That makes the compressor run harder and can trigger a false pressure error. Clean it with a soft brush per the maintenance schedule.

Opening the refrigerant loop without certification. That is a violation of federal regulations under EPA Section 608. It will also void your Rheem warranty.

Avoid these traps and a simple diagnosis can still be a one hour job. Getting it wrong can turn a 50 dollar fix into a 400 dollar service call.

Safety First: When to Call a Pro and What Not to Touch

Rheem hybrid water heaters run on a dedicated 240 volt circuit, hold refrigerant under pressure, and weigh 150 to 250 lbs. Any combination of those facts deserves respect.

Always kill the breaker before opening the unit. The upper heating element connections are live even when the display is off. Flip the breaker to off and secure it with a lockout tag while you work.

Do not open the sealed refrigerant loop. Under the US Environmental Protection Agency's Section 608 rules, only certified technicians with proper recovery equipment can legally handle refrigerant. That also keeps your warranty intact.

Test high limit switches and thermistors with the power off. Set your multimeter to continuity or resistance mode. If you test with power on, you risk a shock of 240 volts AC.

Never bypass the temperature and pressure relief valve. It protects the tank from dangerous pressure buildup. If it drips or leaks, replace it with a valve rated for your model, usually 150 psi and 210 degrees F.

Call a professional when: the compressor runs but the water stays cold, refrigerant pressure codes repeat, the control board shows persistent errors, or the breaker trips a second time. Also call if the tank is leaking, since that almost always means replacing the unit.

Watch the warranty.Rheem's support documentation outlines what you can and cannot do without voiding coverage. Opening the sealed loop or installing unapproved parts can cancel years of protection.

Yearly Upkeep to Keep Your Hybrid Running Reliably

A Rheem hybrid water heater needs less maintenance than a gas tank, but the tasks it does need are non-negotiable. Stick to a yearly routine and the unit will hit its full 10 to 15 year lifespan.

Clean the air filter every three months. The filter sits behind the front access panel. Rinse it with warm water and mild soap. Let it dry completely before reinstalling.

A clogged filter starves the evaporator coil of airflow and can trigger a false refrigerant pressure error.

Flush the tank annually. Sediment builds up at the bottom of the tank even in hybrid mode. Connect a garden hose to the drain valve. Run the hose to a floor drain or outside.

Open the valve and let the tank drain completely. Then close the valve, refill the tank, and purge air from the hot water lines.

Inspect the anode rod every two years. The powered anode on most Rheem hybrid models reduces corrosion but still needs checking. If the rod is less than half its original diameter or coated in calcium, replace it. A depleted anode can lead to tank failure within a year.

Clear the condensate drain line yearly. Pour a cup of white vinegar through the drain port or remove the tube and flush it with a wet/dry vacuum. Slime and algae build up inside the tube and create a plug. That plug triggers the overflow switch and locks out the heat pump.

Test the temperature and pressure relief valve. Lift the test lever on the T&P valve once a year. Water should flow freely and stop completely when you release it. If it drips or sticks, replace the valve.

That part costs about 20 dollars and prevents a catastrophic tank rupture.

Check the evaporator coil for dust and lint. Use a soft brush or compressed air to clean the coil fins. Dirty coils reduce heat transfer and make the compressor run hotter. That can lead to high pressure errors in summer months.

Frequently Asked Questions

What does 4 flashes mean on a Rheem hybrid water heater?

Four flashes signal a refrigerant pressure fault. The compressor pressure switch detected a reading outside the normal range. This could be a low refrigerant charge, a dirty evaporator coil, or a clogged condensate drain.

Clear the drain and clean the coil first. If the code returns, call a certified HVAC technician.

Why is my Rheem hybrid water heater not heating in heat pump mode?

The heat pump shuts down when the ambient air drops below about 44 degrees F. Check the room temperature near the unit. If the room is cold, the unit defaults to electric resistance mode.

Also confirm the mode setting is on Hybrid or Heat Pump, not Electric Resistance.

How do I reset my Rheem hybrid water heater?

Press and hold the reset button behind the front access panel for three seconds. The button sits near the upper thermostat. Alternatively, flip the dedicated breaker off for 30 seconds and turn it back on.

That clears most non hardware related error codes on the control board.

Why is water leaking from my Rheem hybrid water heater?

Water around the base almost always comes from the condensate drain line. Check that the tube is not kinked and that the drain pan is not overflowing. A loose pipe connection or a failed T&P valve can also cause leaks.

Tighten fittings and test the valve.

Does a Rheem hybrid water heater need a special filter?

No. The filter uses a standard washable mesh panel that comes with the unit. You can order a replacement from Rheem if the original is damaged, but most users simply clean the existing one.

Aftermarket universal filters for hybrid water heaters also work.

How long does a Rheem hybrid water heater last?

With proper maintenance, these units typically last 10 to 15 years. The compressor and sealed refrigerant system are the most reliable components. The backup electric elements and the anode rod wear out faster.

Annual maintenance like flushing and filter cleaning is key to reaching the upper end of that range.
