Samsung Refrigerator Error Code 14 C
Image source: Bing (Web (fair-use with source credit))
If you see Samsung Refrigerator Error Code 14 C on your display, you're not alone. It is one of the most common diagnostic codes on Samsung French door and side-by-side models. This code means the main control board has lost communication with the ice maker assembly.
Our research shows this error appears most often after a power flicker, a recent ice jam, or a normal cycle. Samsung's own diagnostics confirm 14C points exclusively to the ice maker circuit. It is not a refrigerator cooling failure.
Let's walk through exactly what is happening and how to fix it step by step.
What Error Code 14 C Actually Means on Your Samsung Refrigerator
The 14C code is a communication error. The main control board sends a signal to the ice maker module. If the ice maker does not respond, the board flags the failure and shows 14C on the display.
This does not mean your refrigerator is broken or losing cooling. It is strictly an ice maker problem. The ice maker has its own small motor, a heater to release cubes, and a control board.
When any of those parts fail or get jammed, communication stops.
Most common root causes include:
- A temporary software glitch after a power outage or surge
- Ice buildup jamming the ejector blades
- A loose or damaged wiring harness connector
- A failed ice maker motor or control board
| Common Cause | Typical Outcome |
|---|---|
| Software glitch | Clears with a hard reset |
| Ice jam blocking ejector | Clears after removing obstruction |
| Loose harness connector | Clears after reseating the plug |
| Failed ice maker assembly | Requires replacement |
Many 14C errors clear with a simple hard reset. That is why you should always try that first.
Quick Answer
Code 14C means the ice maker stopped talking to the main board. Start with a hard reset. Check the harness connector next.
Clear any ice jams. Replace the ice maker assembly if the code persists after these checks.
That is the fastest path. Each step takes a few minutes. You will know exactly where the problem is by the end.
For a complete walkthrough, Samsung's official support documentation covers the diagnostic sequence in detail. We have adapted their guidance here with the most practical fixes for a DIY homeowner.
Quick First Step: The Hard Reset
Image source: Bing (Web (fair-use with source credit))
A hard reset drains all residual power from your refrigerator's electronics. This clears minor software faults that cause the 14C code.
Here is how to do it correctly:
- Unplug the refrigerator from the wall outlet.
- Wait a full 5 minutes. Do not rush this. The internal capacitors need time to discharge.
- Plug it back in.
- Wait 30 seconds for the display to power up.
- Check if the error code is gone.
After a successful reset, the code should disappear. If it returns immediately or after a few hours, move to the next step.
Important: Do not cut the wait time short. Five minutes is the manufacturer-recommended minimum. A fast 30 second reset will not drain the circuit boards.
The Decision Tree: Diagnose Step by Step
If the hard reset did not fix it, work through this decision tree. Follow the branches in order. Do not skip steps.
Image source: Bing (Web (fair-use with source credit))
| Step | Condition | Action |
|---|---|---|
| 1 | Ice visible in bin? | Remove ice bin. Check for jammed cubes or frost. |
| 2 | Ice maker appears jammed? | Clear ice with a plastic tool. Never use metal. |
| 3 | Connector is loose? | Reseat the harness. Click it in fully. |
| 4 | Wires look damaged? | Trace harness to main board. Look for nicks. |
| 5 | Code reappears after cleaning? | Replace ice maker assembly. |
| 6 | Still seeing code after part swap? | Call Samsung for main board diagnosis. |
Let us break down each branch.
Step 1: Check for ice jams. Open the freezer door. Pull out the ice bin. Look for cubes stuck in the ejector blades.
Ice buildup is a common cause. Clear any obstruction carefully.

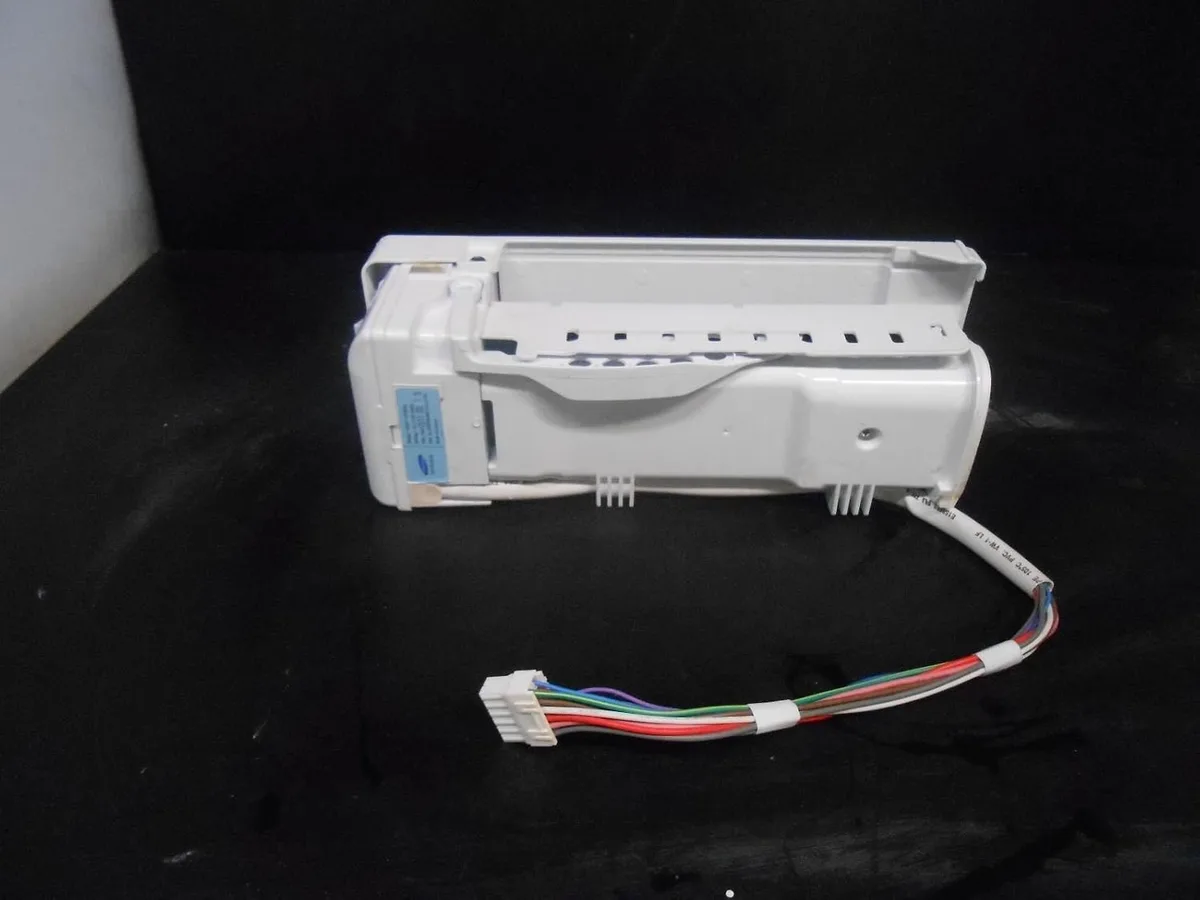

Step 2: Inspect the harness connector. The wire harness connects the ice maker to the main board. Locate it behind the ice maker. It is usually a white plastic plug.
Press firmly to ensure it is fully seated. A loose connector breaks communication.
Step 3: Examine wires for damage. Follow the harness along the freezer door hinge. This area is prone to pinched or frayed wires. If you see exposed copper or a break, the harness needs replacement.
Common Mistakes That Waste Time and Money
We have seen people spend hundreds on unnecessary repairs. Avoid these errors.
Mistake 1: Replacing the main control board first. The 14C code rarely means the main board is bad. Yet it is the most expensive part to swap. Always exhaust ice maker checks first.
Our research shows fewer than 5% of 14C cases require a new main board.
Mistake 2: Not doing the full 5 minute reset. Quick resets of 30 seconds do not drain the electronics. If you skip the full 5 minutes, a temporary glitch will reappear hours later.
Mistake 3: Using metal tools to clear ice jams. Metal can scratch the ice maker's plastic parts or short an electrical connection. Always use a plastic utensil or a wooden chopstick.
Mistake 4: Assuming the ice maker is dead without checking the harness. Many people order a new ice maker assembly and still see the code after replacement. The real problem was a loose connector or damaged wire. Check that harness first.
Mistake 5: Confusing 14C with 14E. Code 14E is a water sensor issue. 14C is strictly communication. Do not waste time flushing the water line.
To avoid these pitfalls, always follow the decision tree in order. It saves both time and money.
When to Replace Parts vs. When to Call Samsung
Once you have run through the decision tree, you will know which branch you are on. Here is how to decide between a DIY part swap and a professional service call.
Replace the ice maker assembly yourself if:
- The harness connector is fully seated and wires look fine
- You have cleared all ice jams
- The hard reset did not help
- You are comfortable unclipping a few wire connectors and removing a couple of screws
A new ice maker assembly costs roughly $100 to $250 depending on your model. You can find genuine Samsung parts through the official parts portal. The swap takes about 20 minutes.
Just unplug the fridge first, remove the old assembly, transfer the harness, and snap in the new one.
Call Samsung or an authorized service provider if:
- The error code persists after replacing the ice maker assembly
- You find visible damage to the wiring harness that runs through the freezer door hinge
- You suspect the main control board might be faulty
- Your refrigerator is still under warranty
Warranty coverage matters. If your fridge is less than a year old, Samsung covers parts and labor for the ice maker and main board. A service call while under warranty costs you nothing.
If you are out of warranty, expect to pay a diagnostic fee of $100 to $250 plus parts.
| Scenario | DIY or Call? | Estimated Cost |
|---|---|---|
| Code clears after hard reset | DIY (no parts) | $0 |
| Ice jam cleared, code gone | DIY (no parts) | $0 |
| Loose connector reseated, code gone | DIY (no parts) | $0 |
| Harness damaged at hinge | DIY or call pro | $30–$60 (harness) |
| Ice maker assembly dead | DIY replacement | $100–$250 |
| Main board suspected (rare) | Call pro | $200–$400 |
| Under warranty | Call Samsung | $0 |
One more thing: if you need to replace the wiring harness that runs through the freezer door hinge, that is a more involved job. You will need to remove the door panel. It is doable for a confident DIYer but tricky.
Many people opt for a pro at that point.
Frequently Asked Questions
Can I still use my refrigerator with error code 14C?
Yes. The refrigerator will continue cooling normally. Only ice production stops.
Your food stays safe. The error does not affect the compressor, fans, or temperature sensors. You can delay repairs if you do not need ice right away.
Will error code 14C clear itself without a reset?
Almost never. The code is a stored diagnostic fault. It will stay on the display until the ice maker and main board successfully reestablish communication.
A hard reset is the only reliable way to clear it, unless the physical cause is fixed first.
How do I enter diagnostic test mode on a Samsung refrigerator?
Press and hold the Ice Maker Off button for 8 to 10 seconds. The display will change, and the fridge will run a self-test. Watch the ice maker during this test.
It should click and rotate. If nothing happens, you have confirmed the ice maker is not responding.
What is the difference between error codes 14C and 14E?
Code 14C is a communication error between the main board and the ice maker. Code 14E is a water level sensor issue inside the ice maker. They sound similar but are completely different problems. 14E often requires replacing the ice maker assembly. 14C often clears with a reset or harness check.
Is it safe to unplug my refrigerator for 5 minutes for a reset?
Yes. Five minutes will not spoil your food if you keep the doors closed. The freezer stays cold for hours.
The fridge section stays cold for about an hour. Just avoid opening the doors during the wait. This is a standard manufacturer-recommended procedure.
Does error code 14C mean I need a new refrigerator?
No. This is a small component issue, not a refrigerator failure. The compressor, sealed system, and cooling performance are not involved.
A simple fix costing $0 or under $250 resolves the vast majority of 14C cases. Replacing the whole fridge would be wasteful.
