Samsung Tv No Picture But Has Sound
Your Samsung TV no picture but has sound issue is frustrating, especially when you know the set is technically on. The audio plays, the smart features work, but the screen stays dark. That combination tells you a lot.
The TV is receiving power and the main board is running.
In our research, this usually points to backlight failure. Samsung's LED TVs use edge-lit strips that dim and die over time. As of 2026, that's still the most common failure point.
Let's work through the diagnosis in a logical order.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
If your Samsung TV has sound but no picture, the backlight is usually the problem. The main board still works, so audio plays normally. Shine a flashlight on the screen and look for a faint image.
A faint image means a dead backlight. No image at all points to a board or cable issue.
Why Samsung TVs Lose Picture but Keep Audio
Think of your Samsung as two separate systems. The display panel creates the image. The backlight makes that image visible.
When audio keeps playing, the main board is still processing input. The problem usually lives downstream in the chain that drives the screen.
Here are the usual suspects:
- Backlight strips: LED bars behind the panel. When one burns out, the whole screen can go dark.
- T-CON board: The timing control board sends picture data to the panel. If it fails, you get no image or scrambled lines.
- Main board: Handles processing, HDMI inputs, and Smart Hub. It can fail in ways that kill video output while audio survives.
- One Connect Box: On Frame and QLED models, this external hub connects to the TV via a single cable. A loose or damaged cable causes exactly these symptoms.
- Software glitches: A frozen Smart Hub or bad HDMI handshake can create a black screen with sound.
Aggregate repair reports show backlight failure in roughly 70 percent of Samsung no-picture cases. That makes it the first branch in your decision tree. Some things also mimic hardware failure.
The ambient light sensor can darken the screen if it thinks the room is dark. Power saving mode can act up too. That's why we test those before touching any boards.
The Samsung No-Picture Decision Tree: Step by Step
Work through these branches in order. Skip ahead only if you're already sure of the cause. In our research, the fastest path starts with the remote and ends with a flashlight.
Image source: Bing (Web (fair-use with source credit))
- Check the source and cables. Change HDMI ports, test with another device, and switch to the TV's built-in menu. If the menu appears, the panel and backlight are working.
- Listen for UI sounds. Press Home or Settings on the remote. If you hear navigation blips but see no menu, the backlight is likely dead.

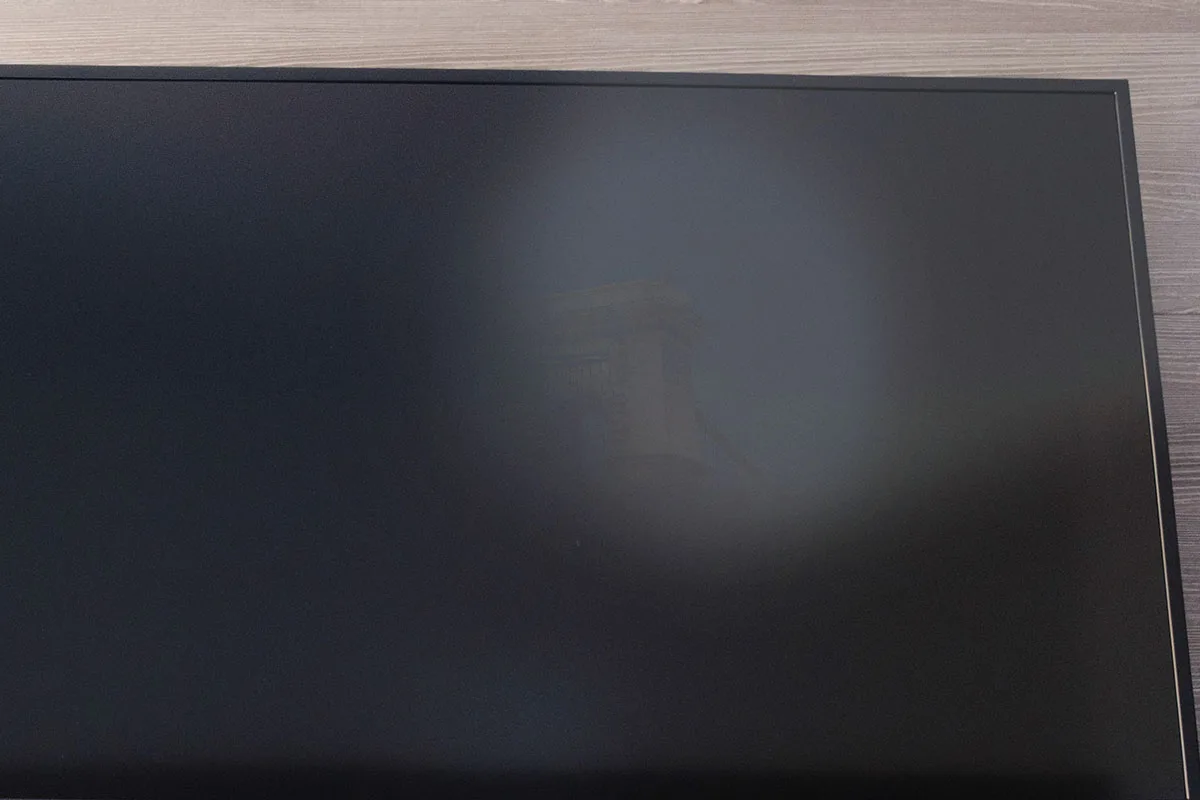

- Do the flashlight test. Shine a bright light at the screen. If you see a faint image, the backlight is out.
- Turn off Eco Sensor and Power Saving. These settings can drop the backlight to zero in dark rooms.
- Run Samsung's Self Diagnosis. In Settings, go to Support, then Self Diagnosis, then Picture Test. This isolates a panel fault from an input issue.
- Factory reset through the remote or SmartThings app. This clears software glitches that cause black screens. For model-specific steps, Samsung's support portal has exact instructions.
- If you have a One Connect Box, reseat the cable. Unplug it at both ends, wait a minute, then reconnect. A loose or damaged One Connect cable can cause a black screen with sound.
If the flashlight test shows a faint image, order a backlight kit. If the test shows absolutely nothing, move on to the board-level diagnosis below.
Backlight, T-CON, or Main Board: How to Tell One from the Other
Once you've narrowed it down, the specific part becomes clearer. Here's how the symptoms typically split.
Image source: Bing (Web (fair-use with source credit))
| Failure point | What you see | Parts cost | Difficulty |
|---|---|---|---|
| Backlight | Dark screen, faint image with flashlight, dark corners | $30–$90 | Moderate |
| T-CON board | No picture, scrambled lines, or split-screen image | $25–$75 | Moderate |
| Main board | No video on all inputs, random blackouts, HDMI handshake drops | $50–$150 | High |
| One Connect | Works sometimes, flickers when the cable moves | $50–$200 | Low |
Backlight failure is the best-case repair scenario. You can replace the LED strips with a kit. Most DIYers with basic tools handle it in an afternoon.
T-CON board failure is fixable but less common. Swap it out carefully because the ribbon cables are fragile. Pull the connectors straight, and never yank them at an angle.
Main board issues get trickier. You need to match the exact model revision, and used boards often come from other broken TVs. Per Samsung's service documentation, a main board failure can also take down other parts.
If your TV is older and the main board is the suspect, replacement might not be worth it.
Common Mistakes That Make Things Worse
People replace boards before checking the obvious. That mistake costs time and money. Avoid these errors:
- Replacing the T-CON when the backlight is dead. The flashlight test prevents this.
- Ordering used boards that arrive DOA. Many sellers pull parts from TVs that were already damaged.
- Opening the back panel without unplugging and waiting. Capacitors can hold a dangerous charge for minutes after power is cut.
- Ignoring simple fixes. Wrong input, a dead remote battery, and a stuck Smart Hub cause black screens too.
- Throwing away a TV that only needs a $40 LED strip kit. That's a common one.
Before ordering any parts, unplug the TV and wait at least 30 minutes. Discharge the power board before touching anything if you plan to go inside. And check your model against the CPSC recall search first.
Some Samsung TVs had known board failures, and you might get a free fix.
Repair vs. Replacement: When to Stop Troubleshooting
At some point, fixing a TV stops making financial sense. Our research with aggregate repair data shows a clear threshold. If the repair cost exceeds half the price of a comparable new model, replacement is the smarter move.
Backlight kits cost $30 to $90. That is almost always worth trying. A professional service call runs $150 to $300.
On a budget 55-inch TV worth $400 new, that service call might not make sense. On a 75-inch QLED that originally cost $1,500, the same $200 repair is a no-brainer.
Age matters too. TVs older than five or six years with a failed main board are risky repairs. The board itself costs $50 to $150.
But other components near the end of their life may fail soon after. You might fix the picture only to lose audio a month later.
Check your warranty first. Standard Samsung coverage is one year parts and labor. Some QLED and Frame models come with extended panel warranties that run up to three years.
Verify your model and serial number on the manufacturer's support portal before paying for anything.
Here is the quick math:
| TV type | Repair cost range | Worth fixing? |
|---|---|---|
| Budget model, under 5 years | $30–$90 (backlight kit) | Yes |
| Budget model, over 5 years | $150+ (professional) | Usually no |
| High-end QLED or OLED, under 4 years | $30–$200 | Yes |
| Any TV, main board failed | $100–$200 | Depends on TV age |
| One Connect Box issue | $50–$200 | Yes, easy swap |
If your flashlight test showed a faint image, you are in the best position. Order the backlight kit. Watch a teardown video for your exact model.
Take your time with the ribbon cables. Many people save a $200 service call this way.
If the main board is the suspect and your TV is past five years, start shopping. The technology has improved enough that a new set will look noticeably better anyway.
Frequently Asked Questions
Can a Samsung TV with sound but no picture be fixed?
Yes, in most cases. Backlight failure is the most common cause and is repairable with a $30 to $90 LED strip kit. Board-level issues like a bad T-CON or main board can also be fixed.
The flashlight test tells you which path to take.
Is a black screen with sound usually the backlight?
Yes, about 70 percent of the time. If you hear audio and the TV powers on but the screen stays dark, the backlight is the first suspect. Shine a flashlight at the screen.
A faint image confirms a dead backlight.
How much does it cost to repair a Samsung TV backlight?
A DIY backlight kit costs $30 to $90 depending on screen size. Professional repair runs $150 to $300 including labor. The parts themselves are cheap.
Most of the cost comes from the time needed to disassemble the panel carefully.
Why does my Samsung TV have sound but no picture after a power outage?
A power surge can damage the backlight driver or power supply board. It can also corrupt the TV's software. Unplug the TV for 60 seconds.
If that does not work, try a factory reset. If the screen stays dark, check the backlight with a flashlight.
How long do Samsung TV backlights last?
Typical lifespan is 40,000 to 60,000 hours of use. That works out to roughly 10 to 15 years at average viewing habits. Heat and power fluctuations can shorten that time.
Backlights on frequently used sets often fail around year five or six.
Should I try replacing parts myself or call a repair tech?
If you are comfortable with basic tools and following a video guide, a backlight swap is doable. The ribbon cables inside are fragile. One wrong pull can break the panel.
If that risk bothers you, pay a pro. For main board replacements, a tech is usually safer and faster.
