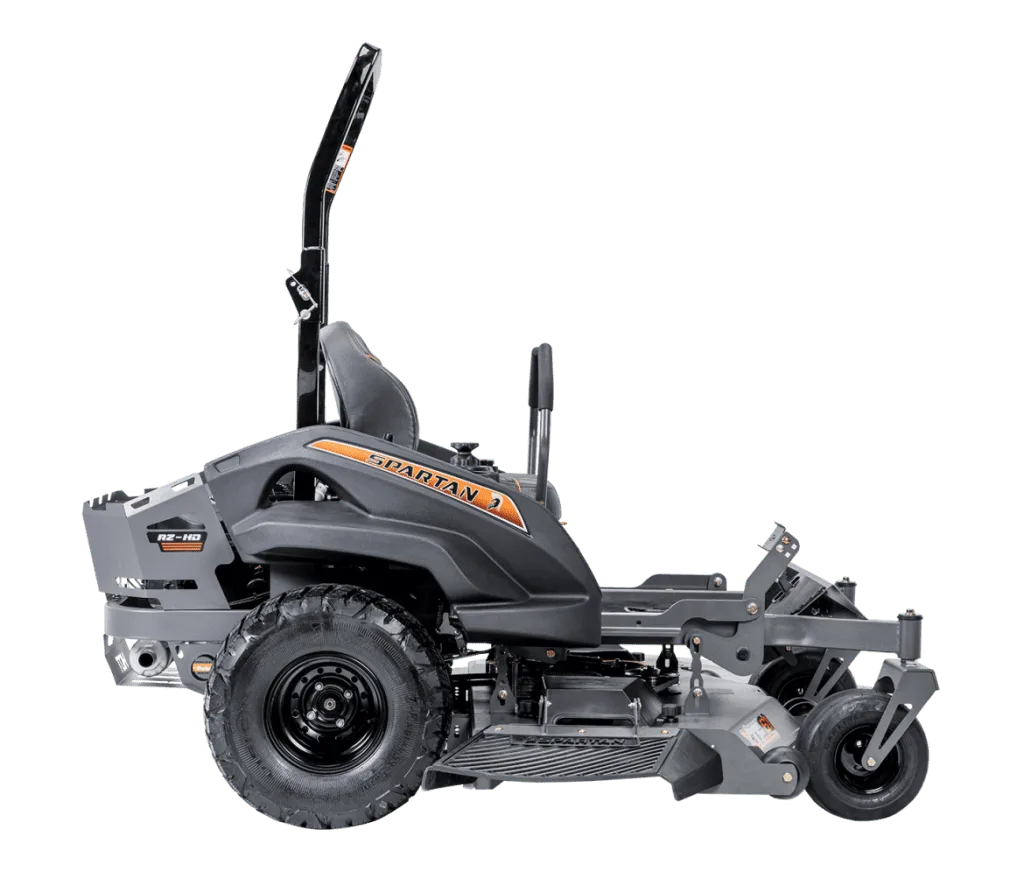

Spartan Mower Start Button Not Working

Your Spartan mower turns the key, the battery reads fine, but the start button does absolutely nothing. "Spartan Mower Start Button Not Working" is one of the most frustrating problems you'll run into. The good news?

It's usually a simple fix. You just have to know where to look and in the right order.

Manufacturer specifications indicate that Spartan zero-turn mowers use a 12V electrical system. A fully charged battery sits around 12.6 volts. When that voltage drops below 12.0 volts, the safety interlock system can lock out the starter completely.

This isn't random failure. It's a designed safety response. Let's walk through the common causes and the exact order to test them.

Quick Answer

A dead or weak battery causes most non-starting issues. Test battery voltage first. Keep it above 12.4V.

Then check the fuse. Then check the safety switches: seat, brake, and PTO. The start button rarely fails.

Replace parts only after testing. Most fixes take less than an hour.

Image source: Bing (Web (fair-use with source credit))

The Core Problem: Your Spartan Mower Start Button Does Nothing

You press the button and absolutely nothing happens. No click. No crank.

No dimming lights. Just silence. This looks like an electrical problem, and it usually is.

But the root cause could be a dead battery, a blown fuse, a failed solenoid, or a safety switch that's simply out of position.

Here's what surprises most owners: the start button itself is rarely the problem. The push-button only sends a low-current signal to the starter solenoid. The real power flows through relays and switches tied into the safety interlock system.

That system is the first thing to suspect.

Think of the starting circuit like a chain. Every link must conduct electricity. The chain starts at the battery and runs through the fuse, the ignition switch, the seat switch, the parking brake switch, the PTO switch, the start button, the solenoid, and finally the starter motor.

If any single link breaks, the whole chain stops. Your job is to find that broken link.

Look for loose or corroded battery terminals, a visibly blown fuse, or a disconnected wire under the dash. But don't trust your eyes alone. Electrical problems often hide inside parts that look fine from the outside.

The best approach is a logical, step-by-step diagnostic. Start with the battery. Then move through the safety switches and control circuit.

This avoids the two biggest mistakes: replacing parts that are fine and bypassing safety features for a quick fix.

How It Works: The Safety Interlock Logic

Image source: Bing (Web (fair-use with source credit))

Why does a brand-new start button still fail? Because the button isn't the only gatekeeper. Spartan mowers use a safety interlock system that checks several conditions before allowing the engine to crank.

If any condition isn't met, the starting circuit stays open.

Here's what the system checks:

• Operator presence seat switch: The seat must have weight on it. This prevents starting from the ground.
• Parking brake switch: The brake must be fully engaged. This prevents the mower from lurching forward at start.
• PTO switch: The blades must be disengaged. This stops the deck from spinning at startup.

These switches connect in series. Electricity flows through all of them one after another. If any switch is open, the circuit breaks and the start button won't crank the engine.

This is the classic sequence error. A user might have the PTO accidentally engaged, and the mower simply won't start.

When people tell us their start button didn't fix the problem, the answer is almost always a safety switch. Testing these with a multimeter takes about five minutes. You just verify continuity at each switch, and you'll know exactly which one is bad.

Some Spartan models also use a relay in the starting circuit. The button powers a relay, and that relay powers the solenoid. A bad relay gives you the same symptom: a dead button with a good battery.

It's less common than a safety switch failure, but worth testing.

Understanding this logic changes your whole approach. Instead of replacing parts on a hunch, you test the circuit in sequence. You save money, time, and the headache of ordering parts that don't fix anything.

Step-by-Step Troubleshooting: The Decision Tree You Actually Need

Image source: Bing (Web (fair-use with source credit))

This is a genuine decision tree. The path you take depends on what you observe. Start at step one.

Only move forward when each test passes. This takes about 30 minutes with a multimeter.

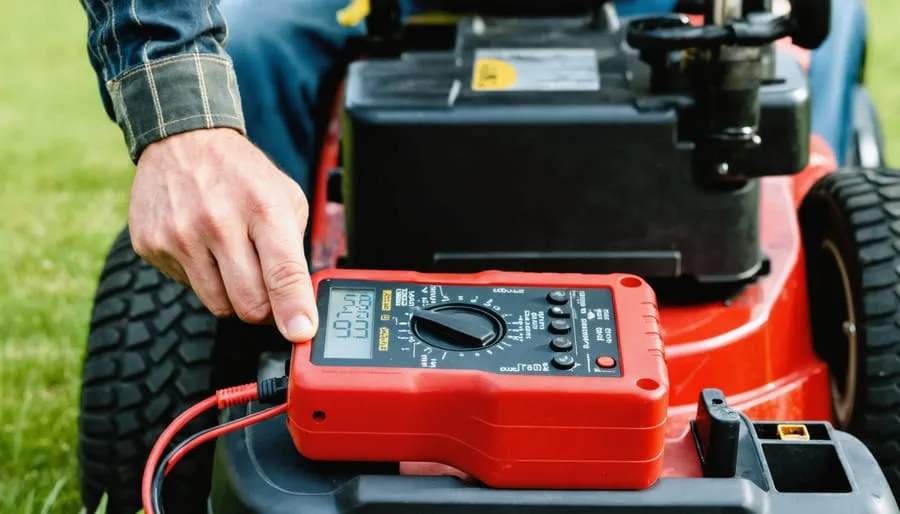

Step 1: Test the battery.

Set your multimeter to DC voltage. Connect the leads to the battery terminals: red to positive, black to negative. A fully charged battery reads 12.6V or higher.

At 12.2V, it's only 50% charged. Below 12.0V, the safety system may not allow the starter to click. Clean any corrosion on the terminals with a wire brush.

Tighten the connections.

If the voltage is low, do a load test. Many auto parts stores do this for free. If the battery refuses to hold a charge, replace it.

Don't move on until this is confirmed good.

Step 2: Check the fuse.

Look for a blade-style fuse under the dash or near the starter solenoid. Pull it and check the metal strip inside. If the strip is broken or blackened, replace it with the same amperage rating.

Spartan mowers commonly use 20A or 30A fuses. A blown fuse means a short exists somewhere, so watch for re-blowing.

Step 3: Test the safety switches.

This is the most common miss. Each switch is a simple open or closed circuit. With the mower off, disconnect the seat switch connector.

Use the multimeter in continuity mode. The switch should show continuity when you press the seat down. If it shows infinite resistance, the switch is dead.

Repeat for the brake switch (closed when engaged) and the PTO switch (closed when blades are disengaged). If any switch fails, replace it. These parts typically cost $20 to $40.

Step 4: Test the start button.

The button is a momentary switch. It makes contact only while pressed. With the mower off and the key in the on position, test continuity across the button terminals while pressing it.

You should get near zero ohms. If you get an open circuit while pressed, the button is bad. Replace it with an OEM part.

Step 5: Test the starter solenoid.

The solenoid is a relay that sends battery power to the starter motor. It's usually mounted near the battery or on the engine. With the key on, press the start button.

You should hear a distinct click from the solenoid. If you hear a click but the starter doesn't spin, the solenoid's internal contacts are burned. If you hear no click, test for power at the small signal wire.

When the button is pressed, that wire should show 12V. If it does and the solenoid still doesn't click, replace the solenoid.

Step 6: Test the starter motor.

This is the last stop. If the solenoid clicks and sends power to the starter but the engine doesn't crank, check for voltage at the large starter stud while pressing the button. Sometimes a stuck brush or a dead spot in the armature causes intermittent starting.

If the starter tests bad, replace it.

The Most Common Fixes and Mistakes to Avoid

After researching this problem extensively, a clear pattern shows up. Most Spartan start button issues come down to one of these five things:

1. Corroded or loose battery terminals. This is the single most common cause. A little white or green corrosion creates high resistance. The battery might read 12.6V at rest, but it can't deliver enough current to crank the starter. Clean both terminals, re-tighten, and coat with dielectric grease.

2. Blown fuse. Often from a dead short on the wiring harness. Check the fuse before touching anything else. It's a two-minute fix.

3. Faulty seat switch. The wire terminal cracks or the internal springs wear out. If the mower only starts when you bounce on the seat, that's a classic seat switch problem. Replace it with an OEM part.

4. Worn start button. This happens, but less often than people think. The internal contacts corrode from humidity or water exposure. You'll notice intermittent function. Replace it.

5. Failing starter solenoid. The click-but-no-crank symptom is the giveaway. The solenoid coil works, but the high-current contacts are burned and can't transmit power.

Now for the mistakes that cost people money and time:

• Bypassing safety switches and leaving them bypassed. This is dangerous. Per the U.S. Occupational Safety and Health Administration (OSHA), bypassing safety interlocks on power equipment creates serious injury risk. Never bypass a safety feature for normal operation.
• Replacing the start button before testing it. Test first with a multimeter. Don't buy parts on a hunch.
• Ignoring the ground wire. A corroded or loose ground strap causes mysterious electrical failures. Check the main ground connection from the battery to the frame.
• Using the wrong fuse rating. A 30A fuse in a 20A slot can melt the wiring harness. Always match the rating.
• Skipping the load test on the battery. A battery can read 12.6V but still be bad internally. Load test it if you have any doubt.

Take your time. Test, don't guess. Follow the decision tree in order, and you'll find the broken link without throwing parts at the mower.

Real Scenarios: What Different Symptoms Tell You

Different symptoms point to different root causes. Here's what each situation usually means:

Scenario A: Press the button, nothing happens, no sound at all.

This is almost always a dead battery, a blown fuse, or an open safety switch. Check battery voltage first. Then check the fuse.

Then test each safety switch in order. This is the most common failure mode.

Scenario B: Press the button, hear a click, but no crank.

A single click from the solenoid means the control circuit is working. The problem is power delivery. Either the battery is weak, the solenoid contacts are burned, or the starter is seized.

Load test the battery. Then test voltage at the starter stud while pressing the button.

Scenario C: Press the button, dashboard lights dim or go out.

This is a classic sign of a low battery or a poor connection. The starter tries to draw current, but the battery can't supply it. The voltage drops below what the electronics need.

Charge the battery fully. Clean and tighten all terminals. Load test the battery.

Scenario D: Button works sometimes but not others.

Intermittent problems point to a loose connection, a failing safety switch, or a worn button. The seat switch is a common culprit. Wires can break inside the insulation or connectors can loosen.

Jiggle wires while testing to find the fault.

Scenario E: Mower starts but only when you do a specific sequence.

This is the safety interlock doing its job. You're missing one of the start conditions. The most common is the PTO being partially engaged or the parking brake not fully set.

Pay attention to the exact sequence that works and match it to the interlock chart.

Frequently Asked Questions

Why does my Spartan mower click but not start?

A click from the solenoid tells you the control circuit is working. The problem is power delivery. Check the battery voltage and clean the terminals.

If the battery is good, the solenoid contacts are likely burned and need replacement.

Can I jump start my Spartan mower safely?

Yes, but follow the order. Connect the positive cable first, then the negative. Never connect the negative directly to the dead battery.

Connect it to the engine block or frame instead. This prevents sparks near the battery.

How do I test a push-button switch with a multimeter?

Set the multimeter to continuity or ohms. Disconnect the switch. Touch one probe to each terminal.

Press the button. You should see near zero ohms. Release the button.

You should see infinite resistance. Any reading outside this means the switch is bad.

Is it safe to bypass the seat switch to test the mower?

For testing only, you can temporarily jumper the switch to see if the mower starts. Remove the jumper immediately after testing. Never operate the mower with the seat switch bypassed.

It's a critical safety feature.

Where is the fuse on a Spartan mower?

Look under the dash panel near the ignition switch or battery. Spartan typically uses a single blade-style fuse mounted in an inline holder. Check your owner's manual for the exact location and amperage rating.

How do I know if the solenoid is bad?

Listen for a click when you press the start button. If you hear a click but the starter doesn't spin, the solenoid contacts are burned. If you hear no click, test for power at the small signal wire.

If there's power and no click, the solenoid coil is bad.

Why did my mower start fine yesterday but not today?

Battery drain is the most common cause. Something may have been left on. Check for a parasitic draw.

Another possibility is a safety switch that failed overnight, though that's less common. Start with the battery test.

Final Quick-Repair Decision Guide

Tools every Spartan owner should keep on hand:

• Digital multimeter
• Wire brush for terminals
• Dielectric grease
• 10mm and 13mm wrenches or sockets
• Test light or continuity tester
• Spare fuses (20A and 30A)

When to call a dealer: If you've tested all six steps and the mower still won't start, the issue may be in the wiring harness or the engine control module. These require specialized diagnostic equipment. A dealer can pull error codes and trace complex faults faster.

Bottom line: Check voltage first. Check safety switches second. Never bypass the seat switch for normal use.

Test everything before replacing anything. Most starting problems on Spartan mowers are simple, cheap, and fixable in under an hour.
