Whirlpool Ice Maker Not Working 2
If you're searching for "Whirlpool Ice Maker Not Working 2" right now, you're not alone. This is one of the most common appliance frustrations. Most of the time the fix is simple.
Manufacturer specifications indicate your freezer should be at 0°F to 5°F for the ice maker to work. Any warmer than 10°F and the ice stops. Let's start with the two most likely causes.
Quick Answer
Check your freezer temperature first. It must be 0°F to 5°F. Make sure the water supply line is on.
Replace a clogged or expired water filter. Press the test button to see which part fails.
Quick Check: Freezer Temp and Water Supply
Image source: Bing (Web (fair-use with source credit))
The number one cause of a dead ice maker is temperature. As of 2026, the standard specification remains the same. The freezer must be between 0°F and 5°F.
Anything above 10°F stops the mold from freezing.
Grab a thermometer and place it near the ice maker. Give it a few hours to stabilize. If the reading is too high, check the door seal.
Then adjust the temperature setting.
The second check is water supply. Look behind the refrigerator. Make sure the water line is not kinked or turned off at the valve.
A simple shutoff can happen after a move or cleaning.
Replace the water filter if it is overdue. A clogged filter restricts water flow. It causes small cubes or no ice at all.
| Check | What to Look For | Action |
|---|---|---|
| Freezer temp | 0°F to 5°F | Adjust thermostat or check door seal |
| Water supply | Line kinked or valve off | Straighten line or open valve |
| Water filter | Overdue or clogged | Replace with a new one |
Whirlpool official support offers model-specific guides if you need more detail.
How the Ice Maker Test Button Tells You What's Broken
Image source: Web (Bing) / storables.com (Web image (fair-use with source credit))
Whirlpool ice makers have a test button that runs a diagnostic cycle. You will find it on the side or bottom of the ice maker module. Press and hold it for about 10 seconds.
Another common method is pressing it three times within three seconds. The exact method depends on your model year.
During the test, the ice maker goes through three phases. First, the heating element warms the mold to release the cubes. Then the ejector fingers push the ice out into the bin.
Finally, the water valve opens to fill the mold with fresh water.
Watch each phase carefully. If the heater does not work, the mold stays frozen. If the ejector motor does not run, the module may be bad.
If no water comes in, your inlet valve could be faulty.
| Phase | What Should Happen | Failure Indicates |
|---|---|---|
| Heat | Mold warms, cubes release | Bad heater or thermostat |
| Eject | Fingers rotate, drop cubes | Bad motor or module |
| Fill | Water flows into mold | Clogged filter, frozen line, or bad valve |
This test isolates the problem in minutes. Manufacturer documentation recommends running it first. Do not skip it if you want an accurate diagnosis.
Diagnosis by Symptom: Follow the Branch That Matches Your Problem
Different symptoms point to different causes. Match your situation to the right fix.
No Ice at All
If your ice maker is completely silent, start with the test button. If nothing happens, check the harness connector. A burnt or loose connector is a common failure on Whirlpool models after 2014.
If the test runs but no ice forms, check the water fill. The thermostat or heater may be stuck.
Ice Maker Runs but No Water

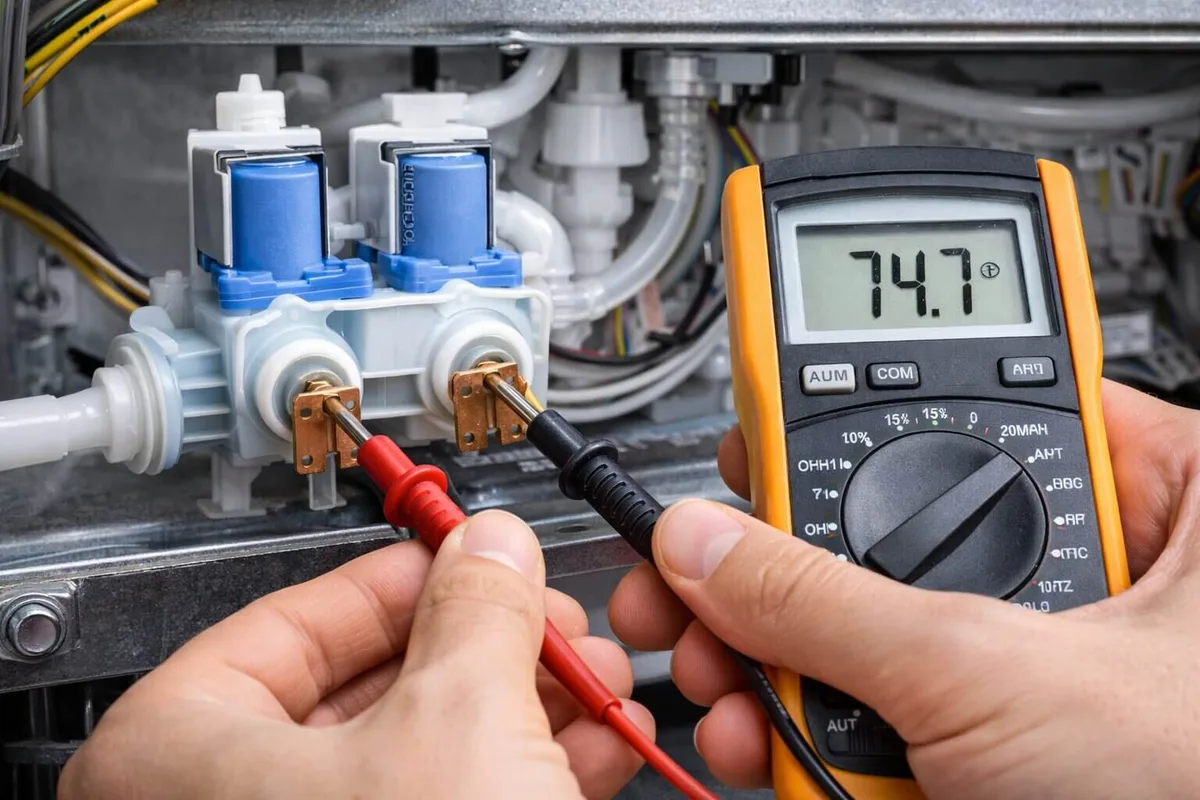

Hear clicks but see no water? The water inlet valve likely is not opening. Use a multimeter to check its resistance.
It should read 200 to 500 ohms. Infinite resistance means a bad coil. Also check for a frozen water line if your refrigerator is in a garage.
Small or Hollow Ice Cubes
Partial cubes usually mean low water flow. The most common cause is a clogged water filter. Replace it and run a test cycle.
If that does not fix it, check for a kinked supply line or a weak inlet valve.
Ice Maker Stuck in Harvest Mode or Won't Stop Cycling
The mold keeps heating and the ejector runs continuously. This points to a bad thermostat. It should open when the mold gets warm.
If it stays closed, the ice maker never stops trying to eject.
Step-by-Step Repairs for Each Common Failure
Image source: Web (Bing) / fridgementor.com (Web image (fair-use with source credit))
Safety first. Always unplug the refrigerator before working on electrical parts.
Replacing the Water Inlet Valve
Shut off the water supply. Remove the rear access panel. Disconnect the water line and the wiring harness.
Remove the mounting screw. Install the new valve and reconnect everything. Turn the water on and test.

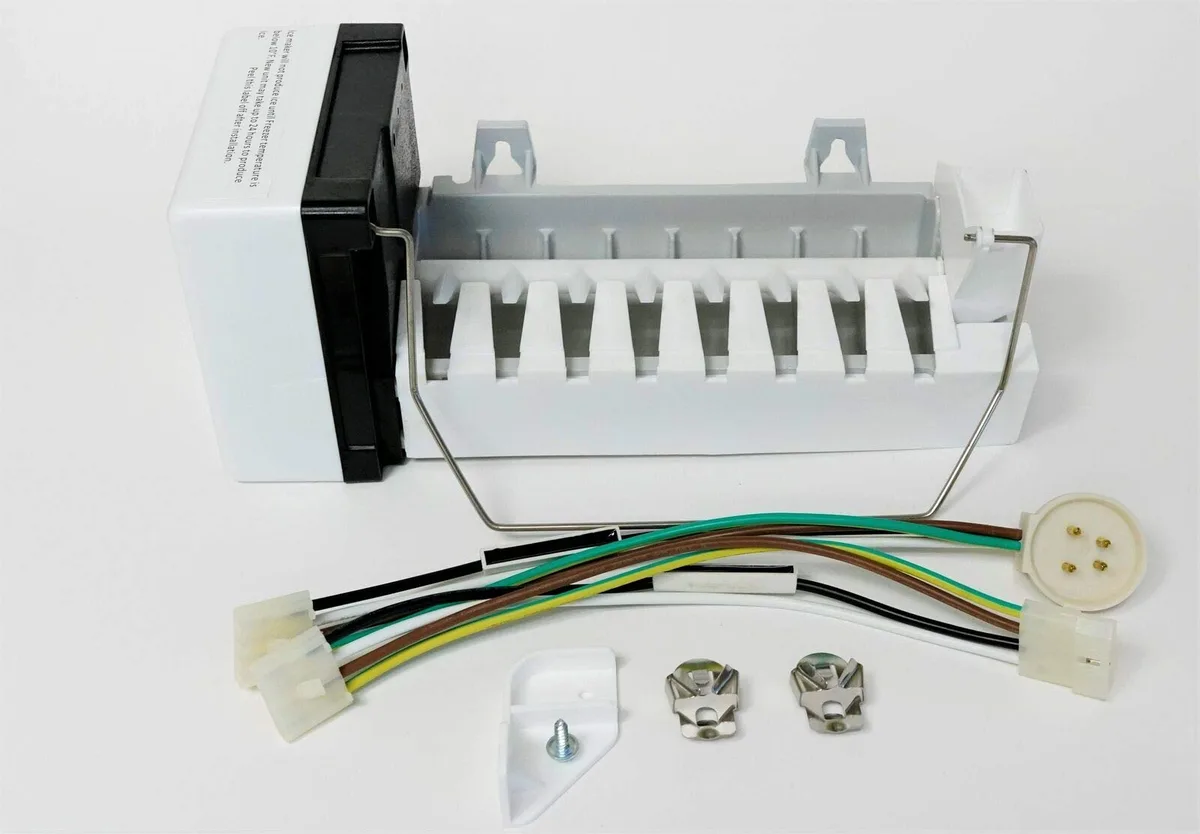

Replacing the Ice Maker Module
Remove the ice bin. Press the test button to watch for power. Unplug the harness from the module.
Remove the mounting screws. Install the new module and connect the harness. Run a test cycle to confirm.
Fixing a Frozen Water Line
Garage refrigerators are prone to this in winter. Locate the water line where it enters the freezer. Use a hair dryer on low heat to thaw the ice blockage.
Do not use a knife or sharp tool. Keep the garage above 60°F to prevent recurrence.
Cleaning a Jammed Feeler Arm or Mold
The feeler arm can get stuck in the up position. Gently push it down to reset. Ice buildup in the mold can jam the ejector.
Clean the mold with warm water and a soft cloth. Build up can also block the fill cup.
Each repair takes about 30 minutes. A multimeter is your best tool for confirming the bad part.
Mistakes That Keep Your Ice Maker Broken
Avoid these common errors. They waste time and money.
- Assuming the ice maker is dead. The whole assembly rarely fails at once. A $20 part like a thermostat or heater is often the culprit. Test the individual components first.
- Forgetting to check the water filter. A clogged filter mimics a bad valve. Replace it before buying new parts. It is one of the cheapest fixes.
- Ignoring the feeler arm. If the arm is caught on an ice bridge, it will not run. Same if it is pushed up. Check its movement.
- Using a hairdryer on high heat. Too much heat can melt plastic parts or damage the control board. Use low heat if you need to thaw.
- Not resetting after a power outage. A power surge can leave the ice maker in a stuck state. Unplug the refrigerator for five minutes to reset it.
- DIY work on a sealed system. If the problem is low refrigerant or a compressor failure, call a professional. The sealed system is dangerous and requires certification.
When to Call a Pro vs. When to DIY
Some ice maker repairs are easy wins. Others need a licensed technician. The line between them is clearer than you might think.
If your freezer holds 0°F to 5°F and the ice maker is the only problem, go DIY. The module, thermostat, and water inlet valve are simple swaps. Each takes about 30 minutes with basic tools.
If the refrigerator itself is warm, stop troubleshooting the ice maker. A cooling failure usually means compressor trouble, a refrigerant leak, or a failing control board. Those are sealed system repairs and require certification.
Warranty matters too. Aggregated repair industry feedback reports that DIY repairs can void a manufacturer warranty. As of 2026, Whirlpool covers parts and labor for one year.
The sealed system has extended coverage up to five years. If you are inside that window, call Whirlpool authorized service.
| Issue | DIY or Pro? | Why |
|---|---|---|
| Burnt harness connector | DIY | $15 part, easy to replace |
| Water inlet valve | DIY | Multimeter test and swap in 30 minutes |
| Frozen water line | DIY | Thaw with low heat |
| Thermostat or heater | DIY | Standard module parts |
| Compressor not running | Pro | Sealed system, EPA-regulated refrigerant |
| Control board failure | Pro | Requires software diagnostics |
| Any work under warranty | Pro | Protects your coverage |
Service call fees run $100 to $200 before parts. Aggregate reviews show most DIY fixes cost under $60. A $20 thermostat is far cheaper than a repair visit.
| Repair | Typical Part Cost | Typical Pro Cost |
|---|---|---|
| Water inlet valve | $30 to $60 | $150 to $250 |
| Ice maker module | $50 to $150 | $200 to $350 |
| Thermostat | $15 to $25 | $150 to $200 |
| Frozen line (labor) | $0 | $100 to $150 |
If you are unsure how to use a multimeter, learn that first. It is the single best skill for appliance diagnosis. Hire a pro for anything involving the sealed system.
Frequently Asked Questions
How do I reset my Whirlpool ice maker?
Press the test button three times within three seconds. Or hold it for 10 seconds. A full reset also works.
Unplug the refrigerator for five minutes. Then plug it back in. This clears the control board and restarts the cycle.
Why is my ice maker running but no ice appears?
The mold is likely heating and ejecting without water. Check the water filter first. Then inspect the supply line for kinks.
If both are fine, test the water inlet valve with a multimeter. It should read 200 to 500 ohms.
Why are my ice cubes small or hollow?
This means low water pressure into the mold. Start with a fresh water filter. Check that the supply line is fully open.
A weak inlet valve can also restrict flow. In garages, a partially frozen line causes this in winter.
How much does it cost to replace a Whirlpool ice maker?
The part runs $50 to $150 online. A technician charges $100 to $200 for the visit plus the part. DIY replacement saves most of that cost.
Allow 30 to 45 minutes for the job with basic hand tools.
Should I leave my ice maker off during long trips?
Yes. Turn it off and empty the bin. This prevents ice bridges from forming in a warm freezer.
Shut off the water supply if you will be gone more than a few days. It eliminates any risk of a leak.
Why does my ice maker keep stopping after a few days?
The feeler arm is probably hitting an ice bridge. The bridge forms when cubes melt and refreeze in the bin. Dump the bin and clean the mold.
Check the freezer temperature. Warmer freezers cause this more often.
