Whirlpool Refrigerator Display Panel Not Working
A Whirlpool refrigerator display panel not working can feel like the whole fridge is dead. The good news? Usually, it isn't.
The compressor is humming, the interior is still cold, but the screen just sits there like it's given up. Take a breath. This is a common issue, and most of the time it's fixable in under 15 minutes.
Here's what the data shows. Manufacturer specs confirm that a five-minute power reset clears most control-lock, demo-mode, and power-surge glitches on Whirlpool models. And before you spend money on a service call, there are three easy checks worth doing first.
Let's walk through them in order.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
Whirlpool refrigerator display panel not working means one of three things. Control lock, demo mode, or power problems. Press and hold Options for three seconds.
Unplug the fridge for five minutes. Most display issues resolve this way.
What's Actually Happening? A Quick Self-Check
Before you start pressing buttons, figure out exactly what "not working" means. This self-check takes two minutes, and it tells you which branch of the troubleshooting tree to climb. In our research, these three patterns cover nearly every display complaint we've seen as of 2026.
Is the refrigerator still cooling? If the freezer keeps things frozen and the fresh food section stays cold, the compressor is running normally. That rules out a major power failure.
The issue is isolated to the control panel.
Now look at the display itself. You'll likely see one of these three patterns:
| What the display does | What it usually means |
|---|---|
| Completely dark, no lights at all | No power to the panel, or a dead interface board |
| Lit up, but buttons don't respond | Control lock is on, or the touch surface is the problem |
| Shows weird symbols, flashing numbers, or error codes | Demo mode, Sabbath mode, or a diagnostic code |
If the display is dark but the fridge is cold, skip straight to the power checks. If it's lit but unresponsive, the control lock is your first suspect. And if you're seeing symbols that look like they belong in a sci-fi movie, don't panic.
That's likely demo mode or an error code. Write down what you see. It makes the next step much faster.
The Three Most Likely Causes (Your Decision Tree Starts Here)
Each symptom branches into its own set of fixes. Use the self-check above to find your starting point, then follow the right path.
Branch 1: The Display Is Completely Dark
A fully dark display points to one of three things: a tripped circuit breaker, a dead wall outlet, or a failed user interface board. The first two are easy to check with a plug-in circuit tester. The third requires a part replacement.
Here's why. The fridge still cooling means the main control board is alive. The display board just isn't getting power or communication.
Branch 2: The Display Is Lit But Buttons Won't Respond
If you can see the temperature readout but tapping the panel does nothing, control lock is the most likely culprit. It's a safety feature that prevents kids or accidental bumps from changing settings. A second possibility is a dirty or greasy touch surface.
A third is a loose ribbon cable connecting the panel to the main control board. Each has a different fix.
Branch 3: The Display Shows Weird Symbols or Numbers
This often means one of two things. Either the refrigerator is stuck in demo mode, a retail showroom feature, or Sabbath mode, a religious observance setting. Both are configurable through the manual.
Error codes are the third option. You'll need your owner's manual to decode them, since each model uses different alphanumerics.
Step-by-Step Walkthrough: Fixing Each Situation
Start with the simplest fix and work your way down. Each step below takes under ten minutes.
How to Unlock a Locked Control Panel
Press and hold the Options or Lock button for three seconds. Look for a small lock icon on the display. If it disappears, you're back in business.
Some models need the Options button plus a temperature button held together. Check the front of your fridge for the exact label. The lock icon is the telltale sign.
How to Kill Demo Mode (And Why It's Stuck)
Demo mode is meant for showroom floors. It lets the store run the fridge without actually cooling. If your display flashes weird symbols and the fridge doesn't cool much, this is it.
The fix is model-specific. On many Whirlpools, press and hold both the Options and Ice Maker buttons for five seconds. Or press the On/Off and Refrigerator Temperature buttons together.
Your manual lists the exact combo.
The 5-Minute Hard Reset (The Real Way to Do It)
Unplug the refrigerator from the wall. Wait a full five minutes. This drains the capacitors and clears the memory of the electronic control.
Plug it back in. Wait for the display to boot up. It usually takes a few seconds to go through an initialization sequence.
If the panel comes back to life, you're done.

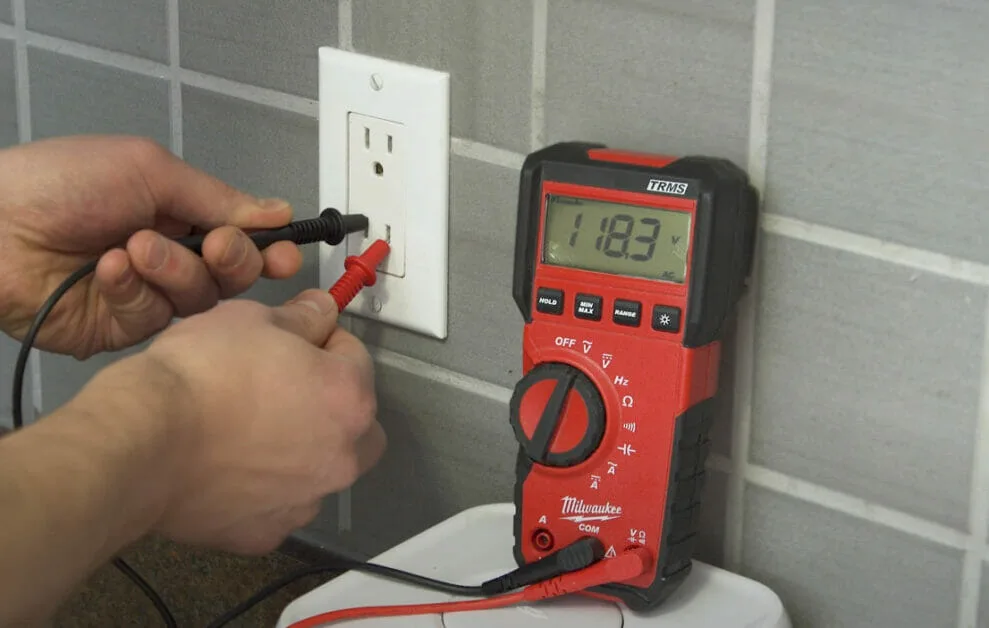

Checking for Power Issues at the Outlet
Image source: Bing (Web (fair-use with source credit))
Take a plug-in circuit tester and check the outlet. A loose connection or a dead outlet is a common cause of a dark display. If the outlet looks dead, check the breaker panel.
Got a GFCI outlet nearby? Sometimes the cover plate looks fine while the socket is tripped. If the socket and breaker are good, the problem lives in the fridge's wiring.
Common Mistakes That Cost You Time and Money
These are the pitfalls we see in repair threads all the time. Avoid them, and you'll save both money and frustration.
Mistake #1: Replacing the Wrong Board First
The biggest money-waster is swapping out the display panel when the real issue is the main control board. Both can cause a dark or unresponsive display. A new user interface board runs anywhere from $100 to $250.
Before ordering one, try every reset in the book. If those fail, test the wiring harness first.
Mistake #2: Ignoring the Owner's Manual Reset
Every Whirlpool model has its own button combination for unlocking and for demo mode. The manual spells out exactly which buttons do what. Skipping this step sends people online to buy parts they don't need.
Keep the manual in a drawer. Or download a PDF from Whirlpool's official website. It costs nothing and takes two minutes.
Mistake #3: Assuming 'Broken' Means 'Dead'
A dark or unresponsive display is often just a glitch. Electronic control boards get confused after a power surge. That's why the five-minute reset works so often.
If you don't try it first, you're gambling on a part replacement that may solve nothing.
When You Actually Need New Parts (And Which One)
After a reset, a fresh outlet test, and a full pass through the manual, what's left? The user interface board or the main control board. Let's be clear about which is which.
The user interface board is the visible panel with the buttons and displays. The main control board is the brain, usually mounted behind a panel inside the refrigerator. In our research, a surprising number of "dead display" cases trace back to a loose ribbon cable connecting the two.
Check that first.
| Part | Symptoms | Typical cost (part only) |
|---|---|---|
| User interface board | Dark display, unresponsive buttons | $100 to $250 |
| Main control board | Blank display, but also cooling issues or alarm beeping | $200 to $400 |
Image source: Bing (Web (fair-use with source credit))
If you're out of warranty and the part price stings, compare the repair cost against a new fridge. If the fridge is under one year old, Whirlpool covers parts and labor for most failures. Check the [U.S.
Consumer Product Safety Commission](https://www.cpsc.gov) website for any open recalls before you spend a dime.
Real Talk: When to Call a Technician vs. DIY
Let's be honest about the math. A service call runs between $150 and $250 before touching a single part. That's a tough pill to swallow when the fix is often something you can do in five minutes with no tools.
Here's the real decision tree. If you've completed the resets, tested the outlet, and checked the wiring, the next step depends on your comfort level. Your warranty status matters too.
| Scenario | Best move |
|---|---|
| Fridge is cooling, display just needs a reset | Do it yourself |
| Out of warranty, display needs a new board | DIY if you're handy with a screwdriver |
| In warranty, panel shows error codes | Call Whirlpool or an authorized servicer |
| You've inspected the fridge, but wiring looks damaged | Call a professional |
A replacement user interface board runs between $100 and $250. If you can complete the swap in under an hour, DIY saves real money. But if you're guessing the board is the problem without checking the ribbon cable first, you're gambling, not repairing.
A technician has the diagnostic tools to confirm the failure before ordering parts.
Frequently Asked Questions
How long should I unplug my Whirlpool refrigerator to reset the display?
Unplug it for a full five minutes. This lets the internal capacitors drain and clears the control board's memory. Plug it back in and wait for the display to boot.
Most resets complete within a minute of reconnecting power. If the display stays dark after this, it's a hardware issue.
What does demo mode do to my Whirlpool refrigerator display?
Demo mode is a showroom setting that runs the display without cooling. It often shows a flashing "FF" or an "OFF" message, which makes the panel seem broken. To disable it, press and hold the On/Off button and the Refrigerator Temperature button together for five seconds.
Check your manual for the exact combination.
How do I unlock the control panel on my Whirlpool refrigerator?
Press and hold the Options or Lock button for three seconds. Look for the lock icon to disappear from the display. On some models, you'll hold Options and the Ice Maker button together.
If the panel still won't respond, try the five-minute hard reset. That clears most stubborn glitches.
Is a Whirlpool display panel replacement covered under warranty?
Whirlpool's standard warranty covers parts and labor for the first year on most models. If your fridge is older, the panel itself typically costs between $100 and $250. Before buying anything, check the [U.S.
Consumer Product Safety Commission](https://www.cpsc.gov) recall database for your model. A covered recall can mean a free repair.
Does a broken display affect the refrigerator's cooling?
No. The display is the control interface, not the cooling system. If the compressor is running and the interior stays cold, your food is safe even with a dark panel.
You just can't adjust the temperature from the buttons. That's why the five-minute reset matters. It avoids a service call for a cosmetic issue.
Your Decision Guide: Start Here, End Fixed
Work through this list in order. Stop the moment the display comes back to life.
- Press and hold Options or Lock for three seconds.
- Check the manual for demo mode and disable it.
- Unplug the fridge for a full five minutes.
- Test the wall outlet with a circuit tester.
- Inspect the ribbon cable behind the display panel.
- Replace the user interface board if the cable is fine.
- Call a technician if the new board doesn't help.
Most people stop at step 3. If you don't, you'll know exactly where the problem lives by the time you reach step 6. And if the board replacement doesn't fix it, the main control board is the culprit.
That job is worth handing to a pro.
