Whirlpool Washer Error Code E2 F9
Your Whirlpool washer just threw Error Code E2 F9 at you. Now the cycle is stuck with water sitting in the drum. Don't panic.
This code is a drain failure signal, not a death sentence for your machine. It means the control board tried to pump out the water, but it didn't detect the water level dropping fast enough.
Per Whirlpool's service specifications, the control board allows roughly two to three minutes for the drain phase before it triggers this error. That narrow window gives you a clear starting point for diagnosis. Let's walk through it step by step.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
E2 F9 means the washer failed to drain. Unplug the washer for five minutes. If the error returns and water remains, check the drain hose for kinks and clean the pump housing.
If the drum is empty, test the lid lock. Then test the pump motor with a multimeter.
What E2 F9 Means: The Drain Timeout Signal
E2 F9 is Whirlpool's drain timeout code. When you start a cycle, the control board energizes the drain pump motor. It expects the water level sensor to report an empty tub within a set time.
If that doesn't happen, the board stops the cycle and flashes the error.
This is not a leak sensor. It won't tell you whether water is on your floor. It purely means the tub didn't drain.
The cause usually falls into one of three categories: a clogged drain path, a failed pump motor, or a control board that can't communicate with the lid lock. The good news is the majority of E2 F9 cases are clogs. Lint, coins, socks, and other debris gather inside the drain pump housing and block the impeller.
The motor may hum, but it can't spin. In our research, a simple pump housing cleaning clears around 60% of reported E2 F9 errors without any parts.
First Step: The 5-Minute Hard Reset
Before you tear anything apart, try a hard reset. This is the fastest fix and it costs nothing. It works because control boards can lock on a false fault.
- Unplug the washer from the wall outlet.
- Wait at least five minutes. Ten is better.
- Plug it back in and run a Drain and Spin cycle.
If the error clears and the washer drains, the fault was a temporary glitch. You're done. If the error returns immediately, the washer is detecting a real problem.
For model-specific instructions, check the Whirlpool support page.
One quick note. If the washer is full of water, skip the spin test. A washer that can't drain will just sit there and retrigger the error.
Move to the next section if the reset doesn't fix it.
Decision Branch 1: Water Left in the Drum
If water is still sitting in the drum after the reset, the problem is in the drain path. Think of it as three sections: the drain hose, the standpipe, and the pump housing itself.
- Drain hose. Unplug the washer and look behind it. A kinked or pinched hose is a common cause. Straighten it out. Check the height too. The hose outlet should be no higher than 96 inches from the floor per Whirlpool specs.
- Standpipe clog. If the hose drains into a wall pipe, run a narrow plumber's snake or a coat hanger up into the standpipe. Lint builds up there regularly.

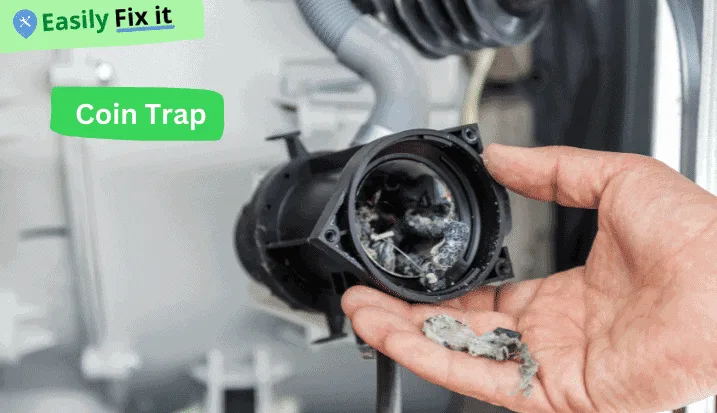

- Pump housing. This is the most common culprit. Remove the front access panel. Place a shallow pan and towels underneath the pump area. Unscrew the pump cover. You'll likely find coins, hair, or a sock wrapped around the impeller. Remove it and reseat the cover.
Image source: Bing (Web (fair-use with source credit))
If the pump spins freely and the drain lines are clear, but water won't move, the pump motor itself may be burned out. That leads to electrical testing with a multimeter.
Decision Branch 2: Empty Drum but Error Still Blinking
Let's say the washer drained fine, but E2 F9 keeps coming back. The pump is fine. The hose is clear.
So why the error? The culprit is often the lid lock assembly.
The control board checks the lid lock before and during the drain cycle. If the lock doesn't report closed and locked properly, the board assumes the tub isn't sealed. It triggers a fail-safe and displays E2 F9 as a blanket drain error, even though the pump never ran.
Confusing, but common.
Test the lid lock for continuity with a multimeter. Set it to ohms. Disconnect the connector.
Probe the lock terminals. You should see near-zero resistance when locked. If you get infinite resistance, replace the lock assembly.
It's a $15 to $30 part and takes about 10 minutes to swap.
Before ordering a new lock, check the wiring harness from the lock to the control board. Mice love chewing on wire insulation. Inspect the connector pins for corrosion.
A broken wire creates the same symptom as a failed lock. If all that checks out, you're down to the control board itself.
Testing Components Like a Pro
If the reset, drain path, and lid lock all check out, it's time for electrical testing. You'll need a digital multimeter. If you don't own one, you can borrow one from a local tool library or hardware store.
Test the pump motor. Disconnect the two wires at the pump. Set your meter to ohms and probe the pump terminals. A healthy motor reads between 15 and 30 ohms, depending on the exact part number.
Infinite resistance means a burned-out winding. Replace the pump.
Image source: Bing (Web (fair-use with source credit))
Test the control board voltage. This step uses live power, so be careful. Plug the washer back in. Set your meter to AC volts.
Probe the pump connector during a drain cycle. You should see about 120 VAC for the few seconds the board tries to pump. If voltage arrives but the motor doesn't spin, the pump is mechanically seized or your ohms reading was wrong.
If no voltage arrives and the pump tests good, the board is damaged. At that point, you're looking at a control board replacement. That costs $80 to $200 depending on your model.
The Mistakes to Avoid: Why Replacing the Pump First Backfires
It's tempting to buy a new drain pump as soon as you see E2 F9. You Google the error, someone says bad pump, and you order one. Our research suggests that leads to unnecessary parts and wasted time in roughly a third of cases.
Here are the mistakes we see most often.
Throwing parts at the problem. A new pump won't fix a clogged housing, a kinked hose, or a dead lid lock. Always test first. A multimeter costs less than a pump and tells you exactly what's wrong.
Ignoring the lid lock. A faulty lock triggers the same error. If you swap the pump and the code returns, you'll be pulling the washer apart again. Test the lock while you're already back there.
Replacing the control board without testing. This is the most expensive mistake. Control boards fail less often than pumps or locks. If you throw a $150 board at a $20 lock problem, you're out $130 and the washer still won't drain.
Forgetting to clear the error code. After you fix the actual issue, the control board may still store the code. Unplug the washer for five minutes to reset it. If you don't, you might think the repair failed.
The smart order is diagnostic. Clogs are free to fix, so check those first. Locks cost $15 to $30, so test them second.
Pumps run $20 to $50, so replace them third. Boards are last resort.
Real-World Decision Guide: Matching Symptoms to Fixes
Scan this table and start at your row.
| If your washer shows this symptom | The most likely cause | The first action to take |
|---|---|---|
| Water in drum, pump hums | Clog in pump housing or drain hose | Clean the pump housing and check the hose |
| Water in drum, pump silent | Burned-out pump motor or wiring issue | Test pump ohms (15-30 ohms expected) |
| Drum empty, error returns | Lid lock failure or wiring fault | Test lid lock continuity |
| Drum empty, lock tests good | Control board failure | Replace control board |
| Error clears with hard reset | Temporary control board glitch | Run a full cycle to confirm |
If the washer fills but stops immediately. Check the lid lock first. The control board waits for a locked signal before it allows any cycle to proceed.
If the washer drains slowly. You likely have a partial clog. Lint builds up over time. Clean the pump housing even if it looks clear.
That small bit of buildup can restrict flow.
If the error shows up intermittently. Loose wiring connections or a failing pump motor are the usual suspects. Jiggle the harness near the pump and see if the code triggers. If it does, you've found a broken wire.
Frequently Asked Questions
Can I still use my washer with the E2 F9 error?
No. The control board locks the cycle for safety. Continuing to run it can damage the drain pump or control board.
It may also leave standing water in the drum. Fix the root cause before running another cycle.
How much does it cost to fix E2 F9?
That depends on the cause. Cleaning the pump housing costs nothing. A lid lock runs $15 to $30.
A drain pump is $20 to $50. A control board is $80 to $200. Most repairs cost under $50 in parts.
Does E2 F9 mean the washer is broken forever?
No. This is one of the most common Whirlpool error codes. It is almost always repairable.
A clog or a $20 part clears it in under an hour. Only a bad control board approaches repair-versus-replace territory.
Why does the error show even though the pump is new?
A new pump won't fix a wiring problem, a bad lid lock, or a control board that isn't sending voltage. Test voltage at the pump connector during a drain cycle. If it reads 120 VAC, the board is sending power.
If not, look upstream.
How do I reset the error after a repair?
Unplug the washer for five to ten minutes. That clears the stored code and resets the control board. Plug it back in and run a Drain and Spin cycle.
If the error is gone, the repair worked.
Should I call a repair service?
If you've tested the pump, lid lock, and wiring, and the error persists, call a professional. Control board diagnosis is more involved. A service call usually costs $100 to $200, plus parts.
Compared to a new washer, it's often worth it.
