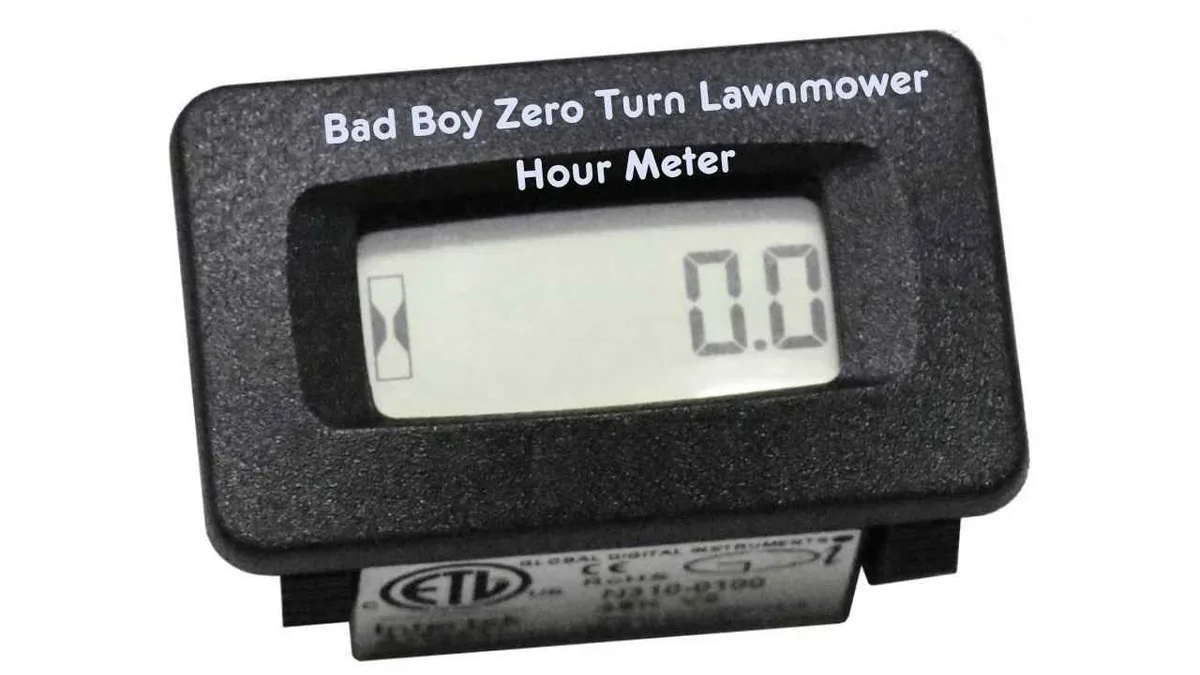

Bad Boy Hour Meter Not Working

Bad Boy Hour Meter Not Working is one of those problems that seems bigger than it is. The engine runs fine, yet that dash-mounted gauge is blank, stuck, or jumping around. Without accurate hours, oil changes become guesswork, and the mower's resale value takes a hit.

Here's how to track down the real problem.

Bad Boy hour meters are simple 12-volt DC devices that draw almost no current. That's why a blown fuse or a corroded ground causes most failures, not the gauge itself. As of 2026, aggregate repair reports still point to the same three culprits: a blown fuse, a corroded ground, or a bad connection.

Let's start with your symptom and work from there.

Start Here: What Exactly Is Your Bad Boy Hour Meter Doing?

Image source: Bing (Web (fair-use with source credit))

Before you touch anything, identify the symptom. This tells you exactly which branch of the diagnostic tree to follow.

If your screen is completely blank, test power and ground first. That's the most common branch by far.

If the meter is stuck but the mower runs, the gauge has failed internally. You'll likely just replace it.

If it works intermittently, you've got a connection problem, not a dead gauge.

Bad Boy mowers use the same style of 2-pin or 3-pin hour meter across the MZ, ZT, Outlaw, and Maverick series. That makes the diagnosis predictable, even if the wiring path varies slightly by model.

Keep in mind that some Bad Boy models power the hour meter only when the key is in the ON position. Others keep it live constantly. Knowing which style you have affects how you test power in the next section.

One more thing: if the mower is still under factory warranty, stop here and call your dealer. Replacing a $20 gauge yourself isn't worth voiding coverage on a $6,000 machine.

Quick Checks Before You Buy a Replacement Fuse

Before you start chasing wires, spend five minutes on the cheap stuff. A loose connection or corroded terminal causes most hour meter failures, and it costs nothing to fix.

Step 1: Disconnect the battery negative terminal. Seriously. You're working near the fuse block and the starter harness. One slip can cost you a shorted wire or a sudden spark.

Step 2: Locate the fuse block. On most Bad Boy mowers, it sits under the dash, behind the steering wheel, or near the battery tray. Pop the cover and look for the 10A or 15A blade fuse. The label might read "hour meter," "accessory," or "key switch." If you're unsure, check your owner's manual or the Bad Boy Mowers official website for model-specific fuse locations.

Step 3: Inspect the fuse carefully. Pull it out and hold it up to the light. If the metal strip inside is broken, the fuse is dead. Replace it with the exact same amp rating.

Never use a higher-rated fuse as a shortcut. That leaves your wiring unprotected and can cause a fire.

Step 4: Look at the connector pins. Unplug the hour meter and examine the metal prongs. Green or white crust means corrosion. Black spots mean heat damage.

Clean the pins with contact cleaner and a small brush, then apply a touch of dielectric grease before reattaching.

Step 5: Check the ground screw. The hour meter's black wire usually runs to a ring terminal bolted to the frame. Remove that screw, sand the mounting surface with fine grit paper, and bolt it back down tight.

Aggregate repair reports point to the same three faults again and again: a dead fuse, a loose harness connection, or a corroded ground. All three are nearly free to fix. It's worth checking twice before you buy anything.

Step-by-Step Troubleshooting: Power, Ground, and Wiring

Now we're testing. You'll need a digital multimeter, a pair of jumper wires with alligator clips, and about twenty minutes.

Image source: Bing (Web (fair-use with source credit))

Step 1: Set up your multimeter. Turn the dial to DC volts, 20-volt scale. Clip the black probe to a clean metal point on the mower frame. That gives you a reliable ground reference.

Step 2: Test for power at the gauge. Turn the key to the ON position. Touch the red probe to the power pin on the hour meter connector. You should read battery voltage, roughly 12.6 volts with the engine off or 13.8 volts while running.

If you read zero, move backward along the wire. Check for power at the fuse block and then at the ignition switch. One of those links in the chain is broken.

Step 3: Test the ground circuit. Switch the multimeter to the continuity or ohms setting. Connect one probe to the ground pin on the hour meter plug and the other to the chassis. A good ground reads near zero ohms.

Anything above 5 ohms means the ground path is weak.

Step 4: Test the hour meter itself. Unplug the gauge completely. Use jumper wires to apply 12 volts directly from the battery. If the display stays dark or refuses to count, the meter is dead.

Replace it.

Step 5: Chase the harness. If power and ground check out but the gauge still fails when plugged in, inspect the wiring between the connector and the frame. Look for rubbed insulation, pinched wires, or broken strands at the bend points. The harness that passes under the seat and along the frame is worth a close look.

If your gauge failed at fewer than a few hundred hours, the fault is almost always in the wiring, not the gauge itself. A connection issue creates the same symptom as a dead meter, so test everything before you replace anything.

Replacing the Hour Meter: What to Buy and How to Swap It

Image source: Bing (Web (fair-use with source credit))

Once you've confirmed the gauge is bad, replacement is a straightforward job. Most Bad Boy hour meters are standard 12-volt units with a simple two-wire hookup.

What type do you need?

• OEM replacement from a Bad Boy dealer. Guaranteed fit, but priced higher at $40 to $60.
• Aftermarket 2-wire hour meter. Costs $10 to $25. Works perfectly if the mounting pattern matches.
• 3-wire meter with a separate ignition feed. Use this only if your original had three pins.

Before ordering, measure the cutout in your dash. Most Bad Boy models use roughly a 2-inch diameter gauge. A fraction of an inch can ruin your fit and leave you with a wobbling gauge.

How to swap it in

Step 1: Disconnect the battery negative terminal. Do not skip this. The hour meter may be live even with the key off.

Step 2: Remove the gauge from the bracket. Two small screws usually hold it in place. Pull the gauge forward and unplug the harness.

Step 3: Match the wiring. The red wire is power, and the black wire is ground. On a 3-wire setup, the third wire carries the key-switched signal. Verify each pin with your multimeter before crimping connectors.

Step 4: Mount and test. Slide the new gauge into the bracket, secure the screws, and reattach the battery. Turn the key to ON. The display should light up and start counting once the engine runs.

Aggregate buyer reviews report that the whole job takes about 20 minutes, even on the first attempt. Just keep the harness clear of sharp edges, and use a zip tie to secure any slack.

Common Mistakes That Waste Time and Money

Aggregate repair forum data shows the same mistakes repeating year after year. Avoid these and you'll save yourself an afternoon.

Mistake 1: Swapping the gauge before testing power. A brand-new hour meter will stay dead if your fuse is blown. Test first. Buy second.

Mistake 2: Forgetting that the gauge may be live with the key off. Some Bad Boy models power the hour meter directly from the battery. If you unplug it while the battery is connected, you risk shorting the pins. Always disconnect the battery first.

Mistake 3: Replacing a 10A fuse with a 15A or 20A fuse. It's tempting as a temporary fix. It's also dangerous. The fuse blows because the circuit overloaded.

A bigger fuse simply allows the wire to overheat and melt.

Mistake 4: Ignoring the ground connection. Many owners chase fuses and wire colors, only to discover a rusty ground screw under the frame. If you have voltage at the gauge but no display, this is usually where the problem hides.

Mistake 5: Buying a gauge with the wrong size cutout. Measure the hole before you spend money on an aftermarket meter. A gauge that's a quarter-inch too small will rattle around and eventually shake its wiring loose.

Mistake 6: Trusting the hours after a battery disconnect. Some digital hour meters lose their stored reading when power is fully removed. If you just replaced the battery or the meter, the new reading won't match true engine hours. That's not a malfunction, but it complicates resale documentation.

Here's the takeaway: most small engine electrical failures come down to connections, not components. That's good news, because connections are cheap to repair.

Frequently Asked Questions

Why is my Bad Boy hour meter blank but the mower runs?

The gauge is losing power or ground. Check the fuse first, then test the connector pins with a multimeter. If power and ground are good, the meter itself is dead.

A working meter draws almost no current, so it won't stop the engine when it fails.

How do I test a Bad Boy hour meter with a multimeter?

Set the multimeter to DC volts and ground the black probe to the frame. Turn the key to ON and touch the red probe to the power pin. You should see battery voltage around 12.6 volts.

If voltage is present, test the ground circuit for continuity below 5 ohms.

Why does my hour meter reset to zero after disconnecting the battery?

Some digital hour meters need constant power to hold their reading. When you remove the battery, the internal memory clears. That's normal for cheaper aftermarket units, not a malfunction.

OEM Bad Boy meters typically retain the hours, but the only way to protect the reading is to avoid disconnecting power.

Can I replace a Bad Boy hour meter with a generic one?

Yes, if the mounting hole matches and the wiring is the same. Most Bad Boy mowers use a standard 2-wire 12-volt gauge. Measure the cutout diameter before buying.

A generic meter that doesn't fit properly can shake loose and create new connection problems.

Is the hour meter covered under factory warranty?

Bad Boy's standard warranty generally covers electrical components for the first two years, but registration and proof of purchase are required. If the meter fails due to a defect, the dealer will replace it free of charge. Damage caused by moisture, corrosion, or improper wiring is not covered.

Final Verdict: What to Do Based on Your Symptom

Match your symptom to the action that ends the guesswork. The table below groups the outcomes from the troubleshooting steps into one quick reference.

If you found no fault in the fuse, wiring, or ground path, replacement is the last step. A new hour meter costs $10 to $60 depending on OEM versus aftermarket. The swap takes about 20 minutes with basic hand tools.

For mowers still under warranty, let the dealer handle it. For older machines, the DIY route saves a service call and gets you back to mowing today. Before you close the hood, remember the three rules: disconnect the battery, check the fuse, and test before you buy.
