Dometic Water Heater Troubleshooting Quick And Easy Fixes

Your Dometic Water Heater Troubleshooting Quick And Easy Fixes starts with one simple rule: identify the symptom before you touch a single screw. That sounds obvious, but most RV owners skip straight to replacing parts they don't need. Let's fix that.

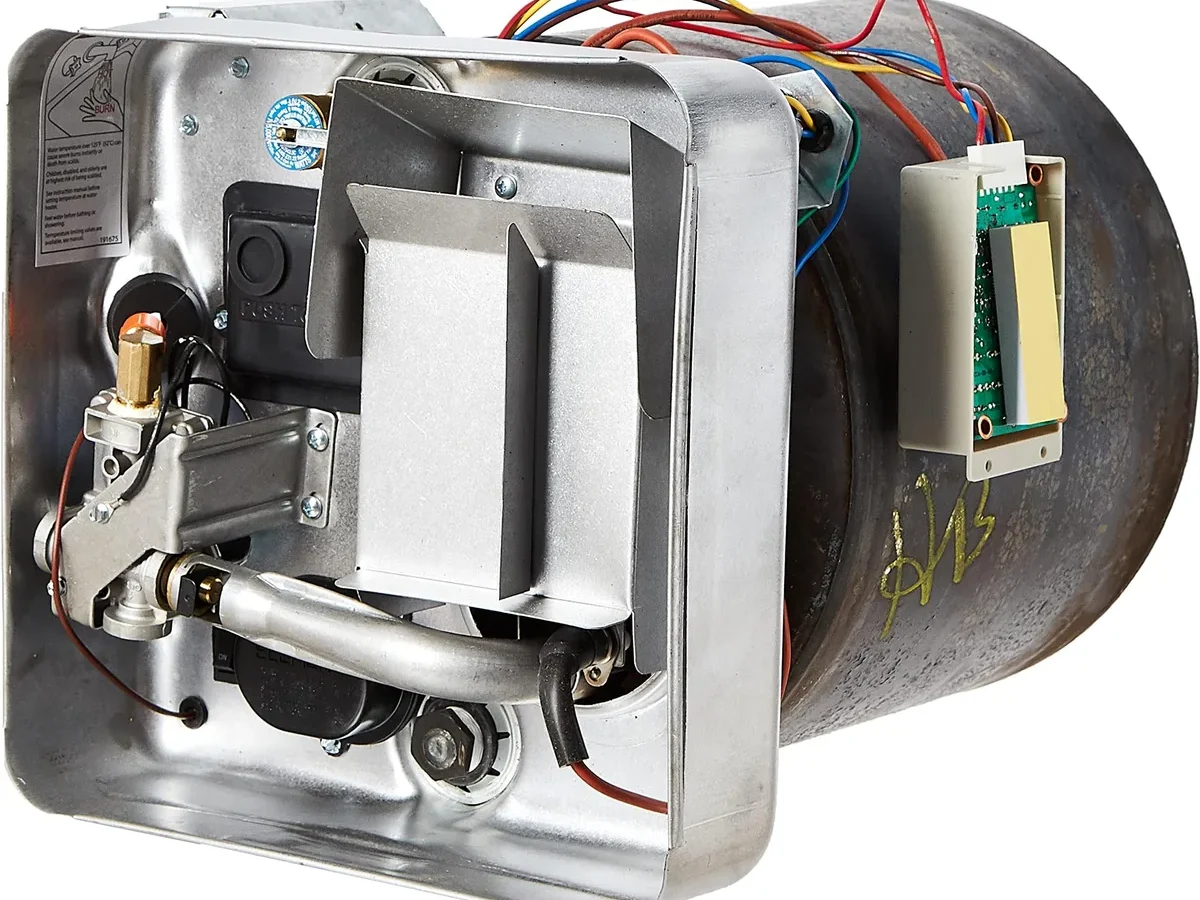

Per manufacturer specifications, the Dometic gas/electric water heater uses a 12V DC control circuit for ignition and a 120V AC heating element for electric mode. The two systems are independent. A failure in one does not always affect the other.

That is your first clue when something goes wrong.

Quick Answer

Check your 12V DC power first. Verify the propane tank is open. Press the red reset button on the thermostat.

If the gas flame ignites but dies, clean the spark electrode. If the electric mode is cold, test the high-limit switch and the heating element. As of 2026, these five checks resolve roughly 80 percent of service calls.

Image source: Bing (Web (fair-use with source credit))

Your Dometic Water Heater Won't Work – Where to Start First

You walk into your RV, flip the switch, and nothing happens. Cold water comes out of the hot tap. Your first instinct might be to panic or call a mobile tech.

Hold that thought.

The most common cause of a dead Dometic water heater is a tripped high-limit switch. This little red button lives on the thermostat, usually behind an exterior access panel. It pops when the water inside the tank gets too hot.

Press it firmly until you hear a click. Try the heater again.

If that does not work, check your 12V DC supply. The control board needs 12 volts to fire the gas burner or switch the electric element. A dead house battery, a blown fuse on the RV distribution panel, or a corroded wire connection can kill the whole system.

Use a multimeter to confirm voltage at the heater terminals. No voltage means no operation in either mode.

The First 3 Checks Everyone Should Do (Before You Tear Anything Apart)

Before you pull the anode rod or replace the control board, run these three checks. They take five minutes and solve most problems.

Check 1, Is there actually water in the tank? Turn on the hot water faucet inside the RV. If only air comes out, the bypass valve is in winter mode. Locate the bypass valve behind the exterior access panel.

Turn it to the summer or normal position. Fill the tank. The heater will not run on an empty tank.

Running it empty damages the electric element in seconds.

Check 2, Is the propane tank open? This sounds too simple, but it is the number one gas-mode failure. The tank valve must be fully open, not cracked. Your propane regulator needs full pressure to supply the burner.

If the tank is open, listen for the igniter clicking. No click means no 12V power or a bad control board.

Check 3, Is the reset button actually reset? The red ECO reset button sometimes needs a hard push. Use a wooden dowel or the eraser end of a pencil. Press firmly.

If it trips again immediately, you have a stuck thermostat or a failed high-limit switch. That part costs about 15 dollars and takes ten minutes to replace.

Gas Mode Won't Light – Or It Lights Then Dies

This is the most common Dometic water heater complaint. The burner clicks. You see a brief flame.

Then it goes out. Or you hear clicking but see nothing at all.

If it clicks but never lights: You have a gas supply problem or a dirty spark electrode. The spark electrode must have a gap of exactly 1/8 inch (3.2 mm). Too wide, and the spark cannot jump.

Too narrow, and the flame shorts out. Use a feeler gauge to check the gap. Clean the electrode with fine sandpaper or a Scotch-Brite pad.

Soot buildup is common after a few seasons of use.

Image source: Bing (Web (fair-use with source credit))

If it lights but dies after 2 or 3 seconds: The thermocouple on older standing-pilot models or the flame sensor on DSI models is not detecting the flame. The control board shuts the gas valve for safety. Clean the flame sensor with fine sandpaper.

Check the wiring connector for corrosion. If cleaning does not help, the control board may need replacement. Per Dometic service documentation, a failed control board is the second most common gas-mode failure after ignition problems.

If you smell gas but no flame: Shut off the propane at the tank immediately. Do not operate any electrical switches. Call a qualified RV technician.

A gas valve that opens but fails to ignite is a safety hazard. Do not troubleshoot this yourself. The National Fire Protection Association provides guidelines for safe propane system operation in recreational vehicles.

Electric Mode Not Heating – Or Lukewarm Only

Electric mode is simpler than gas. It has fewer failure points. That makes diagnosis straightforward.

No hot water at all on electric: Check the 120V AC breaker on your RV panel. If it is tripped, reset it. If it trips again, the heating element is shorted.

You need a replacement element. It runs about 25 dollars. Also check the GFCI outlet if your water heater is plugged into one.

Some installations use a standard 120V plug behind the exterior access panel. Make sure it is pushed in all the way.

Image source: Bing (Web (fair-use with source credit))

Lukewarm water only: The high-limit thermostat may be failing. It allows some heat but not enough. Use a multimeter to test continuity across the limit switch.

If it is open with no continuity, replace it. Another cause is a heavily scaled heating element. Calcium buildup insulates the element from the water.

You can descale the tank by flushing it with a vinegar solution. If the element is more than 5 years old, just replace it.

Electric works but gas does not: This is normal. The two systems share only the tank. Your control board, gas valve, or igniter has a problem.

Troubleshoot the gas system separately using the steps above.

Water Leaking, Smells Like Rotten Eggs, or Won't Drain

Leaking from the drain plug or anode rod: The plastic drain plug or the anode rod itself can develop a slow drip. Replace the O-ring or apply Teflon tape to the threads. Torque the anode rod to 15 ft-lbs.

Over-tightening cracks the tank threads. A cracked tank means a new water heater.

Rotten egg smell: That sulfur odor comes from bacteria reacting with the sacrificial anode rod. Replace the magnesium anode rod with an aluminum-zinc rod. Aluminum rods do not produce hydrogen sulfide gas.

Flush the tank thoroughly after the swap. The smell usually disappears within a few uses.

Leaking from the TPR valve: The temperature and pressure relief valve opens if pressure exceeds 150 psi or temperature hits 210°F. If it leaks constantly, the valve is failing or the water pressure is too high. Install a pressure regulator at the RV park hookup.

Replace the TPR valve if it drips after the pressure is corrected. Do not cap or plug the TPR valve. That creates a pressure hazard inside your RV.

Water heater won't drain: Remove the anode rod first. The drain plug is smaller. If no water comes out, the tank is blocked by sediment or the bypass valve is in the wrong position.

Confirm the bypass valve is set to normal. Use a stiff wire to break up sediment through the anode rod hole.

Common Mistakes That Waste Time and Money

Skipping the 12V power check. This is the biggest one. People replace control boards, gas valves, and igniters when the real problem is a blown 3-amp fuse on the RV panel. That fuse costs about a dollar.

Check voltage first.

Replacing the anode rod too often. The rod does its job by corroding. That is normal. Replace it only when it is less than 1/4 inch thick or more than 50 percent consumed.

Pulling it every year wastes money and risks stripping the tank threads.

Over-tightening the drain plug. The drain plug is plastic on most Dometic models. Crank it too hard and you crack the tank. Hand-tighten it.

Then give it a quarter turn with a wrench. That is enough.

Ignoring the bypass valve. If you winterized your RV and forgot to flip the bypass valve back to summer mode, the heater will not fill with water. It will trip the limit switch or burn out the element. Check the valve position before you do anything else.

Assuming the worst. A water heater that will not light is rarely a catastrophic failure. It is usually a dirty electrode, a tripped switch, or a dead battery. Work through the steps in order.

Do not skip to the expensive fixes.

FAQs – Quick Answers to the Most Common Questions

Why does my Dometic water heater keep tripping the reset button?

The high-limit switch trips when the water exceeds about 180°F. This usually means a stuck thermostat or a failed limit switch. Replace the thermostat and limit switch together.

They cost roughly 25 dollars and take ten minutes.

How do I know if my control board is bad?

A bad control board often shows no signs of life. No clicking. No LED lights.

No response to the inside switch. Confirm you have 12V DC at the board first. If voltage is present and the board does nothing, replace it.

Can I run my Dometic water heater on electric and gas at the same time?

Yes, on dual-mode models. Both heating sources work simultaneously for faster recovery. The electric element runs on 120V AC while the gas burner fires independently.

This is safe and recommended for quick hot water.

What does the rotten egg smell mean?

It means bacteria in the tank are reacting with the magnesium anode rod. The fix is simple. Replace the magnesium rod with an aluminum-zinc rod.

Flush the tank thoroughly. The smell usually disappears within a few uses.

How often should I flush my water heater tank?

Flush the tank once a year. Remove the anode rod, open the drain plug, and run water through the tank until it runs clear. Hard water areas may need flushing twice a year to prevent scale buildup on the heating element.

Is it safe to press the reset button multiple times?

Yes, but only if you know why it tripped. Pressing it once is fine. If it trips again immediately, you have a problem.

Do not keep resetting it without finding the cause. That damages the tank and the heating element.

The Simple Maintenance Schedule That Prevents Most Problems

A little routine maintenance keeps your Dometic water heater running for years. Here is the schedule that matches manufacturer recommendations.

Winterization is critical. If you store your RV in freezing temperatures, drain the water heater completely. Open the TPR valve and the drain plug. Turn the bypass valve to winter mode.

Add RV-safe antifreeze to the plumbing system. Never use automotive antifreeze.

Delowinterization is just as important. Before you fire up the heater, turn the bypass valve back to summer mode. Close the drain plug. Fill the tank.

Check for leaks at the drain plug and anode rod. Then turn on the power.

One more thing. If you hear a sizzling sound from the water heater, shut it off immediately. That could mean the tank is empty and the electric element is heating air. A dry-fire event destroys the element in seconds.

Always confirm water in the tank before turning on the heater.
