Genie Garage Door Opener Troubleshooting Red Light Blinking

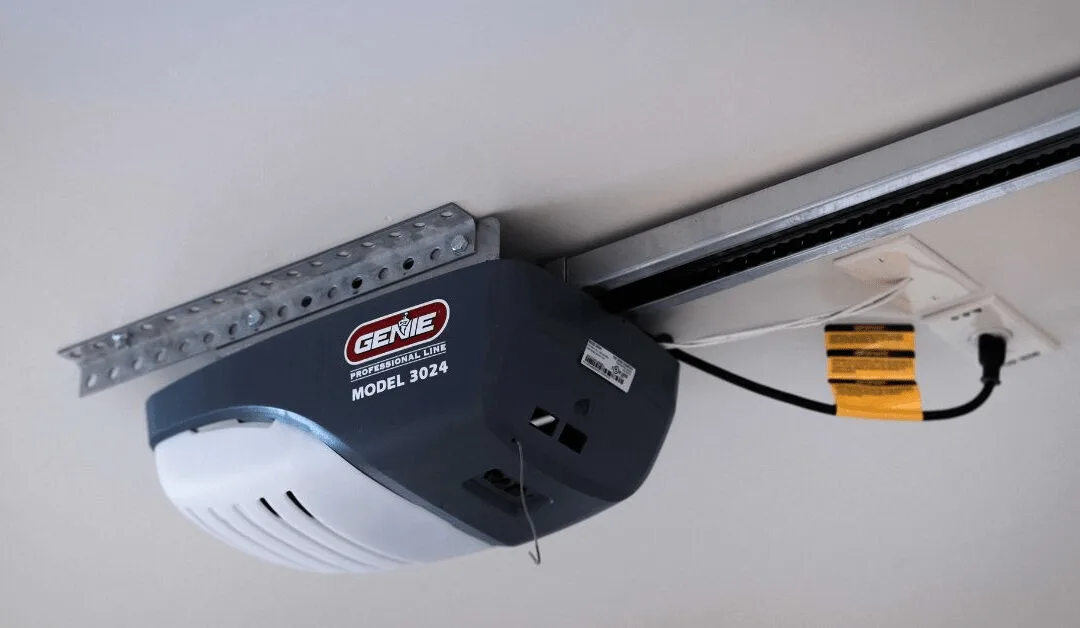

Your Genie garage door opener is blinking a red light on the motor unit, and the door won't go down. That little LED isn't just being dramatic. Genie garage door opener troubleshooting red light blinking comes down to one skill: reading the pattern.
Stop pressing the wall button and start counting, because the code tells you what's broken.
These openers run on a coded diagnostic system. The blink count points to specific parts like the safety sensors, wall console, or backup battery. They're also built to UL 325 entrapment safety standards, which is why the opener refuses to close when something feels wrong.
As of 2026, the basic diagnostic logic remains the same across current Genie lines. Once you know the code, you've got a clear repair path.
Image source: Bing (Web (fair-use with source credit))
The Red Light Blinking: What It Actually Means
That blinking red light isn't random. It's a diagnostic code.
When the opener's logic board finds a problem, it flashes the LED in a pattern. The number of blinks, followed by a pause, repeats until you reset the system. That pattern maps to a specific failure point.
Here's the important part. The code only shows up when the door can't complete a cycle. It's how the system protects you, per UL 325, the safety standard that requires entrapment protection on residential openers.
If the opener senses a problem with the safety sensors, it refuses to close and keeps blinking.
Most Genie manuals print the diagnostic chart on the unit's label. Use the table below as a starting point. Then verify on your specific sticker, because older chain-drive models don't always match newer belt-drive units.
| Blinks | Likely Cause | Quick Action |
|---|---|---|
| 1 to 2 | Safety sensor alignment or wiring | Align sensors, check wires |
| 3 | Wall console in lock mode | Press and hold lock button |
| 4 to 5 | Battery backup drained or dead | Test battery, cycle power |
| 6+ | Travel module or logic board issue | Call a professional |
First Step: Count the Blinks (The Decision Tree Starts Here)
Image source: Bing (Web (fair-use with source credit))
If you're staring at a blinking red light, don't guess. Start with a count.
Stand under the motor unit and locate the diagnostic LED. It's usually on the back or side, separate from the overhead light bulb. Press the wall button once to try closing the door.
Watch the LED and count every blink in one burst, then note where the pause happens.
Here's the workflow that makes the rest of this article simple:
- Count one full sequence from the first blink to the pause.
- Write the number down. It's your diagnostic code.
- Find the model label on the side of the motor unit.
- Check for a blink chart printed right on that label.
- Match your count to the chart before touching anything.
If the LED doesn't blink at all, the problem may not be sensor-related. Check the wall console next. A constant solid red light often means the opener is in lock mode or waiting for a code.
Once you know the count, the decision tree branches. One to two blinks sends you to the safety sensors. Three to six points to lock mode, battery backup, or deeper electrical issues.
Branch A: 1 to 2 Blinks: Safety Sensor Fixes
Image source: Bing (Web (fair-use with source credit))

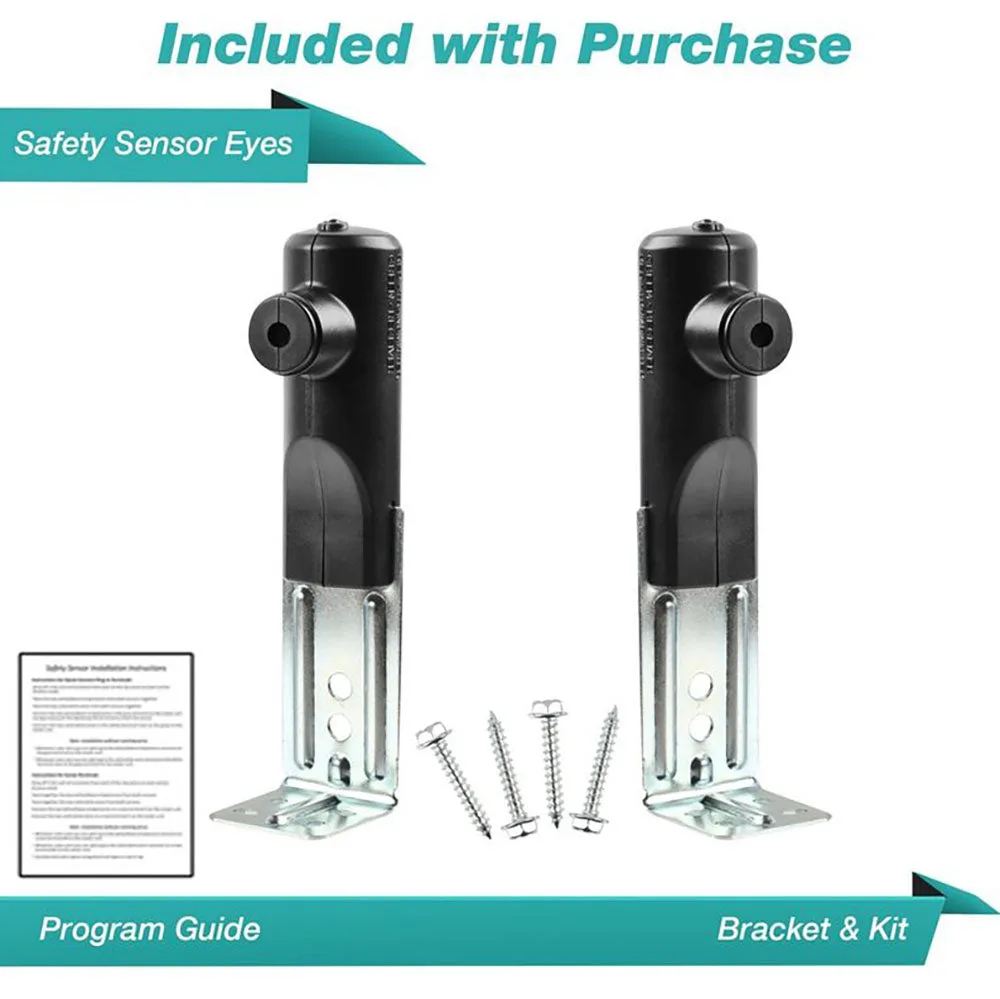

One to two blinks almost always means the Safe-T-Beam sensor pair is unhappy. These are the small photo eyes mounted on each side of the door, about six inches above the floor.
They work as a pair. One sensor sends a beam, the other receives it. If anything interrupts that beam, the opener refuses to close.
That's the safety system doing its job.
Start by looking at the LEDs on each sensor. One sensor should show a red light, the other a green light. If either is off, dim, or flickering, the sensors aren't aligned.
Here's how to fix it:
- Clean the lenses. Dust, spider webs, and grime block the beam. Use a dry, soft cloth.
- Check for obstructions. Move boxes, tools, and trash cans out of the beam path.
- Loosen the wing nuts on both sensors and adjust the angle slightly.
- Watch the green LED while you move one sensor. It should turn solid and stay solid.
- Tighten the wing nuts back down without knocking the sensors out of position.
- Inspect the wiring. Look for cuts, chewed insulation, or loose terminal connections at both sensors and the motor unit.
Sunlight can also blind the receiver. If one sensor faces a low morning or evening sun, shade it slightly and see if the green light comes back.
Branch B: 3 to 6 Blinks: Lock Mode, Battery, or Logic Board Issues
If the blink count lands between three and six, you're dealing with a different kind of problem.
Three blinks often means the wall console is in lock mode. Genie calls it vacation lock. It's designed to ignore all remote controls so the door can't be opened by an outside signal. If you hit the lock button by accident, every remote on the property will look completely dead.
Fix it by pressing and holding the lock button on the wall console for three seconds. The red light should turn off, and the remotes should work again.
Four to five blinks usually points to the battery backup. Genie openers with backup batteries will flash a warning when the battery is low, drained, or too old to hold a charge. Unplug the opener, remove the battery, and reconnect everything. If the light clears, the battery needs replacing.
Most backups last around three to five years.
Six or more blinks gets more serious. That usually points to the logic board, travel module, or internal wiring. A power surge can scramble the board even if the opener still turns on.
For that range, there's no simple switch to flip. Try a full power cycle first: unplug the opener for 30 seconds, plug it back in, and test again. If the code returns, it's time to call a technician.
Mistakes That Will Cost You Time and Money
A few common mistakes turn a ten-minute fix into an expensive service call. Avoid these.
- Bypassing the safety sensors. That's a major safety risk. Disabling them violates CPSC garage door safety guidance and can leave a door that closes on people or pets.
- Replacing the logic board before checking the sensors. The most expensive part is rarely the problem. Blink codes exist so you don't guess.
- Ignoring the wall console. Lock mode is the easiest fix on this entire list. Check it before buying any parts.
- Assuming the remote is the issue. A fresh battery won't help if the opener is sitting in lock mode or blinking a sensor code.
- Skipping the power cycle. Many Genie issues clear with a simple unplug and wait. It takes 30 seconds and costs nothing.
- Overtightening sensor brackets. You can strip the plastic or bend the bracket. Snug is enough.
- Testing with the door under tension. Never force the door manually while the spring system is loaded. Leave that to a pro.
If you've worked through the branches and the red light is still blinking, your next move is a professional diagnosis. The technician will need the blink count, your model number, and a quick history of any recent power surges. That information alone can save you a diagnostic fee.
When to Call a Professional (and What to Tell Them)
Worked through every branch and the red light is still blinking? Time to bring in a garage door technician.
The six-blink and higher codes usually point to the logic board or travel module. Those are internal components that require opening the motor unit and handling live wiring. That's outside the safe DIY zone for most homeowners.
Before you call, gather three things: the exact blink count, the model number from the motor unit label, and any recent history of power surges or storms. This information alone can save you a diagnostic fee, because the technician already knows where to look.
| What to Say | Which Blink Count |
|---|---|
| "Sensors are clean, aligned, and the green LED is solid" | 1 to 2 blinks |
| "I've cycled the power and cleared lock mode" | 3 to 5 blinks |
| "The code repeats after a full power cycle" | 6+ blinks |
If your opener is more than 10 years old and the repair quote exceeds half the price of a new unit, consider replacement. Newer Genie models include battery backup, stronger DC motors, and smarter diagnostics. That's often the smarter long-term move.
Frequently Asked Questions
How do I reset my Genie garage door opener after a power outage?
Unplug the motor unit for at least 30 seconds. Plug it back in and press the wall button to close the door. The red light should stop blinking and the remotes should work normally.
If not, check the battery backup or safety sensor alignment next.
What does a blinking red light mean on a Genie garage door opener?
It's a diagnostic code. The number of blinks points to a specific fault, like misaligned safety sensors, lock mode, or a drained backup battery. Count the blinks and match them to the manual's chart before replacing any parts.
Do I need to align both safety sensors if only one light is green?
Yes, but usually only the receiving sensor has issues. The sending sensor stays solid red. If the green light is out, the beam isn't reaching it.
Clean both lenses, adjust the angles, and tighten the brackets to restore the signal.
Why does my Genie opener blink after I replace the battery?
The new battery may not be seated correctly. Remove it, check the connector pins, and reinstall. Some models also need a quick power cycle after a battery swap.
If the blinking continues, the battery itself could be defective.
Can I bypass the safety sensors to stop the blinking?
No. Bypassing the sensors disables critical entrapment protection and violates the UL 325 safety standard the unit was built to. It also poses a serious injury risk to children and pets.
Fix the sensor issue instead.
