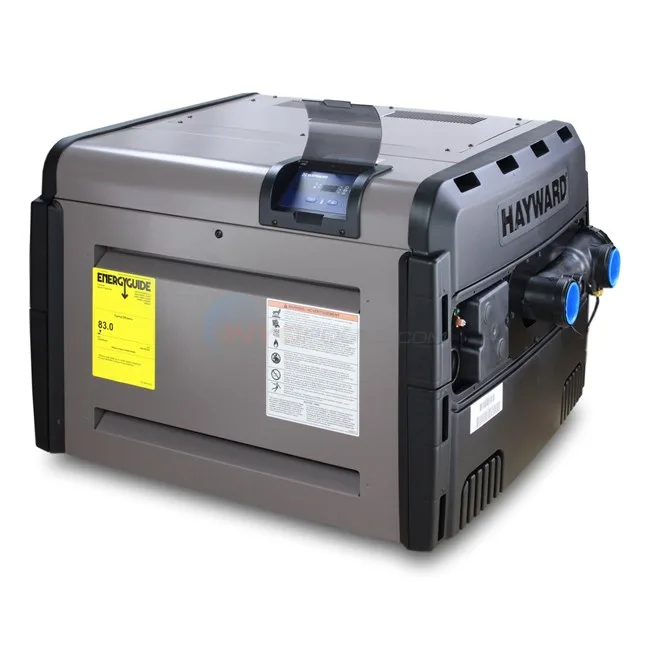

Hayward H Series Pool Heater Troubleshooting

Your pool heater is sitting there blinking a code you don't recognize, or worse, sitting there completely dark and silent. The water temperature hasn't budged in two hours, and you're wondering if this is a simple fix or a call-the-professional kind of day. Hayward H Series Pool Heater Troubleshooting doesn't have to be a guessing game if you understand how these units think and what each warning light actually means.

Manufacturer specifications show the H-Series uses a multi-stage safety sequence. Five separate switches must close before the burner fires. If any switch stays open, the heater locks itself out.

That sounds annoying, but it's a smart design. The heater fails safe, and the error code gives you a clear diagnostic path.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Read the diagnostic LED on the control board. Count the flashes and note the pause. Each flash pattern points to a specific fault.

Check water flow and gas supply first. Most lockouts come from those two things. Reset the heater after fixing the issue.

If it relocks, dig deeper into the code.

Your Hayward H-Series Won't Heat — Where Do You Even Start?

Before you touch anything inside the cabinet, do a quick walk-around. Look at the pool pump. Is it running?

The H-Series needs at least 20 GPM of water flow to close the pressure switch. If the pump basket is full of air or the filter gauge is high, fix that first. A lot of heater problems are actually pump problems.

Next, check the gas supply valve. Many service calls end with the gas turned off at the meter or the propane tank empty. If you smell gas at all, stop immediately.

Close the valve and call a professional. Do not attempt any ignition work with a gas leak present.

Check the power to the unit. The H-Series runs on 120V or 240V, depending on the model. Look for a tripped breaker in the panel or a GFCI that popped.

If the display is completely dark, you've lost power somewhere in the circuit. A basic multimeter can verify voltage at the terminal block inside the heater.

These three checks cover the most common no-heat scenarios reported in aggregate user feedback. Do them before you pull any panels off or start testing components.

The One Thing Everyone Should Check First (And Why 9 Out of 10 Trips Start Here)

The high-limit switch. This small device sits on the heat exchanger and monitors internal temperature. When the heater gets too hot inside the cabinet, the switch opens and kills the flame.

It's a classic safety feature, and it's the most common reason for a lockout.

Why does it trip? Usually because something is blocking the airflow. The H-Series pulls combustion air from the bottom of the cabinet and exhausts through the top.

If leaves, spider webs, or a nearby shrub block that path, heat builds up fast.

Another common cause is low water flow. Even if the pump is running, a clogged filter or a partially closed valve can reduce flow enough that the heater overheats internally. The pressure switch might stay closed, but the high-limit catches the excess temperature.

Here's what to do. Turn off power to the heater. Let it cool for 15 minutes.

Locate the high-limit switch, a small disc-shaped device mounted on the heat exchanger with two wires connected. Press the red button in the center until you hear a click. Restore power and try again.

Image source: Bing (Web (fair-use with source credit))

If the switch has no reset button, it's a manual-reset type that requires replacement after tripping. Check your model's manual to confirm which style you have. Per the National Fire Protection Association's NFPA 54, a safety device that manually locks out is a diagnostic clue, not a reset-and-ignore convenience.

If the switch trips again within a few minutes, do NOT keep resetting it. Something is wrong. Move to the next check.

How This Heater Actually Decides to Turn On (The Safety Chain)

Think of the H-Series startup as a series of locked gates. Each gate only opens when the previous condition is met. Understanding this sequence makes troubleshooting logical instead of frustrating.

Step one: Water flow. The pressure switch senses water moving through the heat exchanger. If the pump is off, the switch stays open. The heater won't even try to light.

Step two: Air proving. The inducer fan starts and creates a vacuum in the burner box. A separate pressure switch confirms the fan is pulling correctly. If the vent is blocked or the fan motor is dead, this switch stays open.

Step three: Ignition. With water flow and air flow confirmed, the control board sends power to the hot surface igniter (HSI). The HSI glows orange-hot for about 30 seconds. Then the gas valve opens.

Step four: Flame sensing. Once gas flows, the flame sensor detects the burner's fire. It sends a small electrical signal back to the control board. If the board doesn't see that signal within a few seconds, it shuts the gas valve and tries again.

Step five: Temperature regulation. After the burner lights, the thermostat compares the pool water temperature to your setpoint. Once the water reaches the target, the heater shuts off.

When you're troubleshooting, figure out which gate is stopping the process. The error code tells you exactly that.

Troubleshooting by Error Code: What That Blinking Light Is Telling You

The H-Series control board has a small LED that flashes a pattern when something goes wrong. Each pattern points to a specific safety switch or failed step. Here's the diagnostic reference for the most common codes as of 2026.

Image source: Bing (Web (fair-use with source credit))

For HLS (1 flash): Follow the high-limit troubleshooting above. This is the most common code.

For AGS (2 flashes): This one is serious. The control board detected a gas valve circuit problem. Do not reset this repeatedly.

Check wiring connections at the gas valve and the control board. If you're not comfortable with electrical diagnostics, call a pro.

For SFS (3 flashes): The flue sensor is seeing exhaust gas above its limit. This usually means the heat exchanger is partially blocked with soot or the vent pipe is restricted. Inspect the burner tray and heat exchanger.

Soot buildup can also indicate incorrect gas pressure, which a technician with a manometer should confirm.

For IGN (4 flashes): The most common cause is a failed hot surface igniter. The HSI is a ceramic rod that glows red. Over time, it cracks or wears out.

You can test it with a multimeter. It should read between 30 and 100 ohms. Open circuit means it's dead.

Replace it with a genuine Hayward part.

For FLS (5 flashes): The flame lit but the sensor lost the signal. Pull the flame sensor rod and gently clean it with fine emery cloth. Carbon buildup reduces the microamp signal below the 2 microamp threshold the control board needs.

If cleaning doesn't fix it, replace the sensor.

The Most Expensive Mistakes I See Homeowners Make

The biggest one is assuming the heater is dead when it's actually locked out. A lockout means the heater detected a problem and shut down intentionally. Resetting the power at the breaker clears the lockout, but if you don't fix the underlying issue, it'll lock out again.

Another common mistake is using the wrong replacement parts. The H-Series uses specific igniters, pressure switches, and gas valves. Generic pool heater parts may physically fit, but the electrical and thermal ratings differ.

Always use parts listed in the official Hayward parts diagram for your exact model number.

Skipping the gas pressure check is another costly error. If the heater lights but runs rough, flames look yellow, or soot forms on the burners, the gas pressure at the manifold is likely off. Natural gas should measure 1.6 to 2.4 inches of water column at the manifold.

Liquid propane should measure 5.5 to 6.5 inches. Outside those ranges, the heater won't burn cleanly. Checking this requires a manometer, which is a job for a qualified technician.

Winterization mistakes also hurt. If you live in a freeze zone and don't drain the heat exchanger before winter, a small pocket of water can expand and crack the copper or cupro-nickel tube. That means a new heat exchanger, which often costs more than half the price of a new heater.

Drain plugs are located on the bottom of the header. Remove them, store them, and leave the heater dry until spring.

Finally, ignoring error codes and just cycling power over and over. That's a fast track to a dead control board. The board keeps a history of fault codes.

Repeatedly resetting without diagnosing can damage the board itself. As of 2026, a replacement H-Series control board runs between 250 and 400 dollars. Respect the diagnostics.

When to Absolutely Call a Pro (This Isn't Cowboy Country)

There is a clear line between DIY diagnostics and dangerous guesswork. The H-Series runs on natural gas or propane, and it produces carbon monoxide as a byproduct. Mistakes here can be life threatening.

Call a licensed gas technician if you encounter any of these situations. First, you smell gas at any point during your inspection. Do not operate any electrical switches.

Do not light anything. Leave the area and call your gas supplier from outside.

Second, if the heater repeatedly locks out on the AGS code (2 flashes) after you've checked the wiring connections. That code points to a gas valve circuit fault. The gas valve may need replacement, which requires gas line disconnection and pressure testing.

That's not a homeowner task per most local building codes.

Third, if you find soot buildup inside the burner compartment or around the heat exchanger. Soot means incomplete combustion. The causes include incorrect gas pressure, a blocked vent, or a damaged heat exchanger.

A technician with a combustion analyzer can pinpoint the cause.

Fourth, if the heat exchanger is leaking water. A cracked copper or cupro-nickel tube requires full replacement. The repair involves draining the system, removing the header, and replacing the core.

The labor alone can run several hundred dollars. Many homeowners choose to replace the entire heater at this point.

Fifth, if you've gone through every diagnostic step in this guide and the heater still won't light. The control board may be faulty. Replacement requires verifying all safety circuits afterward.

Manufacturer specifications demand a full operational test after board swaps.

Per Hayward's published service guidelines, any work involving gas pressure adjustment, venting modification, or internal gas train components must be performed by a qualified service professional. The warranty on your H-Series is void if unqualified repairs cause further damage.

Frequently Asked Questions

How do I reset my Hayward H-Series pool heater?

Turn off the power at the breaker for 30 seconds. Turn it back on. The control board will run through its startup sequence automatically.

If the fault is cleared, the heater will attempt to light. If it relocks, diagnose the error code first. Do not cycle power repeatedly.

Why does my Hayward pool heater keep shutting off after a few minutes?

That is short cycling. The most common cause is a tripping high-limit switch from low water flow or restricted airflow. Check your pump, filter, and vents.

A failing temperature sensor can also cause early shutdowns.

What does 3 flashes mean on a Hayward H-Series?

Three flashes indicate a stack flue sensor fault, code SFS. The exhaust temperature is too high. This usually means the heat exchanger is partially blocked with soot or the vent pipe is restricted.

Incorrect gas pressure can also cause this.

Can I bypass the pressure switch on my Hayward heater?

No. Never bypass any safety switch on a gas heater. The pressure switch confirms water flow before the burner fires.

Bypassing it can cause the heat exchanger to overheat and crack in seconds. It also creates a serious scalding and fire hazard.

How often should I service my Hayward H-Series heater?

Once per year, before the swimming season starts. A professional inspection should include checking gas pressure, cleaning the burner tray, inspecting the heat exchanger, testing all safety switches, and verifying venting integrity. Annual service extends heater life significantly.

Why is my Hayward pool heater blowing cold air?

The fan runs briefly before ignition and after shutdown. If the burner never lights, the fan will blow ambient air through the vents. Check the error code on the control board.

The most common causes are a failed igniter or a gas supply issue.
