How Long Does A Well Pressure Switch Last

Image source: Bing (Web (fair-use with source credit))

Mistakes That Cut Your Switch's Life Short

Even a good switch will fail early if the system around it has problems. Here are the most common mistakes we see.

Ignoring a waterlogged pressure tank. This is the biggest one. A tank with no air charge forces the pump to cycle every time you run a faucet. That means the switch opens and closes dozens of extra times per day.

Check your tank precharge every six months.

Setting the wrong cut-in and cut-out pressure. The standard residential setting is 40/60 psi. Some homeowners crank it higher for more pressure. Higher settings mean more mechanical stress on the diaphragm and contacts.

If you need more pressure, add a booster pump instead.

Using the wrong switch amperage rating. Your switch must match your pump motor load. A switch rated for 1 HP on a 2 HP pump will burn its contacts quickly. Check the nameplate on your pump and verify the switch rating is equal or higher.

Skipping surge protection. A single lightning strike can weld the switch contacts shut or destroy them entirely. A whole-house surge protector at the main panel or a dedicated surge suppressor at the well pump disconnect switch costs under $100. It is cheap insurance for your entire system.

Overtightening the switch mounting. The switch body is metal or plastic with a threaded fitting into the tank tee. Crank it too hard and you can crack the housing or strip the threads. Hand tight plus a quarter turn with a wrench is enough.

Use Teflon tape or pipe dope on the threads.

Replacement Costs, Choices, and When to Hire a Pro

Replacing a pressure switch is straightforward. The part itself is affordable and widely available.

What a Replacement Costs

The standard Square D Pumptrol FSG2 series is the most common residential switch. It costs about $30 and works for the vast majority of 1/2 HP to 1 HP pumps. That is a small price for a critical system component.

Mechanical vs Electronic: Which Should You Choose?

Mechanical switches are the classic design with a metal spring and diaphragm. They are cheap, reliable, and easy to replace. Most homeowners choose this option.

Our research shows these last 5 to 15 years in normal conditions.

Electronic pressure controllers use a sensor and circuit board instead of mechanical contacts. They have no arcing contacts to pit. They also include dry-run protection and cycle timers built in.

They cost more but can last longer in aggressive water conditions.

If you have corrosive water or want extra pump protection, an electronic controller is worth the upgrade. For a standard clean water system, the mechanical switch is perfectly fine.

When to Call a Professional

DIY replacement is safe if you are comfortable working with electrical wiring. But call a pro in these situations.

• You are not confident identifying line vs load wires.
• You cannot find the correct replacement switch locally.
• The switch is mounted in a deep well pit or confined space.
• You suspect the problem is actually in the pump or wiring, not the switch.
• Local codes require a licensed well contractor for electrical work.

A professional can diagnose the whole system in one visit. They will check the tank, the pump, and the wiring. That single service call saves you from replacing parts blindly.

Calculating Your System's Health: A Quick Checklist

Use this checklist every six months to catch problems early.

• Listen for short cycling during a full fill cycle (washing machine running).
• Check the pressure gauge. Does it rise smoothly to cut-out pressure?
• Verify cut-in pressure matches your switch setting (usually 40 psi).
• Test tank precharge with a tire gauge. Drain tank first.
• Inspect switch housing for moisture or corrosion.
• Tighten any loose wire connections at the switch terminals.
• Clean any debris or spider webs from the switch vent hole.

Each item takes under two minutes. Doing this routine keeps your switch working for its full potential lifespan.

Understanding the Cut-In and Cut-Out Settings

Your switch has two settings that control when the pump starts and stops.

The cut-in pressure is the low point. When water pressure in the tank drops to this number, the switch closes and the pump starts. Standard cut-in is 40 psi.

The cut-out pressure is the high point. When the pump fills the tank to this pressure, the switch opens and the pump stops. Standard cut-out is 60 psi.

The difference between them is called the differential. It is normally 20 psi. You can adjust this with a second nut on the switch spring.

But most homeowners should leave it at the factory setting. Changing the differential affects how often the pump cycles and how much water you have between cycles.

How Long Does a Well Pressure Switch Last with Regular Maintenance?

With yearly checks and a healthy system, you can expect 10 to 15 years. That is the upper end of the range we gave at the start. A well-maintained system with clean water and proper tank precharge will see that kind of life.

Skip the maintenance and you cut that in half. Waterlogged tanks, dirty contacts, and loose wiring will kill a switch in 3 to 5 years. The difference is a five minute check every few months.

That routine makes the difference between a switch that dies young and one that goes the distance.

Frequently Asked Questions

How do I know if my well pressure switch is bad?

Listen for chattering or buzzing from the switch housing. Watch for the pump short cycling or running continuously. Look for water inside the switch cover.

Any of these signs point to a failing switch that needs replacement.

Can I replace a well pressure switch myself?

Yes, if you are comfortable working with electrical wiring. Turn off the pump breaker first. Verify power is dead with a voltage tester.

The replacement takes about 30 minutes. If you are unsure about wiring, hire a licensed well contractor.

What is the average cost to replace a well pressure switch?

The part costs $25 to $45 for a standard mechanical switch. A professional installation adds $100 to $250. Total cost with labor runs $125 to $300.

That is a small investment for reliable water pressure.

Does a well pressure switch have a reset button?

Most standard mechanical switches do not have a reset button. Some electronic controllers and low-pressure cutoff switches include a manual reset. Check your switch model.

If you see a small red or black button on the housing, that is your reset.

What causes a pressure switch to cycle on and off rapidly?

Short cycling is usually caused by a waterlogged pressure tank. Check the tank precharge first. A bad bladder or a leak in the system can also cause rapid cycling.

Rarely, the switch itself is at fault.

How often should I replace my well pressure switch?

Replace it only when it shows signs of failure. There is no scheduled replacement interval. With proper maintenance, a switch can last 10 to 15 years.

Replace it when you see pitted contacts, leaking water, or cycling problems.

If you own a home with a private well, that little pressure switch on the tank is one of the most important parts you rarely think about. How long does a well pressure switch last? The answer isn't a single number.

It depends on a few key factors.

Manufacturer specifications from Square D, a leading switch maker, indicate a mechanical cycle life of over one million cycles. For a typical household, that often translates to five to fifteen years in real-world use. That range is wide for a reason.

Let's break down what actually determines where your switch will land on that timeline.

Quick Answer

A well pressure switch typically lasts 5 to 15 years. The exact lifespan depends on water quality, pump cycling frequency, and tank condition. Fewer starts and cleaner water extend its life.

A failing switch often shows warning signs first. Catching them early can save your pump.

What Wears Out Inside a Pressure Switch

Image source: Bing (Web (fair-use with source credit))

A pressure switch is a simple electromechanical device. Water pressure pushes against a diaphragm inside the switch body. That diaphragm moves a set of electrical contacts that tell the pump when to turn on and off.

Over time, three main parts degrade.

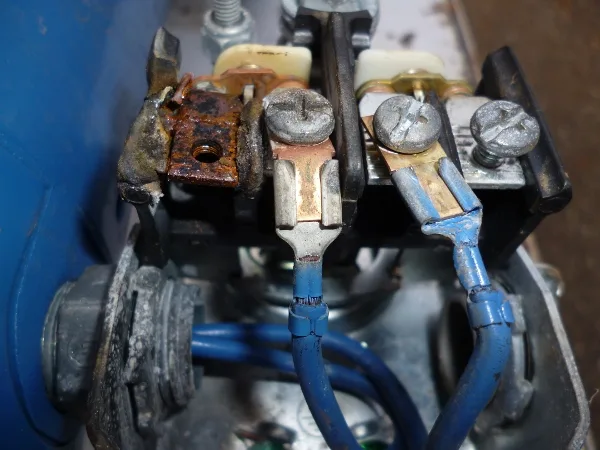

Contacts: The First Thing to Go

The electrical contacts carry the pump motor current every time the switch closes. Each closure creates a small arc. That arc slowly pits and burns the contact surface.

Poor water quality or voltage spikes accelerate this damage.

Aggregate reviews from well pump professionals report that pitted contacts are the most common failure mode. The switch starts chattering or fails to close reliably. You can often see the damage if you remove the cover.

Diaphragm: Your Water Barrier

The diaphragm separates the water pressure side from the electrical side. Rubber diaphragms can stiffen, crack, or develop pinhole leaks over time. Corrosive water, high iron, or sand in the well water will wear the diaphragm faster.

A leaking diaphragm lets water reach the contacts. That causes corrosion or a short circuit. Once that happens, the switch is dead.

Spring and Calibration Drift

The pressure setting springs inside the switch can lose tension over decades. This is rare compared to contact and diaphragm failure. But it does happen in older switches.

The cut-in or cut-out pressure may drift, causing the pump to cycle at the wrong pressures.

The Lifespan Decision Tree: 4 Questions to Estimate Your Switch's Life

Image source: Bing (Web (fair-use with source credit))

Instead of guessing a number, answer these four questions about your system. Your answers will tell you whether you are on the short end or the long end of that 5 to 15 year window.

Question 1: How Often Does Your Pump Cycle?

Every time the pump turns on, the switch contacts open and close once. A typical well pump should run no more than 15 to 20 starts per hour. If your pump short cycles, it may start 50 or 100 times per hour.

Short cycling is the number one lifespan killer for pressure switches. Each extra cycle adds wear. If you have short cycling, your switch may fail in under three years.

If your pump runs normally, you are on track for 10 to 15 years.

Question 2: What's in Your Water?

Water quality plays a huge role in switch life. Clean, non-corrosive well water with neutral pH causes minimal wear. Water with high iron, manganese, hydrogen sulfide, or sand acts like sandpaper on the diaphragm and contacts.

If you have aggressive water or visible sediment, expect 5 to 7 years from your switch. Clean water homes often get 12 to 15 years.

Question 3: Do You Get Power Surges or Lightning?

Electrical surges, especially from lightning strikes, can fry the switch contacts instantly. Even minor voltage spikes from motor starting can degrade contacts over time.

If you live in a lightning-prone area or have frequent power fluctuations, add surge protection at the well pump electrical panel. Without it, your switch may fail suddenly within a few years.

Question 4: How Healthy Is Your Pressure Tank?

The pressure tank is your switch's best friend. A properly charged tank with a functioning bladder absorbs pressure changes and reduces cycling. A waterlogged tank has no air cushion.

That forces the pump and switch to cycle far more often.

Checking tank precharge is simple. Drain the tank completely, then use a tire gauge on the air valve. Set precharge 2 psi below the switch cut-in pressure.

A healthy tank extends switch life dramatically.

Warning Signs Your Switch Is Failing

Your switch gives clear clues before it completely dies. Learn to spot them early. Here are the most common symptoms.

• Chattering or buzzing sound, The contacts are arcing or bouncing. This usually means pitted contacts.
• Pump runs continuously and won't shut off, The switch may be stuck closed or the diaphragm has failed.
• Pump won't start at all, The switch contacts may be burned open, or the wiring has failed.
• Spraying water from the switch housing, A leaking diaphragm. Immediate danger of short circuit.
• Intermittent operation, Pump works sometimes, not others. Loose wiring or worn contacts.

If you see any of these, do not ignore them. A stuck switch can burn out your pump motor or flood your basement.

How to Test and Troubleshoot Your Switch in 10 Minutes

Testing your switch is safe and simple if you follow basic electrical precautions. You will only need a voltage tester or multimeter and a few minutes.

Step 1: Turn off the pump breaker. Verify with a non-contact voltage tester that the wires are dead. This is non-negotiable.

Step 2: Remove the switch cover. Look at the contacts. Are they pitted, blackened, or uneven? That is your answer for many failures.

Step 3: Check for water inside the switch housing. Moisture or corrosion around the base means a leaking diaphragm. The switch needs replacement.

Step 4: Use a multimeter to test continuity across the switch terminals. With the pump breaker off, set your meter to ohms. Manually press the switch lever to close the contacts. You should see near-zero resistance.

If you see infinite resistance, the contacts are open and the switch is bad.

Step 5: Test incoming power at the switch. With a voltmeter set to AC voltage, carefully check between the line side terminals. You should read your house voltage (115V or 230V). If no voltage, the problem is upstream.

Step 6: Watch the pressure gauge while restoring power. Slowly close the breaker. Watch the gauge rise to cut-out pressure. The switch should click and the pump should stop.

If it short cycles or never stops, you have a tank or switch issue.

This test will confirm whether your switch is good or bad in under 10 minutes. If you find a bad switch, replacement is straightforward and affordable.

Mistakes That Cut Your Switch's Life Short

Even a good switch will fail early if the system around it has problems. Here are the most common mistakes we see.

Ignoring a waterlogged pressure tank. This is the biggest one. A tank with no air charge forces the pump to cycle every time you run a faucet. That means the switch opens and closes dozens of extra times per day.

Check your tank precharge every six months.

Setting the wrong cut-in and cut-out pressure. The standard residential setting is 40/60 psi. Some homeowners crank it higher for more pressure. Higher settings mean more mechanical stress on the diaphragm and contacts.

If you need more pressure, add a booster pump instead.

Using the wrong switch amperage rating. Your switch must match your pump motor load. A switch rated for 1 HP on a 2 HP pump will burn its contacts quickly. Check the nameplate on your pump and verify the switch rating is equal or higher.

Skipping surge protection. A single lightning strike can weld the switch contacts shut or destroy them entirely. A whole-house surge protector at the main panel or a dedicated surge suppressor at the well pump disconnect switch costs under $100. It is cheap insurance for your entire system.

Overtightening the switch mounting. The switch body is metal or plastic with a threaded fitting into the tank tee. Crank it too hard and you can crack the housing or strip the threads. Hand tight plus a quarter turn with a wrench is enough.

Use Teflon tape or pipe dope on the threads.

Replacement Costs, Choices, and When to Hire a Pro

Replacing a pressure switch is straightforward. The part itself is affordable and widely available.

Typical Prices

The standard Square D Pumptrol FSG2 series costs about $30. It works for most 1/2 HP to 1 HP pumps.

Mechanical vs Electronic

Mechanical switches use a metal spring and diaphragm. They are cheap, reliable, and easy to replace. Most homeowners choose this option.

Our research shows these last 5 to 15 years in normal conditions.

Eectronic pressure controllers use a sensor and circuit board. They have no arcing contacts to pit. They include dry-run protection and cycle timers.

They cost more but last longer in aggressive water.

If you have corrosive water or want extra pump protection, choose electronic. For clean water, mechanical works fine.

When to Call a Pro

DIY replacement is safe if you are comfortable with electrical wiring. Call a pro if:

• You are not confident identifying line vs load wires.
• You cannot find the correct switch locally.
• The switch is in a deep well pit or confined space.
• You suspect the problem is in the pump or wiring, not the switch.
• Local codes require a licensed well contractor.

A pro can diagnose the whole system in one visit. They check the tank, pump, and wiring.

Sytem Health Checklist

Use this checklist every six months.

• Listen for short cycling during a full fill cycle.
• Check the pressure gauge. Doe it rise smoothly to cut-out pressure?
• Verify cut-in pressure matches your switch setting (usually 40 psi).
• Test tank precharge with a tire gauge. Drain tank first.
• Inspect switch housing for moisture or corrosion.
• Tighten any loose wire connections at the switch terminals.
• Clean debris or spider webs from the switch vent hole.

Each item takes under two minutes.

Understanding Cut-In and Cut-Out

Cut-in is the low point. When pressure drops to this number, the pump starts. Standard cut-in is 40 psi.

Cut-out is the high point. When pressure reaches this number, the pump stops. Standard cut-out is 60 psi.

The difference is the differential. It is normally 20 psi. Leave it at factory setting unless you know what you are doing.

How Long with Regular Maintenance?

With yearly checks and a healthy system, expect 10 to 15 years. Skip maintenance and you cut that in half. Waterlogged tanks, dirty contacts, and loose wiring kill a switch in 3 to 5 years.

A five-minute check every few months makes the difference.

Frequently Asked Questions

How do I know if my well pressure switch is bad?

Listen for chattering or buzzing. Watch for short cycling or continuous pump run. Look for water inside the switch cover.

These signs point to a failing switch.

Can I replace a well pressure switch myself?

Yes, if you are comfortable with electrical wiring. Turn off the pump breaker first. Verify power is dead.

Replacement takes about 30 minutes. If unsure, hire a licensed well contractor.

What is the average cost to replace a well pressure switch?

The part costs $25 to $45. Professional installation adds $100 to $250. Total runs $125 to $300.

Does a well pressure switch have a reset button?

Most standard mechanical switches do not. Some electronic controllers have a manual reset. Look for a small red or black button on the housing.

What causes a pressure switch to cycle on and off rapidly?

Short cycling is usually a waterlogged pressure tank. Check tank precharge first. A bad bladder or system leak can also cause it.

The switch itself is rarely at fault.

How often should I replace my well pressure switch?

Replace it only when it shows signs of failure. No scheduled interval. With maintenance, a switch lasts 10 to 15 years.

Replace when you see pitted contacts, leaking water, or cycling problems.
