How To Install A Kitchen Sink Drain Pipe

Your kitchen sink drain is leaking, and you're tired of the bucket under the cabinet. If you're learning How To Install A Kitchen Sink Drain Pipe, you're probably looking at a mess of plastic pipes and wondering where to start. The good news is this is a straightforward DIY job that most people can finish in under an hour.

With the right parts and a few basic tools, you can replace that leaky P-trap or install a new drain assembly from scratch. The International Plumbing Code specifies a 1.5-inch pipe diameter for kitchen sink drains with a trap depth between 4 and 6 inches. Let's break down exactly what you need and how to do it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Install a kitchen sink drain pipe by connecting the tailpiece, P-trap, and trap arm to the wall outlet. Measure from the sink strainer to the wall fitting first. Cut PVC pipe to length with a hacksaw.

Assemble all parts dry, then tighten slip-joint nuts hand-tight plus a quarter turn. Run water and check every joint for leaks.

Why Your Kitchen Sink Drain Is Leaking (Or Needs Replacing)

Most kitchen sink drain leaks happen at the slip-joint connections. The rubber washer inside the nut dries out, cracks, or gets misaligned. That is the most common culprit by far.

Overtightening is the second biggest cause. When you crank down on a plastic nut, you distort the washer and create a gap. Hand-tight plus a quarter turn is all you need.

Corrosion is another reason you might need a full replacement. If you have an older home with chrome-plated brass pipes, the metal can pit and corrode over time. You will see green or white crusty deposits at the joints.

Those pipes need to go. Plastic PVC or ABS will not corrode, which is why most modern codes call for them.

Sometimes the problem is not the pipe at all. It is the sink basket strainer. If the plumber's putty under the flange has dried out, water seeps down the outside of the tailpiece.

That looks like a drain pipe leak, but the fix is resealing the strainer from above.

A slow drain that gurgles points to a venting issue or a clog, not a leak. But if you are taking things apart anyway, replacing the whole trap assembly with fresh parts is cheap insurance. A complete PVC P-trap kit costs under $15 at any hardware store.

Tools and Parts You'll Actually Need (No Guessing)

You do not need a toolbox full of specialty plumbing tools. Most of this stuff is already in your garage. Here is exactly what you need.

For parts, you will need a PVC P-trap kit that includes the J-bend, trap arm, and slip-joint nuts with washers. Most kits come with a tailpiece extension too. You will also need Teflon tape if you are connecting to a threaded metal wall fitting.

And pick up a tube of plumber's putty if you are reseating the sink strainer.

One thing people forget: the wall escutcheon plate. That is the chrome ring that covers the hole where the pipe enters the wall. If yours is missing or cracked, grab a new one for two bucks.

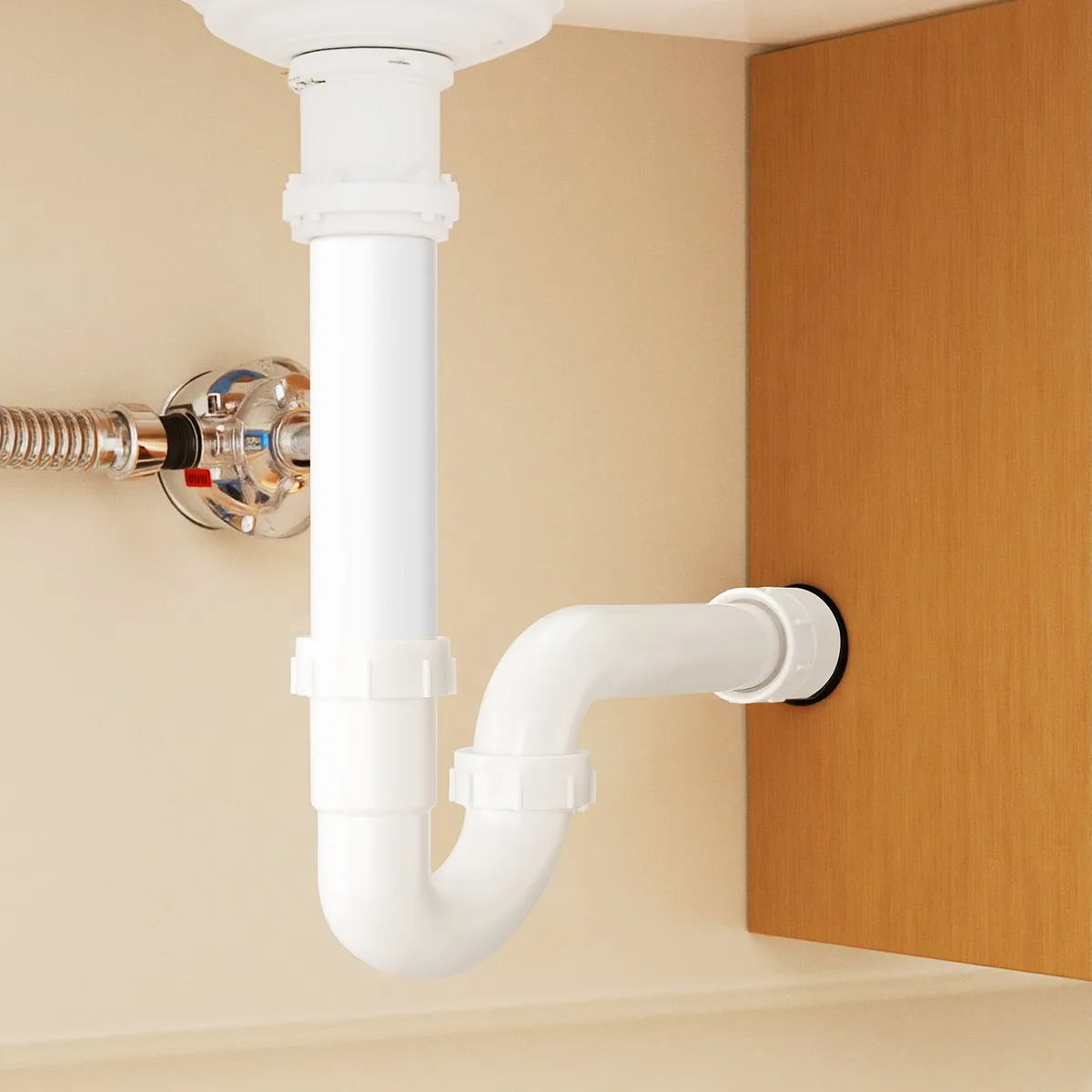

The Drain Pipe Anatomy: What Each Piece Does

Image source: Bing (Web (fair-use with source credit))

Before you touch a single pipe, know what each piece is called. It makes buying parts and following instructions much easier.

The tailpiece is the straight vertical pipe that drops from the sink strainer basket. It is usually 6 to 8 inches long and has a flared end for the slip-joint nut.

The P-trap (or J-bend) is the curved section that holds water. That water creates a seal that keeps sewer gas from coming up through your sink. The trap depth, measured from the top of the water seal to the bottom, should be between 4 and 6 inches as of 2026 per the International Plumbing Code.

The trap arm is the horizontal pipe that runs from the trap outlet to the wall fitting. It needs a slight slope of 1/4 inch per foot toward the wall. Too flat, and debris settles.

Too steep, and the trap can siphon dry.

The wall fitting (or trap adapter) is what your trap arm connects to inside the wall. If it is threaded metal, you will need Teflon tape. If it is plastic, you use a slip-joint connection.

Double sinks add a continuous waste kit or a waste tee that connects both bowls into one drain line. That is a separate configuration we will cover in the decision tree below.

The Decision Tree: Which Drain Configuration Do You Have?

Your exact installation steps depend on what is under your sink right now. Use this decision tree to find your situation.

If you have a single sink with no garbage disposal: This is the simplest setup. You run a straight tailpiece from the sink strainer into the P-trap, then the trap arm to the wall. Everything lines up vertically.

This is the configuration most P-trap kits are designed for.

If you have a single sink with a garbage disposal: Your disposal has a discharge outlet that points toward the back of the cabinet. You need a discharge tube that connects the disposal to the trap. The trap arm then runs to the wall.

The disposal outlet is lower than a standard tailpiece, so your P-trap sits lower too.

If you have a double sink with no garbage disposal: You need a continuous waste kit. This is a T-shaped assembly that connects both sink tailpieces into one drain line. The waste tee sits centered between the two bowls.

Each tailpiece drops into one side of the tee, and the trap connects below it.

If you have a double sink with one garbage disposal: This is the most common modern kitchen configuration. The disposal sits under one bowl. The other bowl has a standard tailpiece.

A continuous waste tee connects them, with the disposal side coming in slightly lower. You will need a wye tailpiece or a waste tee with a side inlet for the dishwasher hose too.

If your wall outlet is offset (not centered under the sink): You will need an offset drain kit or a flexible drain pipe. These allow you to shift the trap left or right to align with the wall fitting. Measure the offset distance before buying parts.

How to Install or Replace the Drain Pipe (Step by Step)

Image source: Bing (Web (fair-use with source credit))

Follow these steps in order. Each one builds on the last.

Step 1: Remove the old drain assembly. Place a bucket under the P-trap. Loosen the slip-joint nuts by hand or with channel-lock pliers. Pull the trap off.

Let the water drain into the bucket. Remove the tailpiece and trap arm.

Step 2: Clean the pipe ends. Wipe down the wall fitting threads and the sink strainer outlet. Scrape off any old putty or corrosion. A clean connection is a leak-free connection.

Step 3: Dry-fit everything first. Assemble the tailpiece, P-trap, and trap arm without tightening anything. Check that the trap arm slopes toward the wall. Adjust the tailpiece length if needed by cutting it with a hacksaw.

Step 4: Apply Teflon tape to threaded connections. If your wall fitting is metal, wrap the threads clockwise three times. This prevents leaks at the threaded joint.

Step 5: Tighten the slip-joint nuts. Start with the trap arm connection at the wall. Then the trap-to-trap-arm joint. Then the tailpiece-to-trap joint.

Each nut gets hand-tight plus a quarter turn. Do not overtighten.

Step 6: Test for leaks. Run both hot and cold water for 30 seconds. Check every joint with a dry rag. If you see moisture, tighten the nut another eighth of a turn.

Wait 10 minutes and check again.

Step 7: Connect the dishwasher drain hose. If you have a dishwasher, remove the knock-out plug from the wye tailpiece inlet. Slide the hose over the barbed fitting and secure it with a hose clamp.

Common Mistakes That Guarantee a Leak (And How to Avoid Them)

Most DIY drain leaks come from the same handful of errors. Knowing them upfront saves you a second trip under the sink.

Overtightening the slip-joint nuts. This is mistake number one. When you crank a plastic nut too hard, the rubber washer buckles and creates a gap. The result is a slow drip that shows up hours later.

Hand-tight plus a quarter turn is the rule. If it leaks after that, the washer is misaligned, not loose.

Forgetting the conical washer orientation. Slip-joint washers are tapered. The wide side faces the nut, and the narrow side faces the pipe. Install it backward, and it cannot seal.

Check the washer before you tighten.

Using the wrong replacement parts. Bring your old pipe to the hardware store or measure the diameter. Kitchen drains are 1.5 inches. Bathroom drains are 1.25 inches.

A 1.25-inch washer on a 1.5-inch pipe will leak every time.

Not deburring cut pipe ends. PVC and ABS leave a sharp edge after cutting. That edge can slice the rubber washer as you tighten the nut. Run a file or sandpaper over the cut end until it is smooth.

Skipping the dry-fit step. If you glue or tighten everything without testing the fit first, you might find the trap arm is too short or the tailpiece is too long. Dry-fit all parts, adjust the lengths, then assemble for real.

When to Call a Plumber (And When It's a Safe DIY)

This project is a solid DIY for most homeowners. The parts are cheap, the tools are basic, and the steps are straightforward. But there are a few situations where calling a pro is the smarter move.

Call a plumber if the wall fitting is damaged. If the threaded adapter inside the wall is stripped, cracked, or corroded, you need to open the wall to replace it. That means cutting drywall, working with a hub fitting, and possibly repiping. That is beyond a basic drain swap.

Call a plumber if you have galvanized steel drain pipes. Galvanized steel rusts from the inside. You cannot thread a plastic trap arm into a galvanized fitting without a special transition adapter. And if the galvanized pipe is old, it may crumble when you try to remove the old fitting.

Call a plumber if the drain is not vented properly. If your sink gurgles every time it drains, the vent is clogged or missing. A new trap will not fix a vent problem. That requires a professional diagnosis and possibly roof work.

This is a safe DIY if: you have plastic pipes under the sink, the wall fitting is in good shape, and you can reach everything without removing the cabinet. Most single-sink replacements take 30 minutes. A double sink with a disposal might take an hour.

Frequently Asked Questions

How long does it take to install a kitchen sink drain pipe?

A standard single-sink replacement takes about 30 minutes. A double sink with a garbage disposal takes closer to an hour. Most of that time is spent removing the old parts and dry-fitting the new ones.

Do I need plumber's putty or Teflon tape?

Both. Plumber's putty goes under the sink strainer flange to seal it to the sink basin. Teflon tape goes on threaded metal connections like the wall fitting.

Slip-joint connections use rubber washers and need neither.

Can I use flexible drain pipe instead of PVC?

Flexible drain pipes are allowed for temporary setups or offset connections. They are not recommended for permanent use. The ridges inside catch debris and cause clogs.

Stick with smooth PVC or ABS for a lasting installation.

Why does my new drain pipe smell like sewer gas?

A sewer gas smell means the trap seal is broken. Check that the P-trap depth is between 4 and 6 inches. Also verify the trap arm slope is correct.

If the trap siphons dry, the gas comes through. A missing or loose slip-joint nut can also let gas escape.

What size pipe does a kitchen sink drain use?

Kitchen sink drains use 1.5-inch diameter pipe. This is the standard size specified in the International Plumbing Code. Bathroom sinks use 1.25-inch pipe.

Do not mix the two sizes without an adapter.
