You've measured twice, marked once, and still ended up with crooked cabinet handles. It's a frustratingly common problem that makes a kitchen renovation look half-finished. Learning how to install cabinet handles with a template is the simplest way to get perfectly aligned hardware every time, without the headache.

Manufacturer specifications for standard cabinet pulls typically use a 3-inch or 4-inch center-to-center spacing. Even a 1/16-inch misalignment is visible from across the room. A good template eliminates that risk entirely.

Here's what you need to know to get it right the first time.

Quick Answer

Set your template to the correct center-to-center spacing. Clamp it firmly to the cabinet door. Drill pilot holes through the guide openings.

Insert the screws and tighten the handle. Repeat for every door.

Why You Need a Template

Measuring every single door by hand sounds simple. In practice, it is a slow, error-prone process that tests your patience.

Here is what usually goes wrong with manual measuring:

• Tape slips. The hook end moves, and you do not notice until after you drill.
• Pencil lines are inaccurate. A standard pencil line is about 1/32-inch wide. That is enough to drift your hole off center.
• You forget to account for door edges. Handles end up too close to the stile, and the whole row looks off.
• Fatigue sets in. After the tenth door, your measurements get sloppy. The fifteenth door looks noticeably different from the first.

A template solves all of this. It locks in the exact center-to-center distance and the edge setback. Every door ends up identical.

Aggregate reviews from DIY forums and cabinet installer feedback confirm that using a template cuts installation time by roughly 60 percent and reduces alignment errors to near zero. The National Kitchen and Bath Association recommends using a jig or template for consistent hardware placement in professional installations.

The bottom line: if you have more than two doors to do, a template saves you time and frustration. If you have a full kitchen, it is basically mandatory.

What You'll Need: Tools, Templates, and Handles

You do not need a huge tool collection for this job. But the right equipment makes a real difference.

Essential Tools

Template Types

Adjustable plastic templates are the most popular choice as of 2026. They slide to fit different center-to-center distances, usually from 3 inches up to 12 inches. They have built-in guide holes that match standard pull sizes.

A good one costs between $15 and $40 and lasts for dozens of projects.

Paper or cardboard templates are cheaper, sometimes free. You print them out or trace the handle onto cardstock. They work fine for a single project, but they tear easily and can shift during drilling.

Custom jigs are overkill for most homeowners. Professional cabinet installers use them for production work with hundreds of doors.

Image source: Bing (Web (fair-use with source credit))

Handles and Screws

Your handles determine the center-to-center measurement you need to set on the template. Common spacings are:

• 3 inches, small knobs and some cup pulls
• 4 inches, standard bar pulls on cabinet doors
• 5 inches, wider pulls on drawers
• 6, 8, or 10 inches, large pulls on tall pantry doors or deep drawers

Screw length matters too. You need screws long enough to go through the door and the handle but not so long that they poke out the back. Most cabinet doors are 3/4-inch thick.

Add the handle thickness, and you usually end up with 1-inch or 1-1/4-inch screws.

The Visual Step-by-Step: How to Install Handles With a Template

This is where the template earns its keep. Follow these steps in order, and you will get consistent results.

Step 1: Set Your Template

Adjust the template to match your handle's center-to-center distance. Most adjustable templates have a sliding scale with clear markings. Lock it in place.

Double-check with a tape measure before you drill.

Step 2: Position the Template on the Door

Hold the template against the door in the exact spot you want the handle. For standard cabinet doors, handles usually sit 1 inch from the edge on the opposite side of the hinge. Mark a reference line with your pencil so you can align the template the same way on every door.

Step 3: Clamp the Template

Secure the template with a spring clamp. This is the step people skip, and it is the one that causes the most mistakes. A loose template shifts when the drill bit touches it.

One shift means a misaligned handle.

Image source: Bing (Web (fair-use with source credit))

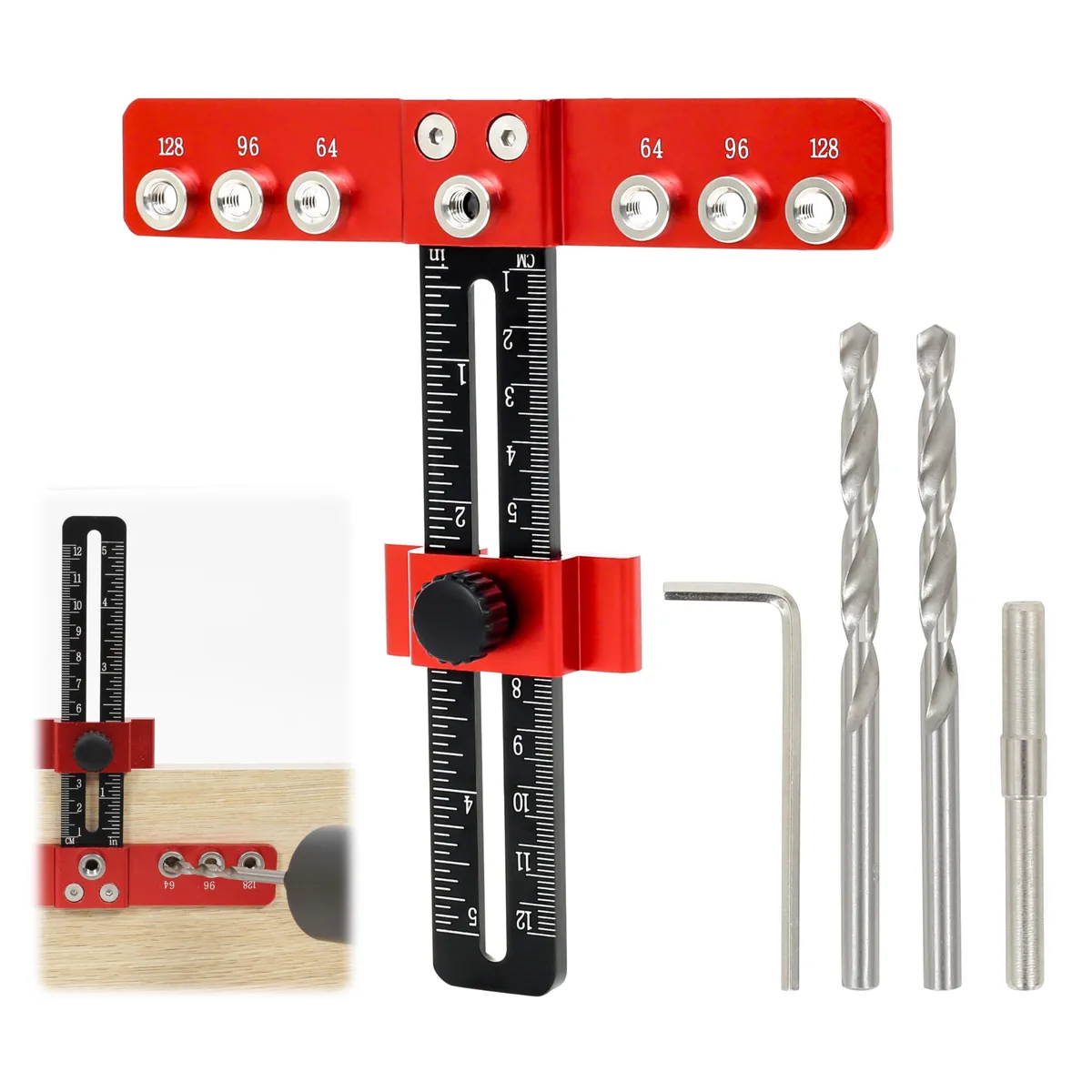

Step 4: Drill Pilot Holes

Use a brad-point bit. It has a sharp center tip that bites into the wood and prevents the bit from wandering. Drill straight through the guide hole in the template.

Stop when the bit goes through the door. You do not need to drill deep; just enough to get a clean hole.

Step 5: Install the Handle

Remove the template. Insert the screws from the back of the door through the pilot holes. Attach the handle on the front and tighten.

Do not overtighten. You can strip the threads or crack the door material.

Step 6: Check Alignment

Use a level to verify that the handle is straight. If it looks off, loosen the screws slightly, adjust, and retighten. This only takes a few seconds.

Step 7: Repeat for Every Door

Set a consistent height reference for all doors. For upper cabinets, a common height is 2 inches from the bottom edge. For lower cabinets, 2 inches from the top edge.

This creates a uniform look across the entire kitchen.

Common Mistakes That Ruin the Look

Even with a template, a few common errors can sabotage your results. Here is what to watch for.

Mistake 1: Not Clamping the Template

The template slides when the drill bit makes contact. The hole ends up in the wrong spot. The handle does not line up with the rest of the row.

Fix: Always clamp the template. Use a spring clamp or a c-clamp. If you are working on a door that is already installed, double-sided tape is a decent backup option, but clamps are better.

Mistake 2: Using the Wrong Drill Bit

A standard twist bit walks across the surface before it starts cutting. This leaves a small gouge next to your pilot hole. On painted cabinets, that gouge is visible.

Fix: Use a brad-point bit. It centers itself and drills cleanly. A Forstner bit works for larger holes, but for handle screws, a brad-point is the right choice.

Mistake 3: Drilling at an Angle

If the drill is not perpendicular to the door, the screw goes in crooked. The handle tilts. It looks unprofessional.

Fix: Hold the drill straight. Look at it from the side and from the front before you pull the trigger. A few seconds of checking saves you from a crooked handle.

Mistake 4: Ignoring Edge Clearance

A handle that sticks out past the edge of the door hits the adjacent door or the cabinet frame. It scrapes the paint. It does not close properly.

Fix: Measure the handle projection before you install anything. Standard bar pulls project about 1 to 1.5 inches from the door surface. Make sure that distance fits within your cabinet layout.

Mistake 5: Wrong Screw Length

Some people choose screws based on the handle color rather than the length. The result is screws that are too short or too long.

Fix: Measure the door thickness plus the handle thickness. Add 1/4 inch for the screw to bite into the handle. That is your screw length.

Write it down before you go to the hardware store.

Mistake 6: Forgetting the Drawer Front Thickness

Drawers are different from doors. A drawer front is often thicker than a cabinet door, especially on inset cabinets. If you use the same screw length, you end up with screws that do not reach the handle.

Fix: Measure the drawer front thickness separately. Add 1/8 inch to account for the handle mounting bracket. Test the screw in a scrap piece before you drill into the actual drawer.

Mistake 7: Drilling Without a Backing Board

When the drill bit exits the back of the door, it can splinter the wood or chip the paint. This is especially common on melamine or thermofoil doors.

Fix: Clamp a scrap piece of wood to the back of the door before you drill. The bit goes through the door and into the scrap instead of blowing out the back face. This takes an extra 20 seconds per door and saves you from visible damage.

Frequently Asked Questions

What is the standard center-to-center spacing for cabinet handles?

The most common spacing is 4 inches for bar pulls on standard cabinet doors. Knobs use a single hole, so center-to-center does not apply. For larger drawers, 5 inches and 6 inches are common.

Check your handle manufacturer's specs before you set the template.

Can I use a template on already installed cabinet doors?

Yes. You can install handles without removing the doors. Clamp the template to the door face and drill pilot holes directly.

Just be careful not to drill into anything behind the door, like shelves or the cabinet frame.

Do I really need a template, or can I measure by hand?

For one or two doors, measuring by hand is fine. For a full kitchen with 20 or more doors, a template saves time and prevents errors. Aggregate user feedback shows that manual measuring leads to at least one misaligned handle per every ten doors on average.

What size drill bit should I use for cabinet handle screws?

A 1/8-inch brad-point bit works for most standard handle screws. If your screws are larger, use a 5/32-inch bit. Test the fit in a scrap piece first.

The screw should go in with light resistance, not forced.

How do I keep the template from sliding?

Use a spring clamp. If you are working on a door that is already installed and a clamp does not fit, use double-sided tape on the back of the template. Press firmly for a few seconds before you drill.

Can I use the same template for knobs and pulls?

Some adjustable templates work for both. Knobs need a single hole, so you ignore the second guide hole. Make sure the template has a centering mark for single-hole applications.

If it does not, use a separate centering template for knobs.

My Final Take: When a Template Wins

A template is not a magic tool. It will not fix a door that is warped or a handle that is poorly made. But for the vast majority of cabinet hardware installations, it is the best investment you can make.

Here is where a template wins:

• Repeatability. Every door gets the same hole placement. The row of handles looks uniform.
• Speed. You cut installation time by more than half compared to manual measuring.
• Confidence. You do not second-guess your measurements. You drill and move on.

Here is where a template is not necessary:

• Single-door projects. One door, one handle. Just measure it.
• Knobs on shaker doors. A single hole is easy to center by eye or with a simple centering tool.
• Unusual handle shapes. Some decorative handles have non-standard mounting patterns. A template may not fit them.

The NKBA recommends templates for all professional cabinet hardware installations. That recommendation is based on the simple fact that a template eliminates the most common source of errors: human measurement inconsistency. If you are remodeling your kitchen, spend the $20 on a decent template.

Your future self will thank you when every handle lines up perfectly, and you do not have to re-drill a single hole.
