Speed Queen Washer Code Ed 29
If your Speed Queen washer just flashed "Ed 29" on the display, don't panic. Speed Queen Washer Code Ed 29 means the control board isn't getting a "door locked" signal from the door lock assembly. It's a safety feature that stops the machine from spinning with the door open.
That doesn't mean your washer is dead.
Manufacturer documentation confirms this error appears on both front-load and top-load models. Speed Queen builds their washers in Ripon, Wisconsin, and their service materials classify Ed 29 as a door lock failure. As of 2026, the fix is usually a reset, a loose connector, or a replacement lock assembly that costs $30 to $60.
Let's walk through the problem step by step.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
Speed Queen Washer Code Ed 29 means the control board doesn't see the door locked signal. Unplug the washer for 5 to 10 minutes first. If the code returns, test the door lock assembly with a multimeter.
Replace the lock if it fails the continuity test. That fixes most cases.
What Does Ed 29 Mean and Why Should You Care?
Ed 29 isn't a random or harmless error. It tells you the control board can't confirm that the door lock has engaged. On Speed Queen machines, the door lock is a physical latch with a microswitch inside.
When the door locks, the switch closes and sends a signal to the control board. If that signal never arrives, the washer won't start.
That's a good thing. It stops the drum from spinning until the door is truly closed. A broken lock can mean an open door during a high-speed spin.
The error keeps you safe.
The most common causes are:
- A worn or broken door lock assembly
- A loose connector between the lock and the control board
- A damaged wire inside the wiring harness
- A control board that can't read the signal anymore
There's also a related error code, Ed 28. That one means the lock took too long to engage. Ed 29 means the signal itself is missing.
The difference matters because Ed 29 often points at the lock or the wiring before it points at the board.
Before You Do Anything: Safety and Preparation
Unplug the washer. This is not optional. The door lock circuit has live voltage when the machine is plugged in, even if the display is dark.
You don't want to test that with your fingers.
Wait about 60 seconds after unplugging. That gives the control board's capacitors time to discharge. Then, locate your model number and serial number.
You'll need them to order the correct replacement lock. Speed Queen puts a sticker on the inside of the door panel or along the back of the machine.
Here's what you'll need:
- Phillips and flathead screwdrivers
- A digital multimeter
- Needle-nose pliers
- A towel for leftover water in the door boot
If your washer is still under warranty, stop here. Call a local authorized technician. Self-repair can void coverage.
If the washer is out of warranty, you can save $100 to $200 doing this yourself. You can confirm your model's specific part on the Speed Queen official parts site.
The Quick Reset: Try This First
Start with the easiest fix. Unplug the washer and leave it unplugged for 5 to 10 minutes. This clears the control board's memory.
It also lets the door lock reset electronically. Plug it back in, and sometimes the error is simply gone.
Here's the reset process:
- Unplug the washer.
- Wait 5 to 10 minutes.
- Check the door for clothing or obstructions.
- Close the door firmly.
- Plug the washer back in.
- Run a short Drain and Spin cycle.
- Watch to see if Ed 29 returns.
A reset works when the lock actually sends a good signal, but the control board lost track of it. That can happen after a power surge or an interruption mid-cycle.
A reset won't fix a dead microswitch. If the code comes back quickly, move on to diagnosis. Don't run cycle after cycle while hoping it clears.
That wastes time and stresses the pump.
Diagnosing the Door Lock Assembly (Most Common Fix)
The door lock is the prime suspect in most Ed 29 cases. Speed Queen uses a durable lock, but the microswitch still wears out over time. Moisture and detergent film can cause corrosion.
When the switch fails, the control board sees an open circuit and throws Ed 29.

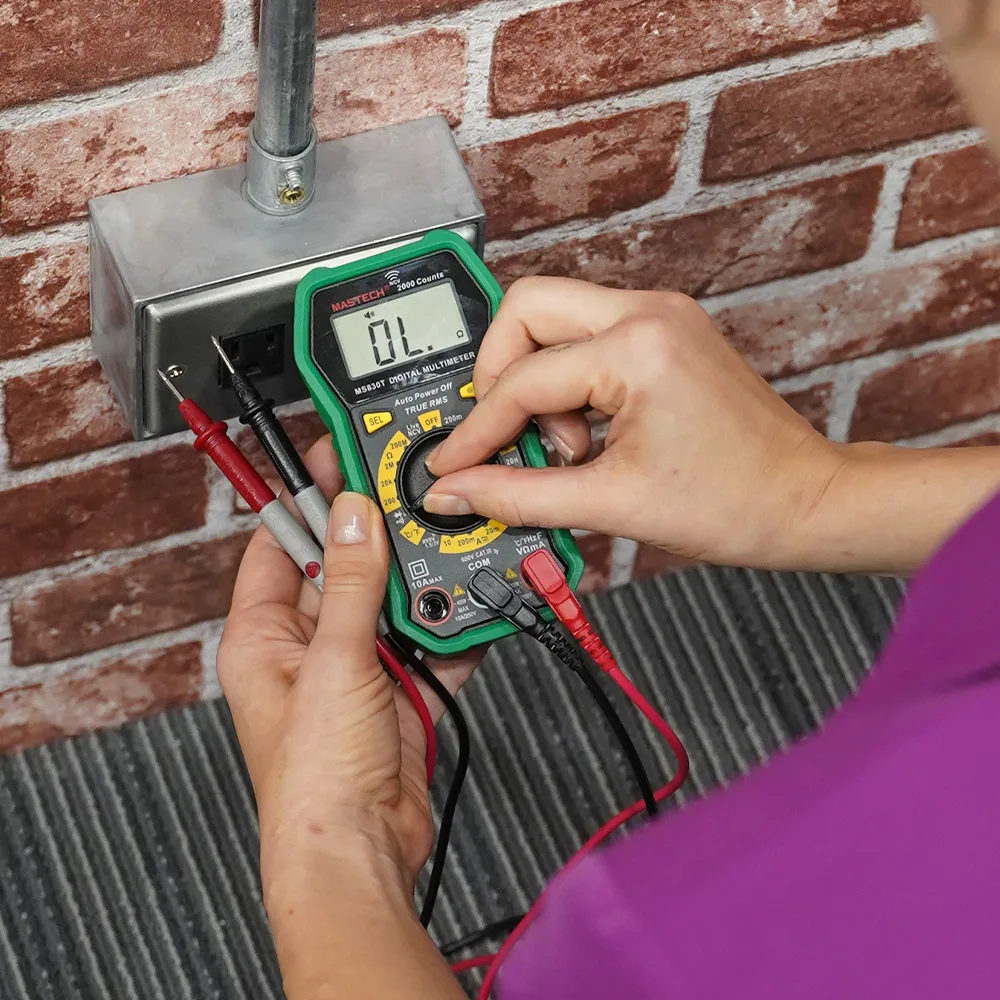

Before ordering a new part, test the old one. A digital multimeter tells you what your eyes can't. Here's how to get a reliable reading:
- Unplug the washer.
- Open the door and inspect the lock assembly.
- Remove the screws holding the lock in place.
- Disconnect the wire harness from the lock.
- Set your multimeter to continuity or ohms.
- Connect the leads to the microswitch terminals.
- Manually press the latch with a screwdriver. It should click.
- With the latch released, the reading should show open.
- With the latch pressed, the reading should be near 0 ohms.
Image source: Bing (Web (fair-use with source credit))
If the reading stays open when the latch is pressed, the switch is dead. Replace the whole lock assembly. Replacement is straightforward:
- Unbolt the old lock from the door frame.
- Transfer the wiring connector to the new lock.
- Bolt the new lock into the same position.
- Plug the washer back in.
- Run a Drain and Spin cycle to confirm the code is gone.
A new OEM lock typically costs $30 to $60. That's a small fraction of a service call. Use your model number to match the part exactly.
Generic aftermarket locks can work, but OEM parts fit better and last longer. If your lock passes the continuity test, don't replace it yet. Move on to the wiring.
Checking the Wiring and Control Board
If the door lock is fine, the problem is between the lock and the control board. That means the wiring harness or one of the board's connectors. Loose pins, broken wires, and corrosion all cause the same symptom.

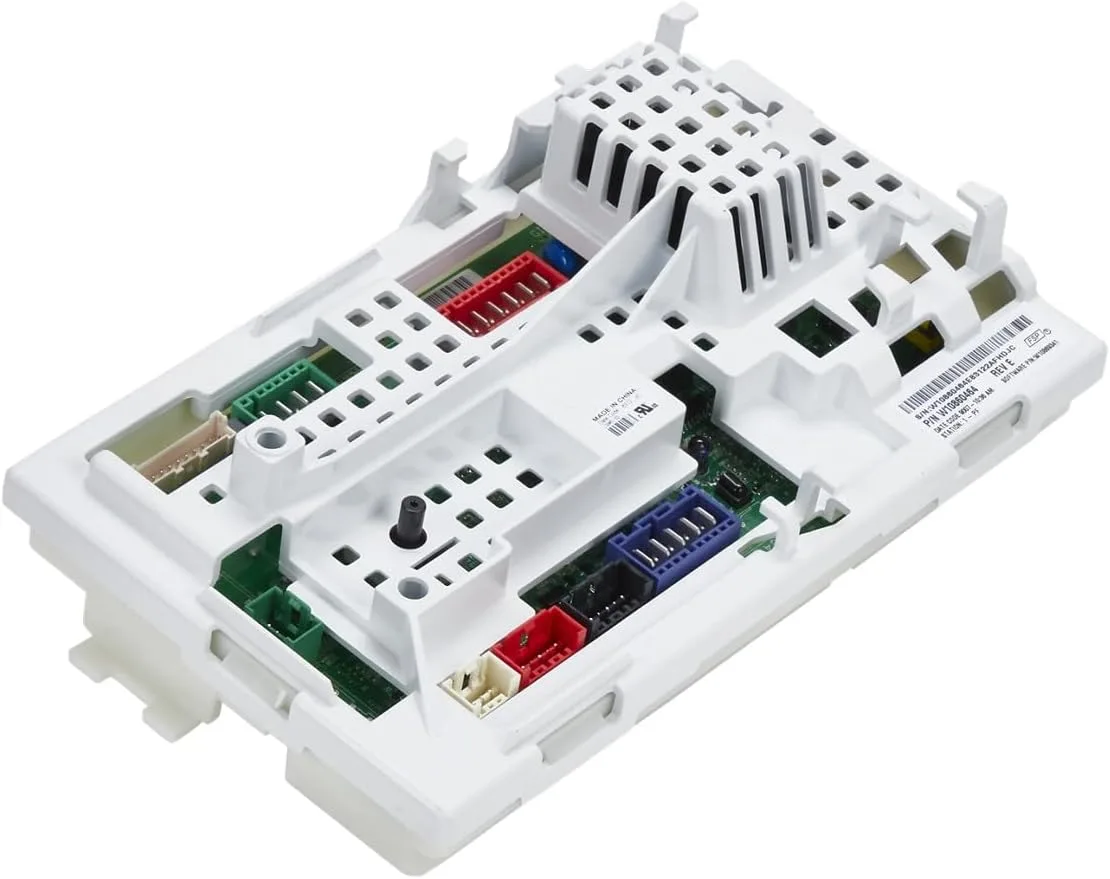

Start with a visual inspection. Open the top or front panel and look at the connectors on the control board. Check for bent pins, melted plastic, or green corrosion.
Then disconnect and reseat every connector in the circuit. That includes the lock connector, the control board connector, and the user interface connector.
Image source: Bing (Web (fair-use with source credit))
Reseating fixes a surprising number of Ed 29 errors. Vibration can loosen connectors over time. You may also see a pin pushed back inside the connector housing.
That's easy to miss, so take a close look.
If the connectors look good, test the wiring itself. Use the multimeter continuity mode. Check each wire between the lock connector and the control board.
A broken wire will show open circuit. If you find one, repair or replace the harness section.
If the wiring checks out, do a voltage test at the lock connector. This requires power, so be careful. Only try it if you're comfortable working around 120V AC.
Set the multimeter to AC voltage, connect it to the lock terminals, and start a cycle. You should see voltage appear briefly when the washer tries to lock.
No voltage reaching the lock means the control board is the likely culprit. Board replacement is doable, but it's riskier and more expensive. At that point, many homeowners call a professional.
A new control board can run $100 to $200, and a misdiagnosis gets costly fast. If the board is bad, the fix is clean. Just make sure you've ruled out everything else first.
