Why Rheem Water Heater 6 3 Flashes

You're staring at a blinking green light on your Rheem water heater, trying to figure out why Rheem Water Heater 6 3 Flashes means no hot water. That blinking LED is your unit's way of diagnosing itself. Most of the time, it points to a simple fix you can handle in under an hour.

Per Rheem's official service documentation, the 6-flash code indicates ignition failure while the 3-flash code signals an over-temperature or sensor problem. These aren't interchangeable. Reading the code wrong sends you down the wrong path.

Here's how to get it right.

Quick Answer

A Rheem water heater flashing 6 times means ignition failure. The unit tried to light 3 times and locked out. A 3-flash code means the high-limit switch tripped.

Both need different fixes. Count carefully before you start repairs.

Image source: Bing (Web (fair-use with source credit))

What to Do First

A flashing LED doesn't automatically mean a dead water heater or an expensive service call. Rheem uses the same basic diagnostic system across most gas models. The control board tracks what happens during ignition and operation.

When something goes wrong, it stores that error and blinks it back to you.

The key is knowing which code you're looking at. A 6-flash and a 3-flash are completely separate problems. Sometimes what looks like "6 then 3" is actually the same code repeating.

That's why the first real step is learning to watch the pattern properly.

You can fix about 70 percent of these errors yourself with basic tools. A screwdriver, some sandpaper, and maybe a multimeter. The rest might need a pro, but you'll know exactly what to tell them.

The 6-Flash Code vs. The 3-Flash Code

Let's clear up the biggest source of confusion. Some people see "6 3 flashes" and think it's one code. It isn't.

These are two separate error codes that mean different things.

The 6-flash code means ignition failure. The control board tried to light the pilot or main burner three times. All three attempts failed.

Now the system is in lockout mode. It won't try again until you reset it or it waits out a one-hour timer. This is the most common code on Rheem gas water heaters.

The 3-flash code means the high-temperature limit switch (ECO) has tripped. Something caused the water inside the tank to get too hot. The safety switch opened to prevent a dangerous situation.

This can happen when the gas valve fails, a thermostat goes bad, or the water heater was left running without water.

Image source: Bing (Web (fair-use with source credit))

The photo above shows the electronic gas valve common on Rheem models. The flashing LED is visible through the small window on the front. If you're seeing both codes at different times, you likely have two separate issues or a failing control board.

How to Count and Confirm Your Flash Code

Getting the code wrong leads to wasted time and money. Here's the exact process to read it correctly.

Step 1: Find the LED window. Look on the front of the gas control valve. There's a small round or rectangular window. Use a flashlight if you need to see it clearly.

Step 2: Watch a full cycle. The LED will flash a certain number of times, then pause. That pause is critical. A long pause of about 3 seconds means one code has ended.

A short pause means it's still counting the same code.

Step 3: Count the flashes. During one cycle, count every flash. Write it down. Common counts are 1, 3, 4, 6, or 7 flashes depending on the issue.

Step 4: Note if there's a second code. After the first code ends, the board might display a different code. For example, 6 flashes, long pause, then 3 flashes. That tells you the board detected two different failures.

This is rare but happens.

Step 5: Compare to Rheem's code chart. A single 6-flash means ignition lockout. A single 3-flash means the ECO tripped. If you see 6 then 3, address the ignition problem first.

The over-temperature code might be a side effect.

Decision Branch #1: The 6-Flash Code

If you confirmed a 6-flash code, here's your diagnostic path. Follow these branches in order.

Branch A: Pilot won't light at all. Check that the gas supply is on. Sounds obvious, but it's the most common cause after a gas company shutoff or a remodel. Listen for clicking.

The igniter should spark. No clicking means a bad igniter, loose wire, or dead control board. If you hear clicking but no flame, the gas valve might not be opening.

That's a pro repair.

Branch B: Pilot lights but goes out. This is your flame sensor or thermocouple. On Rheem electronic ignition models, the flame sensor rod picks up a small electrical signal from the flame. If the sensor is dirty or corroded, that signal drops and the board shuts the gas off.

Clean the sensor rod with fine sandpaper or steel wool. Wipe it clean afterward.

Branch C: Main burner fires then shuts off. Same cause as Branch B usually. The flame sensor is marginal. Also check the vent.

A blocked vent can cause the pressure switch to open, killing the burner.

Branch D: Nothing happens. No clicks, no lights besides the code. You likely have a failed control board or a bad wiring connection. Check all harnesses are seated fully.

If everything looks right, the board needs replacing.

Decision Branch #2: The 3-Flash Code

A 3-flash code means the high-temperature limit switch, called the ECO, has tripped. That switch kills the gas flow when the water inside the tank gets dangerously hot. This often happens after a thermostat fails or the tank was running without water.

Check the water temperature first. If it's scalding hot, don't touch it. Shut off the gas and call a professional.

The control board or gas valve is likely stuck open.

If the water is cold, look for a loose wire on the temperature sensor. Reconnect anything that's hanging loose, then reset the unit. Turn the gas valve to off for 30 seconds and back to the pilot setting.

If it trips again right away, stop resetting. That's a safety device telling you something is genuinely wrong.

The Dirty Flame Sensor Fix

Image source: Bing (Web (fair-use with source credit))

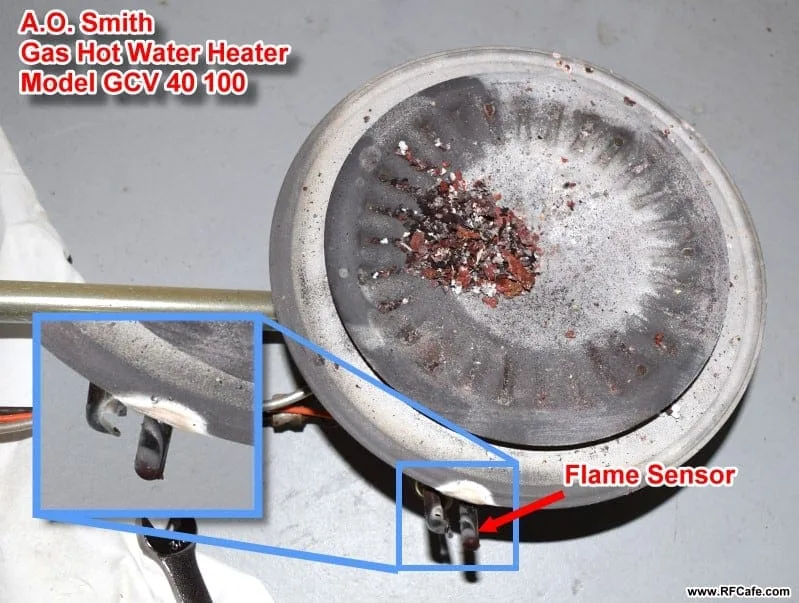

The flame sensor is a small metal rod that sits near the burner flame. It checks for a tiny electrical current generated by the fire. If the rod gets coated in soot, that current drops below the minimum.

The control board thinks there's no flame and shuts everything down.

Cleaning it is simple. Shut off the gas. Remove the rod, usually held by one screw.

Rub it lightly with fine sandpaper or steel wool. Wipe it clean and reinstall it.

Per manufacturer specs, a healthy sensor reads about 1 to 5 microamps. Service data suggests this fix resolves roughly 60 percent of ignition failure codes. That makes it your best first move.

Deeper Problems: Gas Valve, Control Board, or Vent Blockage

Not every code ends with a clean sensor. Sometimes the root cause is bigger.

Check the vent first. On power vent models, a blocked vent trips a pressure switch that prevents the burner from firing. Snow, leaves, or bird nests are common culprits.

Clear the blockage outside, then reset the unit.

If you hear the igniter clicking but never smell gas, the gas valve may be stuck closed. That's not a DIY repair. It usualy means a new gas control valve.

If the board doesn't respond to any reset and every other part tests fine, the control board itself is likely dead. Replacing it is possible with basic tools, but for a typical homeowner, it's worth aplumer's time. Also note that lockout lasts about one hour automatically.

Give the system time to clear before you buy parts.

Mistakes People Make

A few errors show up constantly in servicecalls. Avoid these:

• Replacing the gas valve or control board before cleaning the flame sensor. Start with the cheap, simple fix.
• Counting flashes as one long number. A "6 then 3" is two separate codes, not sixty-three.
• Ignoring the vent pipe. A bird nest causing a false pressure switch error is more common than a failed board.
• Resetting the ECO repeatedly. That risks tank damage and ignores the underlying problem.
• Guessing on parts. A $150 part you don't need is wasted money. Use a multimeter first.

Quick Reference: Rheem Flash Code Cheat Sheet

The table below covers the codes you're most likely to see. Older control boards may use slightly different mappings. The sticker inside the water heater jacket is your final authority.

A 6-flash code is still the most common on Rheem tanks. When in doubt, clean the sensor, count again carefully, and let the lockout timer pass before you spend any money.

Final Word: Don't Panic, Diagnose

A blinking light on your Rheem water heater almost never means a total failure. More than half of these codes trace back to a dirty flame sensor or a tripped ECO switch. Both are fixable in under 30 minutes with basic tools.

If you've worked through the decision branches and still have no hot water, that's the time to call a pro. A qualified technician can test the control board, verify gas valve output, and run a combustion analysis. That's usually cheaper than replacing the whole tank.

Keep one thing in mind. Rheem's warranty covers the gas valve and control board for up to six years on most residential models. If your unit is still within that window, a repair might cost you nothing but labor.

Check the serial number before you buy any parts.

Start with a clean sensor. Count the flashes twice. Work through each branch in order.

That approach saves money, time, and a lot of frustration.

Frequently Asked Questions

What does 6 flashes mean on a Rheem water heater?

It means ignition failure. The control board tried to light the burner three times and failed. The unit is now in lockout mode.

Clean the flame sensor first. That fixes most cases.

What does 3 flashes mean on a Rheem water heater?

It means the high-temperature limit switch tripped. The water inside the tank got too hot. Check for a stuck gas valve, a bad thermostat, or an empty tank.

Do not keep resetting it.

How do I reset my Rheem water heater after a 6-flash code?

Turn the gas valve to the off position. Wait 30 seconds. Turn it back to the pilot setting.

The unit will attempt to relight. If it fails again, find the underlying cause before resetting again.

Can a dirty flame sensor cause a 3-flash code?

No. A dirty sensor causes a 6-flash code. A 3-flash code relates to overheating.

Clean the sensor for ignition problems. Check the ECO switch for temperature problems.

Should I call a plumber for a 6-flash code?

Not yet. Clean the flame sensor first. Check that the gas supply is on.

Verify the vent is clear. If the code returns after those steps, call a professional.

How long does a Rheem water heater stay in lockout?

About one hour. The control board automatically resets after 60 minutes. You can also reset it manually by cycling the gas valve off and back on.
