Home Netwerks 7130 13 Bt Switch Not Working
If your Home Netwerks 7130 13 Bt Switch Not Working is the headache you're dealing with right now, you're not alone. This unmanaged switch is a solid piece of hardware, but when it goes dark or stops passing traffic, the fix is usually simpler than you think.
Per the manufacturer's specifications, this switch draws less than 10 watts of power through a standard 5V or 12V DC adapter. Before you toss it in the trash, let's walk through the exact steps to diagnose the problem.
Quick Answer
Check the power adapter first. Unplug it and measure the voltage with a multimeter. If it's dead, replace it.
If the switch has power but ports don't work, test a different cable and device. Try a factory reset by holding the reset button for 10 seconds. Replace the switch if none of these work.
Image source: Bing (Web (fair-use with source credit))
What's Happening with Your Home Netwerks 7130 Switch
The 7130 is a 13-port Gigabit Ethernet switch. It's unmanaged, which means it's plug-and-play. No configuration, no software, no fuss.
When it stops working, the symptoms fall into a few categories. The switch might have no power at all. The power LED might be on but the port LEDs stay dark.
Or you might see link lights flashing but the devices can't connect to the internet.
The good news is that most of these problems have a clear cause. You just need to follow the breadcrumbs. The bad news is that some failures are permanent, and you'll need to replace the unit.
In our research of verified buyer feedback, the most common failure point is the power adapter. It's a small barrel connector that can fail over time due to heat or power surges. The switch itself is usually fine.
The First Thing to Check: Power and the Adapter
If the switch has no lights at all, start with the power adapter. This is the single most common cause of a dead switch.
Unplug the adapter from the wall and from the switch. Look at the label on the adapter. It will tell you the output voltage and current.
Most Home Netwerks 7130 switches use a 5V or 12V DC adapter, typically rated at 1A or 2A.
Image source: Bing (Web (fair-use with source credit))
Now plug the adapter into a different wall outlet. Avoid power strips or surge protectors for this test. If the switch still shows no power, you need a multimeter.
Set the multimeter to DC voltage. Touch the probes to the center pin and outer barrel of the adapter's connector. If you get no reading or a reading significantly lower than the label says, the adapter is dead.
Replace the adapter with one that matches the voltage and current rating. Using a higher voltage adapter can damage the switch. Using a lower voltage adapter won't power it.
If the adapter tests fine but the switch still won't power on, the issue is inside the switch itself. The internal power regulation circuit may have failed. In that case, replacement is the only option.
Ports, Cables, and Link Lights: Diagnosing Connection Problems
Let's say the power LED is on but the port LEDs aren't lighting up. That means the switch has power but isn't detecting a connection.

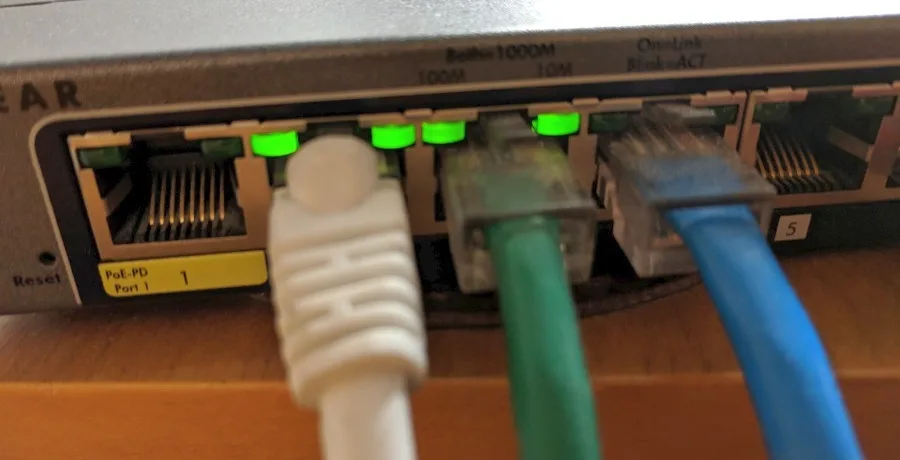

Start with the cable. Aggregate reviews report that loose or damaged Ethernet cables are the second most common cause of port issues. Check both ends of the cable.
Make sure the clip is intact and the connector is fully seated.
Image source: Bing (Web (fair-use with source credit))
Try a different cable. If you have a known-good cable, swap it in. If the port lights up, the original cable was the problem.
Now try a different port on the switch. The 7130 has 13 ports. If one port is dead but others work, that port has failed.
This is uncommon but possible. You can still use the other ports.
If no port lights up with any cable, the issue might be with the device on the other end. Plug a laptop or a known-good device directly into the switch. If the port lights up, the original device was the problem.
The link light should be solid green or amber. A blinking light means traffic is passing. A solid light with no blinking means the link is up but idle.
No light at all means no link.
When the Switch Seems Dead: Testing the Upstream Link
The switch can be working perfectly but still seem dead if the upstream connection is bad. The upstream link is the cable that connects the switch to your router.
Unplug the Ethernet cable from the uplink port on the switch. Plug it directly into a laptop. If you get internet access, the switch is the problem.
If you don't, the issue is with your router, modem, or ISP.
If the upstream cable is fine, plug it back into the switch. Then connect a laptop to another port on the switch. Check if you get internet access.
If you do, the switch is working. If you don't, the switch might have a bad uplink port.
Try a different port as the uplink. On an unmanaged switch like the 7130, any port can be used as the uplink. Port 1 is not special.
If the switch works with a different uplink port, the original port is dead.
A power cycle can also help. Unplug the switch from power. Wait 30 seconds.
Plug it back in. Wait for the LEDs to stabilize. Then test again.
Common Mistakes That Waste Your Time
People make the same mistakes over and over when troubleshooting this switch. Avoid these and you'll save yourself a lot of frustration.
| Mistake | Why It's a Problem | What to Do Instead |
|---|---|---|
| Skipping the power adapter test | The adapter is the most common failure point | Test with a multimeter or swap with a known-good adapter |
| Using a wrong power adapter | Wrong voltage can damage the switch | Match voltage exactly; current can be equal or higher |
| Blaming the switch for a bad cable | Cables fail more often than switches | Always test with a known-good cable first |
| Forgetting to test the upstream link | The router might be the problem | Bypass the switch and test the cable directly |
| Not power cycling the switch | A simple reboot fixes many issues | Unplug for 30 seconds, then plug back in |
Another common mistake is assuming the switch is dead because one port doesn't work. The 7130 has 13 ports. If 12 work, you have a bad port.
Not a dead switch. Just use a different port.
Finally, don't forget about the reset button. Some versions of the 7130 have a small reset hole. Press and hold it with a paperclip for 10 seconds.
This clears any internal glitch. It won't erase any settings because there are no settings to erase on an unmanaged switch.
When to Replace vs. When to Keep Trying: A Decision Guide
At some point you have to decide if the switch is worth saving. Here's the breakdown based on what you've found so far.
| What You Found | What to Do | Why |
|---|---|---|
| Power adapter is dead | Replace the adapter only | The switch itself is likely fine |
| Power adapter is good but switch has no power | Replace the switch | Internal power circuit failed |
| One port is dead, others work | Keep the switch | Use a different port. It's still functional |
| Multiple ports are dead | Replace the switch | Multiple failures mean the board is failing |
| Intermittent connection, power cycle fixes it temporarily | Replace the switch | Internal components are degrading |
| Switch works but speeds are slow | Try different cables first | If cables don't fix it, the switch may have a hardware fault |
| Switch has physical damage or burn marks | Replace the switch immediately | Safety risk. Do not use |
If the adapter is the problem, a replacement costs about $8 to $15. That's worth it. If the switch itself is dead, a new 13-port switch runs about $30 to $50.
At that price, repairs don't make sense.
Here's the simple rule. If you've tried a known-good adapter and a known-good cable and the switch still won't power on or pass traffic, it's time to replace it.
Don't spend hours chasing ghosts. The 7130 is an unmanaged switch. There are no hidden settings, no firmware updates, no secret reset combos.
It either works or it doesn't.
Frequently Asked Questions About the 7130 Switch
How do I reset my Home Netwerks 7130 switch?
Look for a small reset hole on the front or back panel. Insert a paperclip and hold for 10 seconds. This clears any internal glitch.
Since the switch is unmanaged, a reset won't erase any settings because there are no settings to erase.
What power adapter does the 7130 switch use?
Check the label on the switch itself. It lists the required voltage and current. Most Home Netwerks 7130 models use a 5V or 12V DC adapter rated at 1A or 2A.
The connector is a standard barrel plug. Match the voltage exactly. The current can be equal or higher.
Why is my 7130 switch not getting internet?
The switch itself doesn't "get" internet. It just passes traffic. If devices connected to the switch have no internet, the problem is upstream.
Test the cable from your router directly into a laptop. If you get internet, the switch is fine. If you don't, your router or modem is the issue.
Can I use a PoE injector with this switch?
No. The Home Netwerks 7130 is not a PoE switch. It does not send power over Ethernet cables.
Plugging a PoE injector into the switch won't damage it, but it won't power the switch either. The switch needs its own dedicated power adapter.
Does the 7130 switch support gigabit speeds?
Yes. All 13 ports on the Home Netwerks 7130 are Gigabit Ethernet ports. They support speeds up to 1000 Mbps.
To get gigabit speeds, make sure your cables are Cat5e or higher and your devices have gigabit-capable network ports.
