How To Align Cabinet Doors With Exposed Hinge

If you've ever tried to get a cabinet door to sit perfectly flush with its neighbor, you know it's a test of patience. Learning how to align cabinet doors with exposed hinge is the skill that saves you from calling a pro. A gap that's wider at the top than the bottom, a door that rubs against the frame, or a hinge that just won't sit flat are the frustrations that make you wonder if you need a professional.

The good news is that most alignment issues are fixable with a screwdriver and a few minutes of careful observation. The National Kitchen and Bath Association (NKBA) guidelines specify an acceptable reveal gap of 1/8 inch between cabinet doors. Anything outside that range needs adjustment.

The method is straightforward once you understand how the hinge works.

Quick Answer

To align cabinet doors with exposed hinges, start by diagnosing the gap. Loosen the hinge screws a quarter turn. Shift the door in the needed direction.

Tighten the screws while holding the door in place. Check the gap again.

Why This Is a Visual Job (And Why Text Alone Falls Short)

Image source: Bing (Web (fair-use with source credit))

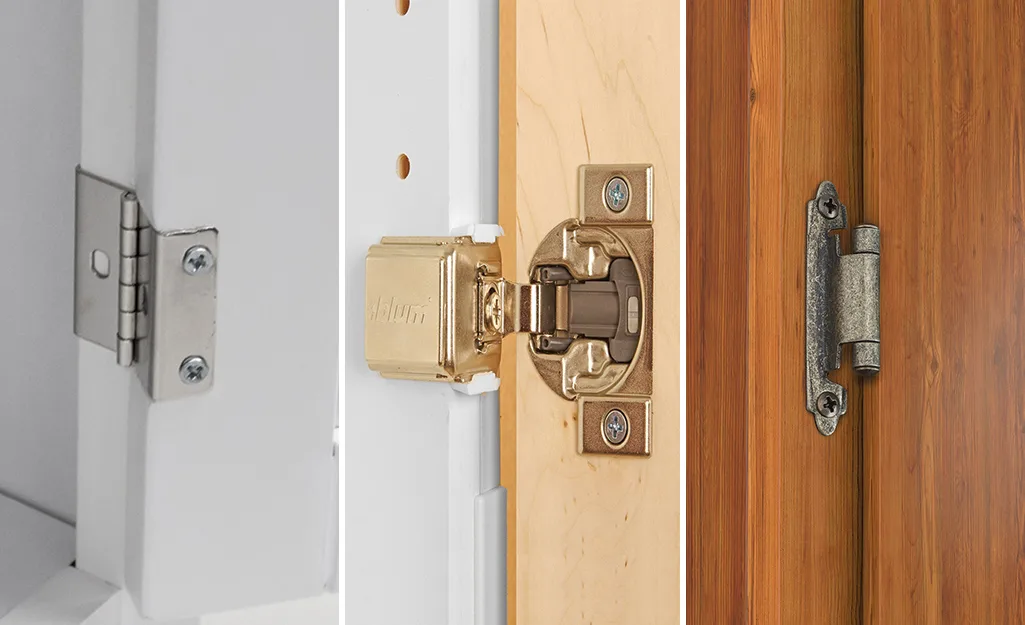

You can't fix what you can't see. That's the first rule of cabinet alignment. Generic advice like "loosen the screws and tap the door" ignores the fact that every misalignment has a specific visual signature.

A door that's tight at the top and loose at the bottom needs a different adjustment than one that's tight on the left and loose on the right.

Here's what you're actually looking for:

• Even gap around all four edges. The space between the door and the face frame should be consistent. Use a business card or a feeler gauge to check.
• No binding. The door should swing freely without scraping the frame. If you hear a rubbing sound, the hinge is pulling the door too close.
• Flush face. The front of the door should sit level with the adjacent door or cabinet face. A door that sticks out or sinks in needs hinge adjustment.

Manufacturer specs confirm that the typical adjustment range from slotted screw holes is ±1/16 inch. That's about the thickness of a dime. If your gap is off by more than that, you're likely dealing with a hinge that's been mounted incorrectly, not just a loose screw.

The most common reason DIYers fail is that they grab a screwdriver and start twisting without first looking at the gap pattern. They fix one side and break the other. A visual diagnosis takes thirty seconds and saves you a half hour of frustration.

How Exposed Hinges Actually Work

Image source: Bing (Web (fair-use with source credit))

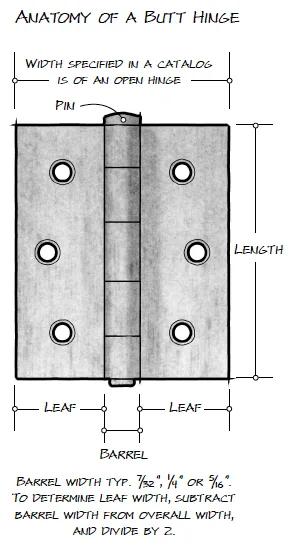

An exposed hinge has two leaves. The frame leaf screws into the cabinet face frame. The door leaf screws into the edge of the door.

A central pin called the knuckle connects them. When the hinge is properly aligned, both leaves sit parallel to each other. The door swings on a straight axis.

The key to understanding alignment is knowing how the screws lock the leaves in place. Most exposed hinges use slotted screw holes on at least one leaf. These slots let you shift the hinge slightly forward, backward, up, or down before tightening the screws.

Non-slotted holes are fixed. They hold the hinge in a precise position.

The knuckle itself is the pivot point. If the knuckle is bent or the pin is crooked, no amount of screw adjustment will fix the door. That's a hinge replacement job.

For 90% of alignment problems, the issue is in the leaf position, not the knuckle.

As of 2026, most residential cabinet hinges use #6 or #8 screws with a 1/2-inch to 5/8-inch length. Overtightening these screws strips the pilot hole in particle board or MDF. That's the most common cause of hinge failure.

Snug is enough. You don't need to torque them like a lug nut.

The 3-Step Fix (Before You Touch a Screw)

Image source: Bing (Web (fair-use with source credit))

Step 1: Diagnose the Gap Pattern

Stand directly in front of the cabinet door. Look at the gap between the door and the face frame on all four sides. Use a business card or a 1/8-inch feeler gauge as a reference.

There are three common patterns:

• Wedge gap (top wider than bottom, or vice versa). The hinge is pulling the door unevenly. Adjust the hinge leaf on the side that's tighter.
• Parallel gap that's too wide or too narrow. The entire door is shifted in one direction. Loosen both hinges and shift the door as a unit.
• Diagonal gap (one corner rubs, three corners are fine). The hinge is twisted or the door is warped. Try adjusting the hinge before assuming the door is bad.

Step 2: Loosen, Don't Remove

The partial turn rule is critical. Loosen the mounting screws on the hinge leaf you need to adjust by about a quarter turn. Do not remove them.

The screw should be loose enough that the leaf can shift. It should be tight enough that the leaf doesn't flop around.

For the frame leaf, loosen the top and bottom screws. For the door leaf, loosen the center screw first. The center screw is the anchor point.

It controls the hinge's pivot position.

Step 3: Tap, Shift, and Tighten in Sequence

Use a plastic mallet or a hammer with a block of wood to tap the hinge leaf gently in the direction you need it to move. Do not use a metal hammer directly on the hinge. It will mar the finish.

• Tap the frame leaf toward the cabinet to close a gap.
• Tap the door leaf away from the door to open a gap.
• After each tap, check the gap. Small adjustments. A 1/16-inch shift is visible.

Tighten the screws in this order. Center screw first. Then top.

Then bottom. This locks the hinge in its new position without pulling it out of alignment. If you tighten the top screw first, you risk tilting the hinge.

Common Visual Mistakes (And How to Spot Them)

The "One-Move" Trap

You fix a gap on the top edge. Suddenly the bottom edge is worse. That's the one-move trap.

It happens because adjusting one hinge changes the position of the entire door relative to the other hinge.

The fix is to adjust both hinges together. If you shift the top hinge, look at the bottom gap immediately. The door will pivot around the bottom hinge.

Adjust the bottom hinge to match.

Overtightening Screws

You tighten a screw "just a little more" to hold the hinge in place. That extra quarter turn strips the pilot hole in particle board. The screw no longer bites.

The hinge shifts again.

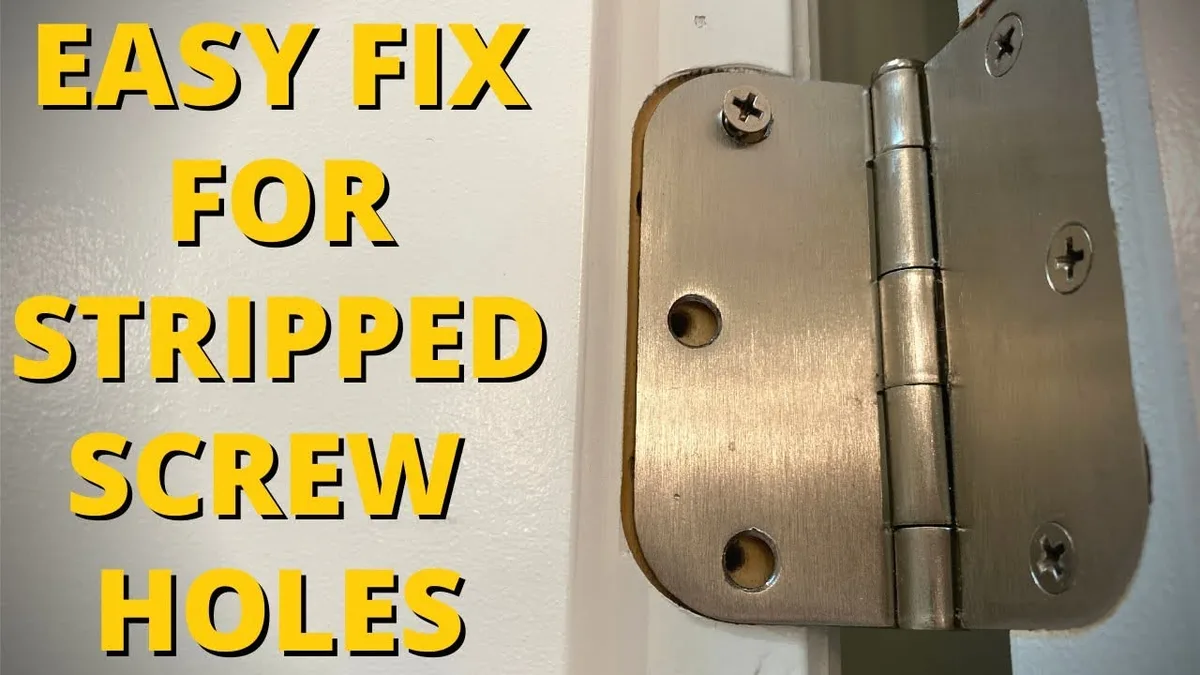

Signs of a stripped hole are the screw spinning freely, the hinge moving when you push on it, or the screw head sitting deeper than the others. The fix is to remove the screw, insert a toothpick or dowel with wood glue, and redrill the pilot hole. Let the glue dry before reinstalling.

Misreading the Gap Direction

A wedge gap that's wider at the top than the bottom looks like you need to lower the door. But the actual cause is often that the hinge is pulling the door too tight at the top. Loosening the top hinge and shifting it away from the cabinet opens the top gap.

The visual cue is simple. If the gap is a wedge, the hinge on the tight side is the one to adjust. Not the opposite hinge.

Ignoring the Second Hinge Interaction

You adjust one hinge. The gap looks perfect. Then you close the door and it doesn't latch.

The second hinge shifted the door's swing arc.

Always check the latch after any adjustment. The latch is the real-world test of alignment. If the latch doesn't engage, the door isn't aligned.

Even if the gap looks good.

Real Scenario: The Sagging Door

A sagging door is the most common complaint in cabinet alignment. It looks like the door is drooping at the bottom corner opposite the hinges. The gap at the bottom is wider than the gap at the top.

The first step is to determine which leaf is causing the sag. Open the door and look at the hinge leaves. If the frame leaf is sitting flush against the cabinet but the door leaf is tilted, the door leaf is the problem.

If the frame leaf is pulling away from the cabinet, the frame leaf is the problem.

The fix sequence:

• If the frame leaf is pulling away, loosen the frame leaf screws. Lift the door slightly. Retighten. This re-seats the leaf against the cabinet.
• If the door leaf is tilted, loosen the door leaf screws. Lift the door from the bottom corner. Tighten while holding it in place.
• If both leaves look fine, the hinge pin is bent. Replace the hinge.

For a stripped screw hole on the frame leaf, the temporary fix is to use a slightly larger screw. Go from a #6 to a #8. The permanent fix is to fill the hole with wood glue and a toothpick or a wooden golf tee.

Let it dry. Redrill.

The sagging door fix takes about 10 minutes for a first-timer. It takes 2 to 3 minutes for someone who's done it before. The key is patience.

Don't overtighten.

Questions People Ask About Exposed Hinge Alignment

Can I move the hinge location slightly?

Yes, but only if the screw holes are slotted. Slotted holes give you about 1/8 inch of play in one direction. If you need to move the hinge more than that, you have to drill new pilot holes.

Fill the old holes with wood glue and a toothpick or a wooden golf tee. Let it dry before drilling.

Do I need special tools for alignment?

No. A Phillips head screwdriver and a plastic mallet are all you need. A business card or a 1/8-inch feeler gauge helps with gap measurement.

A block of wood protects the hinge finish if you use a metal hammer. That's the full kit.

How do I prevent scratching the door or frame?

Wrap the screwdriver tip in masking tape or use a magnetic bit holder. The bit can slip and gouge the door edge. Also, place a piece of painter's tape on the hinge leaf before tapping it with a hammer.

The tape absorbs the impact and prevents marring the finish.

When should I replace the hinge instead of adjusting it?

Replace the hinge if the knuckle is bent, the pin is crooked, or the screw holes are completely stripped out. Also replace it if the hinge is rusted or the leaf is cracked. A bent hinge cannot be straightened.

Any attempt to force it will damage the door.

How do I fix a stripped screw hole?

Remove the screw. Dip a wooden toothpick or a golf tee in wood glue and insert it into the hole. Break it off flush with the surface.

Let the glue dry for at least 30 minutes. Then redrill a pilot hole and reinstall the screw. This works for particle board, MDF, and solid wood.

Final Quick-Reference Checklist

Tools You Need

Gap Diagnosis Cheat Sheet

• Wedge gap (top wider than bottom). The hinge is pulling the door tight at the bottom. Adjust the bottom hinge leaf.
• Wedge gap (bottom wider than top). The hinge is pulling the door tight at the top. Adjust the top hinge leaf.
• Parallel gap (too wide on one side). The entire door is shifted. Loosen both hinges and shift the door as a unit.
• Diagonal gap (one corner rubs). The hinge is twisted or the door is warped. Try adjusting the hinge first.

Adjustment Sequence Reminder

1. Loosen screws a quarter turn only. Do not remove them.
2. Tap the hinge leaf in the direction you need. Small adjustments.
3. Check the gap after each tap. Use your business card or feeler gauge.
4. Tighten the center screw first. Then the top and bottom screws.
5. Check the latch. If the latch doesn't engage, the door is not aligned.
6. Repeat for the second hinge if needed. Adjust both hinges together.

When to Call a Pro

Call a professional if the door is warped, the cabinet frame is out of square, or you have tried three adjustments and the gap is still off. A pro can plane the door edge or shim the hinge plate. Sometimes the fix is beyond a simple screw adjustment.
