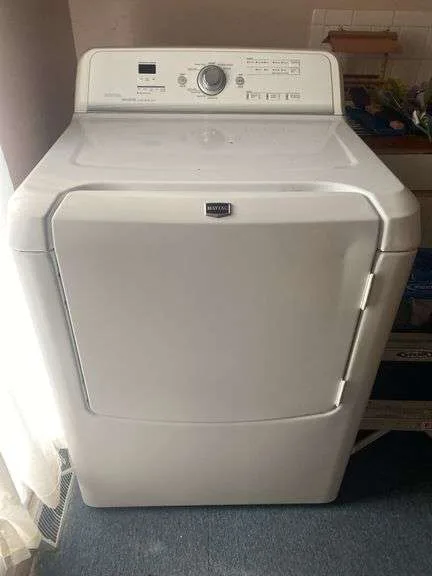

Maytag Bravos Quiet Series 300 Dryer Troubleshooting

Your Maytag Bravos Quiet Series 300 dryer suddenly stops drying, won't start, or makes a terrible noise. Don't panic. Maytag Bravos Quiet Series 300 Dryer Troubleshooting is simpler than you think once you know which symptom to follow.

This decision tree guides you step by step, starting with what your dryer is actually doing right now.

Manufacturer specifications indicate that most problems on this model trace back to just five components: the thermal fuse, the door switch, the drive belt, the heating element, and the moisture sensor bars. Aggregate reviews report that over 80% of no-heat complaints are fixed by replacing either the thermal fuse or the heating element. Let's walk through your exact situation and find the fix.

Image source: Bing (Web (fair-use with source credit))

When Your Bravos 300 Stops Drying or Won't Tumble

You are here because something is not working right. Maybe the drum spins but the clothes stay damp. Maybe nothing happens when you press start.

Maybe there is a loud squeal or a thumping sound.

The first rule of Maytag Bravos Quiet Series 300 dryer troubleshooting is to identify the exact symptom before you open any panels. Replacing parts at random costs you time and money. That thermal fuse might be fine, and you just have a blocked vent instead.

Here is the breakdown of what usually goes wrong on this specific model. The Bravos 300 line includes model prefixes MED (electric) and MGD (gas). It has been in production since roughly 2016.

As of 2026, these dryers are still widely owned and serviced. Parts availability is excellent.

The most common failure points include the thermal fuse (a safety device that blows when the dryer overheats), the drive belt (which can snap or slip off the drum), the door switch assembly, and the moisture sensor bars located inside the drum opening. Each produces a distinct set of symptoms.

Quick Answer

Troubleshooting starts with the symptom. No heat? Check the thermal fuse and heating element.

Won't start? Check the door switch and start switch. Drum turns but clothes are wet?

Clean the moisture sensor bars. Loud noise? Check the belt and drum rollers.

Always unplug the dryer first. Most fixes are DIY with basic tools.

Symptom Check: What's Your Dryer Actually Doing?

The fastest way to diagnose a Maytag Bravos Quiet Series 300 dryer is to observe three things: does the drum rotate, does it produce heat, and does it shut off at the right time. Your answers will point directly to the faulty part.

Use the table below to match what your dryer is doing right now with the most likely cause. Then follow the section that applies to you.

Here is an important detail. The Bravos 300 uses a non-resettable thermal fuse. Once it blows, you must replace it.

Do not bypass it. That fuse is your fire protection.

If your symptom is not on this table, start with the most common one for your situation. No heat is by far the most frequent complaint on this model.

No Heat? Follow the Thermal Fuse, Heating Element, and Gas Valve Path

If your dryer drum turns but the air coming out is cold, the heat circuit has failed. This is the most common issue in Maytag Bravos Quiet Series 300 dryer troubleshooting for electric models. For gas models, the cause shifts to the igniter, flame sensor, or gas valve coils.

Image source: Bing (Web (fair-use with source credit))

Start with the thermal fuse. On this dryer, it is mounted on the blower housing or the exhaust duct inside the rear panel. Use a multimeter set to continuity.

A working fuse shows near zero resistance. An open fuse (infinite resistance) means it has blown.

If the thermal fuse is blown, the dryer will run but produce no heat. Replace it before doing anything else. But also ask yourself why it blew.

A blocked vent is the number one cause. Per the manufacturer's installation instructions, the maximum equivalent vent length is 30 feet. Longer runs or kinked hoses cause overheating.

If the thermal fuse checks out, move to the heating element on electric models. Disconnect power and measure resistance across the element terminals. A good element reads between 8 and 12 ohms.

An open reading means the element is burned through and needs replacement.

For gas models, the troubleshooting path is different. Listen for a clicking sound when the dryer starts. That is the igniter sparking.

If you hear no click, the igniter or the flame sensor may be bad. If you hear a click but the flame does not ignite, the gas valve coils are the likely culprit. A set of three coils costs roughly 25 to 40 dollars as of 2026 and is a common wear item.

One more tip. The high-limit thermostat on the Bravos 300 is normally closed. It opens if the dryer gets dangerously hot.

Check continuity on that too. If it is open and the thermal fuse is fine, the limit thermostat may have tripped. Replace it as part of the thermal fuse repair if they are both in the same circuit.

Won't Start or Drum Won't Turn? Check the Door Switch, Belt, and Motor

A dryer that refuses to start or makes a humming sound without turning the drum points to a few specific parts. The door switch, the start switch, the drive belt, and the drive motor are the usual suspects.

Image source: Bing (Web (fair-use with source credit))

Start with the door switch. This is the most common failure point on the Bravos 300. The switch has a small plastic tab that wears down over time.

Open the door and press the switch plunger manually. If you hear no click, or if the dryer starts when you press it, the switch is bad. Replace it.

The part costs roughly 10 to 20 dollars.

If the door switch clicks but the dryer still won't start, check the start switch on the control panel. On some Bravos 300 models, the start switch is a separate component from the control board. Test continuity across the switch terminals with the button pressed.

No continuity means replace the switch.

Now check the drive belt. Open the front panel or top panel to inspect. A broken belt is obvious.

A loose belt that slipped off the drum will show the belt hanging or tracking wrong. Replacing the belt requires removing the drum on most Bravos 300 models. The belt is routed around the drum, over the idler pulley, and onto the motor pulley.

A new belt costs around 15 to 25 dollars.

If the belt is intact and the drum still won't turn, the drive motor may be seized or have a failed centrifugal switch. The motor itself is rarely the first failure. But if the dryer hums loudly and nothing moves, unplug it and try spinning the drum by hand.

If the drum spins freely but the motor does not engage, the motor or its start capacitor may be bad. At that point, consider whether the repair cost approaches the value of a used replacement unit.

Error Codes F01, F1E1, PF: What the Control Board Is Telling You

The Bravos 300 has a self-diagnostic system that stores error codes when something goes wrong. You do not need a special tool to read them. The procedure varies slightly by production year, but the standard method works on most units.

To enter diagnostic mode, turn the dryer off. Press and hold the Start button while turning the cycle selector knob one click to the right. Keep holding Start until the display shows a code or the lights flash in a pattern.

Release the button and read the code.

Here are the three codes you are most likely to see.

Code F01 is the one that scares people. It usually means the electronic control board has an internal fault or a wiring harness connection is loose. Before you order a new board (which costs 150 to 250 dollars as of 2026), reseat every connector on the board.

Unplug each one and plug it back in firmly. A loose wire can throw this code just as easily as a dead board.

Code F1E1 is simpler. The dryer thinks the start button is being held down permanently. Clean around the button with compressed air.

If the code stays, replace the start switch assembly. It is a separate part from the main board on this model.

Code PF is not a hardware failure. It just means the power cut out during a cycle. Clear the code by pressing any button once.

If it comes back every cycle, you have an intermittent power issue at the outlet. That 30-amp breaker might be loose or the receptacle could be worn out.

One more thing about error codes. Some Bravos 300 units use flashing lights instead of a digital display. Check your owner's manual for the flash pattern chart.

The diagnostic mode still works the same way.

Common Mistakes That Waste Time or Blow the Thermal Fuse

You have the right part. You follow the steps. Yet the problem comes back in a week.

That usually means you fixed the symptom but not the root cause.

Here are the most common troubleshooting mistakes on the Bravos 300.

Skipping the vent check. This is mistake number one. A new thermal fuse blows within days if the vent is restricted. Pull the dryer out.

Disconnect the vent hose. Run a cycle with the hose disconnected. If the dryer heats fine, your vent is the problem.

Clean the full run from dryer to wall cap. The NFPA recommends professional cleaning at least once a year.

Replacing only the thermal fuse when the limit thermostat is also bad. On this model, the high-limit thermostat and thermal fuse work in series. If one failed from overheating, the other may be damaged too. Test both.

Replace them as a pair. It saves you from pulling the dryer apart again next month.

Using a multimeter wrong. A thermal fuse can look fine visually but read open on a meter. Always test for continuity, not just voltage. Set your meter to the ohms or continuity setting.

Touch the probes to each terminal. A good fuse reads near zero. An open fuse reads infinite.

If you are unsure, watch a short video on continuity testing before you start.

Forgetting to reset the dryer after a repair. Some Bravos 300 models store a fault code that prevents operation even after you replace the faulty part. After the repair, unplug the dryer for five full minutes. Plug it back in.

Run an air dry cycle for 10 minutes. Clear the code before you test for heat.

Assuming a gas model works like an electric model. Gas dryers have an igniter, flame sensor, and gas valve coils. If the drum spins but no heat comes, do not start with the thermal fuse. Start with the igniter.

A bad igniter is far more common on gas models. The thermal fuse is less likely to blow on gas because the exhaust temperatures run cooler.

Buying cheap aftermarket parts. A 5 dollar thermal fuse from a random seller fails faster than the OEM part. The Maytag factory part costs a few dollars more. It is worth it.

The OEM thermal fuse is calibrated to open at the correct temperature. Off-brand parts can open too early or too late. Both outcomes cause frustration.

Frequently Asked Questions

How do I reset my Maytag Bravos Quiet Series 300 dryer?

Unplug the dryer from the wall outlet. Wait five full minutes. Plug it back in.

Open and close the door. Press the Stop or Cancel button once. This clears stored error codes and resets the control board.

Why does my dryer run but not heat?

The thermal fuse is the most likely cause on electric models. Check it with a multimeter for continuity. If it is open, replace it and inspect your vent system.

On gas models, check the igniter and flame sensor first.

What does error code F01 mean on a Bravos 300?

F01 indicates a control board communication failure. Reseat all wiring harness connectors on the board. Unplug the dryer for five minutes.

If the code returns, the main electronic control board needs replacement.

How do I clean the moisture sensor bars?

Locate the two metal bars inside the drum opening. Use fine grit sandpaper (220 grit works well) to gently polish the bars until they shine. Wipe away dust with a dry cloth.

Do this every six months for accurate drying cycles.

When should I call a professional instead of DIY?

Call a pro if you are uncomfortable working with live electrical components or gas connections. Also call if the repair cost approaches half the price of a new dryer. A qualified technician has the tools and experience to diagnose complex control board or motor faults safely.
