Rheem Water Heater Flashing Blue Light 7 Times

If you own a Rheem gas water heater and the blue light is blinking 7 times, you've hit a common but frustrating error code. The Rheem Water Heater Flashing Blue Light 7 Times pattern means the unit failed to ignite and locked itself out for safety. That blinking blue LED is your first clue.

Here's exactly what it means and how to fix it.

This error typically points to a flame sensor, thermopile, or gas supply issue. Per manufacturer specifications, the control board allows up to three ignition attempts before locking out for 30 to 60 minutes. Understanding that flash sequence saves you time and money.

It also keeps you out of danger.

Quick Answer

The 7-flash blue light means the water heater failed to ignite. It's a flame failure error. The control board locked the system to prevent gas buildup.

Turn off the gas and power first. Then try cleaning the flame sensor. If that doesn't work, test the thermopile voltage.

Replace parts only after proper diagnosis.

What Does the Blue Light Blinking 7 Times Mean?

Image source: Bing (Web (fair-use with source credit))

The Quick Answer Before You Panic

The 7-flash code means your Rheem gas water heater tried to light but didn't detect a stable flame. This triggers a safety lockout. The blue LED repeats seven short flashes, pauses, then repeats.

You'll see this when the water heater has no hot water or the pilot won't stay lit.

How the Diagnostic System Works on Rheem Gas Water Heaters

Rheem uses a Honeywell electronic gas control valve on most gas models built after 2010. The control board monitors ignition step by step. It opens the pilot gas valve, then the igniter sparks.

If the flame sensor doesn't send back a "flame present" signal within a few seconds, the board shuts everything down and flashes error code 7.

Why This Code Is Actually the Safety System Doing Its Job

That blinking light is a good sign. It means the safety logic is working. The worst-case scenario would be a gas valve that stays open without a flame.

That could cause an explosion. Locking out and flashing the error prevents that hazard. Thank the light, then get to work.

The Main Culprits Behind the 7-Flash Error

Image source: Bing (Web (fair-use with source credit))

Dirty or Faulty Flame Sensor

The flame sensor is a small metal rod that sits in the pilot flame. Over time it builds up carbon or soot. This happens especially if your gas burn is slightly yellow or you have hard water.

A dirty sensor stops conducting the tiny electrical current that tells the board a flame exists. Cleaning it with fine steel wool or a green scouring pad fixes about 60% of 7-flash errors.

Failing Thermopile (Standing Pilot Models)

If your Rheem uses a standing pilot (not spark ignition), the thermopile generates millivolts to hold the pilot valve open. When the thermopile ages, its output drops below 400 millivolts. The pilot may light but won't stay lit.

The board reads that as flame failure. A quick multimeter test confirms this. Replace the thermopile if it reads under 300 mV.

Air in the Gas Line or Low Gas Pressure

After a new installation, a gas meter shutdown, or a long period of disuse, air can get trapped in the gas line. The gas valve opens but gets mostly air. No flame results.

The board tries a few times, fails, and flashes 7 times. This is common after utility work. Purging the line by bleeding at the water heater connection usually clears it.

Aging Honeywell Gas Valve or Control Board

Less commonly, the solenoid inside the gas valve itself fails. This is often the culprit on units over 8 to 10 years old. If you've cleaned the sensor, tested the thermopile, and purged the line, and the 7-flash still returns, the gas valve may need replacement.

This repair is best left to a licensed plumber. It involves gas line work and often voids the warranty if done DIY.

Step-by-Step Troubleshooting Guide (DIY Safe)

What You'll Need: Tools and Test Equipment

• Multimeter (digital, capable of reading DC millivolts)
• Fine steel wool or a green scouring pad
• Screwdriver set (usually Phillips and flathead)
• Adjustable wrench
• Owner's manual or Rheem's online model lookup

Step 1: Shut Off Power and Gas Safely

Before you touch anything, turn the gas control valve to OFF. Unplug the water heater from the wall outlet or flip the circuit breaker. Even though the control board runs on low voltage, the power supply can be 120V.

Safety comes first.

Step 2: Locate and Read the Diagnostic LED Correctly

Remove the lower access panel (usually two Phillips screws). Pull back the insulation. You'll see a small circuit board with a blue LED.

Turn the gas back on briefly to power the board (or plug it back in). Watch the LED. Count the flashes.

Seven equal-length flashes, a long pause, then seven again. That's code 7.

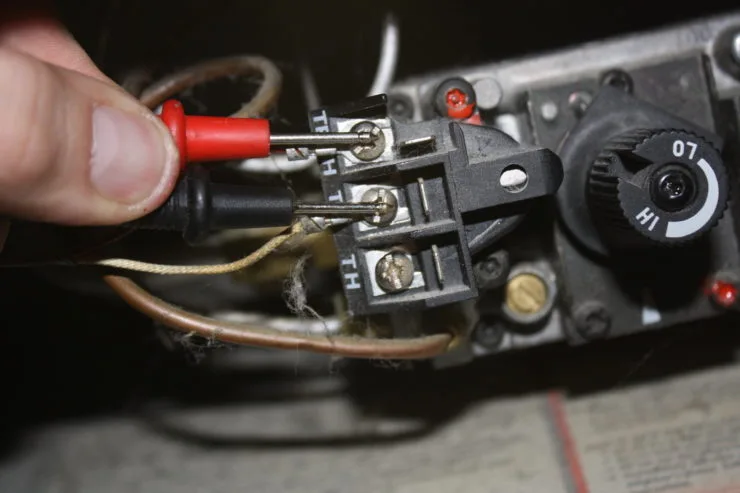

Step 3: Test the Thermopile Voltage with a Multimeter

If you can keep the pilot lit manually, measure DC millivolts across the thermopile terminals. A good reading is 400 to 800 mV. Below 300 mV, the thermopile is weak and needs replacement.

If you can't get the pilot to stay lit at all, skip ahead to step 4.

Step 4: Remove, Clean, and Reinstall the Flame Sensor

Locate the flame sensor rod near the pilot assembly. It's usually held by one screw. Carefully pull it out.

Gently rub the rod with fine steel wool or the green side of a sponge until it's shiny clean. Reinstall it tightly. This removes carbon buildup that blocks the electrical signal.

Step 5: Purge Air from the Gas Line and Reset the Control Board

If you suspect air in the line, disconnect the gas line at the water heater (use two wrenches, hold the valve steady). Briefly crack the nut to let a small burst of gas escape outside or in a well-ventilated area. Tighten it back up.

Then press and hold the reset button on the gas valve for 10 seconds.

Step 6: Reassemble, Relight, and Verify with a Second Code Read

Replace the access panel and insulation. Turn the gas back on. Follow the lighting instructions on your unit (usually printed on the gas valve).

Listen for the igniter to spark and the pilot to light. Then watch for the main burner to come on within 10 to 15 seconds. Wait 5 minutes, then recheck the LED.

If you still see 7 flashes, move to the next section.

When It's Not the Sensor: Wiring, Venting, and Control Board Issues

Image source: Bing (Web (fair-use with source credit))

Loose or Corroded Wiring Connections

The thermopile and flame sensor connect to the gas valve via two small wires. Over time, these can corrode at the terminal ends. Check for green or white corrosion.

Make sure the wire nuts or spade connectors are snug. A loose connection can give the same symptoms as a bad sensor.

Blocked Venting and Carbon Monoxide Risks

If the water heater vent is partially blocked by a bird nest, debris, or improper installation, flue gases can't escape. This starves the pilot and burner of oxygen. The flame becomes unstable or goes out, triggering the 7-flash code.

If you suspect a block, do not run the unit. Have a professional inspect the vent system. Carbon monoxide poisoning is a real danger.

The National Fire Protection Association (NFPA) provides venting safety standards for gas appliances.

Signs the Gas Valve Itself Is Failing

A failing gas valve may make a clicking sound but produce no gas. Or it may open but close immediately. If you've done all the steps above and still get 7 flashes, the valve likely needs replacement.

This is not a DIY job for most homeowners. A licensed plumber can test gas pressure and replace the valve correctly.

Common Mistakes That Make the Problem Worse

A quick wipe with a rag won't remove hard carbon. Use abrasive. Another mistake is resetting the board without fixing the root cause.

This just cycles the lockout. Never bypass the safety system or tape over the reset button. That's how explosions happen.

Should You Fix It Yourself or Call a Plumber?

Cost of Repairs: Parts vs. Labor

How to Decide: Age, Warranty, and Your Comfort Level

If the unit is under warranty (typically 6 years for parts), let a pro handle gas valve work to keep the warranty valid. If it's over 10 years old, repair may cost more than a new water heater. Per Rheem's own documentation, a flame sensor clean or thermopile replacement is considered user-serviceable.

Anything beyond that is professional territory.

Replacing vs. Repairing: The 10-Year Rule of Thumb

A gas water heater's average lifespan is 10 to 12 years. If yours is over 10 and you're facing a gas valve replacement, buying a new unit is usually smarter. The new one will be more efficient, have a fresh warranty, and likely cost less than two repair visits.

Avoiding Unnecessary Replacements and Unnecessary Service Calls

Many homeowners replace the whole water heater when a $20 thermopile or a 5-minute cleaning would have fixed it. On the other hand, if you keep calling a plumber for the same 7-flash error, the gas valve is likely the root cause. Keep a repair history to make smarter decisions.

Safety Warnings: When to Stop and Walk Away

If You Smell Gas: Evacuate and Call the Utility

That rotten egg odor means mercaptan has been added to the gas supply. Do not ignore it. Leave the house immediately.

Do not flip any light switches or use your phone inside. Call the gas company from outside. A 7-flash lockout prevents gas from flowing, but a cracked valve or loose fitting can still leak.

Repeated Lockout Cycles and Explosion Risk

If your heater locks out three times in a row within an hour, stop resetting it. Each failed ignition releases a small burst of gas into the combustion chamber. That gas can build up.

If the spark igniter fires while a pocket of gas is present, you risk a flash fire or explosion. Do not keep cycling the system hoping it will catch.

Carbon Monoxide Symptoms and Venting Red Flags

A blocked vent can push carbon monoxide into your living space. Watch for headaches, dizziness, nausea, or confusion in anyone near the water heater area. If those symptoms appear when the heater runs, leave the building and call 911 from outside.

Then have a professional inspect the venting system before using the heater again.

When Warranty and Local Codes Require a Licensed Professional

Rheem's warranty often requires professional installation and repair for gas valve or control board work. Some local building codes also mandate a licensed plumber for any gas line repairs. A $150 diagnostic fee is cheaper than voiding a warranty or causing a gas leak that endangers your family.

Frequently Asked Questions

Will the 7-flash code reset itself?

Yes. Most Rheem control boards automatically exit lockout after 30 to 60 minutes. The unit then attempts a new ignition cycle.

But the error will return if the root cause hasn't been fixed.

How long does the control board stay in lockout?

Newer Rheem models typically lock out for 30 minutes. Older units may stay locked for 60 minutes. You can manually reset by turning the gas control valve to OFF for 30 seconds, then back to ON or PILOT.

Does this code mean I have a gas leak?

No. The 7-flash code means the burner failed to light. It does not indicate a gas leak.

However, if you smell gas during repeated lockouts, treat it as a leak and evacuate immediately.

Can a power outage cause this error on Rheem water heaters?

Not directly. Power loss doesn't cause flame failure. But a power surge during an ignition cycle can confuse the control board and trigger a false error.

Unplugging the unit for 30 seconds after a power outage usually clears transient glitches.

How often should the flame sensor be cleaned?

Once per year as part of routine maintenance is ideal. If you have hard water or dusty air, clean it every six months. A clean sensor prevents most 7-flash errors before they ever start.

The Bottom Line: A Decisive Plan of Action

Simple Fixes vs. Complex Repairs vs. Professional Callout

If the 7-flash code appears, start with the cheapest fix first. Clean the flame sensor. That solves roughly 60% of cases.

If that fails, test the thermopile with a multimeter and replace it if it reads below 400 mV. If the code returns after both steps, call a licensed plumber to inspect the gas valve and venting.

The One-Paragraph Summary for the Most Common Scenario

You find no hot water. The blue LED on your Rheem water heater flashes seven times. Turn off the gas and power.

Remove the flame sensor and clean it with fine steel wool. Reinstall it and relight the pilot. Nine times out of ten, that's the only fix needed.

If the code comes back, test the thermopile voltage. If it's under 300 mV, replace the thermopile. For anything beyond that, call a professional.

It's safer than guessing. It's cheaper than a new water heater.
