Badger 5xp Garbage Disposal Troubleshooting
Your Badger 5xp is making that awful humming noise again, isn't it? Or worse, it's completely silent and your sink is filling up with water. Badger 5xp garbage disposal troubleshooting doesn't have to mean calling a plumber or running to the hardware store for a replacement.
Most common problems have a straightforward fix you can handle in under ten minutes with nothing more than a hex key and a little patience.
Manufacturer specifications indicate these units run on a 1/2 HP motor that spins at roughly 1725 RPM under load. That's plenty of power for everyday kitchen scraps, but it also means the flywheel can jam when something too hard gets in there. Let's walk through what's actually happening and how to get your disposal working again.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
Most Badger 5xp problems fall into three categories. A humming noise means the flywheel is jammed. Complete silence means an electrical issue.
Water leaking from the bottom means a failed seal.
Check the red reset button on the bottom of the unit first. If it's popped out, press it in firmly. Test the unit.
If it still hums, grab a 1/4-inch hex key and rotate the flywheel manually from the center hole underneath. That clears nine out of ten jams.
If you get no sound at all, check the wall switch and the circuit breaker. One of those is usually the culprit. The full process takes about five minutes and costs nothing.
Let's dig into each scenario.
The First Check: Reset Button and Circuit Breaker
Image source: Bing (Web (fair-use with source credit))

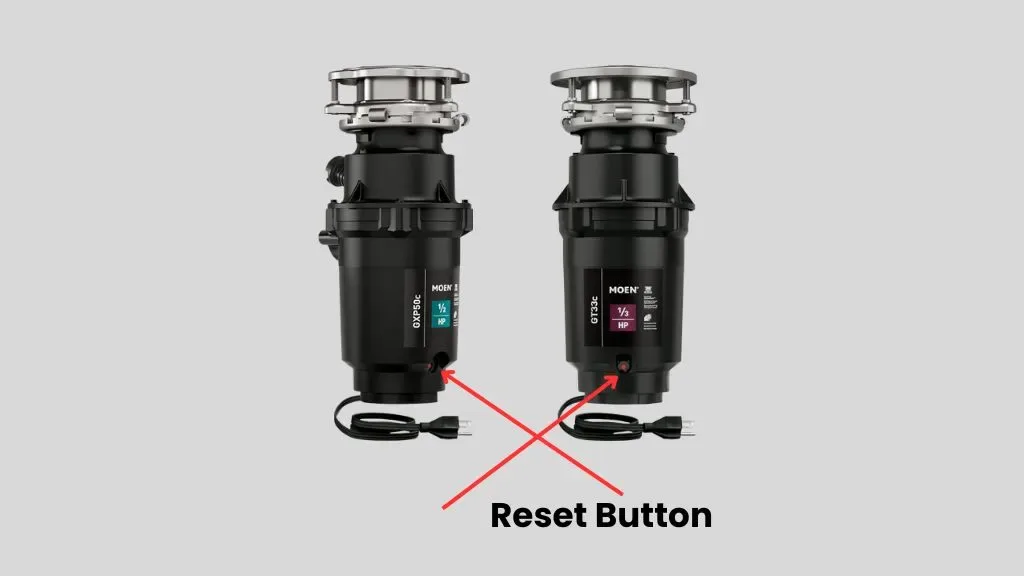

Every Badger 5xp has a small red button on the bottom of the unit. That's the thermal overload reset. It pops out when the motor gets too hot from a jam or from running too long without water.
Press it and see what happens. If the button is already flush with the housing, the thermal protector hasn't tripped and your problem is elsewhere. If it's popped out by even a millimeter, push it in until you feel it click. Then run cold water and flip the switch.
If the disposal starts, you're done. The motor overheated and the reset fixed it.
If the reset button won't stay pressed, you have a more serious issue. The motor may be burned out or there could be a short inside the unit. Don't keep forcing the button.
Move on to the manual jam check in the next section.
The wall switch is the next stop. Flip it off and on a few times. Switches wear out after years of use, especially in kitchens where they get splashed. If the disposal hums but doesn't spin, the switch is fine.
If there's no sound at all, the switch could be dead. You can test it with a multimeter if you have one, or just replace it. They cost about five dollars.
Finally, check the circuit breaker panel. Garbage disposals typically share a circuit with the dishwasher or countertop outlets. Look for a breaker that's tripped to the middle position. Flip it fully off, then fully on.
Go back and test the disposal. If it trips again immediately, you've got a short somewhere and should call an electrician.
The Humming Problem: Jammed Flywheel Fix
Image source: Bing (Web (fair-use with source credit))
That humming sound means power is reaching the motor but the flywheel won't turn. Something is wedged between the spinning plate and the grind ring. This is the most common Badger 5xp issue, and it's the easiest to fix.

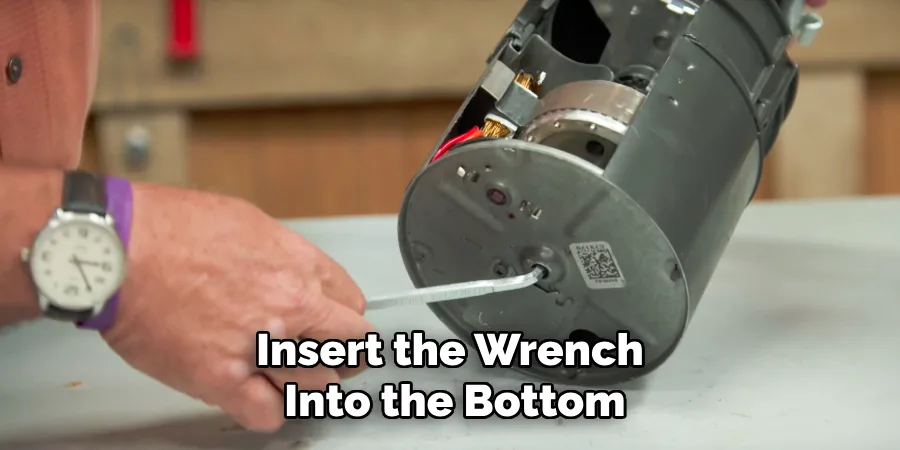

You need a 1/4-inch hex key. That's the standard size for InSinkErator disposals. If you don't have one, they cost about three dollars at any hardware store. The Badger 5xp doesn't come with one in the box, but many homeowners have one in a tool drawer.
Follow these steps exactly:
Kill the power. Unplug the disposal if you can reach the cord under the sink. If it's hardwired, flip the circuit breaker off. Never stick anything into the disposal with the power on. This is non-negotiable.
Find the hex key hole. Look at the bottom center of the disposal. There's a small circular opening. That's where the shaft of the motor connects to the flywheel. Insert the hex key all the way in.
Rock it back and forth. You'll feel resistance. Wiggle the hex key in both directions. You're trying to dislodge whatever is jammed between the flywheel and the grind ring. Keep working it until the flywheel rotates freely through a full 360 degrees.
Remove the hex key. Pull it straight out. Don't leave it in there. It will spin with the motor and damage the unit.
Restore power and test. Plug the disposal back in or flip the breaker on. Run cold water. Hit the switch. If the disposal runs normally, the jam is cleared. Run water for another 30 seconds to flush out whatever caused the jam.
If the hex key won't turn at all, you may have a seized motor bearing. That's rare, but it happens. The disposal needs replacement.
Same thing if you can turn it freely but the motor still hums. The internal centrifugal switch may be stuck, and that's not a user-serviceable part.
The Silent Problem: Dead Unit or Electrical Issue
A disposal that makes no sound at all is frustrating because you don't have a clear symptom to work from. But the diagnosis is actually simpler than a jam. Power isn't reaching the motor.
Period.
Start with the easy stuff. The wall switch is the most common failure point. Kitchen switches get greasy and worn. Toggle it a few times and listen.
If you hear a click but the disposal stays silent, the switch is suspect. Replace it. A basic single-pole switch costs about two dollars and takes ten minutes to swap.
Next, check for a tripped GFCI outlet. Many modern kitchens have GFCI protection on countertop circuits. If a countertop outlet near the sink has tripped, it could also cut power to the disposal. Look for outlets with "Test" and "Reset" buttons.
Press the Reset button. Then test the disposal.
Test the disposal's power cord. If your Badger 5xp has a plug under the sink, check that it hasn't been knocked loose. People store cleaning supplies under sinks and sometimes bump the cord. Push it in firmly.
If the unit is hardwired, you'll need to check the wire connections inside the junction box. Turn off the breaker first, then remove the cover plate and look for loose or burned wires.
Listen for a faint hum. Put your ear close to the disposal body. If you hear the tiniest electrical hum, the motor is getting power but can't start. That points back to a jam.
Go grab the hex key and try the jam fix even if the unit seems dead. Sometimes the jam is so tight the motor can't even hum.
If none of this works, the motor winding may be burned open. That's a replacement situation. As of 2026, a new Badger 5xp runs about $60 to $85, so replacement is rarely worth debating.
The Leaking Problem: When Water Comes From Below
Water pooling under the sink is a different kind of trouble. The disposal itself may not be broken in the sense of a motor failure, but a leak means something has failed mechanically.
Know where the leak is coming from. Wipe everything dry, then run water through the disposal and watch. The leak could be from three places. The top flange where the disposal connects to the sink.
The side hose connections. Or the bottom of the disposal body itself.
Top flange leaks usually mean the mounting gasket has failed. The Badger 5xp uses a three-bolt mount system. You can try tightening the mounting ring with a screwdriver, but if the rubber gasket is cracked, you'll need a replacement.
InSinkErator sells a mounting gasket kit for about $12.
Side hose connections are the easiest fix. The dishwasher drain hose connects to a small nipple on the side of the disposal. If that connection is loose, tighten the hose clamp.
If the nipple itself is cracked, you can't replace just that part. You need a whole new disposal.
Leaks from the bottom of the unit are bad news. There's a seal where the motor shaft enters the grind chamber. When that seal fails, water seeps down into the motor housing.
You'll see rusty water dripping from the center bottom of the unit. That seal is not replaceable on a Badger 5xp. The unit must be replaced.
One more thing to check. Sometimes what looks like a disposal leak is actually a leak from the sink drain pipe above the disposal. The slip nuts on the PVC pipe can loosen over time. Tighten them by hand.
If the leak stops, you saved yourself a disposal replacement.
Fixes That Don't Work (And a Few That Do)
You'll find plenty of advice online. Some of it works. Some of it will waste your time or damage your disposal.
Let's separate the helpful from the harmful.
Do not use drain cleaner chemicals. Liquid drain cleaners like Drano or Liquid-Plumr can damage the rubber seals inside the disposal. The chemicals don't help with jams anyway, they're designed for organic clogs in pipes, not for freeing a stuck flywheel. Stick to the hex key method.
Do not stick a broom handle or wooden spoon into the disposal. This is a common hack people suggest. The idea is to manually rotate the flywheel from above. The risk is breaking the splash guard or damaging the grind ring.
Use the hex key from below. That's what it's designed for.
Do not run the disposal without water. The water cools the motor and flushes ground food through the drain pipe. Running it dry overheats the motor and can trip the thermal reset. Always run cold water for 15 seconds before and after grinding.
Do use ice cubes for cleaning. Drop a handful of ice cubes into the disposal while running cold water. The ice helps dislodge grease buildup and sharpens the blades slightly. Follow with lemon or orange peels for a fresh smell.
Do check the drain pipe if water backs up. A slow-draining sink isn't always a disposal problem. The drain pipe downstream of the disposal may be clogged. Disconnect the P-trap and clean it out.
That's a separate fix from the disposal itself.
Do replace the splash guard if it's worn. The rubber baffle at the top of the disposal opening can get stiff or torn. A worn splash guard lets food splatter back up and reduces grinding efficiency. Replacement baffles cost about $8 and snap into place.
Step-by-Step Decision Guide: What to Do Right Now
Here's a simple flow to follow based on your symptom. Don't guess. Follow the logic.
Symptom: Humming noise, no spin
- Press the reset button on the bottom of the disposal.
- If it starts, you're done. If it still hums, move to step 3.
- Kill power to the disposal. Unplug it or flip the breaker.
- Insert a 1/4-inch hex key into the center hole on the bottom.
- Rock it back and forth until the flywheel spins freely.
- Remove the hex key. Restore power. Run cold water and test.
Symptom: No sound at all
- Check the wall switch. Toggle it firmly.
- Check the circuit breaker panel. Reset any tripped breakers.
- Check for a tripped GFCI outlet on the countertop. Press Reset.
- Check the disposal's power cord. Make sure it's plugged in.
- Listen for a faint hum. If you hear one, go back to the jam fix.
Symptom: Water leaking from the bottom
- Wipe everything dry. Run water and identify the leak source.
- If the leak is at the top flange, tighten the mounting ring or replace the gasket.
- If the leak is at the side hose connection, tighten the hose clamp.
- If the leak is at the bottom center of the unit, replace the disposal. The seal is not repairable.
Symptom: Disposal won't drain
- Turn off the disposal. Fill the sink with a few inches of water.
- Turn the disposal on while running cold water. The suction often clears minor clogs.
- If that doesn't work, disconnect the P-trap and clean it out.
- Check the drain line for a blockage. Use a plumber's snake if needed.
When to Replace Instead of Repair
The Badger 5xp is an entry-level disposal. It costs between $60 and $85 as of 2026. That low price changes the math on repairs.
Sometimes it makes more sense to replace than to keep fixing.
Replace if the motor is burned out. If the reset button won't stay pressed and the manual jam fix doesn't help, the motor windings are likely damaged. A replacement motor costs more than a whole new disposal. Just swap it out.
Replace if the bottom is leaking. The seal between the motor and grind chamber is not serviceable on the Badger 5xp. Once that seal fails, water reaches the motor bearings. The unit will fail soon anyway.
Replace it now before the leak gets worse.
Replace if the unit is more than 10 years old. The average lifespan of a Badger 5xp is 5 to 10 years with normal use. If yours is older and has a problem, it's time. Newer models are quieter and more efficient.
Repair if the jam is simple. A stuck flywheel is not a sign of a dying disposal. It happens to every unit eventually. Use the hex key and move on.
No need to replace a perfectly good disposal over a chicken bone.
Repair if the leak is from the top flange or hose connection. Those are simple gasket and clamp fixes. They cost a few dollars and take minutes. Don't replace the whole unit for a loose hose clamp.
One final note. If you do replace the disposal, stick with the same mounting system. The Badger 5xp uses InSinkErator's EZ mount. Any new InSinkErator disposal will fit the existing mounting ring.
You don't need to replace the sink flange or the mounting hardware. That saves about 20 minutes of installation time.
Frequently Asked Questions
Why is my Badger 5xp humming but not spinning?
A humming sound means the motor is getting power but the flywheel is jammed. Turn off the power, insert a 1/4-inch hex key into the center hole on the bottom, and rock it back and forth until the flywheel rotates freely. That clears the jam.
Where is the reset button on a Badger 5xp?
The reset button is on the bottom of the disposal. It's a small red button. If the motor overheated, the button pops out.
Press it in firmly until it clicks. Then test the disposal with cold water running.
How do I manually turn a Badger 5xp disposal?
Kill the power first. Look at the bottom center of the disposal for a small hexagonal hole. Insert a 1/4-inch hex key all the way in.
Rock it back and forth in both directions until the flywheel spins freely. Remove the hex key before restoring power.
Why is water leaking from the bottom of my Badger 5xp?
A leak from the bottom center means the internal seal has failed. That seal keeps water out of the motor housing. It is not replaceable on the Badger 5xp.
You need to replace the entire disposal unit.
Can I replace a Badger 5xp without changing the sink mount?
Yes. The Badger 5xp uses InSinkErator's EZ mount system. Any new InSinkErator disposal will fit the existing mounting ring.
You do not need to replace the sink flange or the mounting hardware.
How long does a Badger 5xp garbage disposal last?
With normal household use, the Badger 5xp lasts 5 to 10 years. Running it with cold water every time, avoiding bones and fibrous foods, and cleaning it with ice cubes helps extend its lifespan.
