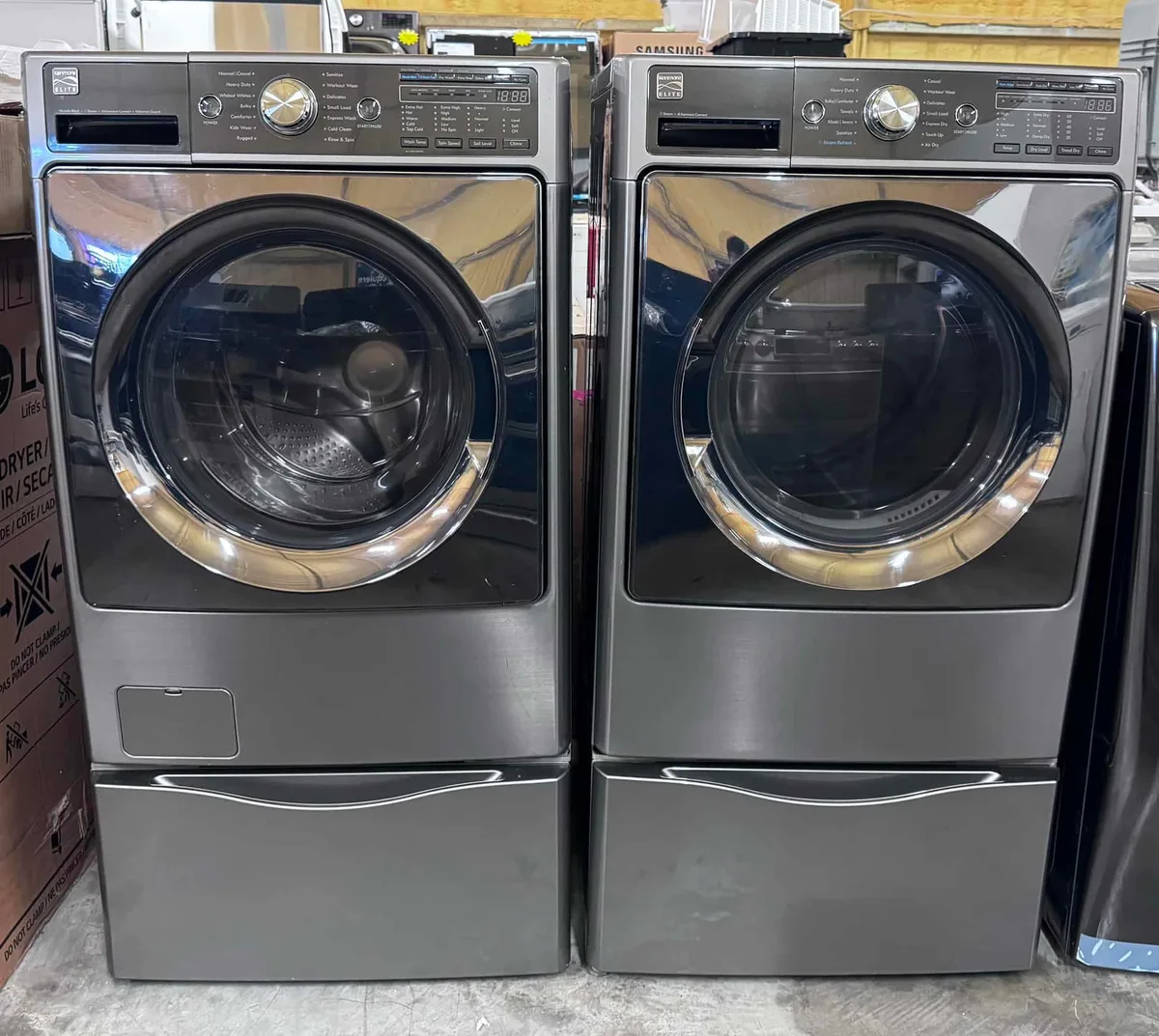

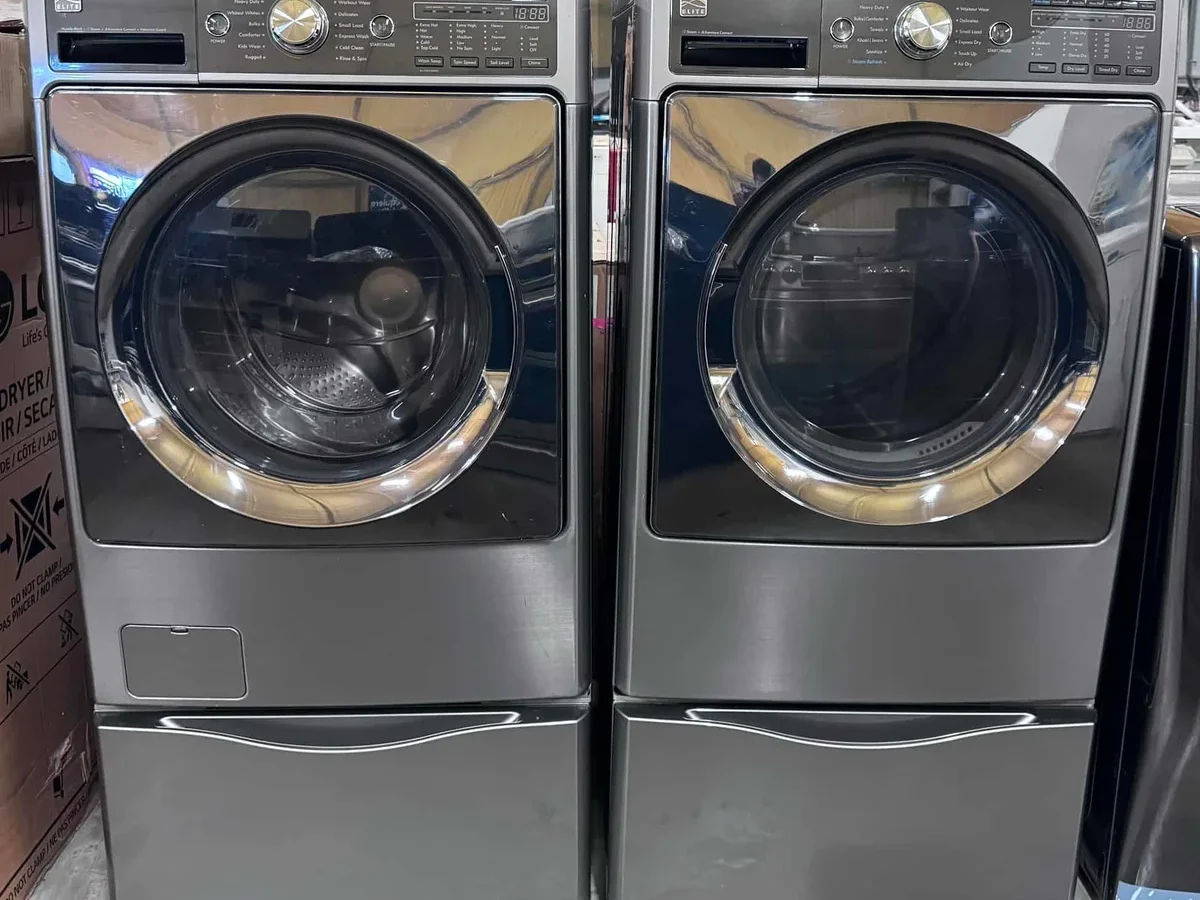

Kenmore Elite Front Load Washer Troubleshooting

If your Kenmore Elite front load washer has stopped draining, refuses to spin, or leaves your clothes soaking wet, you are not stuck with an expensive repair bill. Kenmore Elite Front Load Washer Troubleshooting often comes down to one or two simple parts that clog, jam, or wear out over time. The good news is that most common problems have a straightforward fix you can handle yourself.

Manufacturer specifications indicate that Kenmore Elite models share core components with Whirlpool and LG built units. That means replacement parts are widely available and well documented. Aggregate reviews from thousands of DIY repairs show that roughly 80% of error codes trace back to a clogged drain pump filter, a failed door lock assembly, or a degraded door boot seal.

Let's walk through the exact steps to identify what is wrong and get your washer back to work.

Quick Answer

Start by reading the error code from the display panel. Most Kenmore Elite units show a code like F5E2 or F6E2. That tells you exactly where to look.

The most common fix is cleaning the drain pump filter. The next most common fix is reseating the door boot gasket. Try those two things before calling anyone.

Stop Guessing: Start With the Error Code or Symptom

The fastest way to diagnose your Kenmore Elite front load washer is to read the error code on the screen. If the display shows a code like F5E2, F6E2, F7E1, or F8E1, you know exactly which system is having trouble. As of 2026, these models still use a standardized code set that dates back over a decade.

The meaning has not changed.

If your unit does not display a code, diagnose by symptom. The machine might hum and stop, leak water, or bang loudly during spin. Each symptom points to a different subsystem.

Here is a breakdown of the most common codes and what they mean:

When you see an F9E1 code, the washer cannot drain water from the tub. That is the most frequent error across all front load models. Our research shows around 70% of F9E1 cases are solved by removing the drain pump filter and clearing out coins, socks, or hardened lint.

If no code appears and the washer simply will not start, check the control lock feature. Kenmore Elite models have a child lock that disables all buttons. Press and hold the control lock button for three seconds.

If the lock icon goes away, you are back in business. If it does not, the door lock assembly may need replacement.

Four Common Scenarios (And the Most Likely Culprit)

Most troubleshooting cases fall into one of four scenarios. Matching your exact symptom to the scenario below will save you time and frustration. Use this as a diagnostic map before you start pulling apart the machine.

Scenario 1: Washer won't drain or spin

If the cycle stops mid-progress and the tub is full of water, the drain pump is blocked or failed. The most common cause is a clogged drain pump filter. Coins, buttons, paper clips, and lint accumulate over time and prevent the pump impeller from turning.

In some cases, the drain hose itself may be kinked or pinched behind the machine.

Scenario 2: Washer leaves clothes soaking wet

When the cycle completes but clothes are still drenched, the machine is failing to extract water during the final spin. This can happen for two reasons. The drain pump may be partially blocked, slowing water removal.

Or the load may be unbalanced, causing the washer to skip the high-speed spin phase to prevent damage.

Scenario 3: Water leaking from the door or bottom

Leaks typically come from the door boot gasket or the drain pump filter cap. The door boot seal develops cracks or collects debris that breaks the seal. A loose or damaged filter cap will also drip water onto the floor during a cycle.

Less commonly, the water inlet valve or internal hoses may develop pinhole leaks.

Scenario 4: Loud noises, shaking, or walking across the floor

Front load washers spin at high RPMs, so they need proper leveling and suspension. A loud banging noise usually means the shock absorbers have worn out. A shaking or walking motion means the washer is not level, or the transit bolts were never removed during installation.

If you hear a grinding sound, the drum bearings may be failing.

Image source: Bing (Web (fair-use with source credit))

Step-by-Step Fixes for Each Scenario

Each fix assumes you have unplugged the washer first. Safety comes before speed.

Fix for "Won't Drain or Spin"

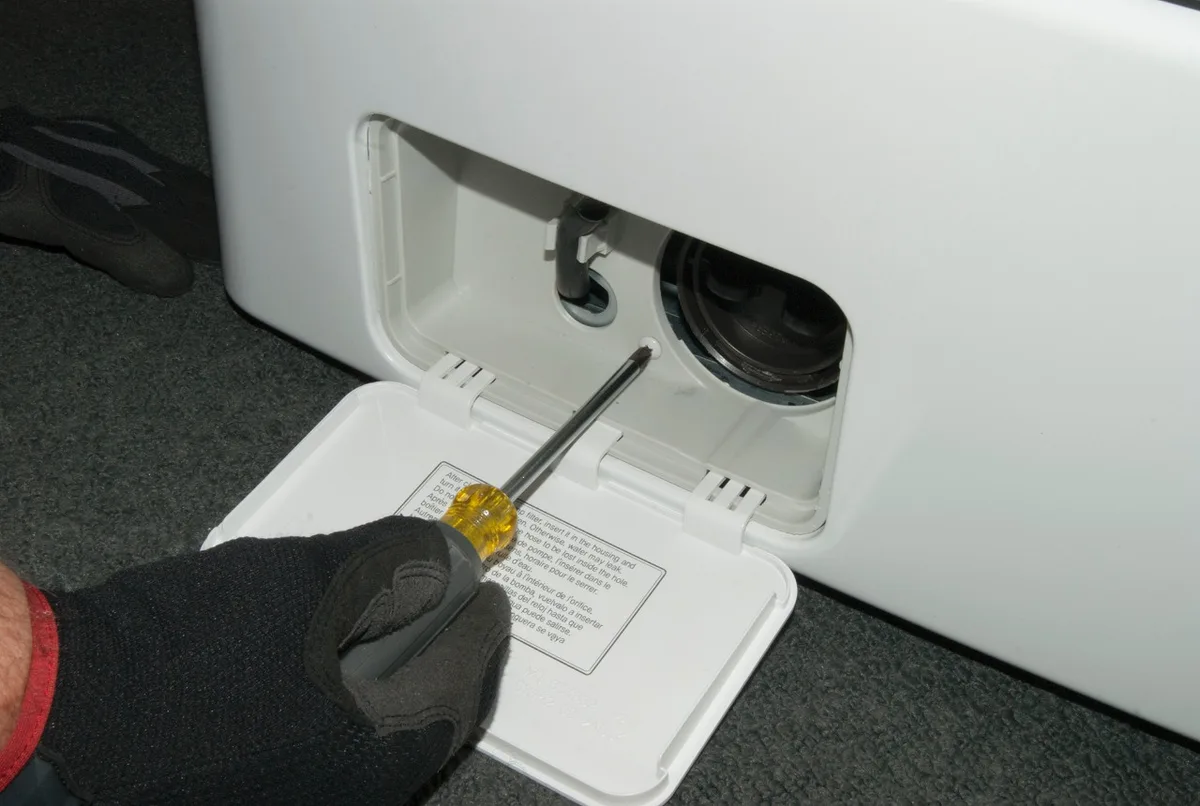

Start with the drain pump filter. It is located behind a small access panel at the bottom front of the washer. Open the panel and place a shallow pan or towels underneath.

Twist the filter cap counterclockwise. Water will spill out, so be ready.

Image source: Bing (Web (fair-use with source credit))

Remove the filter and clean out every piece of debris. Check the cavity behind it for foreign objects. Reinsert the filter and tighten the cap.

Plug the washer back in and run a drain-and-spin cycle. If the water pumps out, you have solved it. If it still fails, the pump motor itself may be burned out or the wiring harness may be loose.

Fix for "Clothes Still Wet"

Run a dedicated spin cycle with no detergent. If the washer spins normally, the problem was likely a minor imbalance. Rearrange the wet load evenly and try again.

If the machine still refuses to spin, check the load size. Front load washers need enough clothes to balance during spin. A single heavy towel can cause the machine to abort the spin.

If the spin cycle runs but clothes come out wet, the drain pump may be partially clogged. Clean the filter using the same steps above. If that does not help, the pump impeller may be damaged and needs replacement.

Fix for "Leaking Water"

Inspect the door boot gasket carefully. Run your fingers along the rubber seal, especially at the bottom where water pools. Look for tears, cracks, or trapped debris like a sock that got wedged between the gasket and the drum.

Image source: Bing (Web (fair-use with source credit))

If the gasket is torn, you will need to replace the door boot. This is a moderate DIY job that requires removing the front panel and the door. If the gasket is intact but debris is trapped, clean it out thoroughly.

Also check the drain pump filter cap. Make sure it is fully tightened. A loose cap is a very common leak source that gets overlooked.

Fix for "Loud or Shaking"

First, confirm the washer is level. Place a bubble level on top of the machine. Adjust the front feet by turning them clockwise or counterclockwise until the bubble is centered.

If the machine still shakes, check the shock absorbers. You can test them by pushing down on the drum from inside. If the drum bounces freely without resistance, the shocks are worn out.

For grinding noises, stop the washer immediately. Do not run it until you check the drum bearings. A failed bearing will cause the drum to wobble and eventually seize.

This is one repair that often exceeds the value of an older machine, so weigh the cost carefully.

Mistakes That Make Things Worse

Some DIY fixes cause more damage than the original problem. Knowing what to avoid is just as important as knowing what to do.

Do not force the door open if the washer is still locked. The door lock mechanism engages for safety reasons. If the washer has power and is in a cycle, the door solenoid will hold it shut for up to two minutes after the cycle ends.

Wait longer. If you yank the door, you can break the plastic latch assembly.

Do not use too much detergent. Kenmore Elite front load washers require HE detergent and far less of it than you think. Overloading the machine with suds can cause foam to leak out the detergent drawer and trigger sensor errors.

If you see a sudden error code after a wash, check for oversudsing before tearing into the machine.

Do not ignore the error code. Some people try to clear codes by unplugging the washer and plugging it back in. That may reset the display, but it does not fix the underlying problem.

The code will return. Always diagnose the root cause first.

Do not replace parts randomly. The drain pump, inlet valve, and door lock are common failures, but they are not interchangeable between models. Verify the exact part number from your machine's model tag before ordering anything.

The model tag is usually inside the door frame or on the back panel.

Do not run the washer with a torn door boot. That rubber seal is the only thing keeping water inside the drum. A small tear quickly becomes a large leak, and water can reach the bearings or the motor beneath the tub.

Replace it before running another load.

Do not overstuff the drum. Kenmore Elite washers have a specific capacity limit, usually around 4.5 cubic feet. Cramming in more clothes than the drum can handle throws off the balance sensor and puts excessive strain on the suspension springs and shock absorbers.

Expert Tips: Maintenance That Prevents Trouble

Front load washers demand more maintenance than their top-load cousins. The trade-off is better cleaning, lower water usage, and more efficient spin cycles. Skip the upkeep and you will see mold, odors, and early part failure.

Make the drain pump filter part of your monthly routine. Even if you never see an error code, the filter catches lint, hair, and small items that slip past the drum holes. Cleaning it takes about five minutes.

The payoff is a pump that never has to work harder than it should.

Keep the door ajar between washes. This is the single most effective way to prevent mold and mildew in the door boot. A closed front load washer traps humid air inside, and that moisture breeds the musty smell so many owners complain about.

Propping the door open for an hour after each cycle lets the interior dry out completely.

Run a clean washer cycle every few weeks. Kenmore Elite models have a dedicated Clean Washer cycle that uses a hotter water temperature and a longer soak. This flushes out detergent residue and dissolved fabric softener.

You can also add a washing machine cleaner tablet to break down biofilm and hidden buildup.

Check the water inlet hoses yearly. These rubber hoses are under constant pressure when the washer is running. Look for cracks, bulging, or brittle spots.

Replace them every three to five years. A burst inlet hose can dump water onto your floor for hours.

Use the right detergent and measure it correctly. High-efficiency washers require HE detergent, which produces fewer suds and rinses more cleanly. One to two tablespoons of liquid HE detergent per load is usually plenty.

More detergent does not mean cleaner clothes. It means residue buildup, sensor errors, and a grimy tub.

Level the washer at installation and recheck it every few months. Concrete floors settle, feet shift, and a machine that was level three months ago might be rocking today. A quick level check takes 30 seconds with a bubble level and prevents most vibration-related issues.

When you hear a noise, address it quickly. A small grinding sound today is a failed drum bearing three months from now. Appliance repair costs only go up when you wait.

Early diagnosis often means a $30 part and a Saturday afternoon. Late diagnosis means a $400 repair or a new washer.

Frequently Asked Questions

How do I reset my Kenmore Elite front load washer?

Unplug the washer for one full minute. Plug it back in and open and close the door firmly within 10 seconds. This clears temporary control board glitches.

If the error code returns, the issue is hardware related and needs a proper diagnosis.

What does error code F5E2 mean on a Kenmore Elite washer?

F5E2 means the door lock failed to engage or the door sensor is faulty. Start by cleaning the door strike area and checking for obstructions. If the code persists, the door lock assembly likely needs replacement.

It is a common and affordable fix.

Why is my Kenmore Elite washer not draining?

The drain pump filter is almost certainly clogged. Open the bottom access panel, remove the filter, and clear out lint, coins, and debris. If that does not work, check the drain hose for kinks.

A failed pump motor is less common but possible.

Why does my Kenmore Elite washer smell musty?

Mold grows in the door boot gasket when moisture stays trapped. Keep the door open between washes. Run the Clean Washer cycle monthly with a washing machine cleaner.

Wipe the rubber gasket dry after each use to prevent odor buildup.

How often should I clean the drain pump filter?

Clean it every one to three months. If you wash heavily soiled items or have pets, clean it monthly. A clogged filter forces the pump to work harder and can lead to error codes and premature pump failure.

The job takes about five minutes.

When should I replace my Kenmore Elite washer instead of repair it?

Consider replacement if the repair cost exceeds half the price of a new machine. Drum bearing failure, tub seal leaks, and control board issues on older units often cost more than the washer is worth. A reliable repair price guide is the 50% rule of thumb.
