Ice O Matic Ice Machine Troubleshooting
Ice O Matic Ice Machine Troubleshooting usually starts the same way: you open the bin, and it's empty. Panic sets in about a minute later. You've got a full service line, warm drinks, and no backup cubes.
Most problems come down to a handful of fixable causes.
As of 2026, commercial Ice-O-Matic units range from about 100 to over 2,000 pounds of ice per day, depending on the model. Almost all carry NSF/ANSI 12 certification for food-contact safety. That standard exists because a dirty or failing machine creates a health risk.
The good news is that many failures follow a pattern you can work through without a technician.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
Ice O Matic ice machine troubleshooting starts with three quick checks. Confirm power and water supply. Clean the condenser coils.
Inspect the ice thickness probe. Only then read the error codes before calling a tech.
Read This First: How Ice-O-Matic Machines Actually Work (and What Goes Wrong)
Every Ice-O-Matic runs through two phases. First is the freeze cycle. Water flows over a cold evaporator plate and gradually freezes into cubes.
Second is the harvest cycle. The control board reverses the cooling, warms the plate slightly, and drops the ice into the bin.
When something stops working, look at which phase fails. If the machine has power and water but no ice, the usual suspects are the condenser, water pump, ice thickness probe, dump valve, or bin sensor. Any one of those can stall the whole cycle.
For exact diagrams and model-specific details, the Ice-O-Matic official site hosts service literature for every current series.

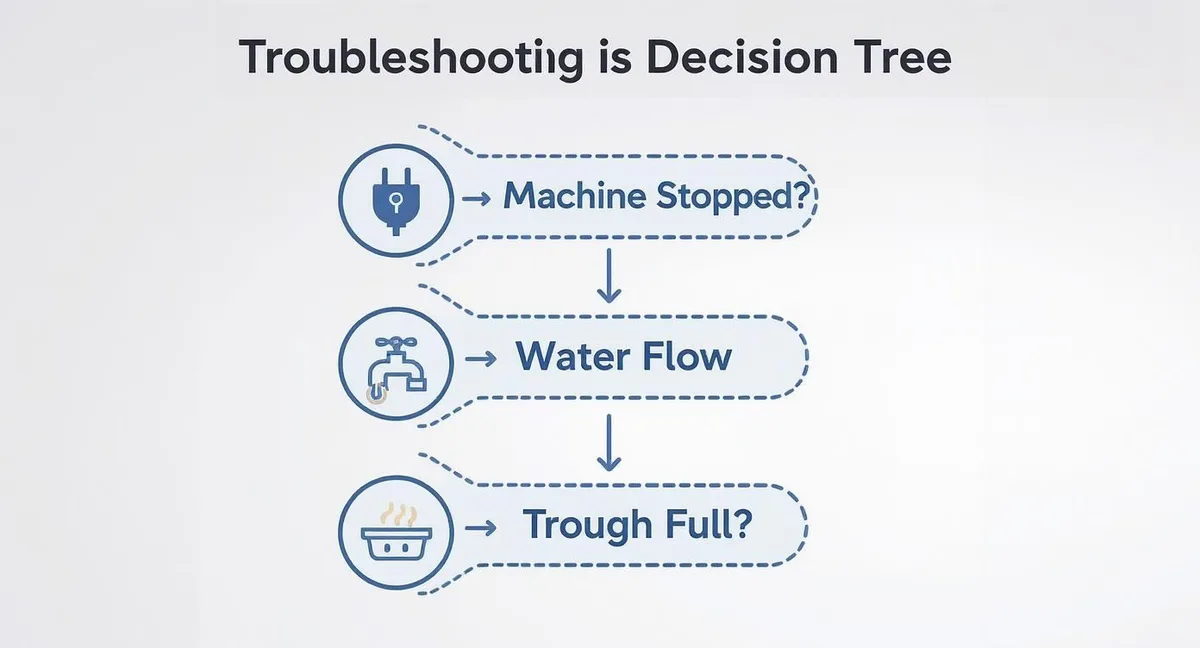

The Troubleshooting Decision Tree: Start With Your Symptom
Start with what you actually see. The symptom points to the component. If you check the wrong part first, you waste time and can easily misdiagnose the problem.
Image source: Bing (Web (fair-use with source credit))
| If you see | Check this first |
|---|---|
| No ice, compressor running | Ice thickness probe, bin thermostat |
| Thin or hollow cubes | Water pump, inlet screen, scale on evaporator |
| Water leaking | Drain line, float valve, water trough |
| Buzzing or rattling | Water pump, contactor, loose hardware |
| Flashing lights | Error codes, control board, sensors |
No Ice: Machine Runs But Nothing Drops
If the compressor runs but the machine never harvests, the control board isn't getting the signal to drop ice. Test the ice thickness probe first. Then check the bin thermostat.
If both work, the dump valve or harvest solenoid may be stuck.
Thin, Hollow, or Small Cubes
Small cubes usually mean low water flow or scale buildup. Check the water pump impeller and the inlet screen. Clean the evaporator plate so ice can form evenly.
Water Leaking From the Bin or Under the Unit
A leak almost always comes from a clogged drain line or a stuck float valve. Water backs up and spills over. A cracked water trough can also drip below the machine.
Weird Noises, Buzzing, or Rattling
Buzzing often points to a failing water pump or a worn contactor. Rattling usually means loose hardware or copper lines touching the cabinet. Tighten and test.
Error Lights Flashing or a Stuck Bin Sensor
Flashing status lights mean the control board has a fault. Start with a full power reset. If the code comes back, follow the error-code chart below.
Step-by-Step Fixes for the Most Common Ice-O-Matic Failures
These four fixes resolve most service calls. Unplug the machine and shut off the water supply before you touch anything.
Clean the Condenser Coils
Dirty coils force the compressor to run hot, which can trip the high-pressure cutout and stop ice production. Vacuum the fins with a brush attachment. Blow out stubborn dust with compressed air.
Do this every one to three months.
Check and Adjust the Ice Thickness Probe
The probe sits near the evaporator and tells the board when cubes are ready. Turn it clockwise for thicker ice, counterclockwise for thinner ice. If the cubes never release, the probe gap is often the problem.
Inspect the Water Inlet Screen and Supply Line
Mineral scale in the inlet screen can starve the machine. Remove the screen, soak it in an NSF-approved delimer, and flush the line. Confirm water pressure stays between 20 and 80 psi.
Test the Water Pump and Dump Valve
If the machine fills but water never flows over the evaporator, the pump is likely dead. A stuck dump valve can prevent harvest. Both are inexpensive and easy to replace.
Ice-O-Matic Error Codes and What They Really Mean
Most Ice-O-Matic units don't have text screens. They use colored status lights to flash codes. The pattern tells you where to look.
Image source: Bing (Web (fair-use with source credit))
| Light pattern | Likely cause | First step |
|---|---|---|
| Solid red, no harvest | Bad ice thickness probe or thermistor | Test probe resistance with a multimeter |
| Flashing red, two pulses | High head pressure | Clean condenser, check fan |
| Flashing red, three pulses | Low water level | Check inlet screen and float valve |
| Solid amber | Bin full | Confirm bin sensor operation |
Model-specific codes live in the service manual. If the code points to refrigerant pressure, stop there. Refrigerant work requires an EPA Section 608 certified technician, per EPA regulations.
Common Mistakes That Turn Small Fixes Into Big Repairs
One mistake sinks more DIY fixes than anything else. People skip the thirty-second diagnostic step and jump straight to replacing parts.
Replacing Parts Without Testing First
You replace the water pump because the machine isn't making ice. The new pump runs fine. Still no ice.
That is a wasted hour and wasted money. Test the component before you order it. A multimeter costs less than most Ice-O-Matic parts, and it tells you in seconds if a thermistor or solenoid is dead.
Ignoring the Condenser Until It Trips
A dirty condenser doesn't stop ice production immediately. It creeps up over days or weeks. The machine runs longer, uses more power, and eventually hits the high-pressure cutout.
By then the compressor has cooked itself. Clean the coils on a schedule, not after a failure. Preventive cleaning is cheaper than any service call.
Using the Wrong Cleaning Chemicals
Commercial ice machines need NSF-approved ice machine cleaner. Bleach, vinegar in high concentration, or dish soap can damage the evaporator coating. That coating is what lets ice release cleanly.
Once it's gone, cubes stick and the machine fights itself every harvest cycle.
Forgetting the Water Filter
If your Ice-O-Matic has an inline water filter, it exists for a reason. A clogged filter reduces flow, creates small cubes, and shortens the life of the water pump. Replace it every six months.
Mark it on a calendar. Your machine will thank you.
When To Call a Pro (and What To Check Before You Do)
Some problems are DIY-friendly and some aren't. Here is the honest dividing line.
Problems You Can Handle
Anything involving water, electricity at the plug level, cleaning, or sensor adjustment is fair game. That includes cleaning the condenser, replacing the water pump, adjusting the ice thickness probe, and clearing the drain line. Most restaurant managers handle these themselves.
Problems That Require a Refrigeration Technician
If the machine has refrigerant leaks, a seized compressor, or a failed control board, stop. Refrigerant work legally requires an EPA Section 608 certified technician. Compressor replacement needs vacuum pumps, recovery equipment, and pressure testing that most kitchens don't have.
What To Check Before You Call
Before you pay for a service visit, run through this short list. It saves you the diagnostic fee and may even fix the problem.
- Is the machine plugged in and the breaker on?
- Is the water supply valve fully open?
- Are the condenser coils clean?
- Is the ice thickness probe free of scale?
- Has the machine been power cycled within the last hour?
Technicians charge by the hour plus a trip fee. Those five checks take ten minutes and eliminate the most common false alarms. Stick to a monthly cleaning schedule and you'll likely cut your service calls by half.
Frequently Asked Questions
Why is my Ice-O-Matic not making ice but the compressor is running?
That usually points to a problem with the ice thickness probe, the bin thermostat, or the harvest solenoid. Check the probe gap first. Turn it slightly clockwise and test a cycle.
How do I reset my Ice-O-Matic ice machine?
Unplug the unit or flip the breaker off for five minutes. Plug it back in. Most models will restart the freeze cycle automatically after a full power cycle.
What does a flashing red light on an Ice-O-Matic mean?
Two red flashes mean high head pressure from a dirty condenser or a failing fan motor. Three red flashes mean low water level from a clogged inlet screen or float valve.
How often should I clean my Ice-O-Matic?
Clean the condenser coils every one to three months. Run a full sanitizing cycle every six months. Replace the water filter every six months.
Can I use vinegar to clean my ice machine?
No. Use only NSF-approved ice machine cleaner. Household acids can damage the evaporator coating and aren't approved for commercial food-contact surfaces.
How long does an Ice-O-Matic take to make ice?
A full freeze and harvest cycle usually runs 15 to 25 minutes. Actual ice production depends on incoming water temperature, air temperature around the unit, and the condition of the condenser.
