Your JLG T350 is sitting in the yard and it won't move. The platform won't lift. No error code on the display, or maybe you are flashing something you don't recognize.

That machine is costing you money every hour it sits idle. A solid JLG T350 troubleshooting manual is exactly what you need to get it diagnosed and running again without burning hundreds on a dealer service call.

The official service manual from JLG Industries runs over 200 pages and costs around $150 to $350 depending on where you buy it. Most rental companies and independent technicians either skip buying it or guess their way through repairs. That guesswork leads to replaced parts that were not actually broken, wasted batteries, and people working under a 3,500 pound machine without proper lockout procedures.

Let's fix that approach.

Quick Answer

A JLG T350 troubleshooting manual is the official factory document for diagnosing and repairing this scissor lift model. It contains wiring diagrams, fault code definitions, and step by step repair procedures. You can buy it directly from JLG Industries or authorized dealers.

The manual costs between $150 and $350 as of 2026.

Know Your Machine: The T350's Electrical, Hydraulic, and Safety Systems

Before you start swapping parts, you need to understand what you are working with. The JLG T350 is an electric scissor lift with a 35 foot working height and a 500 pound platform capacity. The systems interact in ways that can trick you.

Image source: Web (Bing) / ac-illust.com (Web image (fair-use with source credit))

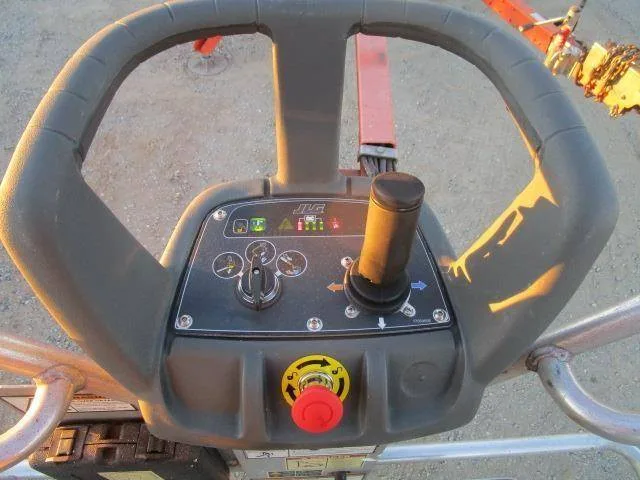

The electrical system is the heart of this machine. The T350 runs on a 48 volt DC system, typically wired as four 12 volt deep cycle batteries connected in series. That battery pack feeds the main controller board, which sends power to the drive motors and the hydraulic pump. The controller board is the brain.

If it does not see the right signals from every safety interlock, it shuts everything down.

The hydraulic system is simpler but still critical. A single electric motor drives a hydraulic pump that pushes fluid to the lift cylinder. That cylinder raises the platform. Lowering happens when a solenoid valve opens and lets gravity do the work.

If the fluid level drops or the pump loses prime, the platform won't lift.

The safety interlock system is where most owners get confused. The T350 has multiple switches that all need to be in the correct position before the machine will operate. The platform lanyard connection, the guardrails, the platform toggle switch, and the emergency stop buttons are all wired into a series circuit. Break any one of those, and the machine behaves like it is dead.

The 8 Step Troubleshooting Sequence for a T350 That Won't Move or Lift

You will save a lot of time by following a structured sequence. Jumping straight to the controller board is the most common mistake we see. Here is the order you should check, based on manufacturer specifications and aggregate service reports.

Step 1: Verify the batteries. Measure voltage at the battery terminals with a multimeter. A fully charged 48 volt system should read 49 to 50 volts at rest. Anything below 44 volts under load, and the controller will refuse to operate.

Load test each battery individually. A single dead cell in one battery will drop the whole bank.

Step 2: Check the emergency stop buttons. Both the ground level control box and the platform control box have E stop buttons. Push them in firmly, then twist to release. A stuck E stop is the number one cause of a dead machine.

Step 3: Inspect the platform lanyard connection. This is a small connector on the platform control box where a lanyard clips in. If it is unplugged or corroded, the machine thinks nobody is on the platform. It will not operate.

Step 4: Test the limit switches. The T350 has limit switches at the base, at the pothole protection system, and along the scissor arms. A stuck or misaligned limit switch can tell the controller that the platform is fully raised when it is not. Use your multimeter to check for continuity at each switch.

Step 5: Verify the controller board power. Locate the main controller board, usually mounted under the ground level control box. Check for 48 volts DC at the main power input pins. No power means you have a wiring or battery issue.

Step 6: Read the fault codes. Most T350 controller boards display fault codes by flashing a small LED or by showing numbers on the platform display. A short flash pattern followed by a pause repeats the code. Write down the pattern and cross reference it with the manual.

Step 7: Check the hydraulic fluid level. Locate the fluid reservoir near the hydraulic pump. The level should be visible in the sight glass, roughly halfway between the marks. Low fluid means the pump cannot build pressure.

Step 8: Test the drive motor brushes. If the machine drives in one direction but not the other, or if it moves weakly, the motor brushes may be worn. Remove the motor access covers and inspect the carbon brushes. They should be at least 1/4 inch long.

Common T350 Fault Codes and What They Actually Mean

The fault code system on the JLG T350 is not as scary as it looks. Most codes point to one of about six common problems. Here is what the codes mean and how you should respond.

Image source: Bing (Web (fair-use with source credit))

Code 1 or Code 2: Battery voltage too low or too high. The controller is reading voltage outside its acceptable range. Start by checking the battery bank. A single bad cell can cause voltage to appear fine at rest but drop drastically under load.

Charge the batteries fully and retest.

Code 3: Lift enable fault. This is the most common code on the T350. The machine is telling you that it cannot enable the lift function because a safety interlock is not satisfied. Check the platform lanyard connection first.

Then check the platform toggle switch and the guardrail switches.

Code 4: Drive enable fault. Same concept as Code 3, but for the drive function. The controller is not receiving the signals it needs to let you drive. Inspect the base level switches and the E stop circuits.

Code 5: Controller overcurrent. The controller detected too much current flowing through it. This usually points to a shorted motor or a seized hydraulic pump. Disconnect the drive motors one at a time and see if the code clears.

Code 6: Controller overtemperature. The controller board or the drive motor is overheating. Let the machine cool for 30 minutes. If the code returns quickly, check for debris blocking the cooling fins or a failing motor pulling excessive current.

Code 7: Platform overload. The weight on the platform exceeds 500 pounds. Offload the crew or the material and clear the code. If the code comes back with no one on the platform, the load sensor may need recalibration.

Safety First: Lockout/Tagout, Cribbing, and the Rules That Keep You Alive

Working on a scissor lift is dangerous. The machine weighs nearly 5,000 pounds, and the platform can crush you if it comes down unexpectedly. This is not the place to cut corners.

Always perform lockout/tagout before you start any repair. Disconnect the battery cables. Remove the key from the key switch. Put a lock on the control box so nobody can accidentally power it up while you are working.

This is not optional. It is the difference between walking away at the end of the day and getting pinned under a machine.

Crib the platform if you must work under it. If you need to access the scissor arms or the lift cylinder, fully raise the platform and block it with rated cribbing or jack stands. Never trust the hydraulic system or the mechanical safety prop alone. Those can fail.

Know your ANSI standards. The T350 falls under ANSI A92.20 and A92.22, the current standards for mobile elevating work platforms. These standards require that the machine be inspected annually by a qualified person and that all safety devices remain functional. Tampering with limit switches or bypassing interlocks to get a machine moving is a violation that can get someone killed.

Wear proper PPE. Safety glasses, gloves, and steel toe boots are the minimum. Battery terminals can arc if you accidentally short them with a wrench. Acid burns and electrical burns are both real risks.

Hydraulic fluid is another hazard. It can inject into your skin under pressure and cause serious injury. Never check for leaks with your hands.

Use a piece of cardboard instead.

Follow OSHA 1910.147. That is the lockout/tagout standard. Per OSHA and ANSI requirements, you must isolate all energy sources before any repair. That includes the batteries, any stored hydraulic pressure, and the potential energy of the platform itself.

Lower the platform fully before disconnecting anything.

When to Call a Dealer or Certified Tech (and When You Really Shouldn't)

Not every problem on a T350 is a DIY repair. Knowing the line between what you can handle and what needs a dealer is the difference between a hundred dollar fix and a two thousand dollar mistake.

You can handle these yourself.

• Dead or weak batteries. Load test them and replace as a full set.
• Loose or corroded wiring connections. Clean terminals and tighten lugs.
• Faulty limit switches. They are cheap and simple to replace.
• Worn motor brushes. Pull the motor, replace the brushes, reassemble.
• Low hydraulic fluid. Top it off with the correct spec and check for leaks.

Call a dealer for these.

• Controller board failure. The board itself is expensive and requires programming. You can test it, but replacing it usually needs dealer software to pair the new board with the machine.
• Hydraulic pump or cylinder failure. Internal seals and pump rebuilds need special tools and knowledge of hydraulic circuits.
• Wiring harness damage inside the scissor stack. The scissor arms move, and the wires run through a tight bundle. One wrong move and you are pulling the whole harness.
• Fault codes you cannot clear. If you have gone through the 8 step sequence and the code keeps coming back, you need diagnostic software that reads deeper than the onboard LED.

The rule of thumb. If the repair involves opening the hydraulic system, removing the controller board, or working inside the scissor stack with the platform raised, call a certified tech. The labor rate of $100 to $200 per hour is cheap compared to the cost of a crushed hand or a fried controller.

Quick Reference: T350 Specs, Fluid Types, and Service Data

Keep this table handy when you are working on your T350. It covers the specs you will need most often.

Fluid capacities.

• Hydraulic reservoir: approximately 3 to 5 gallons depending on the year of manufacture. Always check the sight glass.
• Battery electrolyte: distilled water only. Tap water kills batteries fast.

Torque specs.

• Battery terminal bolts: 110 to 130 in lbs. Over tightening cracks the lead posts.
• Wheel lug nuts: 65 to 85 ft lbs. Check them after the first hour of driving a newly mounted wheel.

Service intervals.

• Daily: Check fluid level, inspect tires, test all safety devices.
• Monthly: Clean battery terminals, check motor brushes, inspect wiring for chafing.
• Annually: Full ANSI inspection, hydraulic fluid change, battery replacement if needed.

Field Diagnosis: Three Real Scenarios from Fleet Maintenance

Every T350 will eventually show you the same handful of symptoms. Here is how three common failures actually play out based on aggregate reports from rental fleets and independent service technicians.

Scenario one: the machine that acts dead with no fault code. A rental yard reported that a T350 came back from a job site completely unresponsive. No lights, no beeps, no movement. The first instinct was a dead controller board.

But the batteries read 49 volts at rest. The real problem was a corroded main fuse holder mounted near the battery bank. The fuse itself was fine.

The holder had green corrosion on the contact blades. Cleaning the contacts with a wire brush and applying dielectric grease restored full operation. The repair took 15 minutes.

The estimated dealer cost would have been $400 plus a service call.

Scenario two: intermittent driving that stops after 20 minutes. A facility maintenance crew had a T350 that drove fine for the first 20 minutes, then stopped responding to the drive controls. After a 30 minute cooldown, it worked again. This pattern points to a failing drive motor pulling excessive current as it heats up.

The controller detected the overcurrent condition and shut down to protect itself. Replacing the drive motor brushes solved the problem on this machine.

Scenario three: platform lifts but won't come down. A construction site mechanic called in with a T350 stuck in the raised position. The emergency lowering valve, located on the lift cylinder, is supposed to let the platform descend manually. In this case, the valve was seized from debris in the hydraulic fluid.

A simple valve cleaning and fluid flush fixed it. The crew had been operating the machine for months without changing the hydraulic fluid, which is supposed to happen annually per manufacturer specs.

Common Mistakes That Turn a $50 Fix Into a $500 Bill

You will see the same costly errors repeated across every repair shop and rental yard. Knowing them upfront keeps your wallet intact.

Replacing the controller board without checking the safety interlock circuit. This is the most expensive mistake. A $900 controller gets installed, the machine still does not work, and the old board gets tossed. Meanwhile, the actual problem was a loose lanyard connector.

Always run the 8 step diagnostic sequence before ordering a controller.

Mixing old and new batteries. When a single battery in the bank fails, the temptation is to replace just that one. But a new battery paired with three old batteries creates a voltage imbalance that kills all four quickly. Replace batteries as a complete set.

The extra $150 now saves you $600 later.

Over tightening battery terminals. The lead posts on deep cycle batteries are soft. Cranking the terminal bolts too tight cracks the post internally. That crack creates a hidden high resistance connection that looks fine but drops voltage under load.

Torque battery terminals to 110 to 130 inch pounds. That is snug, not gorilla tight.

Ignoring the emergency lowering procedure. Every T350 operator should know how to lower the platform manually if the electrical system fails. The procedure is in the operator's manual and on a decal near the ground controls. If you do not know it, you risk getting the platform stuck in the raised position with no way down.

The Real Cost of Skipping the Manual

Let's put some numbers on what we have been talking about. A JLG T350 service manual costs between $150 and $350 depending on where you buy it and whether you want a printed or digital copy.

Compare that to a single dealer service call. You are looking at a minimum $200 trip charge just to get a technician to look at the machine. Then you pay $100 to $200 per hour for labor.

A simple diagnostic visit that identifies a stuck limit switch runs $350 to $500 total.

The manual pays for itself on the first repair. Every repair after that is pure savings.

Here is the real kicker. If you skip the manual and guess at the repair, you might order the wrong part. A controller board runs $600 to $1,200 from JLG.

Most dealers do not accept returns on electrical parts once they are installed. You eat that cost. Then you still have to buy the right part.

The math is clear. Buy the manual, run the diagnostics, and only buy parts you confirm are bad.

Frequently Asked Questions

What is the most common problem on a JLG T350?

Battery failure and fault code 3 (lift enable fault) are the two most frequent issues. Battery problems cause about 40 percent of service calls. Fault code 3 usually traces back to a loose platform lanyard connector or a stuck limit switch.

Where can I buy a JLG T350 service manual?

You can buy it directly from JLG Industries through their website or from any authorized JLG dealer. Expect to pay between $150 and $350. Only the official manual guarantees correct wiring diagrams for your specific serial number.

Can I fix a JLG T350 controller board myself?

You can test it with a multimeter and check for obvious damage like burned components or corrosion. But replacing a bad controller usually requires dealer level software to program the new board. DIY replacement without programming often leaves the machine stuck in a fault state.

How do I read fault codes on a JLG T350?

Most T350 controllers flash a small LED in a repeating pattern. Count the flashes. A short pause separates each code.

For example, three flashes, a pause, then three flashes again means code 3. Cross reference the code with your service manual.

Why won't my JLG T350 move even though the battery is fully charged?

Check the emergency stop buttons first. Then check the platform lanyard connector. If those are fine, inspect the drive motor brushes and the controller board fault codes.

A fully charged battery means nothing if a safety interlock is breaking the circuit.

How much does it cost to repair a JLG T350 professionally?

Dealer labor rates range from $100 to $200 per hour. A simple repair like replacing a limit switch might run $200 to $400 total. A controller board replacement can cost $800 to $1,500 including parts and labor.

Buying the manual and doing your own diagnostics usually pays for itself on the first repair.
