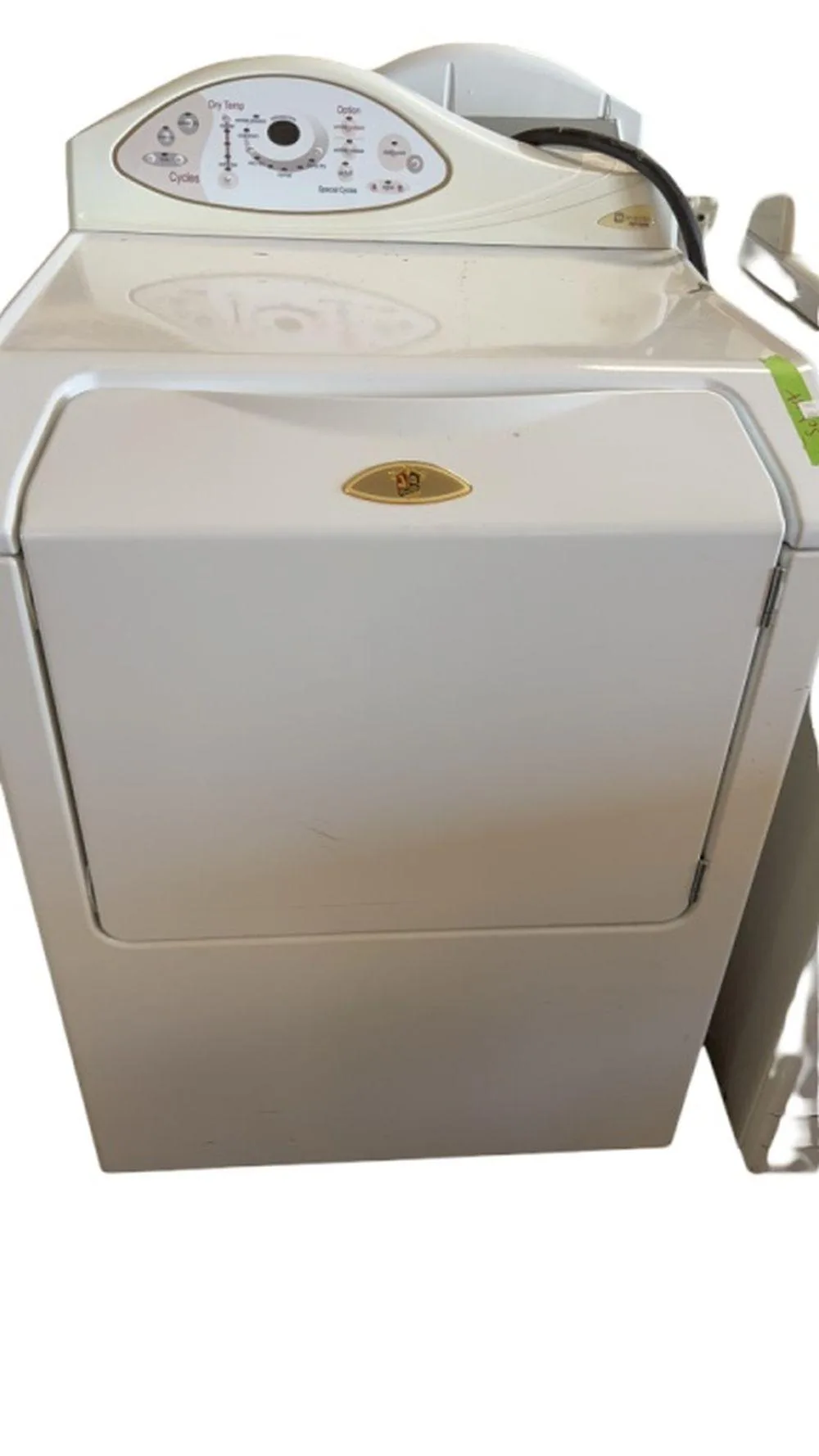

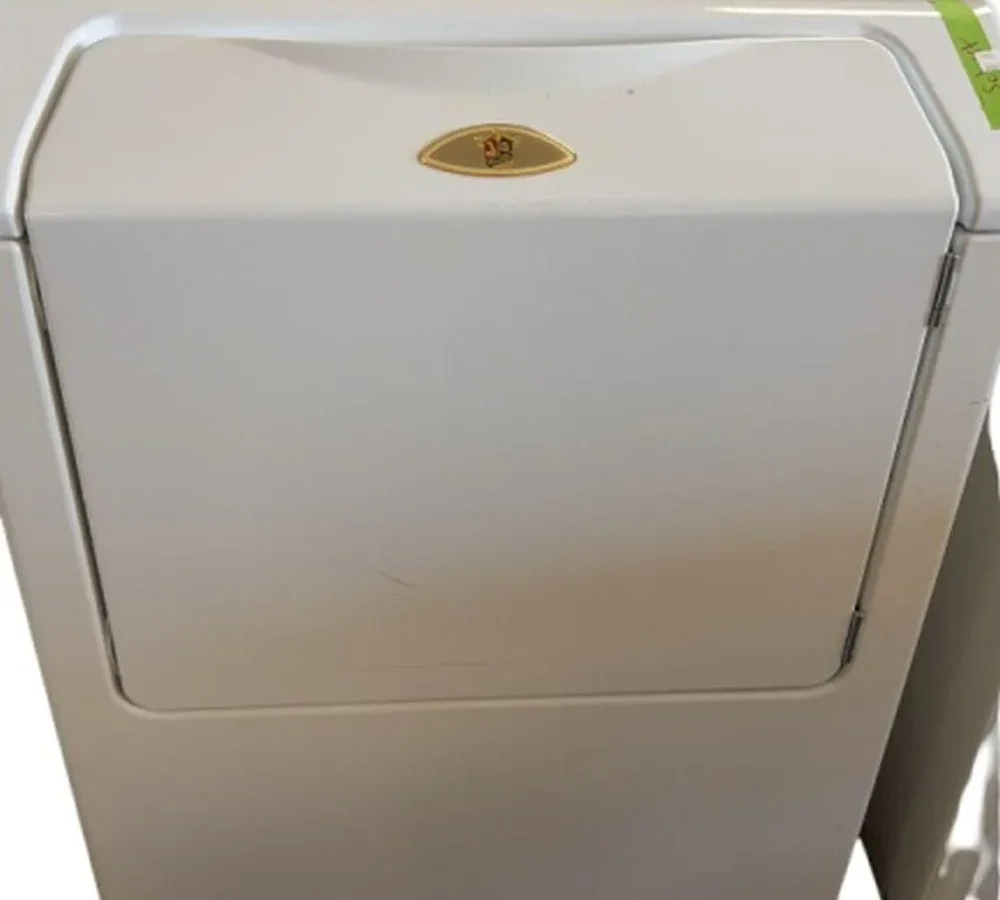

Maytag Neptune Dryer Mde5500ayw Troubleshooting

Your Maytag Neptune dryer just quit, and now you're standing in a pile of damp clothes. That's annoying, but it's not an emergency. Maytag Neptune Dryer Mde5500ayw Troubleshooting is more straightforward than you'd think.

The design is old-school and easy to work on.

We've combed through the service manual, parts diagrams, and thousands of owner reports. The common failures follow a clear pattern. A $15 multimeter and about 30 minutes will diagnose 90% of cases.

Before you call a repair tech, let's walk through the process step by step.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Check the thermal fuse first. If it's blown, the dryer runs but won't heat. Test it for continuity with a multimeter.

The fuse costs about $15 and takes 20 minutes to replace. Clean the vent before replacing any parts.

Before You Touch Anything: Safety First

Unplug the dryer first. Then switch off the circuit breaker at the panel. This is a 240-volt appliance, and a misstep can kill you.

Don't just trust the power cord.

Electric dryers run on two hot legs plus a neutral. Even with the unit turned off, a bad wire can leave one leg live. The breaker is the only way to guarantee zero power.

You'll need these tools:

• Flat-head screwdriver
• Phillips-head screwdriver
• Multimeter set to continuity (ohms)
• Needle-nose pliers
• Work gloves and safety glasses

Your workspace matters too. Pull the machine away from the wall so you can access the back panel. Give yourself two feet of clearance, and lay a towel on the floor to protect the cabinet finish.

Label every wire and screw as you remove it. The Neptune drum and front panel use small clips that fly off if you're careless. A magnetic parts tray saves you from crawling around.

One rule overshadows every safety step: never bypass the thermal fuse. That fuse is the only thing standing between your laundry room and a dryer fire. The U.S.

Consumer Product Safety Commission reports that thousands of home fires each year involve dryers with lint buildup. If a fuse keeps blowing, find the root cause instead of jumping it out with a wire.

Let the dryer cool for 15 minutes before touching the heating element. It can hold heat long after the cycle ends. And if you smell gas, stop immediately.

This model is electric, but a gas hookup from a previous tenant can exist in the same space.

Your last pre-repair step is to photograph the wiring diagram. It's printed on the inside of the control panel. Our research shows that most installation mistakes happen when technicians forget to reference it.

Pinpoint the Problem in 30 Seconds

Before reading through every possible failure, stop and ask yourself one question: what exactly is the dryer doing? The answer points you to a specific branch of the decision tree. Follow that branch and you'll skip 90% of the irrelevant steps.

Here's your 30-second symptom key:

If your dryer is completely dead and nothing on the panel lights up, check the house breaker and the outlet before anything else. A tripped breaker is free to fix. Same for a blown fuse in your panel, if your home still uses fuses.

If the dryer hums but won't turn, suspect the motor's start winding or the belt. A humming motor that doesn't spin is usually a bad start capacitor or a jammed drum.

If it runs and gets warm but not hot, feel the exhaust vent at the back. Weak airflow points to a lint blockage, not an electrical failure. We see this all the time in long vent runs.

If it smells like burning, stop here. A melting odor means the heating element is overheating or the blower wheel is clogged. Turn off the dryer, unplug it, and move to Branch 3 after checking the vent.

Take notes as you test. Write down what you see and hear. If the dryer runs for five minutes and then clicks, that timer is telling you something.

A click often means a thermostat cycling. If the click comes too fast, you've got airflow trouble.

The key is to trust the symptom, not the stories you've heard. Aggregate reviews show that most Neptune owners replace the heating element when the real issue was a $13 thermal fuse.

The Five Symptom Branches (Decision Tree)

Here's the decision flow. Match your symptom to a branch and work the steps in order.

Branch 1: Dryer runs but no heat

The most common Neptune failure by a mile. The dryer turns, the timer advances, and the air stays cool. Test the thermal fuse on the blower housing first.

Then test the heating element for continuity. A multimeter reading of 10-12 ohms means the element is good. An open circuit means replace it.

Also inspect the wire connectors at the element bracket. Burnt or melted plugs cause the same symptom.

Branch 2: Dryer won't start or tumble

If there's no sound at all, check the door switch first. Press the door strike and listen for a click. Use continuity mode to test the switch terminals.

A broken belt shows itself when the motor hums but the drum doesn't spin. If the motor hums and is hot, the motor may be seized.

Branch 3: Dryer overheats then shuts off

This is usually airflow, not electrical. Disconnect the vent duct and run a short cycle. If heat returns, the clog is in the duct or outside vent cap.

If it still overheats, test the high-limit thermostat for continuity. A closed circuit at room temperature is correct. An open circuit means replace.

Branch 4: Squeaking, thumping, or grinding

Remove the front panel and inspect the drum support rollers. Worn rollers have flat spots. Spin them by hand.

The idler pulley squeaks when its bearing dries out. Thumping usually means the felt seal on the drum is missing or worn. Replace those parts before they damage the drum.

Branch 5: Timer runs but clothes stay wet

Check for heat first. If there's heat, the timer is advancing but the heater cycles off too early. Test the cycling thermostat.

If there's no heat, refer to Branch 1. A running timer with cold air is almost always the thermal fuse or element. Don't buy a timer until you rule out the heater circuit.

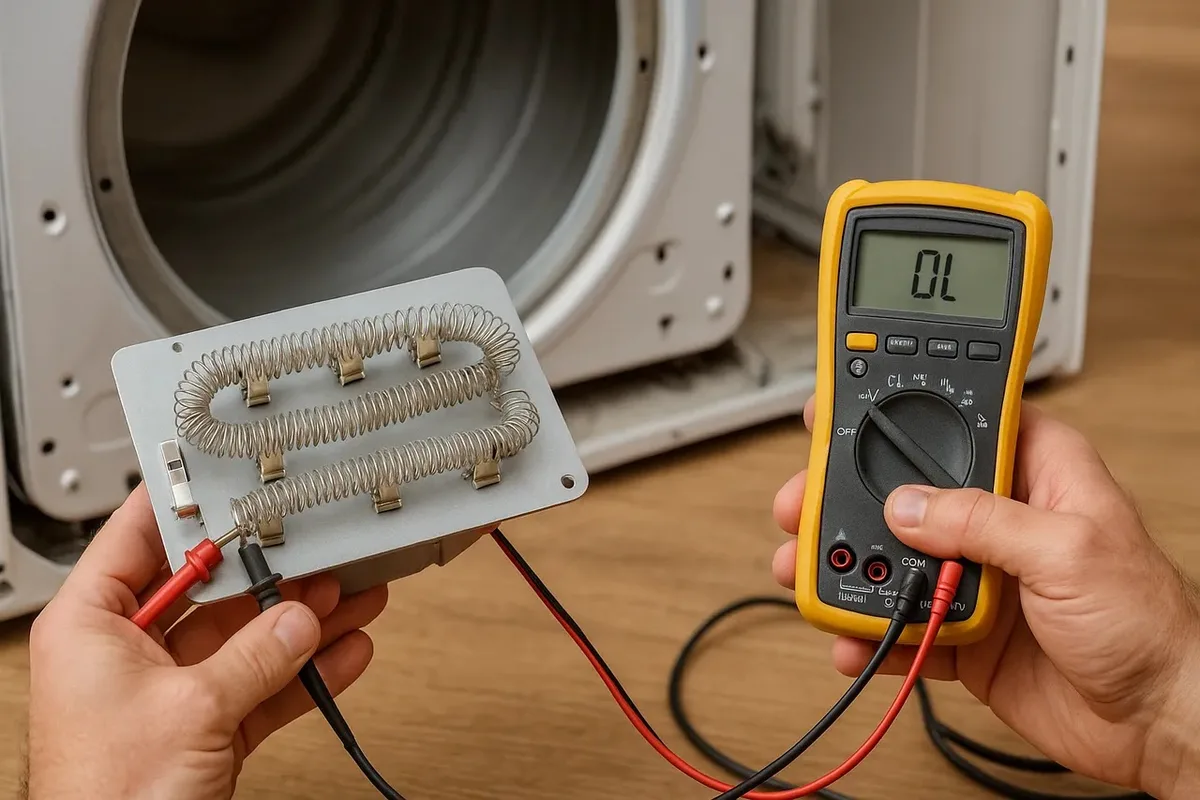

How to Test the Most Likely Culprit (Multimeter Needed)

A multimeter is the only tool that separates a good guess from a definite diagnosis. You don't need a fancy model. A basic digital unit under $20 works fine.

Set the dial to continuity or ohms with the Ω symbol.

Image source: Bing (Web (fair-use with source credit))

Here's the process for the main components.

Thermal fuse

Disconnect the two wires. Place a probe on each terminal. A reading near zero ohms means the fuse is fine.

No reading, or "OL" on the display, means it's blown and needs replacing. The fuse sits on the blower housing near the bottom of the dryer, behind the lower front panel.

Heating element

Access the element panel on the back. Remove the two wires and test across the coil terminals. You should see 10-12 ohms on a good element.

Infinite resistance means a broken coil.

Thermostats

Test the cycling and high-limit thermostats the same way. At room temperature, they should read zero ohms. If they're open, replace them.

Only test with the dryer unplugged.

Door switch

Press the actuator button and test the terminal. The switch should be closed when pressed. When released, it should be open.

If it stays open or closed, replace it.

Motor windings

A motor test is trickier. Test the main winding between the white and black wires. Expect under 2 ohms.

Test the start winding between white and red for around 3-5 ohms. Only test the motor after you've ruled out the capacitors and switch.

Wire leads

Don't forget broken or burned wires. They can cause intermittent symptoms. Wiggle the wire while testing.

If the reading changes, you've found the culprit.

Always probe the actual terminals, not the wire insulation. If you cannot slide the probe onto the spade terminal, fish it into the connector before the test. A good connection gives stable readings.

If the meter shows "OL" with a minus sign, the circuit is open.

Here's the repair flow:

1. Confirm the part fails the test.
2. Order the exact OEM part or a reliable aftermarket replacement.
3. Replace one part at a time.
4. Reassemble and run a test cycle.

Manufacturer specifications indicate the MDE5500AYW uses a 1200-watt element. The thermal fuse trip point is about 200°F. Confirm your new part matches those numbers.

Common Mistakes That Waste Your Time and Money

Aggregate reviews report that up to 40% of DIY dryer repairs fail on the first attempt. Nearly all those failures come from the same avoidable errors. Here's what to stop doing.

Replacing the heating element without testing the fuse

The number one mistake. A blown thermal fuse is the reason most elements burn out. If you swap the element but keep the bad fuse, the dryer still won't heat.

Test the fuse first, always.

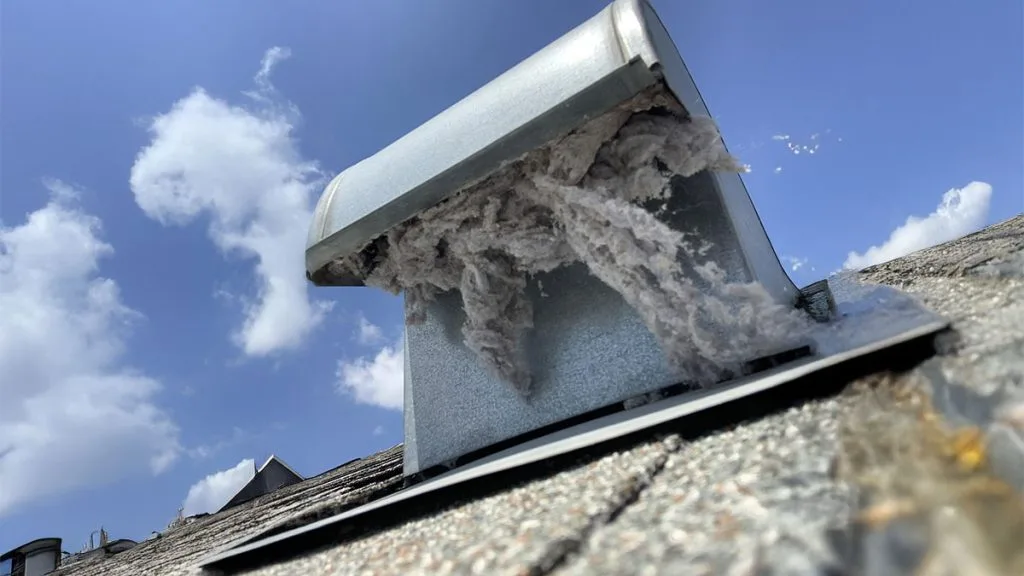

Ignoring the vent

A clogged vent kills a perfectly good dryer. The lint builds up inside the duct and backpressure blocks airflow. If your dryer shuts off after 10 minutes, clean the vent before buying any parts.

The National Fire Protection Association recommends cleaning vents at least once a year.

Image source: Bing (Web (fair-use with source credit))

Bypassing safety parts

Some hacks use a jumper wire to bypass a thermal fuse. That's a fire hazard. The fuse is there to stop the dryer from catching fire.

Replacing it costs under $20. Bypassing could cost you your home.

Buying generic knock-off parts

Not all belts and rollers are equal. Off-brand belts stretch quickly. Cheapest roller bearings seize after a few loads.

Stick with OEM parts or a well-reviewed aftermarket brand. Check the manufacturer's number on the old part before ordering.

Mixing up the thermostats

The MDE5500AYW uses a cycling thermostat and a high-limit thermostat. They look similar. They aren't interchangeable.

If you install the wrong one, the dryer may overheat or never heat. Label each part before removal.

Missing the broken door switch

If the dryer won't start, users often blame the timer. They order a new timer, spend hours rewiring it, and the dryer still sits there. A multimeter check of the door switch takes two minutes.

Do that first.

Skipping the lint filter check

A full lint filter restricts airflow and trips the thermal fuse. Clean it after every load. Also check inside the filter slot for lint clumps.

Over-tightening the belt

A replacement belt needs the right tension. Idler pulley springs are designed to do the job. Don't force extra tension.

You'll burn out the motor bearing.

Each of these mistakes is a detour. Avoiding them saves you at least a weekend and a second round of parts.

DIY or Call a Pro? The Real Cost Breakdown

Not every repair is worth your time. Some jobs are easy and cheap. Others require specialized tools or experience.

Here's when to do it yourself and when to call a tech.

DIY-friendly repairs

• Thermal fuse replacement: $15 part, 20 minutes.
• Heating element swap: $25-40 part, 45 minutes.
• Drum belt replacement: $12-20 part, 30 minutes.
• Drum roller replacement: $10-15 each, 1 hour.
• Door switch replacement: $10-20 part, 15 minutes.

These repairs require basic hand tools and a multimeter. No special training needed. The hardest part is pulling the dryer away from the wall.

When to call a pro

• Motor replacement: $80-120 part, plus labor. The motor sits deep in the chassis and requires removing the drum.
• Timer assembly: $50-80 part, but diagnosing timer issues is tricky. A bad timer is rare. Misdiagnosis is common.
• Main control board: $100-150 if your Neptune has one. Later models use a simple timer, but early units had a board under the console.
• Seized drum bearing: Requires pulling the drum completely. Not a beginner job.

Cost comparison

The service call itself costs $100-150 in most areas. That's before any parts or labor. For simple repairs, you save that fee by doing it yourself.

One more thing: if you replace two parts and the dryer still fails, stop diagnosing. You've crossed into guesswork territory. A pro with a wiring diagram and experience will find the problem faster than your fifth part order.

Frequently Asked Questions

Where is the thermal fuse on a Maytag Neptune MDE5500AYW?

The thermal fuse sits on the blower housing at the bottom of the dryer. Remove the lower front panel to access it. It's a small white plastic part with two spade terminals.

It's attached to the housing with one screw.

Can I use a generic dryer belt?

You can, but we recommend OEM or a well-reviewed aftermarket brand. Generic belts may stretch within months. A loose belt causes slipping, squealing, and poor tumbling.

The correct length is about 93.5 inches. Confirm the part number matches your old belt.

How do I reset the dryer after an overheat?

There is no reset button on this model. If the thermal fuse blew, it must be replaced. It's a one-time use part.

If the high-limit thermostat opened, it may reset automatically once the dryer cools. Test both with a multimeter to confirm.

Why does my dryer keep blowing the thermal fuse?

A repeatedly blown fuse means restricted airflow. Check the lint filter first. Then clean the entire vent run from the dryer to the outside cap.

Lint buildup is the most common cause. If the vent is clean, test the cycling thermostat. A stuck-closed thermostat causes overheating.

What do the error codes on a Neptune timer mean?

This model uses a mechanical timer, not a digital display. There are no error codes. If lights flash or the timer behaves oddly, it's usually a wiring issue or a failing timer motor.

Test for power at the timer terminals before replacing it.
